Batteries & chargers

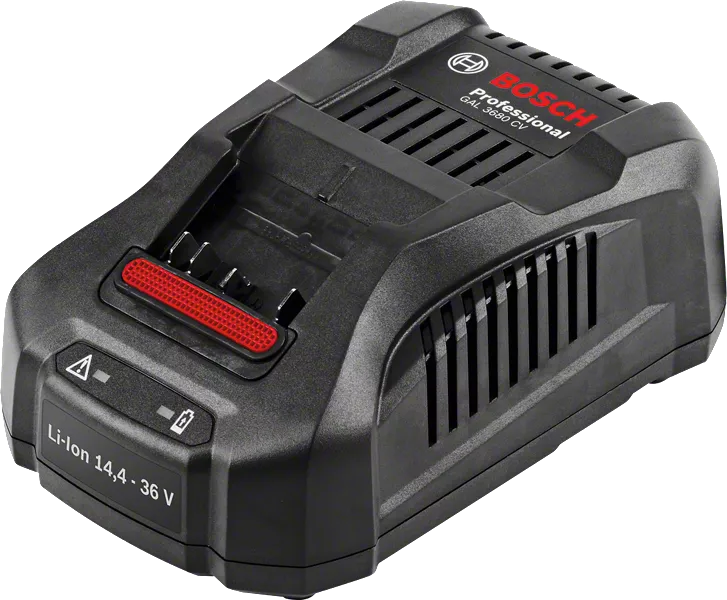

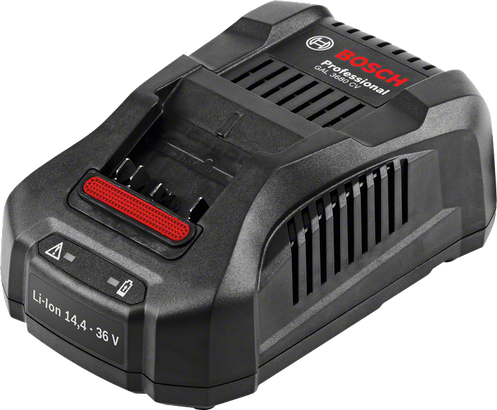

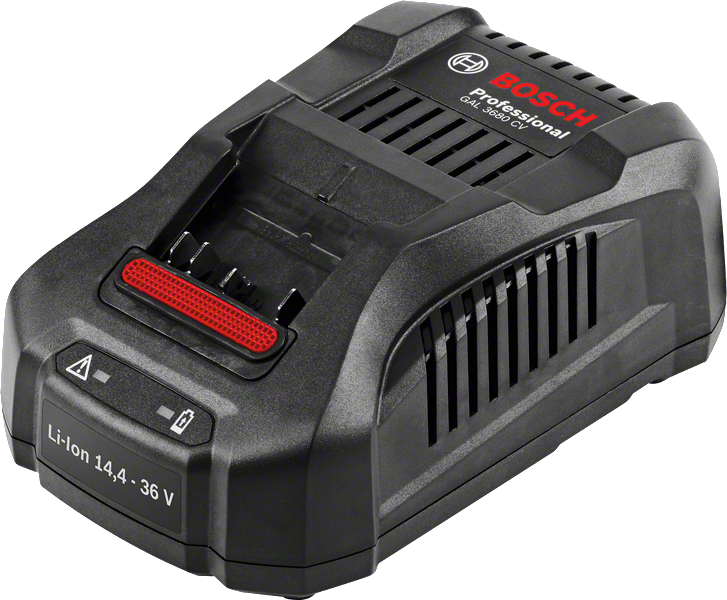

GAL 3680 CV Professional

Charger

The multi-volt quick charger for all Li-Ion batteries from 14.4 to 36 volts

  • 100% faster charging of the batteries (compared to AL 3640 CV)
  • Quick-charge mode: 4.0 Ah battery is ready to use with 80% of its capacity after only 25 mins
  • Active Air Cooling for longer lifetime of the batteries

Functions & key features

Charging current 8.0 A
Faster charging thanks to active air cooling
User-friendly thanks to cable winding function

Your Selection

  • in cardboard box with quick charger
Show variant
609.00 QAR
Recommended retail price excluding VAT
Find a local dealer

in cardboard box with quick charger 1 600 A00 4ZT
609.00 QAR
Recommended retail price excluding VAT

GAL 3680 CV Professional

Your Selection

GAL 3680 CV
in cardboard box with quick charger

Order number: 1 600 A00 4ZT

609.00 QAR
Recommended retail price excluding VAT
Find a local dealer

Included in this variant

  • Cardboard box
  • Quick charger GAL 3680 CV
    Order number: 2 607 225 902

Technical data

Additional data

Battery charging voltagenull 14.4 – 36 V
Charge currentnull 8 A
Weightnull 0.9 kg
Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.null 10/25 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.null 15/30 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.null 20/35 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.null 25/35 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.null 35/45 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.null 35/55 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.null 41/55 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.null 32/51 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.null 68/79 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.null 113/126 min
