Angle measurers and inclinometers

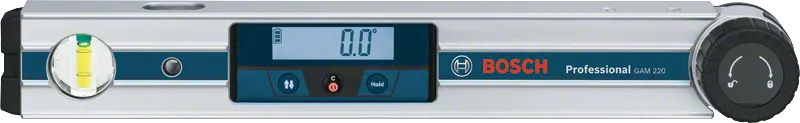

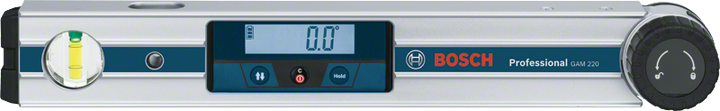

GAM 220 Professional

Angle Measurer

Precise and easy angle measurement

  • Fast and precise calculation of angles
  • Angles can be transferred precisely onto workpieces by means of a mechanical locking screw
See technical details

Functions & key features

Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Flip Display Rotating readout on display
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54

Your Selection

  • with 4 x battery (AA)
Show variant
869.00 QAR Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA) 0 601 076 500
869.00 QAR Recommended retail price excluding VAT

GAM 220 Professional

Your Selection

with 4 x battery (AA)

Order number: 0 601 076 500

869.00 QAR

Recommended retail price excluding VAT

Find a local dealer

Technical data

Additional data

Measurement range 0 – 220°
Arm length 40 cm
Measurement accuracy, angles ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80 h
Automatic deactivation, approx. 30 min
Weight, approx. 1.3 kg
