Combi lasers

GCL 25 Professional

Combi Laser

The easy solution for all levelling and transfer jobs over short distances

Extremely versatile: cross line laser and five-point laser in one
Easy to operate using intuitive user interface
Compact and ergonomic design

Functions & key features

Your Selection

with 4 x battery (AA), laser target plate

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

with 4 x battery (AA), laser target plate 0 601 066 B00

Find a local dealer

Select a variant

Your Selection

with 4 x battery (AA), laser target plate

Order number: 0 601 066 B00

Find a local dealer

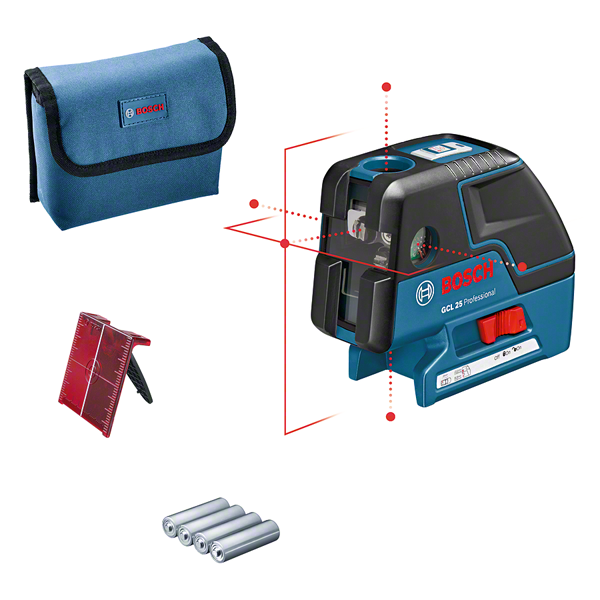

Included in all variants

Protective Bag
L-BOXX inlay for tool
4 x 1.5 V LR6 battery (AA)
Laser target plate

Your selection

Your Selection

with 4 x battery (AA), tripod

Order number: 0 601 066 B01

Find a local dealer

Included in all variants

Protective Bag
L-BOXX inlay for tool
4 x 1.5 V LR6 battery (AA)
Laser target plate

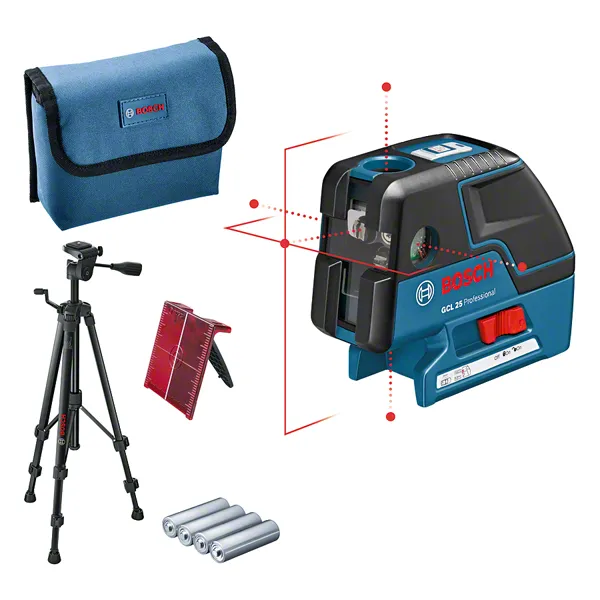

Additional in this variant

Building tripod BT 150 Professional

Order number: 0 601 096 B00

Select Variant

Technical data

Additional data
Tripod thread	1/4", 5/8"
Colour of laser line	red

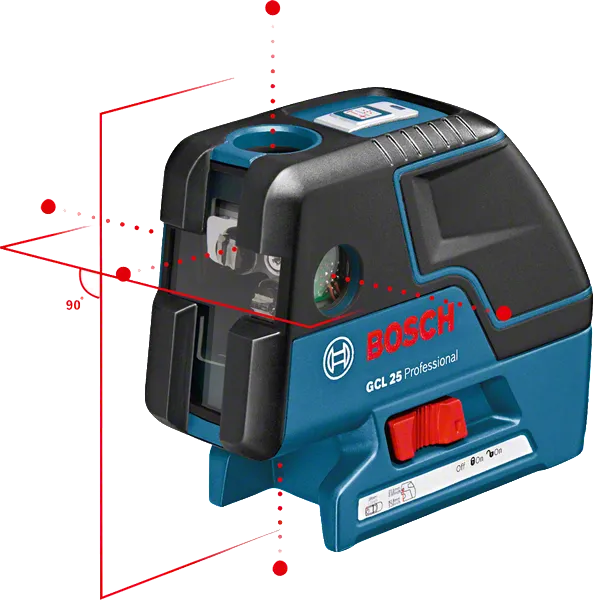

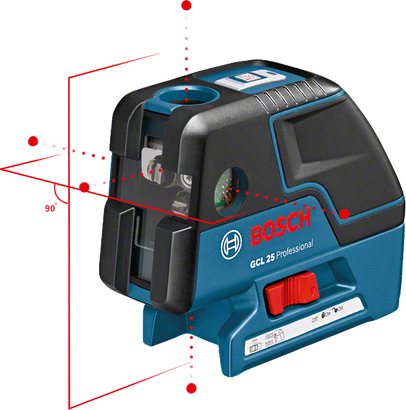

Projection	2 lines / 5 points
Working range	10 m
Accuracy	Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (plus use-dependent deviation), Horizontal laser line: ± 0.2 mm/m ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Dust and splash protection	IP 54
Laser diode	630 – 650 nm, < 1mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range of laser points, max.	10 m (top), 5 m (bottom), 30 m horizontal
Self-levelling range	± 4°
Levelling time	4 s
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	12 h in line and point mode, 24 h in 5-point mode, 30 h in line mode

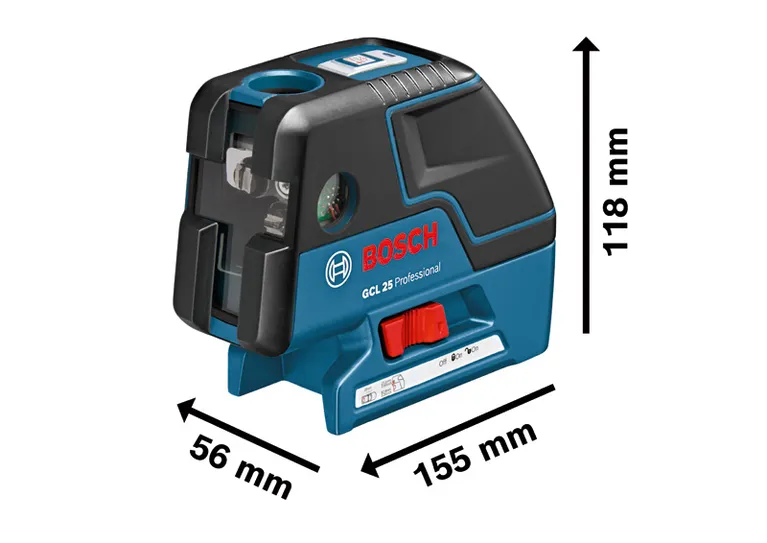

Weight, approx.	0.6 kg
Color of plumb points	red
Plumb point accuracy	± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value	10 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products
