Mitre saws & work benches

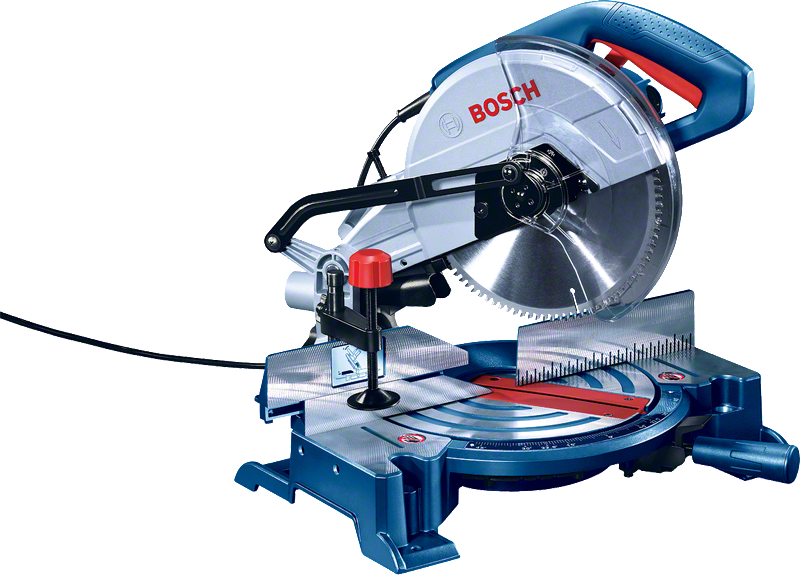

GCM 10 MX Professional

Mitre Saw

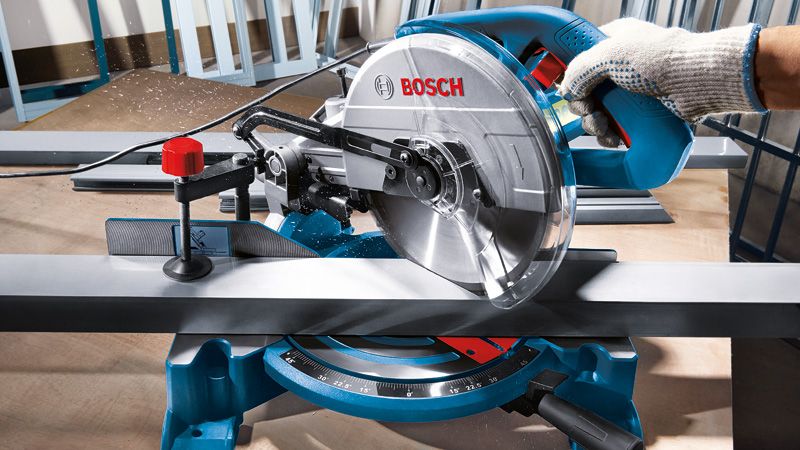

Engineered for precise Aluminium Cutting

  • High cutting efficiency and cutting precision
  • High performance of frequent aluminium cutting

Your Selection

  • with clamp
Show variant Find a local dealer

with clamp 0 601 B29 021

GCM 10 MX Professional

Your Selection

GCM 10 MX
with clamp

Order number: 0 601 B29 021

Find a local dealer

Included in this variant

  • Clamp
  • Dust bag
  • Multi-material cutting Saw blade 254 x 30 mm, 96T
  • Plate support

Technical data

Additional data

Saw blade diameter 254 mm
Mitre setting 47 ° L / 52 ° R
Bevel setting 45 ° L
Saw blade bore diameter 30 mm
Rated input power 1,700 W
Cutting capacity, 0° 89 x 89 mm
Cutting capacity, 45° mitre 62 x 130 mm
Cutting capacity, 45° bevel 86 x 67 mm
Tool dimensions (width x length x height) 535 x475 x330 mm
No-load speed 4,800 rpm
Weight 16.08 kg

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

GCM 10 MX

* You can find more information about the deviations in the following link: Technical features of products
