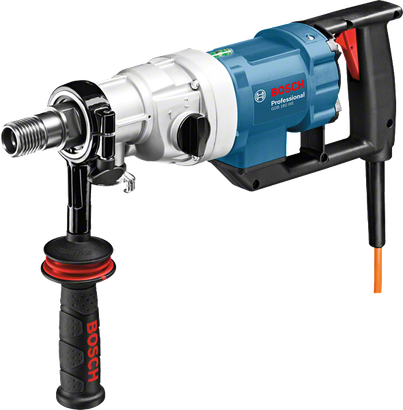

GDB 180 WE Professional

Diamond Drill

Order number 0.601.189.800

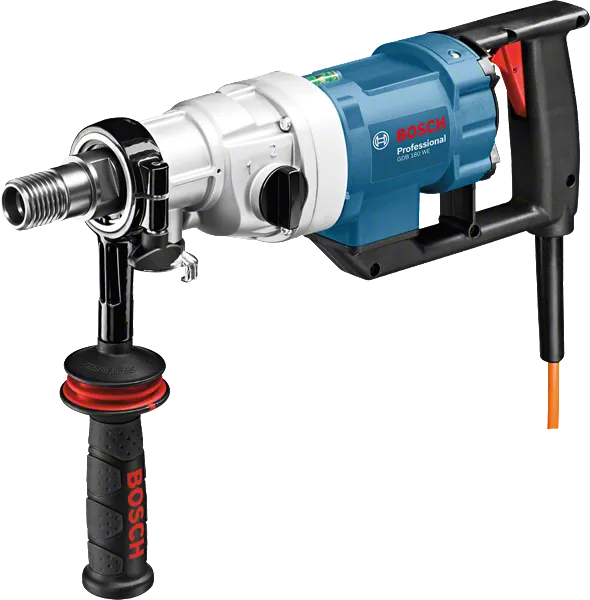

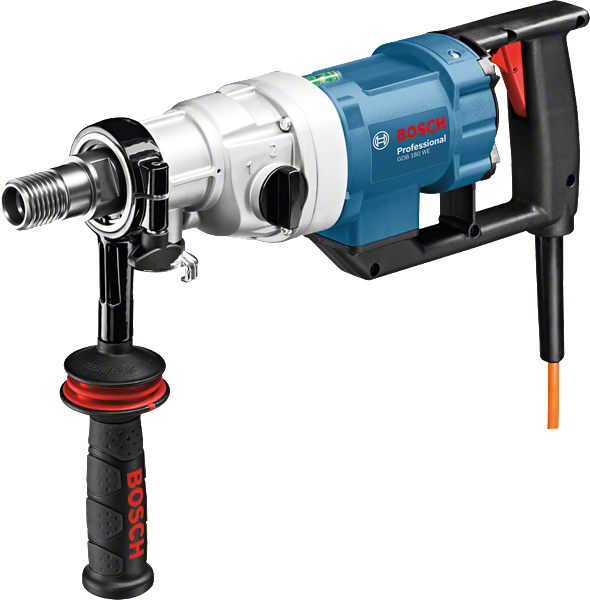

  • Incredibly powerful 2,000 W motor facilitates breakthroughs in reinforced concrete of up to 180 mm in diameter
  • Extremely durable due to a robust design and a gearbox with oil-bath lubrication
  • Wet and dry operation enables use in versatile applications
View more
Dropdown closed

in carrying case with dust extraction accessory 0 601 189 800

Select a variant

Your Selection

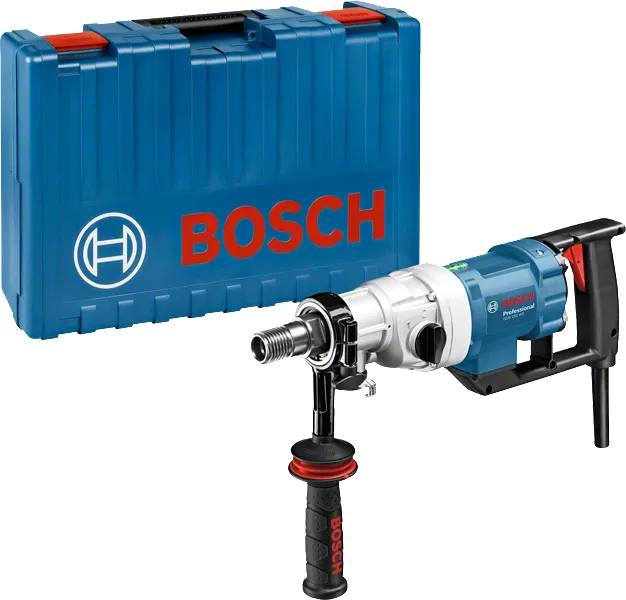

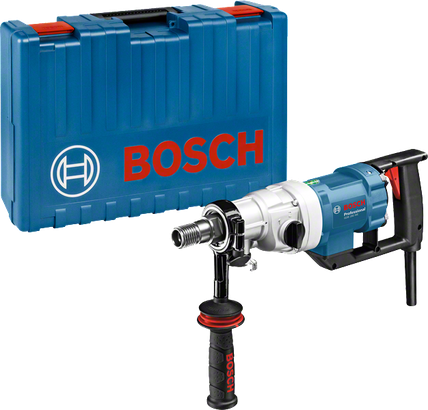

Bosch GDB 180 WE diamond drill with carrying case.
in carrying case with dust extraction accessory

Order number: 0 601 189 800

Find a local dealer

Included in all variants

  • Dust extraction adapter
  • Ball valve
  • Carrying case

Your Selection

Bosch GDB 180 WE diamond drill with carrying case.
in carrying case with dust extraction accessory

Order number: 0 601 189 870

Find a local dealer

Included in all variants

  • Dust extraction adapter
  • Ball valve
  • Carrying case

Additional in this variant

  • Open-ended spanner

Technical data

Additional data

Rated input power
2000 W
No-load speed
900 / 2,800 rpm
Tool holder
1 1/4" UNC
Voltage, electrical
230 V
Weight
5.2 kg
Drilling range
180 mm
Drill spindle connecting thread
1 1/4" UNC
Suitability
Wet drilling in concrete
Show more

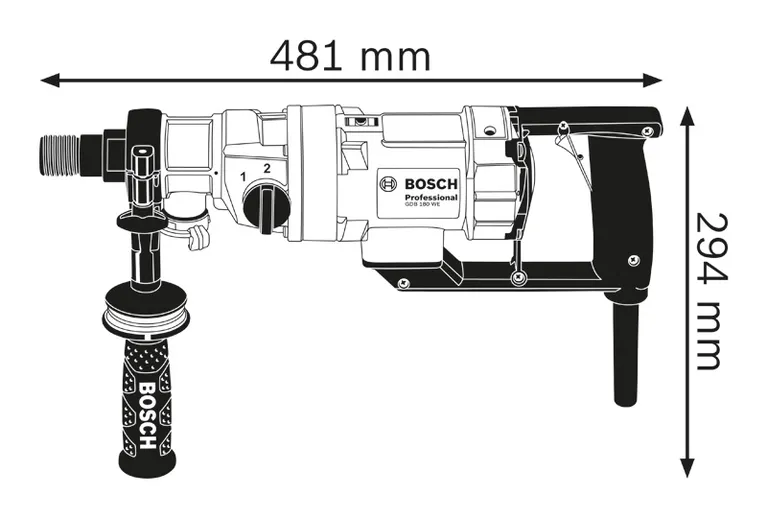

Diamond drill dimensions

* You can find more information about the deviations in the following link: Technical features of products

GDB 180 WE Professional: Further information

Product Highlights

The GDB 180 WE Professional is a corded versatile 2-gear diamond drill suitable for both hand-held and stand-mounted operation. Its incredibly powerful 2,000 W motor facilitates breakthroughs in reinforced concrete of up to 180 mm in diameter. It is also extremely durable due to a robust design and a gearbox with oil-bath lubrication. Capable of wet and dry operation, this drill is perfect for versatile applications.

Equipment & Application

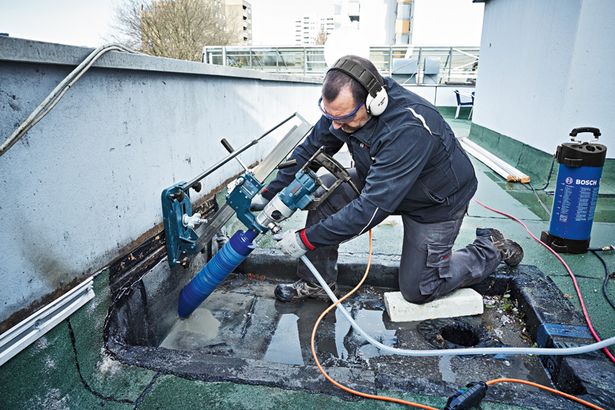

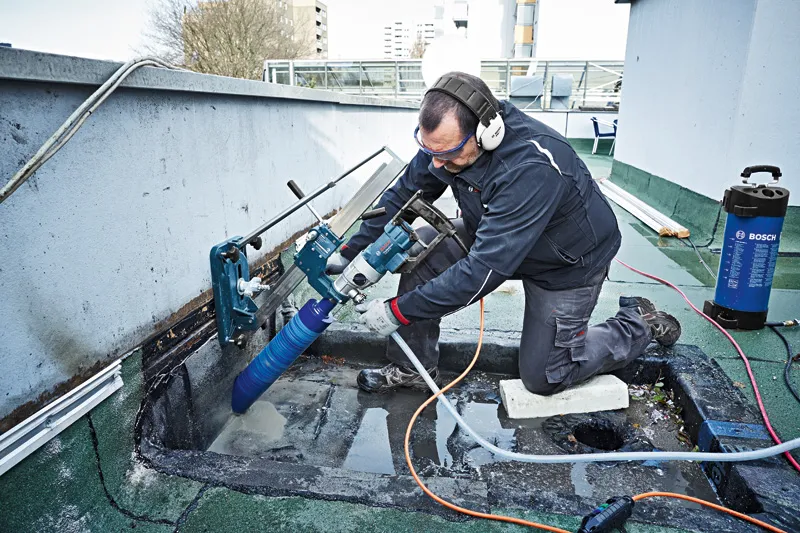

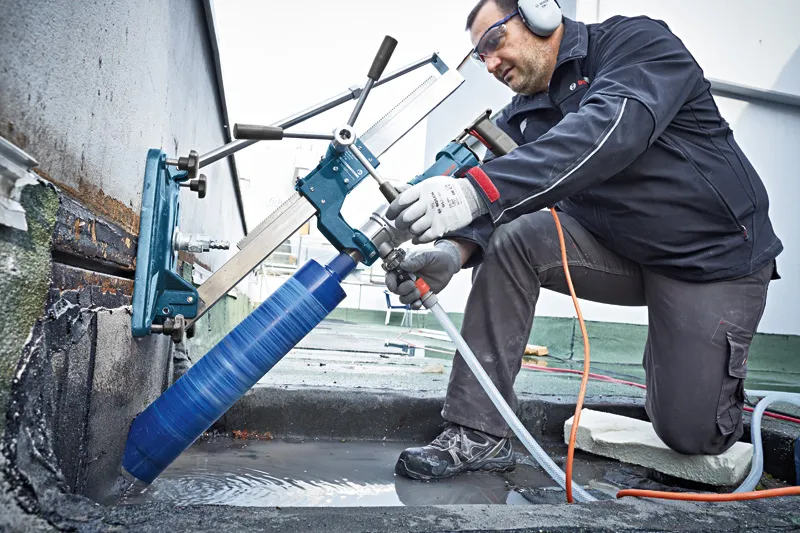

This tool is intended for core drilling in concrete and reinforced concrete. It is compatible with the GCR 180 Professional stand as well as the Bosch Click & Clean dust extraction system.

Additional Information

The GDB 180 WE Professional also features 2-gears.
