Diamond drilling systems

GDB 350 WE Professional

Diamond Drill

Order number 0.601.189.900

  • Incredibly powerful 3,200 W motor is ideal for breakthroughs in reinforced concrete of up to 350 mm in diameter
  • Extremely durable due to a highly robust design
  • Gearbox with oil-bath lubrication for a long tool lifetime
View more
Dropdown closed
Find a local dealer
GDB 350 WE Professional 0 601 189 900
Find a local dealer

GDB 350 WE Professional

Your Selection

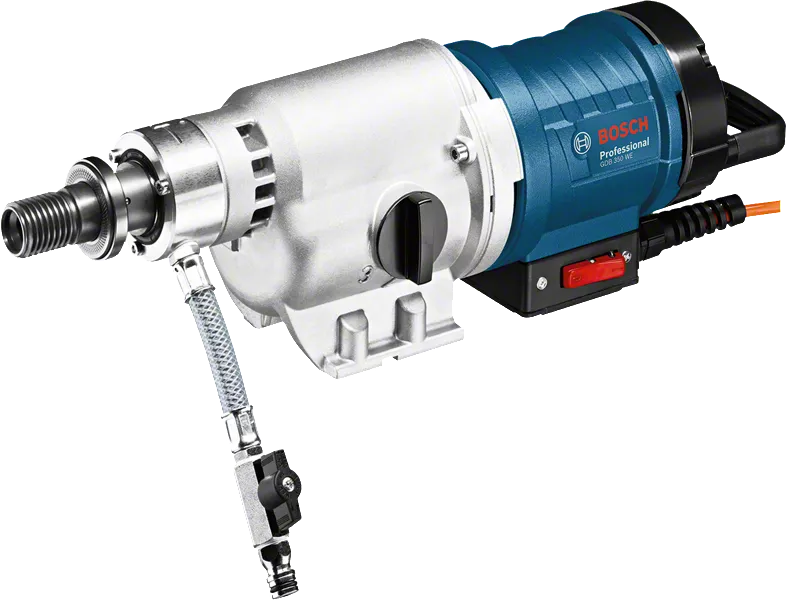

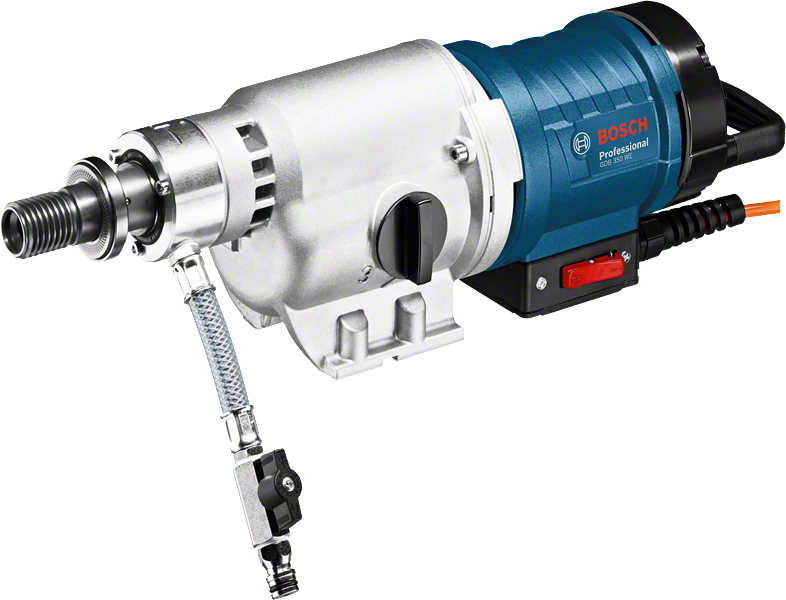

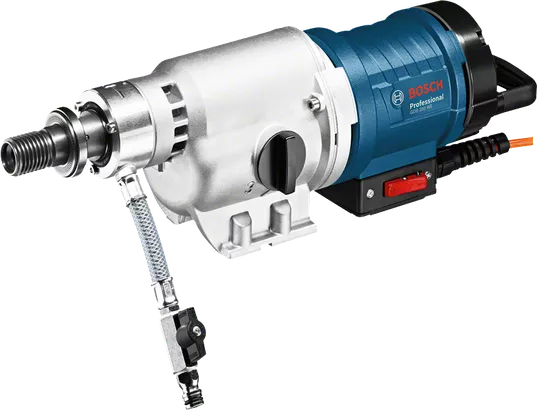

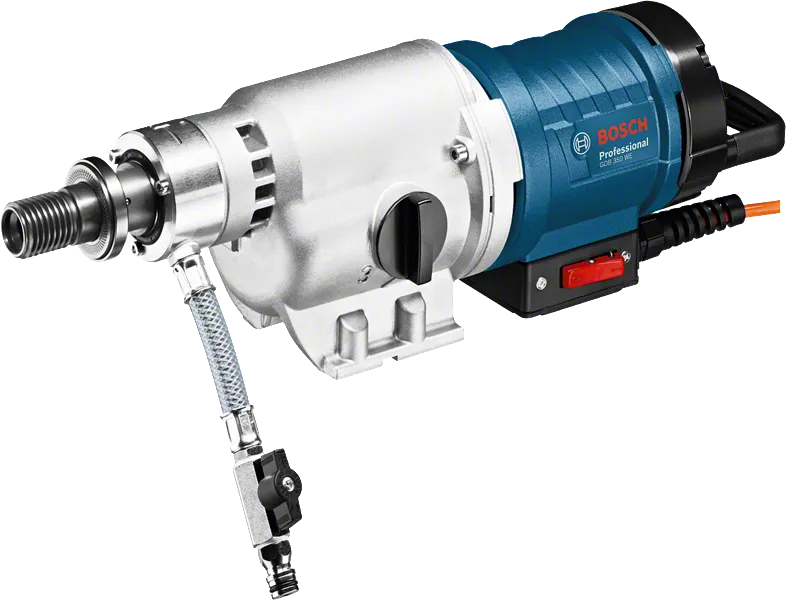

Bosch GDB 350 WE diamond core drill for concrete drilling.

Order number: 0 601 189 900

Find a local dealer
Your selection

Technical data

Additional data

Rated input power
3200 W
Tool holder
1 1/4" UNC
Voltage, electrical
230 V
Weight
11.9 kg
Drilling range
350 mm
Suitability
Wet drilling in concrete
Show more

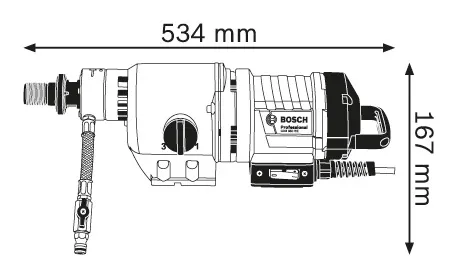

Bosch drill dimensions labeled.

* You can find more information about the deviations in the following link: Technical features of products

GDB 350 WE Professional: Further information

Product Highlights

The GDB 350 WE Professional is a high-powered 3-gear corded diamond drill suitable for stand-mounted operation. Its incredibly powerful 3,200 W motor is perfect for breakthroughs in reinforced concrete of up to 350 mm in diameter. It is extremely durable due to a highly robust design. A long tool lifetime is also further supported by the diamond drill´s gearbox with oil-bath lubrication.

Equipment & Application

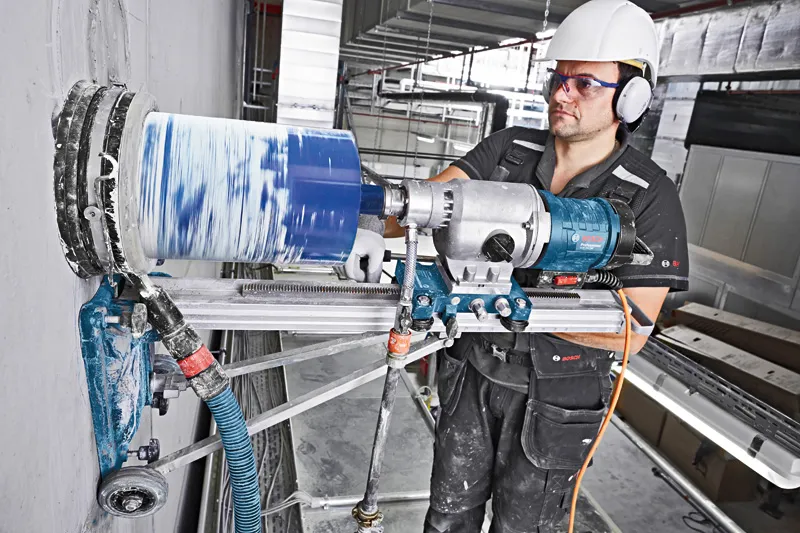

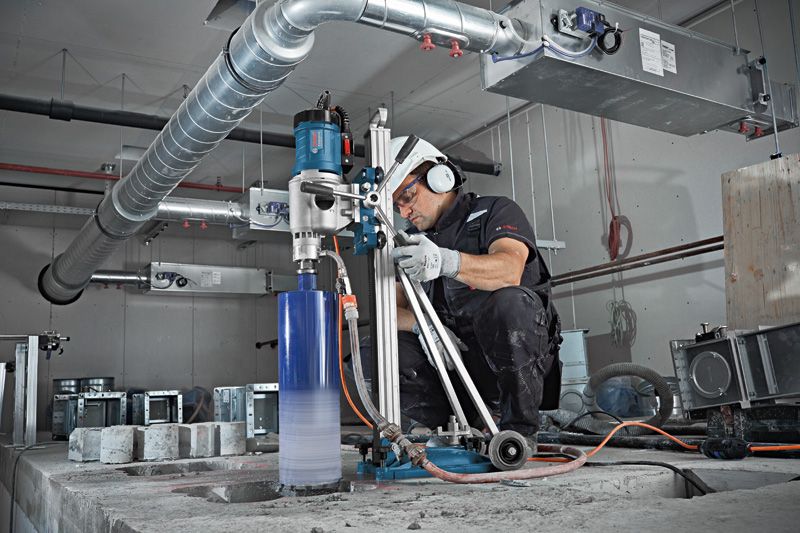

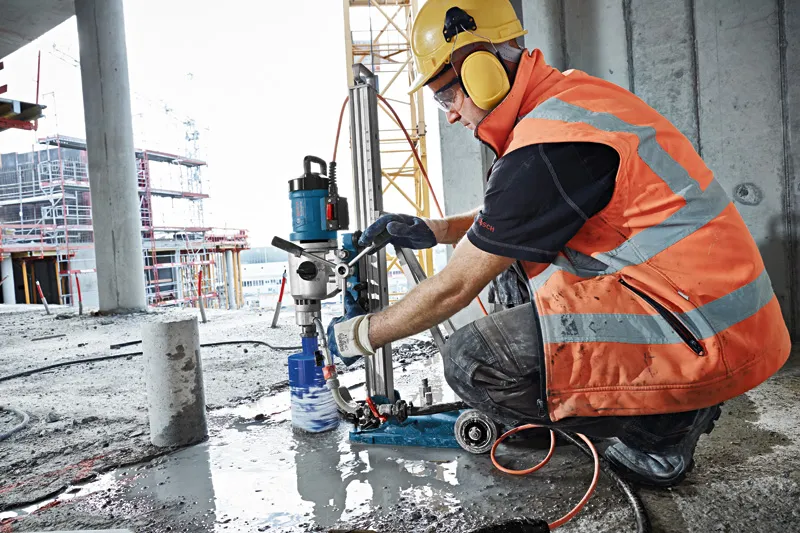

This tool is intended for core drilling in concrete and reinforced concrete. It is compatible with the GCR 350 Professional stand as well as the Bosch Click & Clean dust extraction system.

Additional Information

The GDB 350 WE Professional also features 3-gears.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Fits to GDB 350 WE Professional

PRO
Bosch PRO Core Cutter wet 52x450mm for precise drilling.

PRO Core Cutter wet

For diamond drills

Long Life wet drilling in concrete

Material

Concrete
Reinforced concrete
PRO
Bosch PRO Core Cutter wet 28x300 mm G 1/2-inch.

PRO Core Cutter wet

For diamond drills

Long Life wet drilling in concrete

Material

Concrete
Reinforced concrete

Downloads

User Manual

Instruction manual | GCR 350 | GDB 350 WE (PDF 12.2 MB) Insert | Herstellergarantie | Manufacturer's guarantee (EU) (PDF 0.2 MB) Insert | GDB 350 WE | GCR 350 (PDF 0.2 MB)
Product data sheet Product data sheet | GDB 350 WE (PDF 1.5 MB)
