Angle measurers and inclinometers

GIM 60 Professional

Digital Inclinometer

Precise digital inclinometer

  • Measures precise tilts in degrees, percent or millimetres/metres
  • Direction arrows and audible signals at 0° and 90° for easy alignment
  • Measured values automatically turn on the display when working overhead

Functions & key features

Display Illumination
IP54 dust and splash water protection
Hold and transfer measuring result
Flip Display

Your Selection

  • with 4 x battery (AA), Protective Bag
Show variant Find a local dealer

with 4 x battery (AA), Protective Bag 0 601 076 700

GIM 60 Professional

Your Selection

GIM 60
with 4 x battery (AA), Protective Bag

Order number: 0 601 076 700

Find a local dealer

Included in this variant

  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

Technical data

Additional data

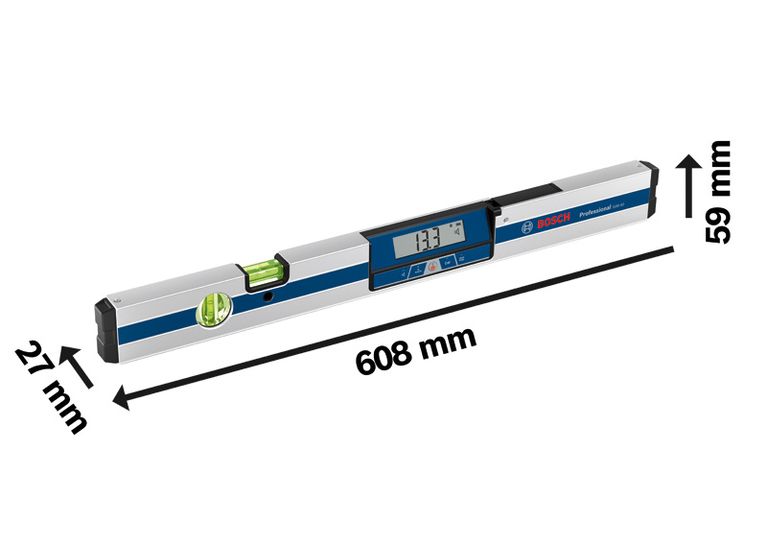

Length 60 cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.2°
Measurement accuracy, vials ± 0.057° = ± 1 mm/m
Power supply, inclination measurement 1 x 9 V 6LR61
Weight approx. 0.77 kg
Units of measurement °, %, mm/m

GIM 60

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
