Line Laser GLL 3-50 Professional

The convenient solution for all standard levelling and transfer applications

from  1,999.00 QAR Recommended retail price excluding VAT.

Technical data
Additional data
Working range with receiver up to 50 m
Working range up to 10   m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Operating temperature -10 – 40   °C
Storage temperature -20 – 70   °C
Working range without receiver 10 m
Laser diode 635 nm, < 1 mW
Laser class 2
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h
Tripod thread 1/4", 5/8"
Weight, approx. 0.94   kg
Projection 3 lines
Plumb point accuracy ± 0,6 mm/m *(* plus use-dependent deviation)

Advantages

The convenient solution for all standard levelling and transfer applications

  • Two vertical laser lines, one horizontal laser line, one plumb dot: ideal for a wide range of jobs such as squaring
  • Compact design makes handling simple
  • Rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line offer great flexibility

Functions

Icon
Working range + receiver Range with receiver up to 50 m

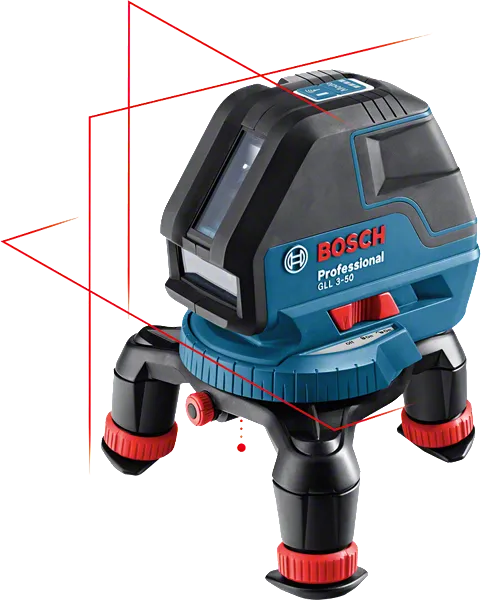

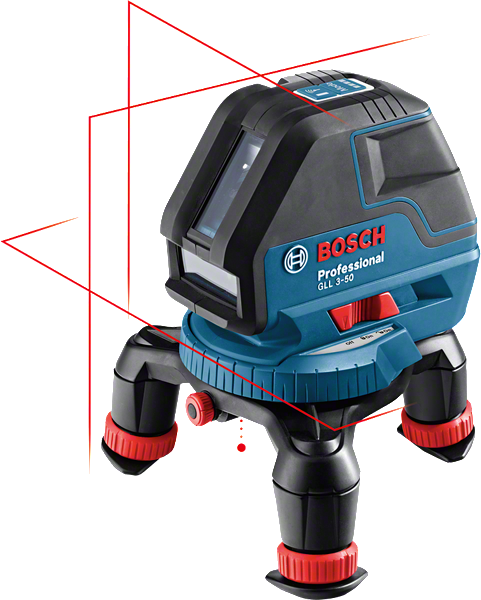

Working range Range of up to 10 m
Icon
Icon
Icon
Laser scheme packaging Accurate alignment due to horizontal and vertical multi laser lines
Icon
Icon
Icon
Levelling time Short levelling time of four seconds
Icon

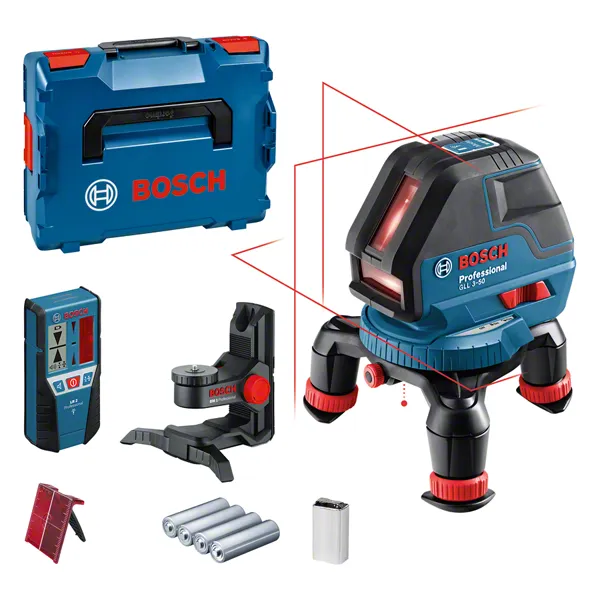

What’s Included in this Package
with Accessory, laser target plate
with Accessory, laser target plate
Order number: 0 601 063 803
  • Laser target plate
  • L-BOXX inlay for tool
  • L-BOXX 136 1 600 A01 2G0
  • Laser receiver LR 2 Professional 0 601 069 100
  • Universal Holder BM 1 Professional 0 601 015 A00
  • 1 x 9 V block battery (6LR61)
  • 4 x 1.5 V LR6 battery (AA)
1,999.00 QAR Recommended retail price excluding VAT.
