GLM 100-25 C Professional
Laser Measure
Order number 0.601.072.Y00
- Accurate, 100-m laser measuring thanks to digital camera viewfinder with zoom function
- Large, high-contrast IPS colour display with flip screen ensures optimal reading
- Laser measure connects via Bluetooth for efficient data documentation
with 3 x battery (AA), accessory set
0 601 072 Y00
Select a variant
Your Selection
with 3 x battery (AA), accessory set
Order number: 0 601 072 Y00
Find a local dealerIncluded in all variants
-
Pouch
-
3 x 1.5 V LR6 battery (AA)
Additional in this variant
-
Carrying Strap
Your Selection
with 3 x battery (AA), accessory set
Order number: 0 601 072 YK0
Find a local dealerIncluded in all variants
-
Pouch
-
3 x 1.5 V LR6 battery (AA)
Additional in this variant
-
Manufacturer’s certificate
Technical data
Additional data
Tripod thread
1/4"
Measurement time, typical
0.5 s
Laser diode
650 nm, < 1 mW
Measurement range
0.080 – 100.000 m
Laser class
2
Measurement accuracy, typical
± 1.5 mm
Measurement range of incline measurement
0 – 360° (4 x 90°)
Measuring accuracy (typical)
± 0.2°
Measurement time, max.
4 s
Power supply
3 x 1.5 V LR6 (AA)
Automatic deactivation
5 min
Weight, approx.
0.23 kg
Units of measurement
m/cm/mm/ft/inch/ft-inch
Memory capacity (values)
50
Dust and splash protection
IP 54
Digital viewfinder
integrated
Data transfer
Bluetooth™ 4.2 Low Energy
Laser colour
Red
Measuring range, up to
100 m
* You can find more information about the deviations in the following link:
GLM 100-25 C Professional: Further information
Product Highlights

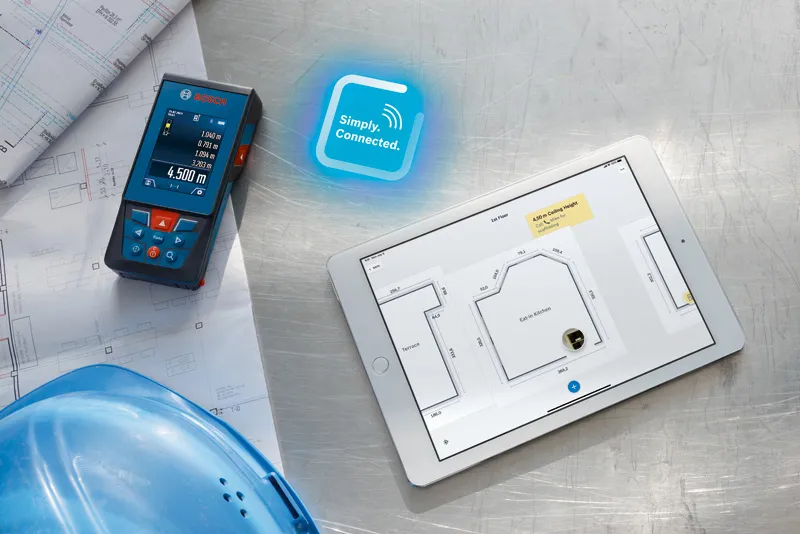

This professional outdoor laser measure features a digital camera viewfinder with a zoom function that precisely measures distances up to 100 m. The camera picture and measurements are easy to see on the big, high-contrast, 2.8” IPS colour display, which rotates for portrait or landscape view. For convenient documentation, measurement results can be transferred via Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution for tough job sites thanks to IP54 dust and water protection, and scratch-resistant display glass.
Equipment & Application

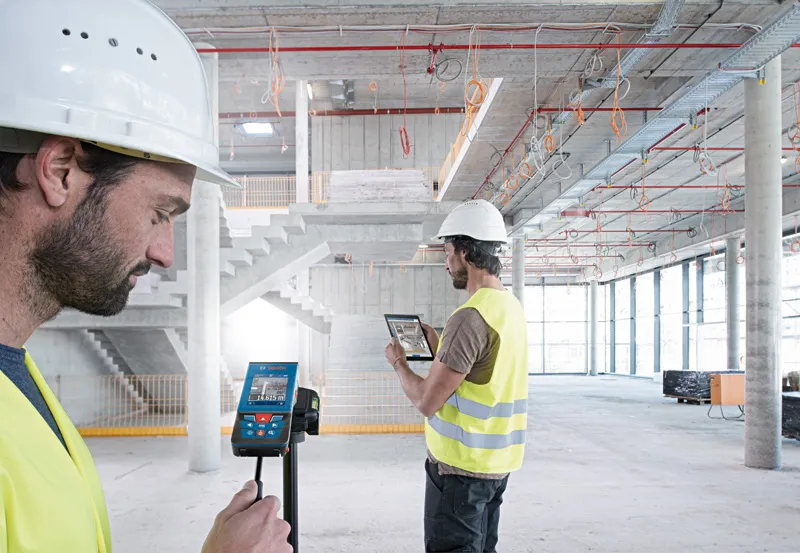

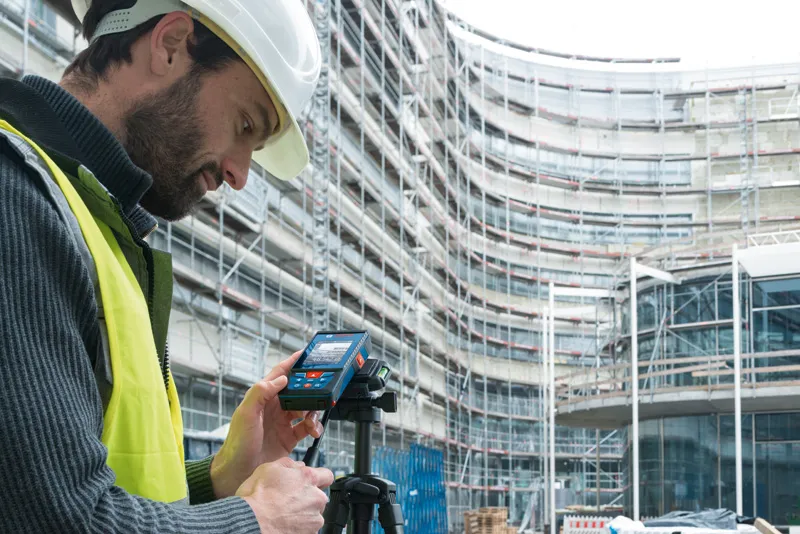

Architects, construction managers, and electricians will appreciate the outdoor capability, easy readability, and convenient documentation of this robust laser measure.
Additional Information
The GLM 100-25 C Professional has a user-friendly HMI interface with a click wheel for access to all features. A useful help option displays detailed images of each measuring function for easy comprehension.
