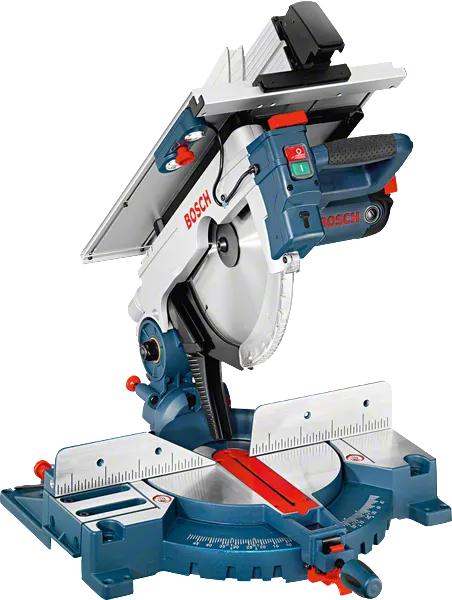

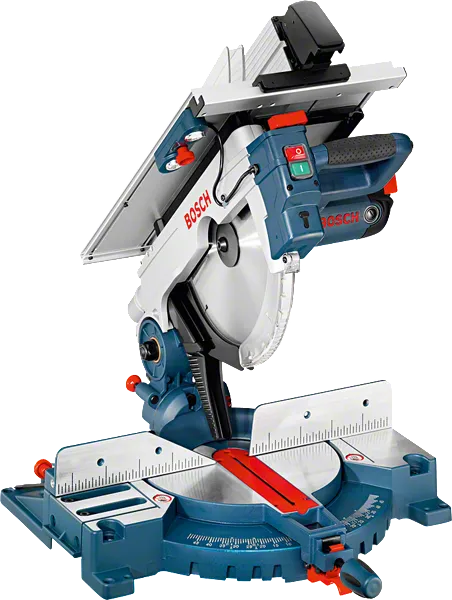

GTM 12 JL Professional
Combination Saw
Multi-talented tool with 100% precision
- Table saw and mitre saw in one tool
- Precise work with integrated laser
- Powerful 1800 W motor for fast work progress (up to 95 mm cutting depth – mitre function and up to 51 mm cutting height – table saw function)
Functions & key features
with circular saw blade, Accessory
0 601 B15 071
GTM 12 JL Professional
Your Selection
with circular saw blade, Accessory
Order number: 0 601 B15 071
Find a local dealerIncluded in this variant
-
Voltage 240 V
-
1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40Order number: 2 608 640 440
-
Push stickOrder number: 1 619 P04 042
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 305 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 2 ° R |
| Saw blade bore diameter | 30 mm |
| Rated input power | 1,800 W |
| Cutting capacity, 0° | 95 x 150 mm |
| Cutting capacity, 45° mitre | 95 x 90 mm |

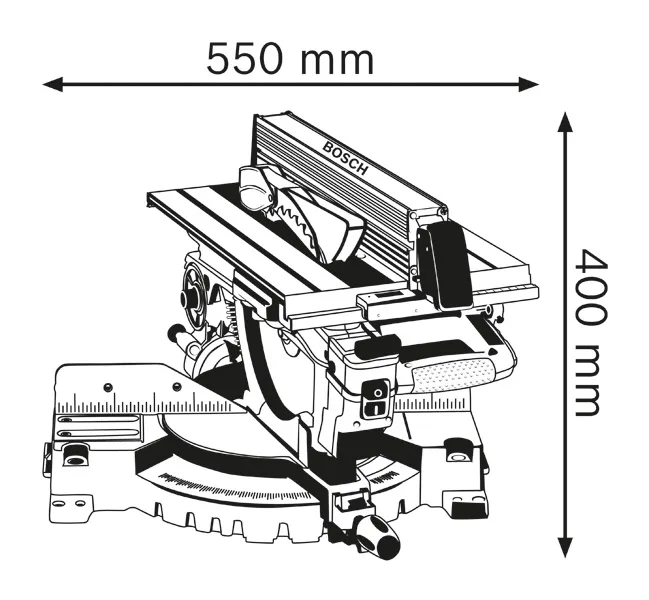

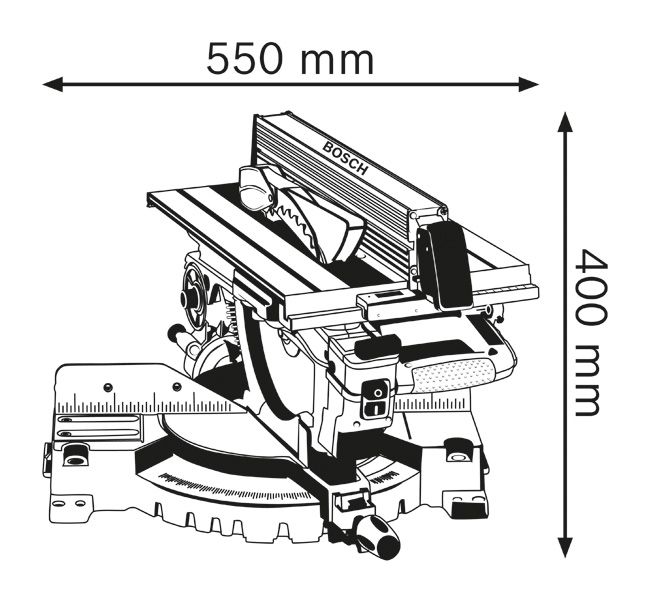

| Tool dimensions (width x length x height) | 660 x550 x400 mm |
| No-load speed | 3,800 rpm |
| Cutting height of table saw | 51 mm |
| Weight | 21 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
