GWS 24-230 PZ Professional

Angle Grinder

Order number 0.601.8C3.400

  • Powerful 2,400 W motor for strong cutting and grinding
  • Revolutionary CYCLON TECH dust protection system for significantly longer lifetime
  • Reduced vibration through smoother motor operation and anti-vibration auxiliary handle
View more
Find a local dealer
in cardboard box with auxiliary handle 0 601 8C3 400
Find a local dealer

GWS 24-230 PZ Professional

Your Selection

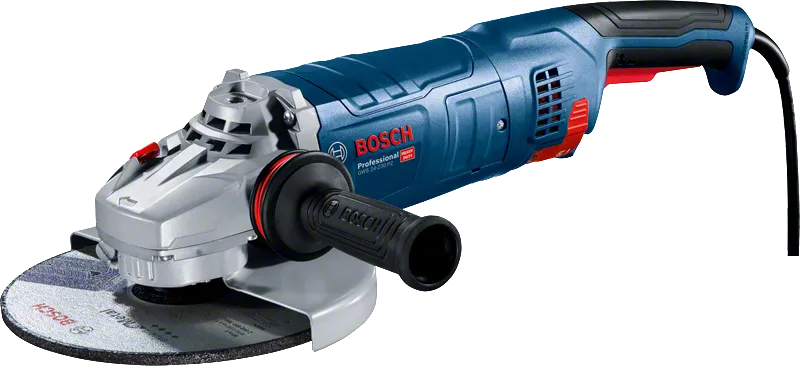

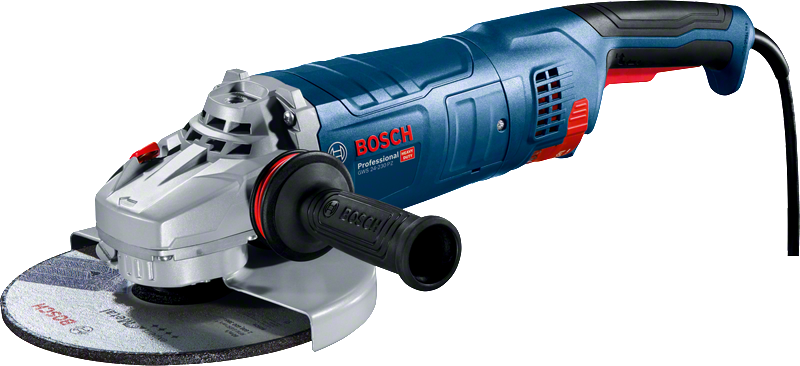

Bosch GWS 24-230 PZ angle grinder with ergonomic handle.
in cardboard box with auxiliary handle

Order number: 0 601 8C3 400

Find a local dealer

Included in this variant

  • Two-hole spanner
    Order number: 1 607 950 061
  • Cardboard box
  • Locking nut
    Order number: 1 603 345 043
  • Protective cover
    Order number: 1 619 P15 668
  • Auxiliary handle
    Order number: 1 602 025 030
  • Backing flange (spare part number 2 605 703 014)
Your selection

Technical data

Additional data

Rated input power
2400 W
No-load speed
5,200 – 6,500 rpm
Speed output no-load, nominal max.
6,500 rpm
Disc diameter
230 mm
Voltage, electrical
230 V
Power output
2,400 W
Grinding spindle thread
M14
Main handle
Rattail
Rubber backing pad, diameter
180 mm
Wire cup brush, diameter
100 mm
Cup wheel, diameter
110 mm
Bore size, diameter
22.23 mm
Grinding head, diameter
140 mm
Weight
5.9 kg
Switch
PROtection Switch
Show more

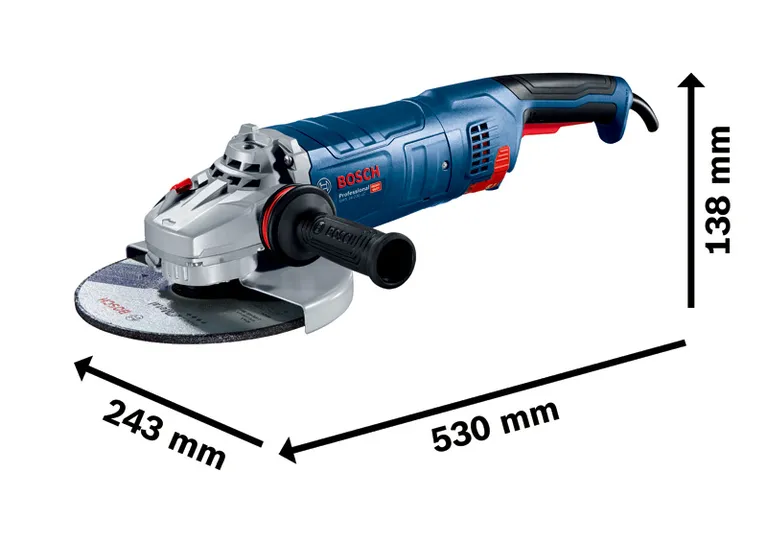

Bosch GWS 24-230 JZ angle grinder with ergonomic handle.

* You can find more information about the deviations in the following link: Technical features of products

GWS 24-230 PZ Professional: Further information

Product Highlights

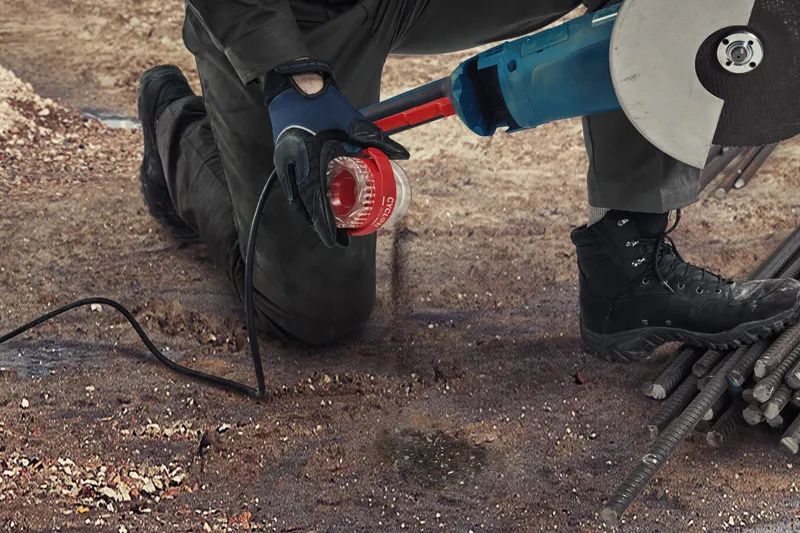

The powerful GWS 24-230 PZ Professional angle grinder comes with the revolutionary CYCLON TECH dust protection system and safety features for increased user protection. A tough 2,400 W motor delivers robust cutting and grinding. The built-in CYCLON TECH dust protection system prolongs lifespan by collecting up to 90% of dust into the angle grinder. Worker comfort and user protection are improved by a smoother motor operation and an anti-vibration auxiliary handle.

Equipment & Application

This angle grinder is ideal for cutting metal, grinding stone, and for application on a variety of materials. It is compatible with Bosch’s GDE 230 FC-S dust attachment.

Additional Information

The GWS 24-230 PZ Professional offers a PROtection switch for enhanced user protection.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601HC3403

Product name

GWS 24-230 PZ

Description

Angle Grinder

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GWS 24-230 PZ, G ... GWS 24-230, GWS 24-180 (PDF 17.5 MB) Insert | Herstellergarantie (EU),Manufacturer's guarantee (EU) (PDF 0.2 MB)
Product data sheet Product data sheet | GWS 24-230 PZ (PDF 1.5 MB)
