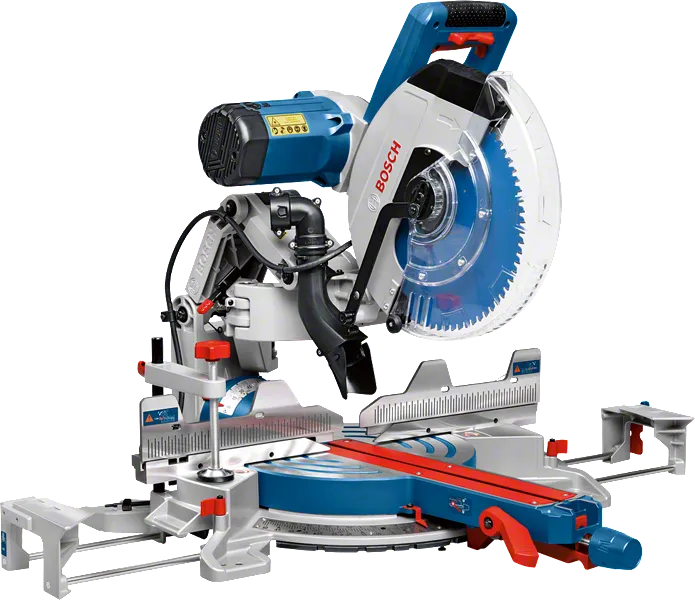

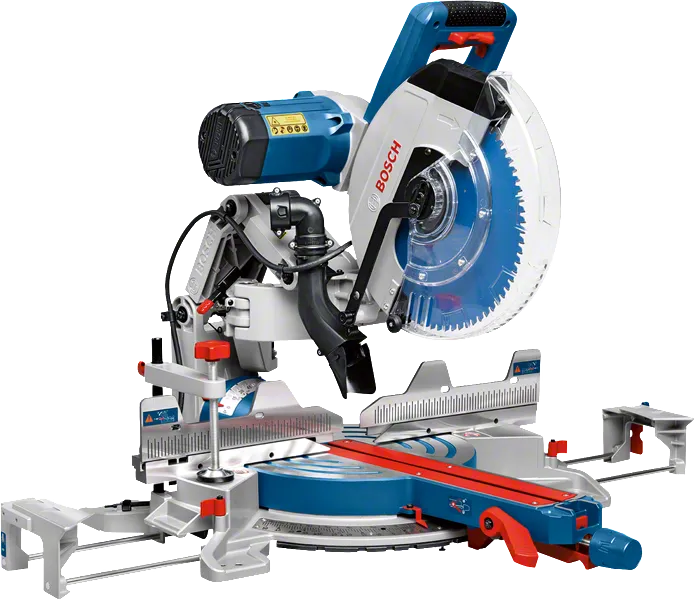

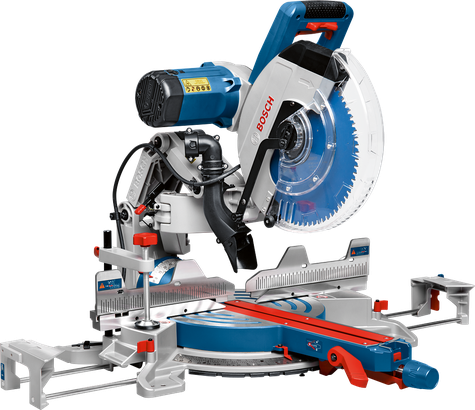

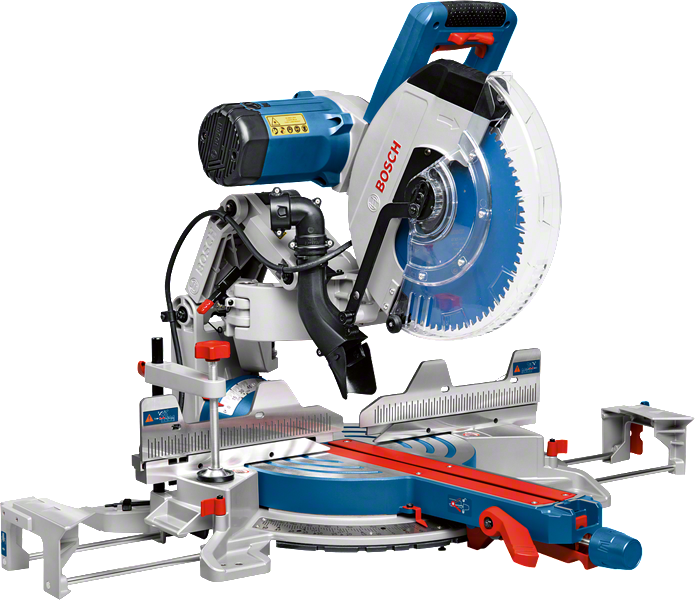

GCM 12 GDL Professional

Mitre Saw

Unmatched cutting smoothness and durable precision

  • Extreme cutting smoothness because of innovative and maintenance-free gliding system
  • Integrated dual line laser supports accurate cuts
  • High vertical and horizontal cutting capacity
See technical details

Functions & key features

Laser class 2 Laser class for measuring tools.
Easy disc / tool change thanks to spindle lock
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • with collet, Accessory
Show variant Find a local dealer

with collet, Accessory 0 601 B23 670

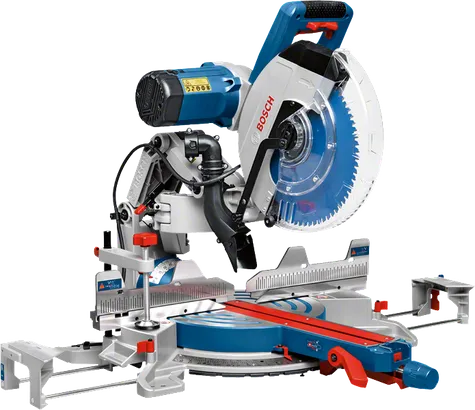

GCM 12 GDL Professional

Your Selection

with collet, Accessory

Order number: 0 601 B23 670

Find a local dealer

Included in this variant

  • Voltage 240 V
  • 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72
    Order number: 2 608 642 531
  • Collet (spare part number 1 609 B02 585)
  • Internal hexagon
    Order number: 1 609 B00 256
  • Insert plate
    Order number: 1 609 B02 375

Technical data

Additional data

Rated input power 2,000 W
Saw blade diameter 305 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R
Saw blade bore diameter 30 mm
Cutting capacity, 0° 104 x 341 mm
Cutting capacity, 45° mitre 104 x 240 mm
Cutting capacity, 45° bevel 51 x 341 mm

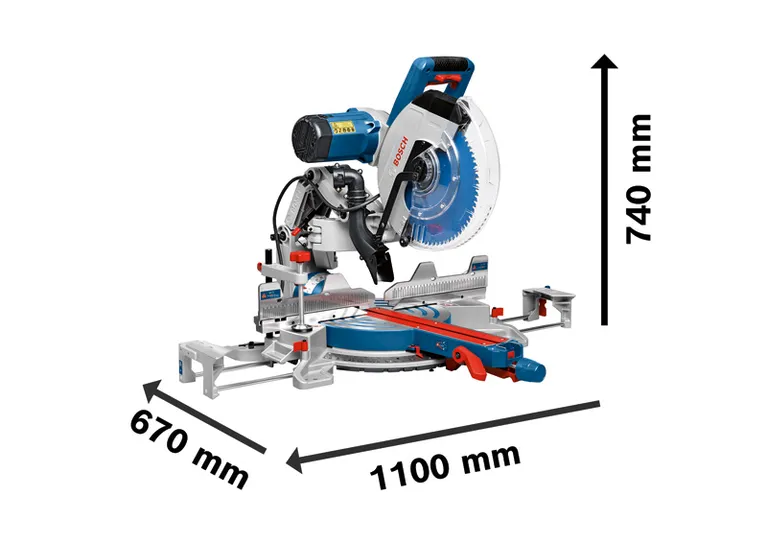

Tool dimensions (width x length x height) 670 x1100 x740 mm
No-load speed 4,000 rpm
Weight 32.1 kg
