For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 2 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Perfect Cuts in Aluminium
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 117 | 190 | Star | 2.6/1.8 | 58 | 1 Pcs | Find a local dealer | ||
| 2 608 644 118 | 225 | 30 | 2.6/1.8 | 68 | 1 Pcs | Find a local dealer | ||
| 2 608 644 119 | 250 | 30 | 2.8/2 | 68 | 1 Pcs | Find a local dealer |
out of products

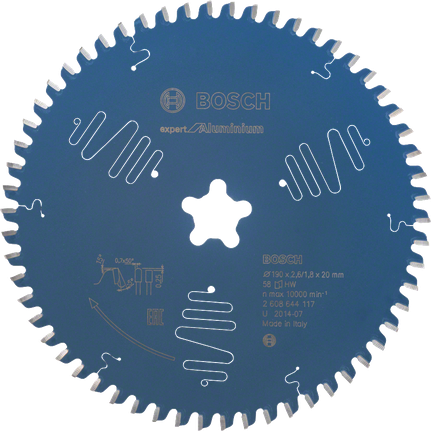

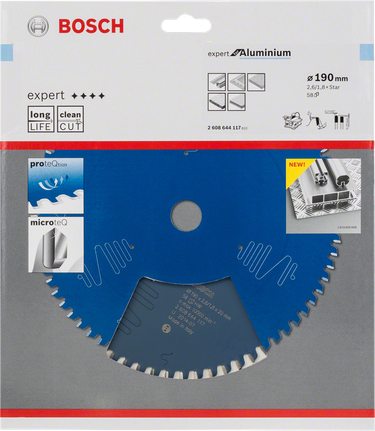

| Part number 2608644117 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | Star |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.8 |
| Number of teeth | 58 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |

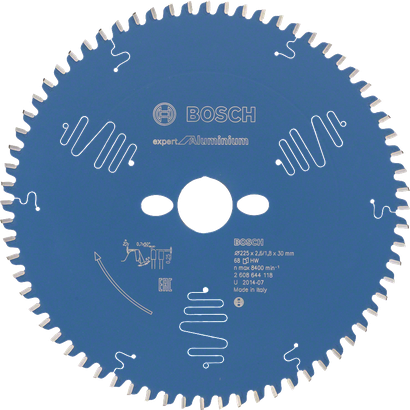

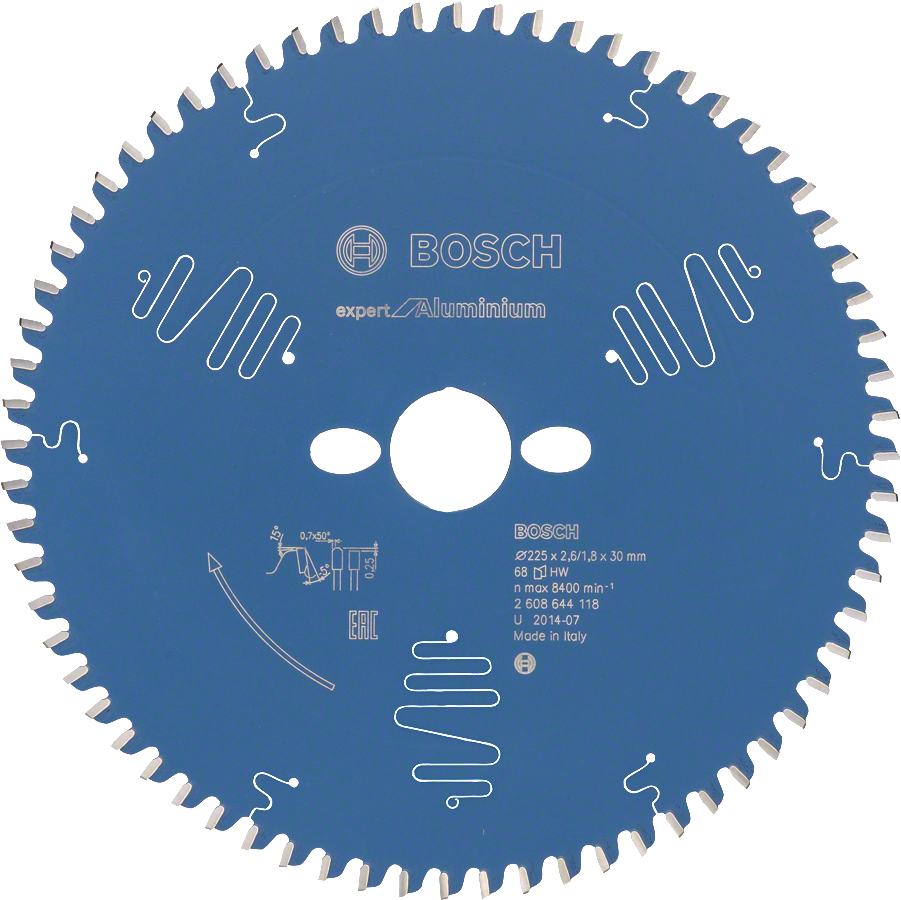

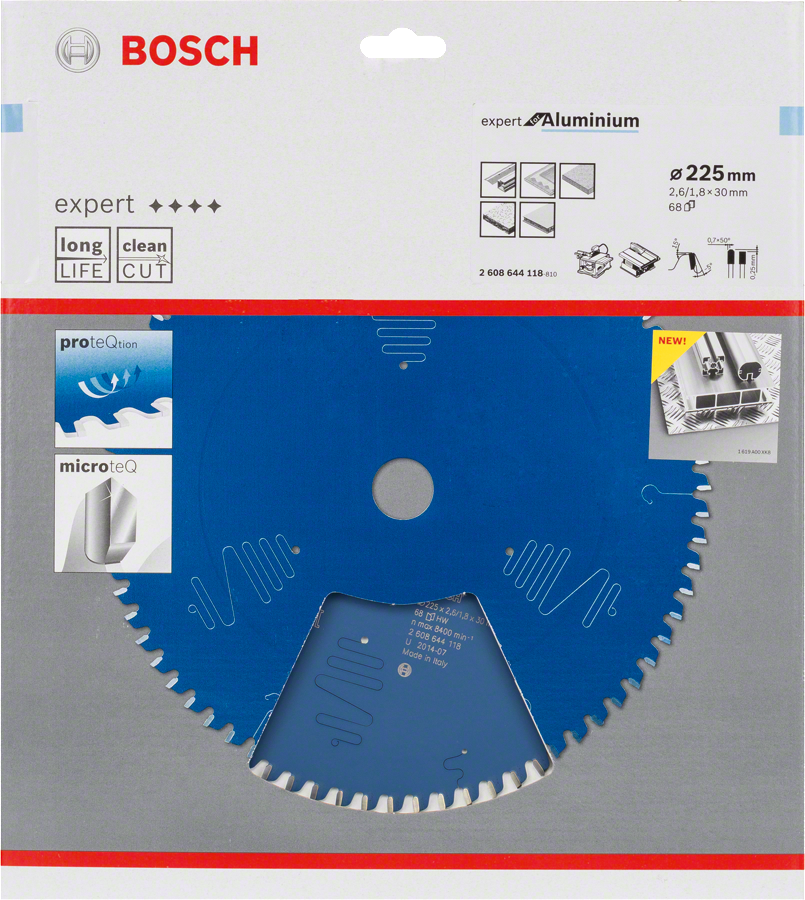

| Part number 2608644118 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 225 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.8 |
| Number of teeth | 68 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8400 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Part number 2608644119 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/2 |
| Number of teeth | 68 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7600 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
