For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 22 options
Number of teeth 11 options
Width of cut (b1) mm 9 options
Choose a pack size 1 Pcs
Expert for Wood Circular Saw Blade offers a long lifetime with high cutting performance in wood
Available product options: 73
| Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | Price | ||
|---|---|---|---|---|---|---|---|---|

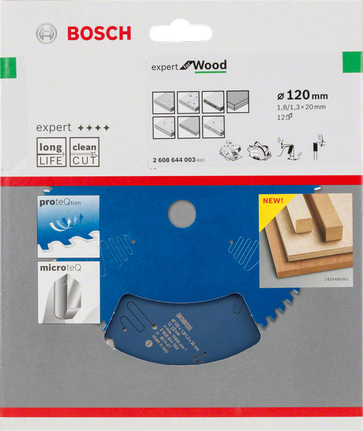

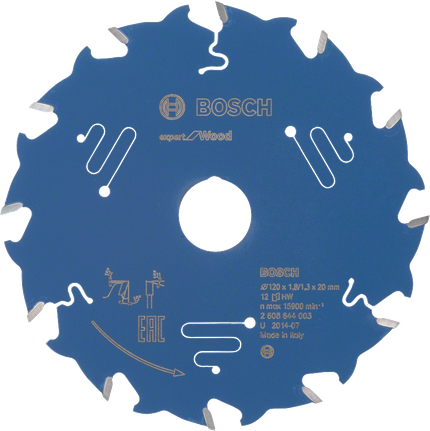

| 2 608 644 003 | 120 | 20 | 1.8/1.3 | 12 | 1 Pcs | Find a local dealer | ||

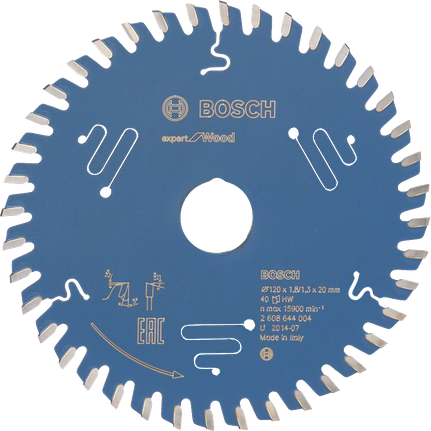

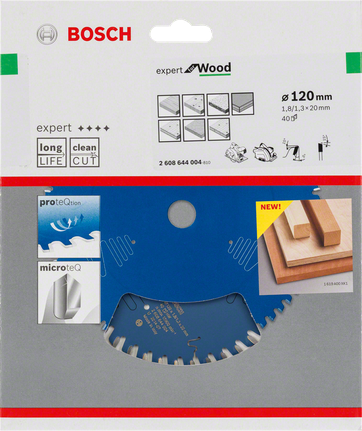

| 2 608 644 004 | 120 | 20 | 1.8/1.3 | 40 | 1 Pcs | Find a local dealer | ||

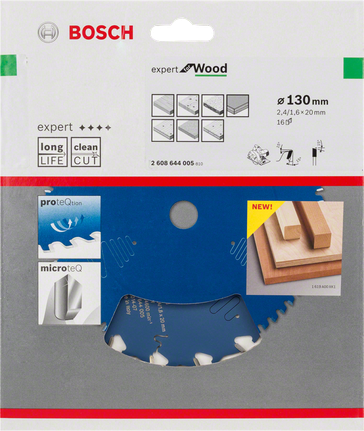

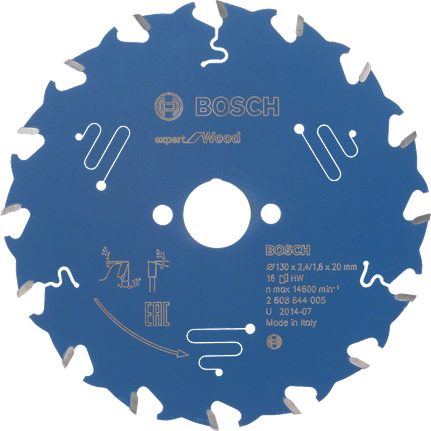

| 2 608 644 005 | 130 | 20 | 2.4/1.6 | 16 | 1 Pcs | Find a local dealer | ||
| 2 608 644 006 | 130 | 20 | 2.4/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 007 | 130 | 20 | 2.4/1.6 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 008 | 140 | 20 | 1.8/1.3 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 009 | 140 | 20 | 1.8/1.3 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 010 | 140 | 20 | 1.8/1.3 | 42 | 1 Pcs | Find a local dealer | ||
| 2 608 644 011 | 150 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 012 | 150 | 20 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 013 | 160 | 20 | 1.8/1.3 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 014 | 160 | 20 | 1.8/1.3 | 36 | 1 Pcs | Buy now | ||

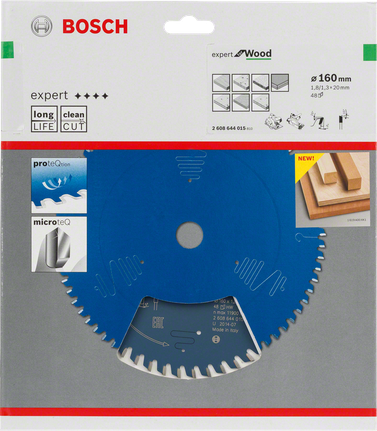

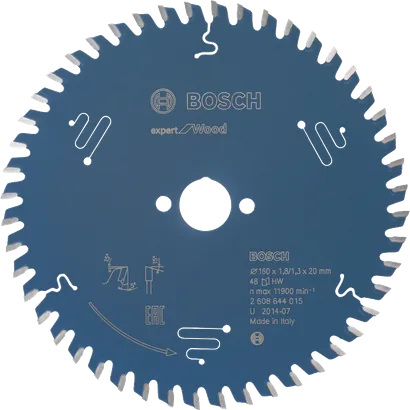

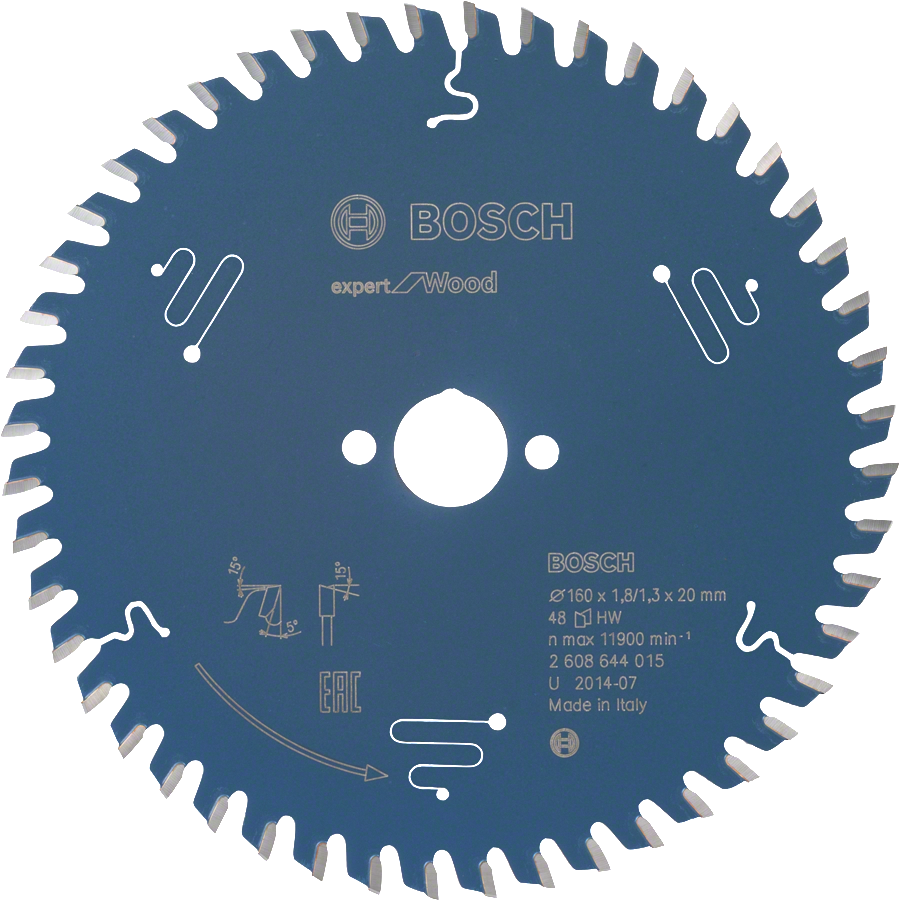

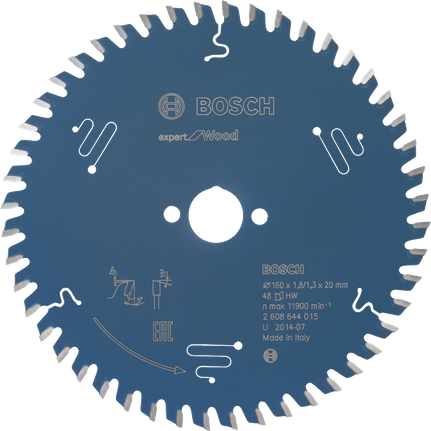

| 2 608 644 015 | 160 | 20 | 1.8/1.3 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 016 | 160 | 20 | 2.2/1.6 | 24 | 1 Pcs | 914.00 ZAR | Buy now | |
| 2 608 644 017 | 160 | 20 | 2.2/1.6 | 36 | 1 Pcs | 1,044.00 ZAR | Buy now | |
| 2 608 644 018 | 160 | 20 | 2.2/1.6 | 48 | 1 Pcs | 1,175.00 ZAR | Buy now | |
| 2 608 644 019 | 160 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 020 | 160 | 20 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 021 | 160 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 022 | 165 | 20 | 2.6/1.6 | 24 | 1 Pcs | 914.00 ZAR | Buy now | |
| 2 608 644 023 | 165 | 20 | 2.6/1.6 | 36 | 1 Pcs | 1,070.00 ZAR | Buy now | |
| 2 608 644 024 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | 1,201.00 ZAR | Buy now | |
| 2 608 644 025 | 165 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 026 | 165 | 30 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 027 | 165 | 30 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 028 | 170 | 30 | 2.6/1.6 | 40 | 1 Pcs | Find a local dealer | ||
| 2 608 644 029 | 180 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 030 | 180 | 20 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 031 | 180 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 032 | 180 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||

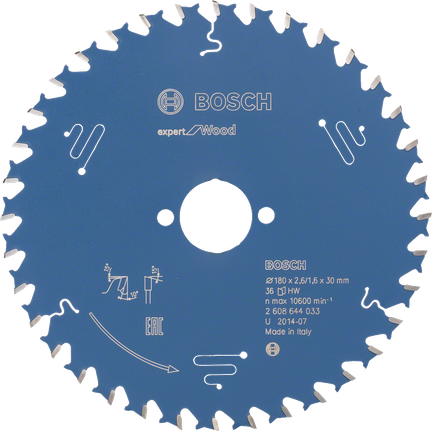

| 2 608 644 033 | 180 | 30 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | ||

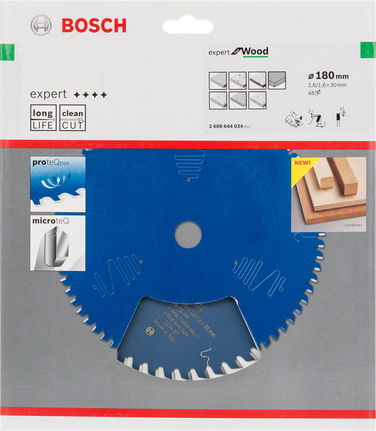

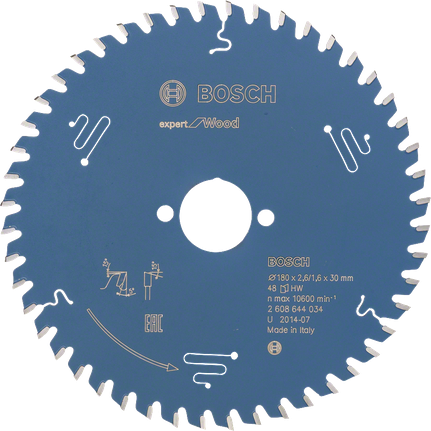

| 2 608 644 034 | 180 | 30 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 035 | 184 | 16 | 2.6/1.6 | 24 | 1 Pcs | 914.00 ZAR | Buy now | |
| 2 608 644 036 | 184 | 16 | 2.6/1.6 | 40 | 1 Pcs | 1,175.00 ZAR | Buy now | |
| 2 608 644 037 | 184 | 16 | 2.6/1.6 | 56 | 1 Pcs | 1,410.00 ZAR | Buy now | |

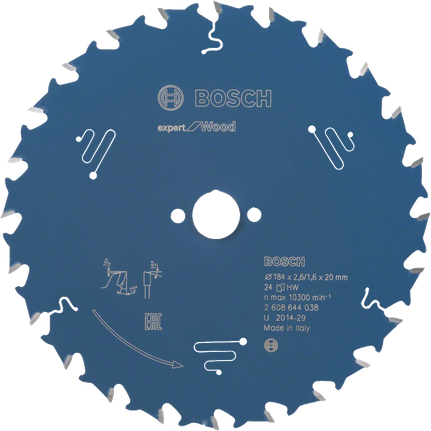

| 2 608 644 038 | 184 | 20 | 2.6/1.6 | 24 | 1 Pcs | 1,044.00 ZAR | Buy now | |

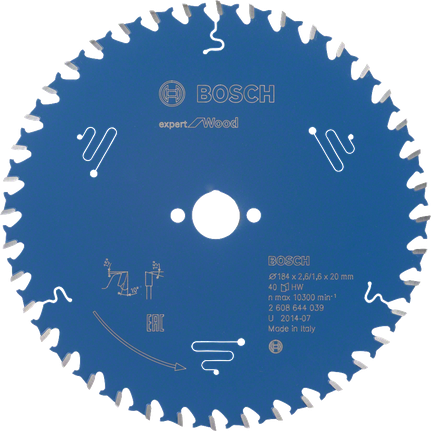

| 2 608 644 039 | 184 | 20 | 2.6/1.6 | 40 | 1 Pcs | 1,175.00 ZAR | Buy now | |

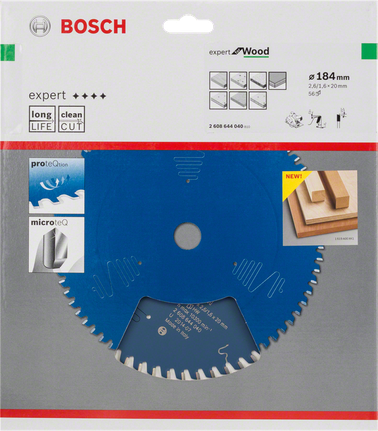

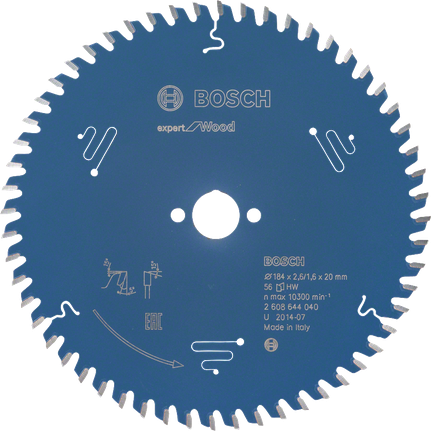

| 2 608 644 040 | 184 | 20 | 2.6/1.6 | 56 | 1 Pcs | 1,410.00 ZAR | Buy now | |

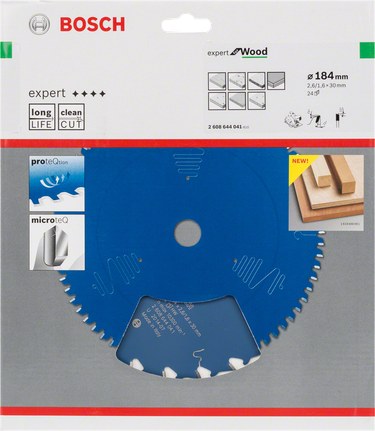

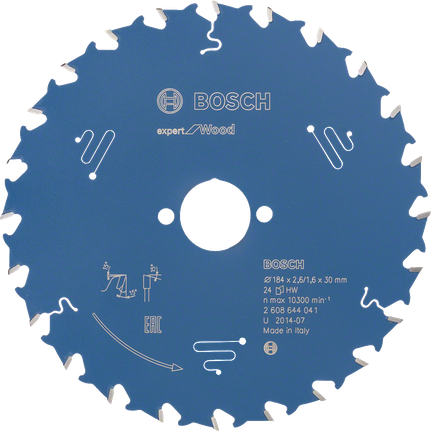

| 2 608 644 041 | 184 | 30 | 2.6/1.6 | 24 | 1 Pcs | 1,044.00 ZAR | Buy now | |

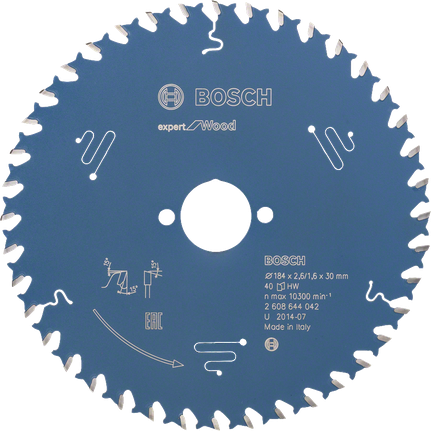

| 2 608 644 042 | 184 | 30 | 2.6/1.6 | 40 | 1 Pcs | 1,175.00 ZAR | Buy now | |

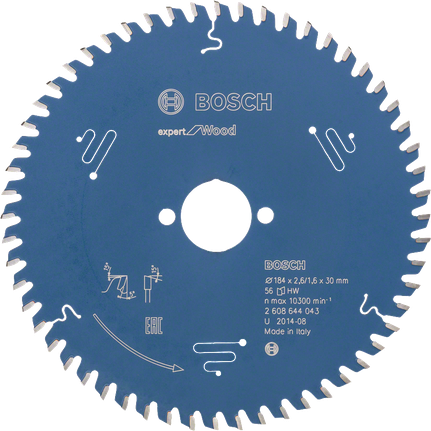

| 2 608 644 043 | 184 | 30 | 2.6/1.6 | 56 | 1 Pcs | 1,410.00 ZAR | Buy now | |
| 2 608 644 044 | 190 | 20 | 2.6/1.6 | 24 | 1 Pcs | 1,044.00 ZAR | Buy now | |
| 2 608 644 045 | 190 | 20 | 2.6/1.6 | 48 | 1 Pcs | 1,293.00 ZAR | Buy now | |
| 2 608 644 046 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | 1,529.00 ZAR | Buy now | |
| 2 608 644 047 | 190 | 30 | 2.6/1.6 | 24 | 1 Pcs | 1,044.00 ZAR | Buy now | |
| 2 608 644 048 | 190 | 30 | 2.6/1.6 | 40 | 1 Pcs | 1,175.00 ZAR | Buy now | |
| 2 608 644 049 | 190 | 30 | 2.6/1.6 | 48 | 1 Pcs | 1,293.00 ZAR | Buy now | |
| 2 608 644 050 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | 1,529.00 ZAR | Buy now | |

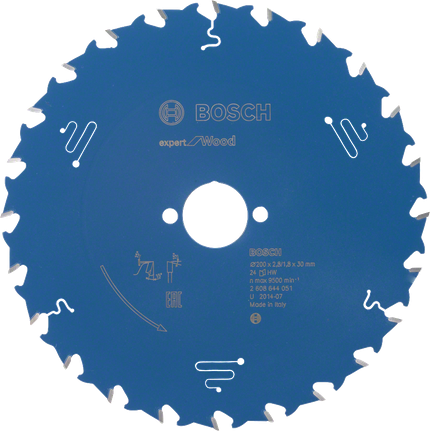

| 2 608 644 051 | 200 | 30 | 2.8/1.8 | 24 | 1 Pcs | Find a local dealer | ||

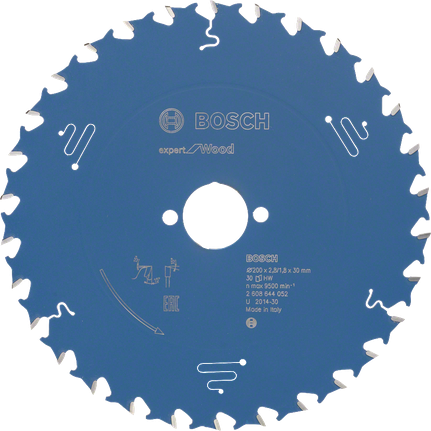

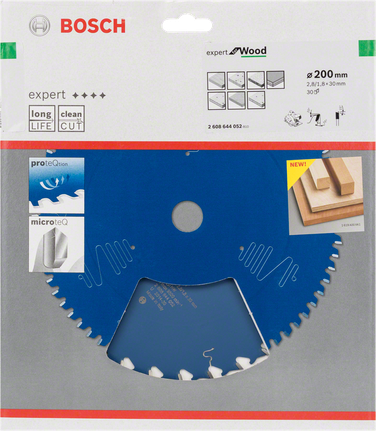

| 2 608 644 052 | 200 | 30 | 2.8/1.8 | 30 | 1 Pcs | Find a local dealer | ||
| 2 608 644 053 | 200 | 30 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | ||

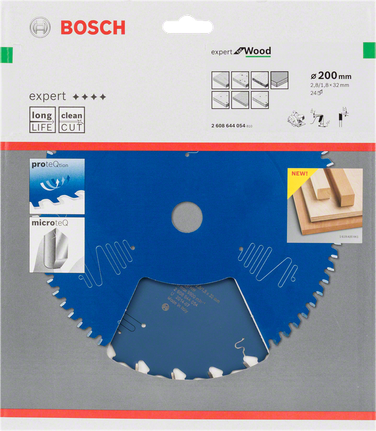

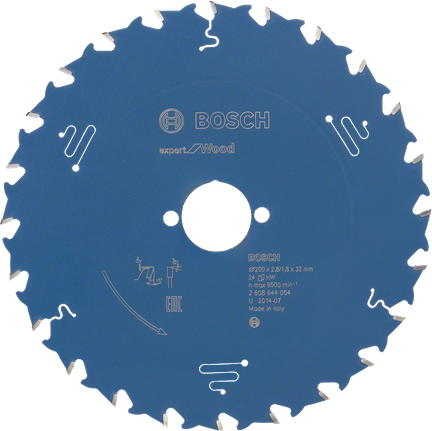

| 2 608 644 054 | 200 | 32 | 2.8/1.8 | 24 | 1 Pcs | Find a local dealer | ||

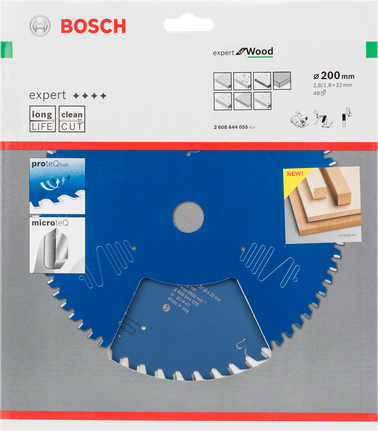

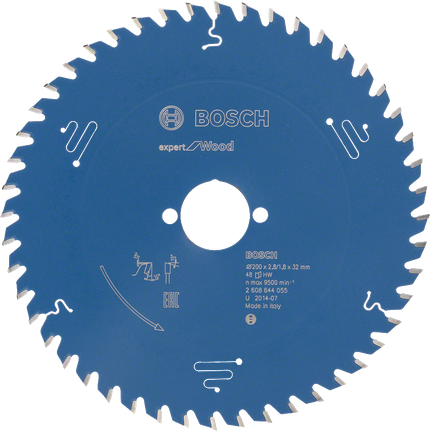

| 2 608 644 055 | 200 | 32 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 056 | 210 | 30 | 2.4/1.8 | 40 | 1 Pcs | Find a local dealer | ||
| 2 608 644 057 | 210 | 30 | 2.4/1.8 | 56 | 1 Pcs | Find a local dealer | ||
| 2 608 644 058 | 210 | 30 | 2.8/1.8 | 30 | 1 Pcs | Find a local dealer | ||
| 2 608 644 059 | 210 | 30 | 2.8/1.8 | 40 | 1 Pcs | Find a local dealer | ||
| 2 608 644 060 | 210 | 30 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 061 | 210 | 30 | 2.8/1.8 | 56 | 1 Pcs | Find a local dealer | ||

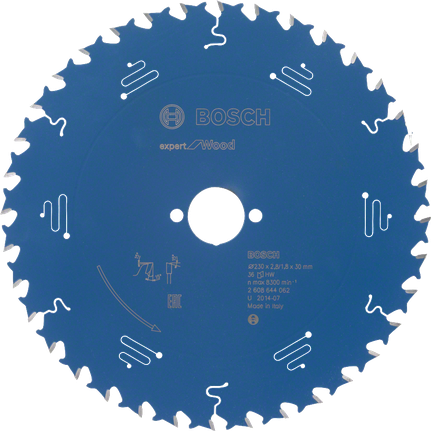

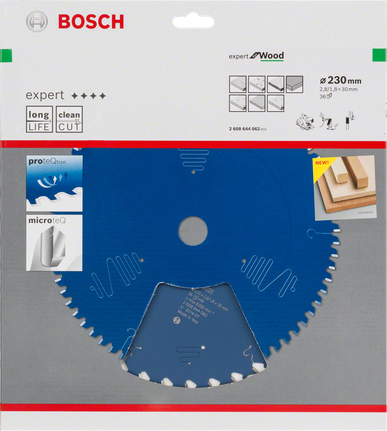

| 2 608 644 062 | 230 | 30 | 2.8/1.8 | 36 | 1 Pcs | Find a local dealer | ||

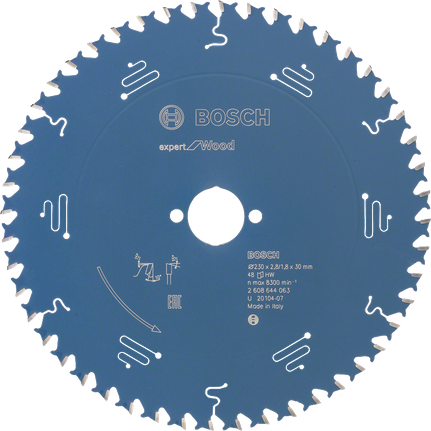

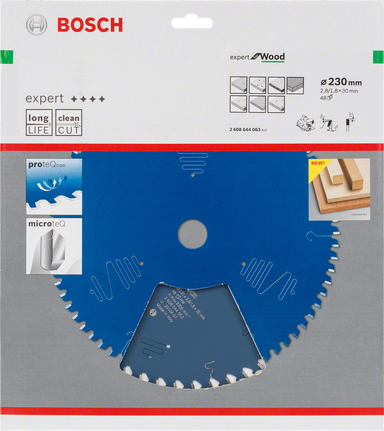

| 2 608 644 063 | 230 | 30 | 2.8/1.8 | 48 | 1 Pcs | 1,646.00 ZAR | Buy now | |
| 2 608 644 064 | 235 | 30 | 2.8/1.8 | 36 | 1 Pcs | Find a local dealer | ||
| 2 608 644 065 | 235 | 30 | 2.8/1.8 | 48 | 1 Pcs | 1,646.00 ZAR | Buy now | |
| 2 608 644 066 | 235 | 30 | 2.8/1.8 | 56 | 1 Pcs | Find a local dealer | ||
| 2 608 644 067 | 237 | 30 | 2.5/1.8 | 24 | 1 Pcs | Find a local dealer | ||

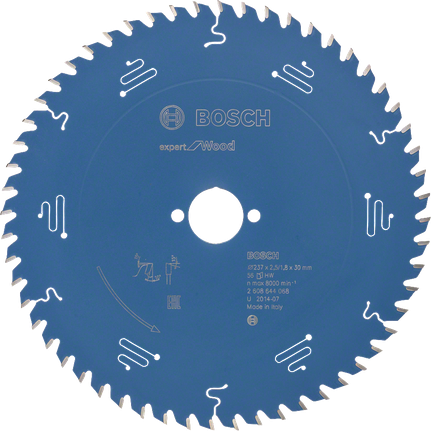

| 2 608 644 068 | 237 | 30 | 2.5/1.8 | 56 | 1 Pcs | Find a local dealer | ||
| 2 608 644 069 | 240 | 30 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 070 | 270 | 30 | 2.8/1.8 | 60 | 1 Pcs | Find a local dealer | ||

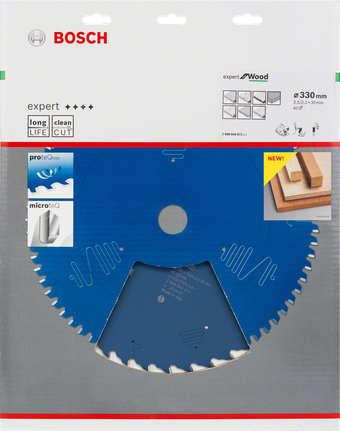

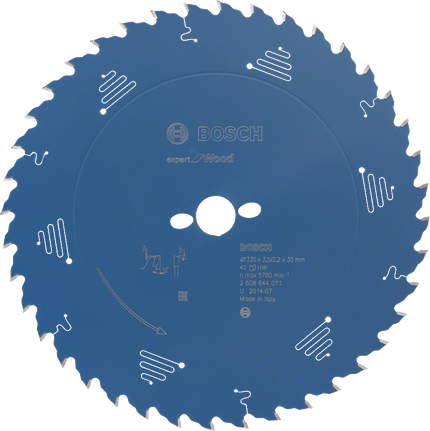

| 2 608 644 071 | 330 | 30 | 3.5/2.2 | 40 | 1 Pcs | Find a local dealer | ||

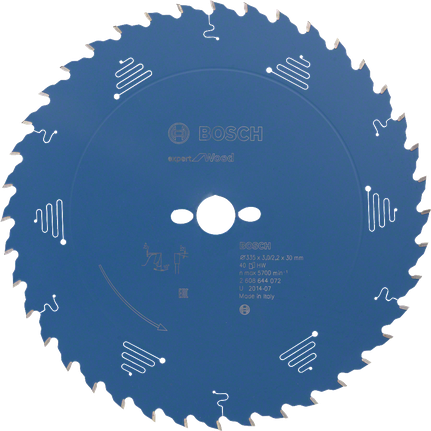

| 2 608 644 072 | 335 | 30 | 3/2.2 | 40 | 1 Pcs | Find a local dealer | ||

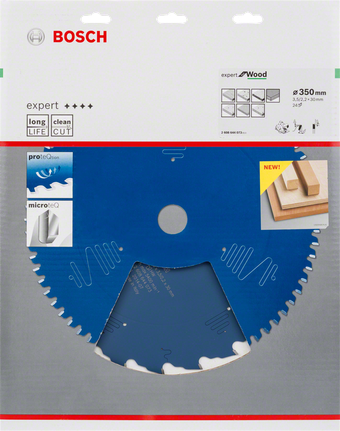

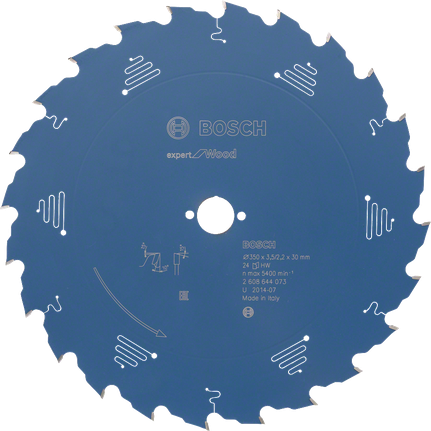

| 2 608 644 073 | 350 | 30 | 3.5/2.2 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 074 | 355 | 30 | 3/2.2 | 60 | 1 Pcs | Find a local dealer | ||
| 2 608 644 078 | 450 | 30 | 4.5/3 | 34 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644003 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 120 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 12 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 15900 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644004 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 120 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 15900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644005 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 130 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 16 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 14600 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644006 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 130 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 14600 |
| Cutting result | Coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644007 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 130 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 14600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644008 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 13600 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644009 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 13600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644010 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 42 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 13600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644011 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 150 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 12700 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644012 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 150 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 12700 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |

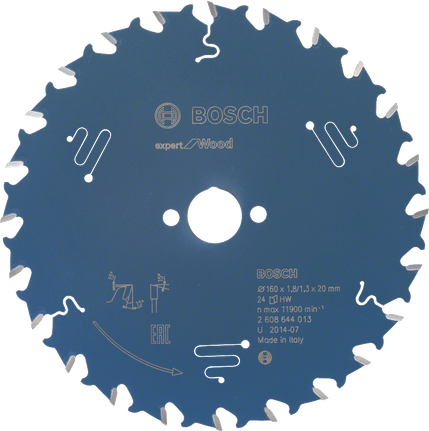

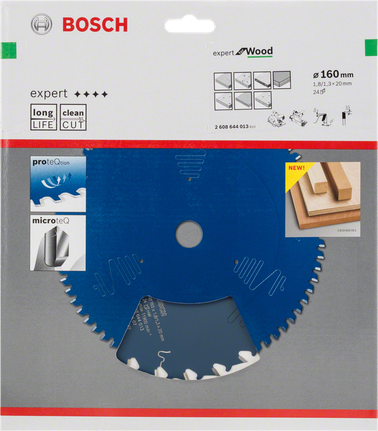

| Part number 2608644013 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644014 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |

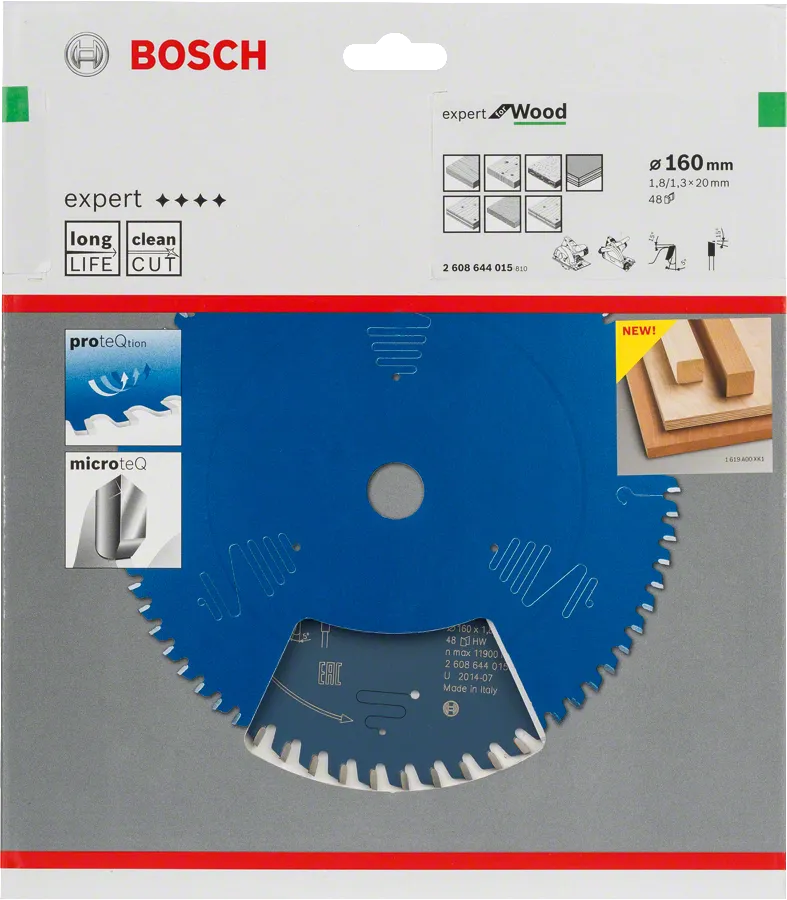

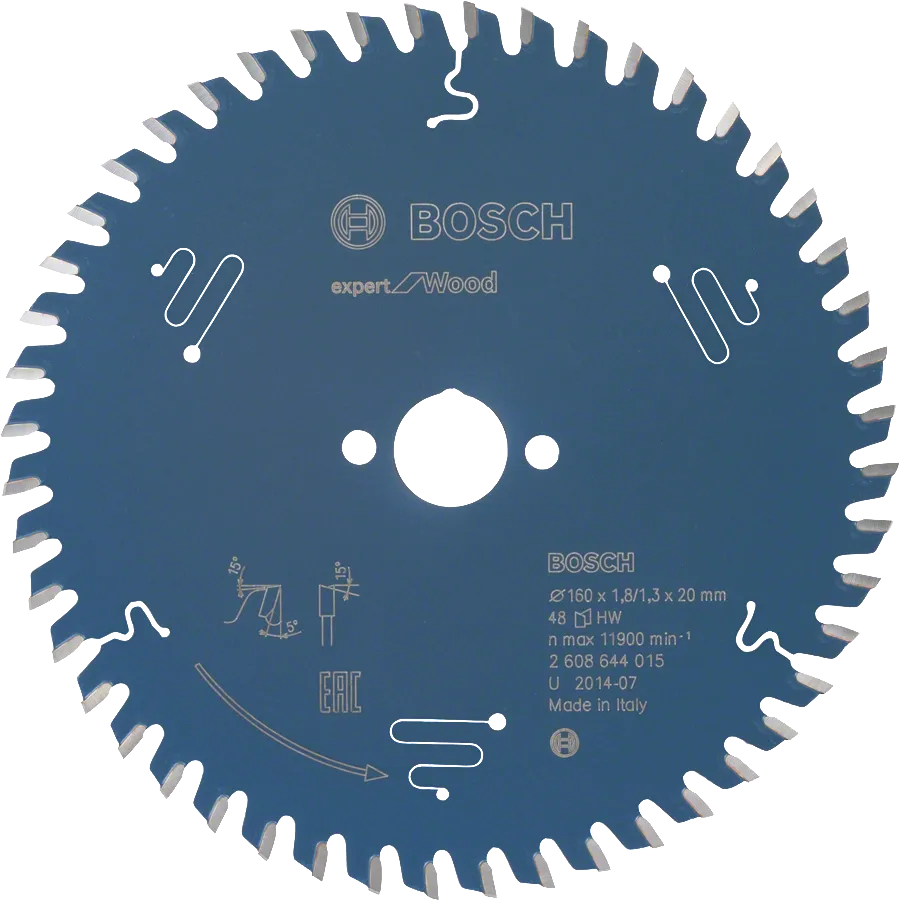

| Part number 2608644015 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644016 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644017 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644018 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644019 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644020 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644021 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644022 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644023 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644024 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644025 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644026 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644027 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644028 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 170 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11200 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644029 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 180 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10600 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644030 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 180 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644031 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 180 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644032 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 180 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10600 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644033 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 180 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644034 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 180 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644035 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644036 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644037 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644038 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644039 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644040 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644041 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644042 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644043 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644044 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644045 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644046 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Part number 2608644047 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644048 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644049 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644050 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644051 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 200 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644052 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 200 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 30 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644053 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 200 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644054 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 200 |
| Bore size mm | 32 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644055 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 200 |
| Bore size mm | 32 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644056 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644057 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644058 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 30 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644059 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644060 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644061 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644062 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644063 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644064 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644065 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644066 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644067 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 237 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644068 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 237 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644069 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 240 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644070 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 270 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Part number 2608644071 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 330 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.5/2.2 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5700 |
| Cutting result | Coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Part number 2608644072 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 335 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5700 |
| Cutting result | Coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Part number 2608644073 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 350 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.5/2.2 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5400 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Part number 2608644074 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 355 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Part number 2608644078 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 450 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 4.5/3 |
| Number of teeth | 34 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4200 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 20 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
