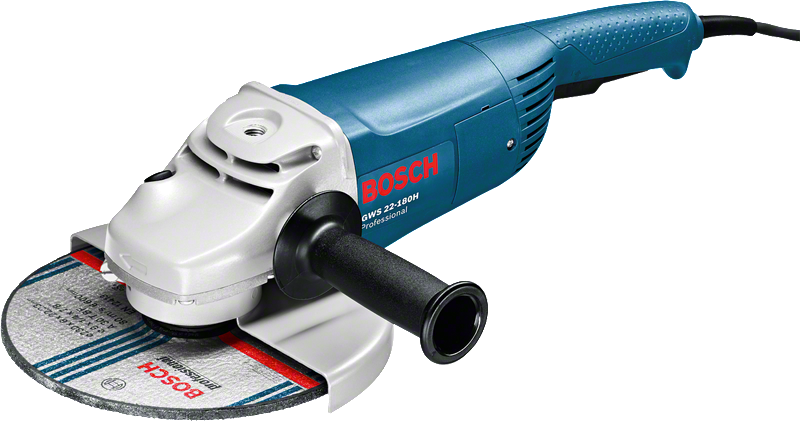

Angle Grinder GWS 22-180 H Professional

Compact, powerful tool for the toughest jobs

Technical data
Additional data
Rated input power* 2,200   W
No-load speed* 8,500   rpm
Disc diameter* 180   mm
Grinding spindle thread M 14
Main handle Straight
Weight 5   kg
Switch PROtection
Total vibration values (Surface grinding (roughing))
Vibration emission value ah 7.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Sanding with sanding sheet)
Vibration emission value ah 4.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 104 dB(A). Uncertainty K= 3 dB.

Advantages

Compact, powerful tool for the toughest jobs

  • Powerful 2200 W Champion motor – for fast work progress
  • Low weight for optimum handling
  • Anti-rotation protective guard – reliably protects the user if the grinding disc breaks

Functions

Outstanding user protection thanks to the anti-rotation protective guard - stands firm, even if the disc breaks
Easy disc / tool change thanks to spindle lock
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Outstanding user protection The protection switch instantly switches the machine off when it is released
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 881 L03
  • Auxiliary handle 1 602 025 022
  • Backing flange 1 605 703 099
  • Locking nut 1 603 340 040
  • Protective guard 2 605 510 297
  • Two-hole spanner 1 607 950 048

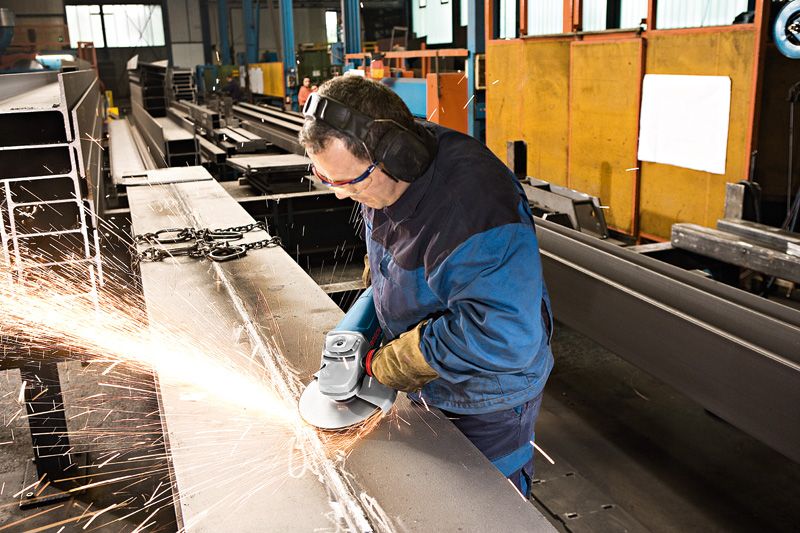

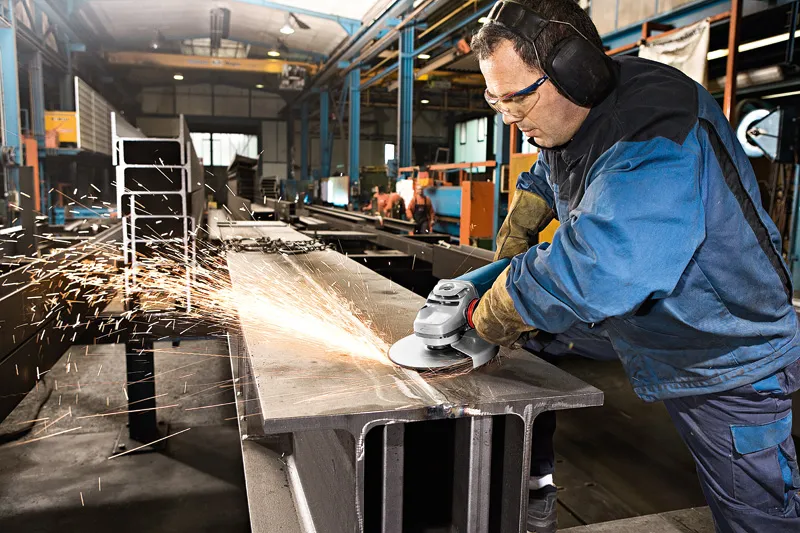

The GWS 22-180 H in action!
