For rotary drills/drivers
Outer length (L1) mm
Key length (L2) mm
Key diameter (Z) mm
Choose a pack size
Compatible with
Outer length (L1) mm 3 options
Key length (L2) mm 3 options
Key diameter (Z) mm 3 options
Choose a pack size 1 Pcs
Compatible with 5 options
Replacement Key fits keyed chucks
Available product options: 5
| Part number | Ref. type | Replacement key, type | Outer length (L1) mm | Key length (L2) mm | Pack quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 607 950 028 | S1 | G | 60 | 30 | 1 Pcs | Find a local dealer | ||
| 1 607 950 041 | S3 | A | 110 | 50 | 1 Pcs | 170.00 ZAR | Buy now | |
| 1 607 950 042 | ZS14 | B | 60 | 30 | 1 Pcs | 75.00 ZAR | Buy now | |
| 1 607 950 045 | S2 | D | 110 | 40 | 1 Pcs | 86.00 ZAR | Buy now | |
| 1 607 950 053 | S14 | F | 80 | 30 | 1 Pcs | Find a local dealer |
out of products

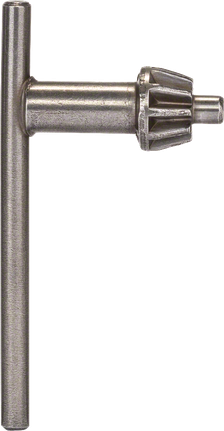

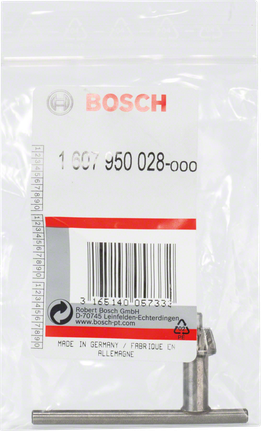

| Part number 1607950028 | |
|---|---|
| Packaging type | Plastic packaging, bag, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Ref. type | S1 |
| Replacement key, type | G |
| Outer length (L1) mm | 60 |
| Key length (L2) mm | 30 |
| Key diameter (Z) mm | 4 |

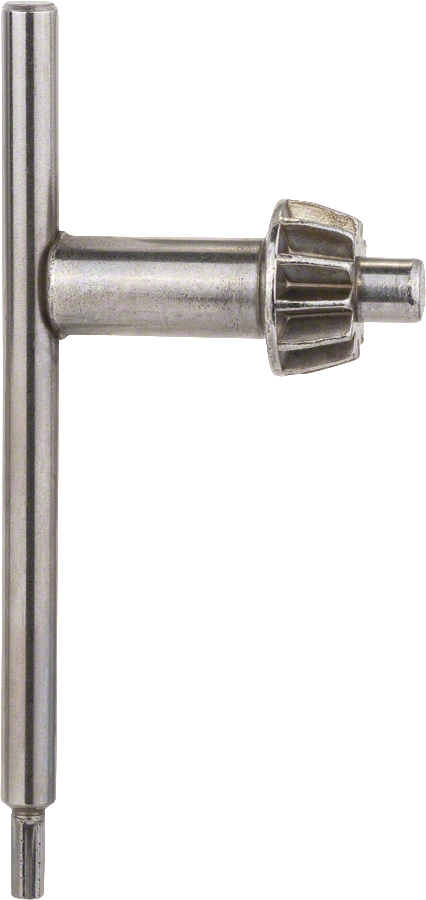

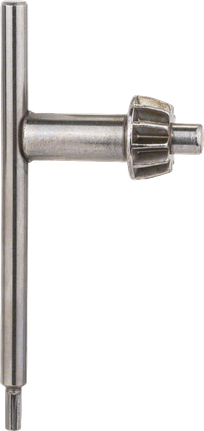

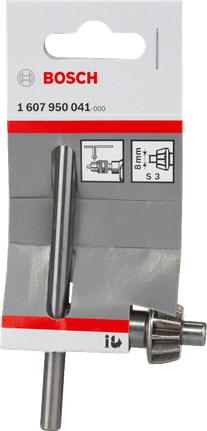

| Part number 1607950041 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Ref. type | S3 |
| Replacement key, type | A |
| Outer length (L1) mm | 110 |
| Key length (L2) mm | 50 |
| Key diameter (Z) mm | 8 |
| Key width (KW) mm | 4 |

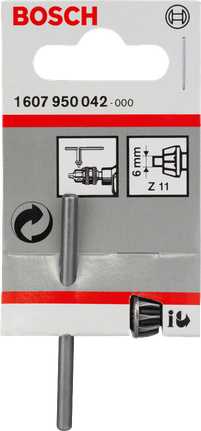

| Part number 1607950042 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|

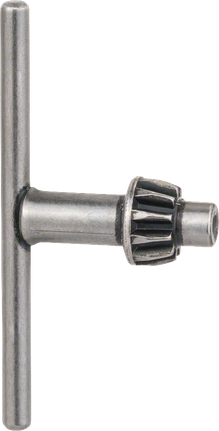

| Ref. type | ZS14 |
| Replacement key, type | B |
| Outer length (L1) mm | 60 |
| Key length (L2) mm | 30 |
| Key diameter (Z) mm | 6 |

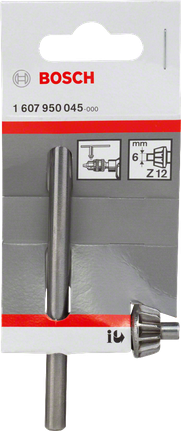

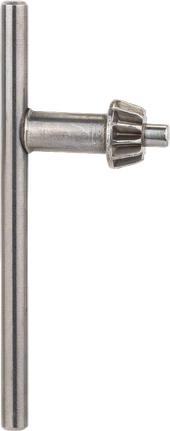

| Part number 1607950045 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Ref. type | S2 |
| Replacement key, type | D |
| Outer length (L1) mm | 110 |
| Key length (L2) mm | 40 |
| Key diameter (Z) mm | 6 |

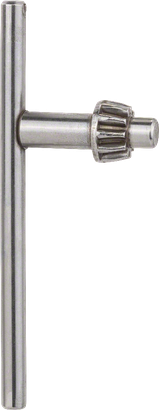

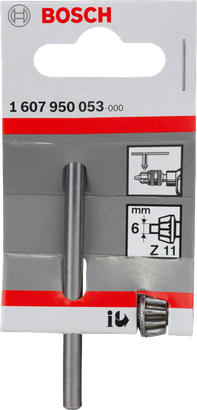

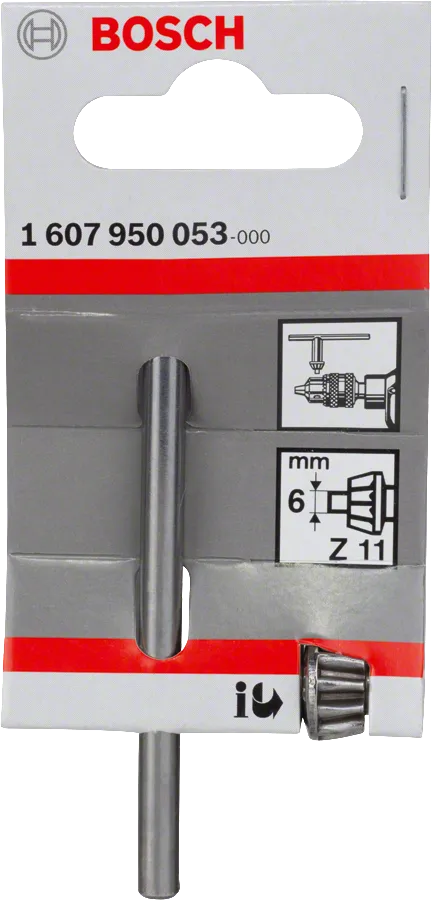

| Part number 1607950053 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Ref. type | S14 |

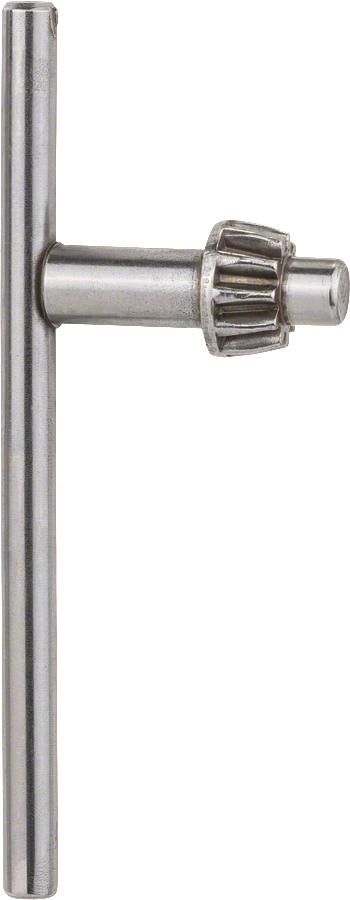

| Replacement key, type | F |
| Outer length (L1) mm | 80 |
| Key length (L2) mm | 30 |
| Key diameter (Z) mm | 6 |
| Key width (KW) mm | 5 |
