Line lasers

GLL 3-80 C Professional

Line Laser

GLL 3-80 C

Visibility on a new level in 3 x 360°. Simply Connected.

  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

Functions & key features

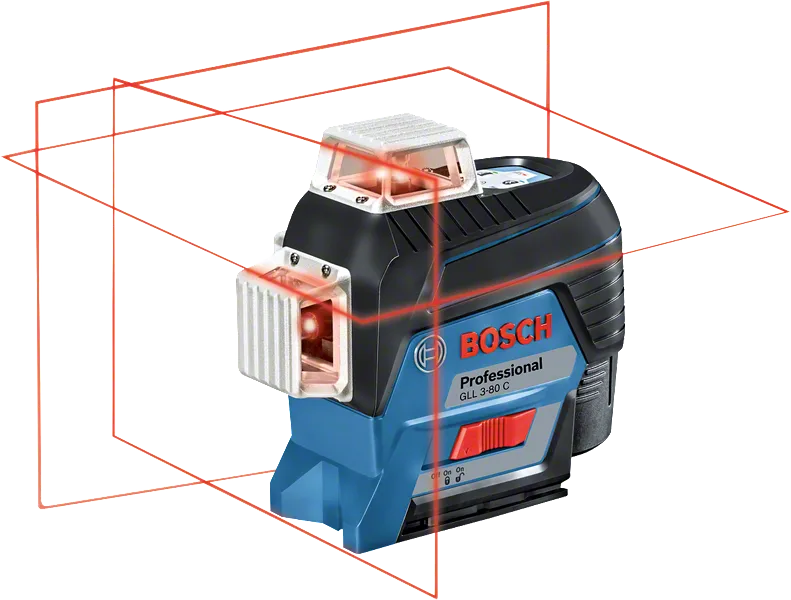

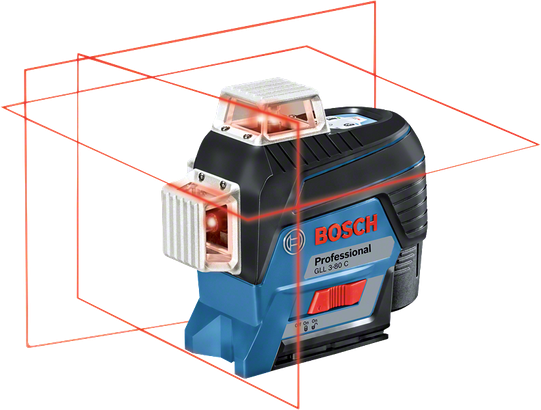

3 x 360° Laser lines

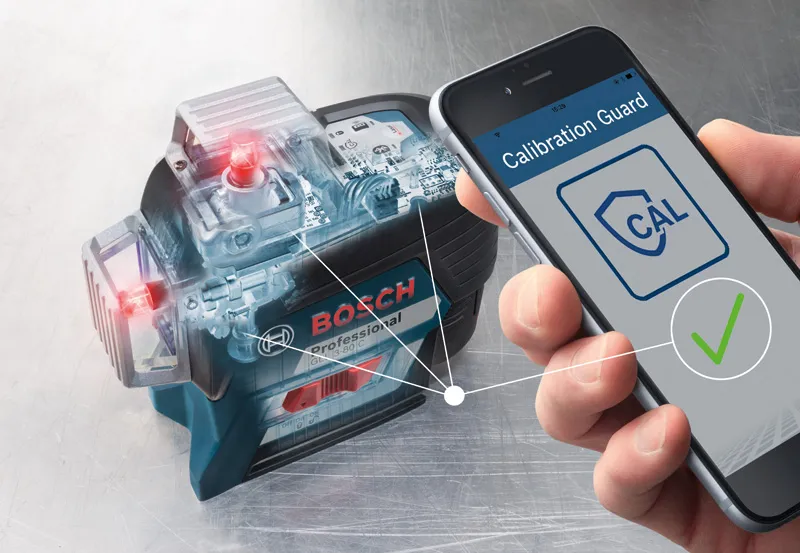

CAL Guard warns, if one of the three following cases have occurred: 1) The measuring tool suffered a severe shock (e.g. impact after a fall) 2) The measuring tool was stored outside of the storage temperature range 3) The calibration interval (every 12 months) has expired
Dual power source
Working with receiver for higher working range
Laser class 2

Your Selection

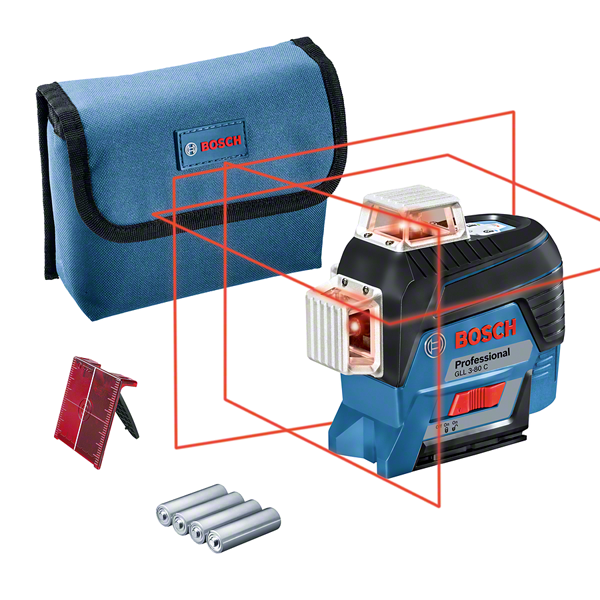

  • with 4 x battery (AA), adapter
Change variant
1,899.00 AED
Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA), adapter 0 601 063 R00
1,899.00 AED
Recommended retail price excluding VAT

Select a variant

Your Selection

GLL 3-80 C
with 4 x battery (AA), adapter

Order number: 0 601 063 R00

1,899.00 AED
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Pouch
  • Laser target plate

Additional in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • 4 x 1.5 V LR6 battery (AA)

Your Selection

GLL 3-80 C
with 4 x battery (AA), tripod

Order number: 0 601 063 R01

1,999.00 AED
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Pouch
  • Laser target plate

Additional in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • 4 x 1.5 V LR6 battery (AA)
  • Building tripod BT 150 Professional
    Order number: 0 601 096 B00

Your Selection

GLL 3-80 C

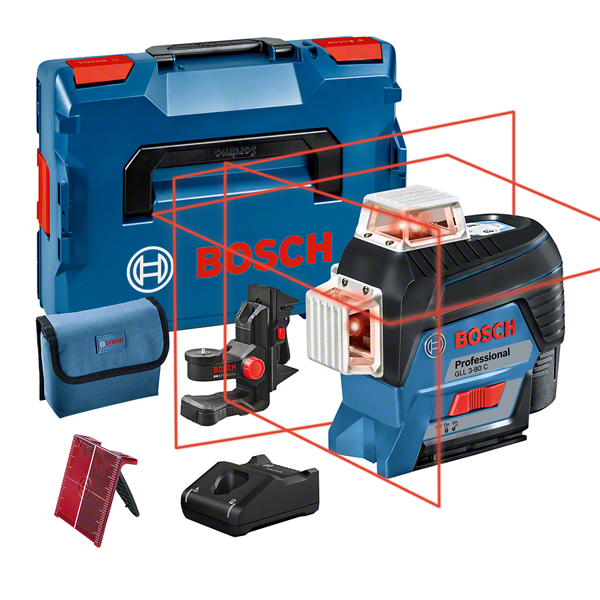

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount

Order number: 0 601 063 R70

2,479.00 AED
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Pouch
  • Laser target plate

Additional in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R4
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
  • Universal mount BM 1 Professional
    Order number: 0 601 015 A01

Technical data

Additional data

Working range with receiver, valuenull 120 m
Dust and splash protectionnull IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Battery voltagenull 12.0 V
Working range, valuenull 30 m
Laser diodenull Line: 630 - 650 nm, < 10mW
Operating temperaturenull -10 – 40 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 2
Working rangenull up to 30 m
Working range with receivernull up to 120 m
Accuracynull ± 0.2 mm/mᵃ/**
Self-levelling rangenull ± 4°
Levelling timenull 4 s
Power supplynull 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.)null 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod threadnull 1/4", 5/8"
Weight, approx.null 0.9 kg
Colour of laser linenull red
Projectionnull 3 x 360° line
Compatible laser receiversnull LR 6 + 7
GLL 3-80 C

GLL 3-80 C Professional: Further information

Product Highlights

The line laser GLL 3-80 C Professional is simply connected and projects 3 x 360° lines for excellent visibility. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. High-powered diodes ensure high visual clarity while its 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.

Equipment & Application

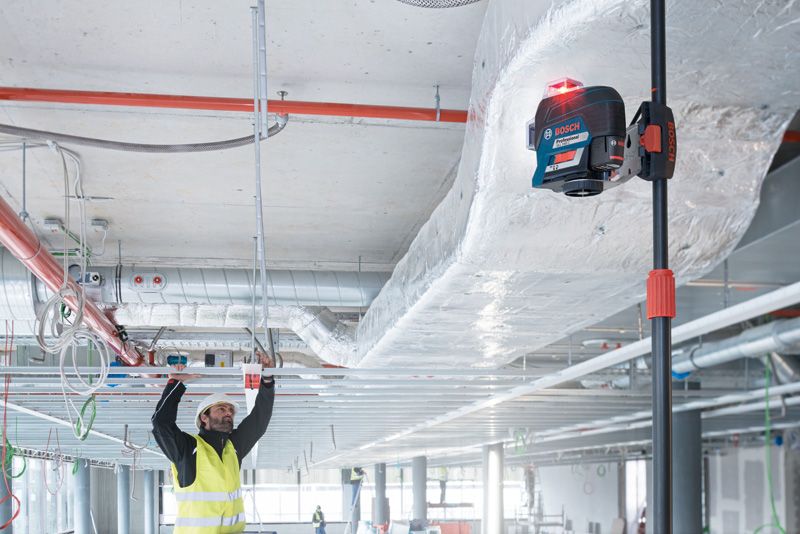

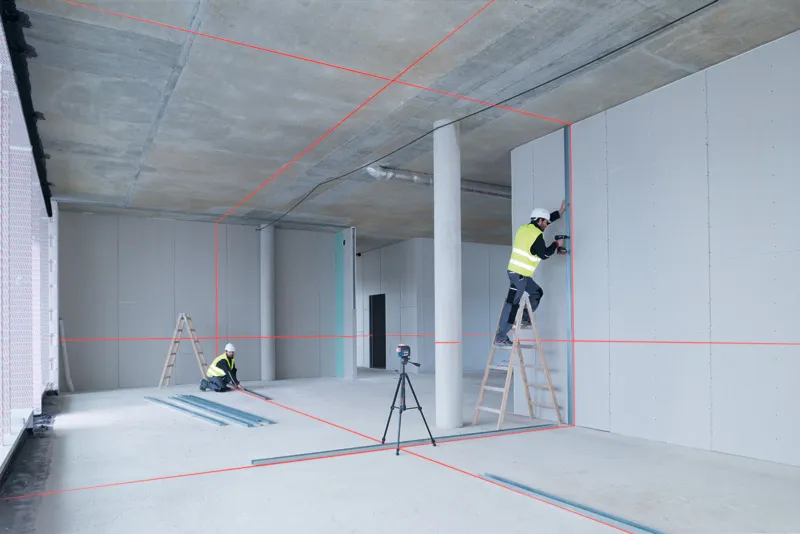

This line laser is developed for building floors, installing windows, mounting shelves,laying drainage pipes, building framework for drywall, and laying tiles.

Additional Information

Due to the GLL 3-80 C Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust.
