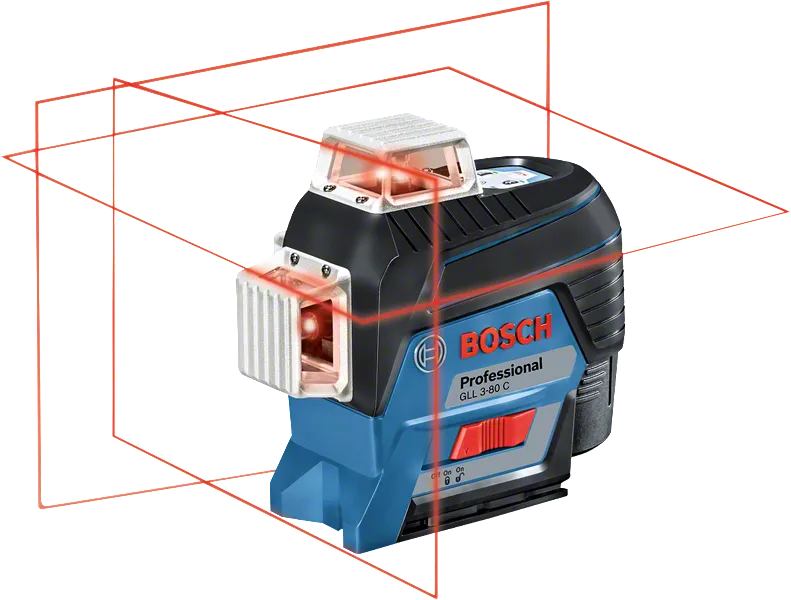

Line Laser GLL 3-80 C Professional

Visibility on a new level in 3 x 360°. Simply Connected.

from  2,479.00 AED Recommended retail price excluding VAT

Technical data
Additional data
Working range with receiver, value 120   m
Accuracy +/- 0.2 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Projection 3 x 360° line
Operating temperature -10 – 40   °C
Storage temperature -20 – 70   °C
Working range with receiver up to 120 m
Laser diode Line: 630 - 650 nm, < 10mW
Laser class 2
Working range up to 30   m
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9   kg
Colour of laser line red
Compatible laser receivers LR 6 + 7
Working range, value 30   m

Advantages

Visibility on a new level in 3 x 360°. Simply Connected.

  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

Functions

Simply.Connected. - Simply. Efficient. thanks to smartphone connection and Bosch App
3 x 360° Laser lines
CAL Guard warns, if one of the three following cases have occurred: 1) The measuring tool suffered a severe shock (e.g. impact after a fall) 2) The measuring tool was stored outside of the storage temperature range 3) The calibration interval (every 12 months) has expired
Dual power source
Working with receiver for higher working range
Icon
CAL Guard warns, if one of the three following cases have occurred: 1) The measuring tool suffered a severe shock (e.g. impact after a fall) 2) The measuring tool was stored outside of the storage temperature range 3) The calibration interval (every 12 months) has expired
Icon
Icon
Dual power source
 All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers
Icon
Working with receiver for higher working range
Tripod mount for 5/8" and 1/4" tripod thread
Icon

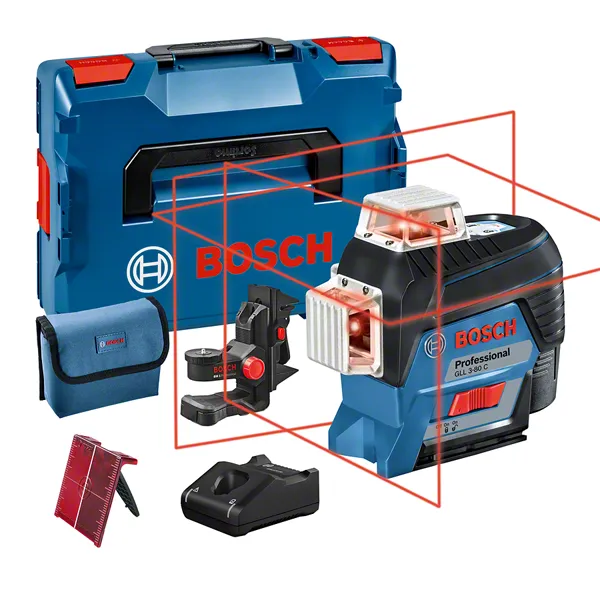

What’s Included in this Package
with Accessory, mount
with Accessory, mount
Order number: 0 601 063 R70
  • Universal mount BM 1 Professional 0 601 015 A01
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R4
  • Laser target plate
  • Pouch
  • L-BOXX 136 1 600 A01 2G0
2,479.00 AED Recommended retail price excluding VAT
Product variations (3)

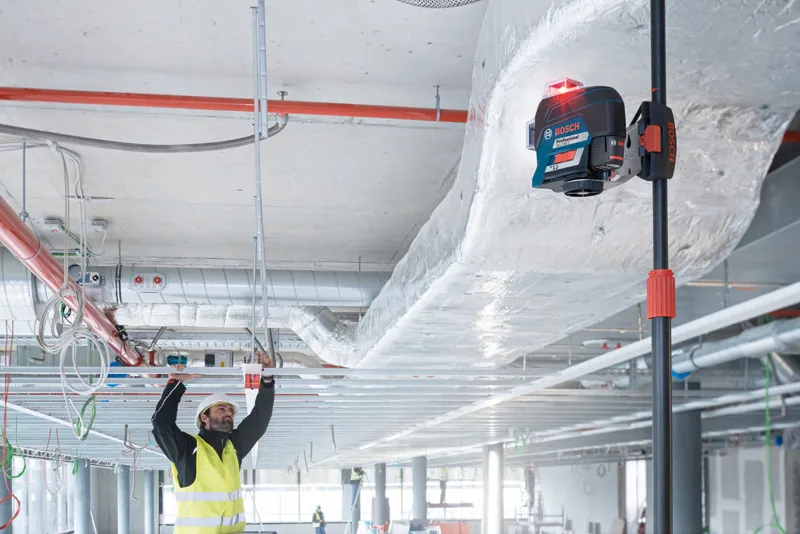

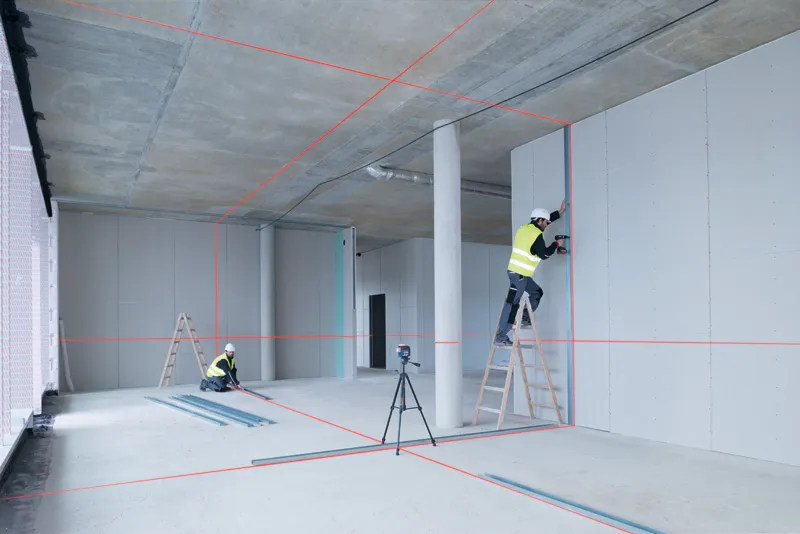

The GLL 3-80 C in action!
