Line Laser GLL 3-80 C Professional

Visibility on a new level in 3 x 360°. Simply Connected.

from  1,739.00 AED Recommended retail price excluding VAT.

Technical data
Additional data
Working range* 30 m
Working range with receiver* 120 m
Accuracy* ± 0.2 mm/m
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature, from -10 °C
Operating temperature, up to 40 °C
Operating temperature -10 – 40 °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range with receiver, value 120 m
Working range without receiver, value 30 m
Working range without receiver 30 m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9 kg
Colour of laser line red

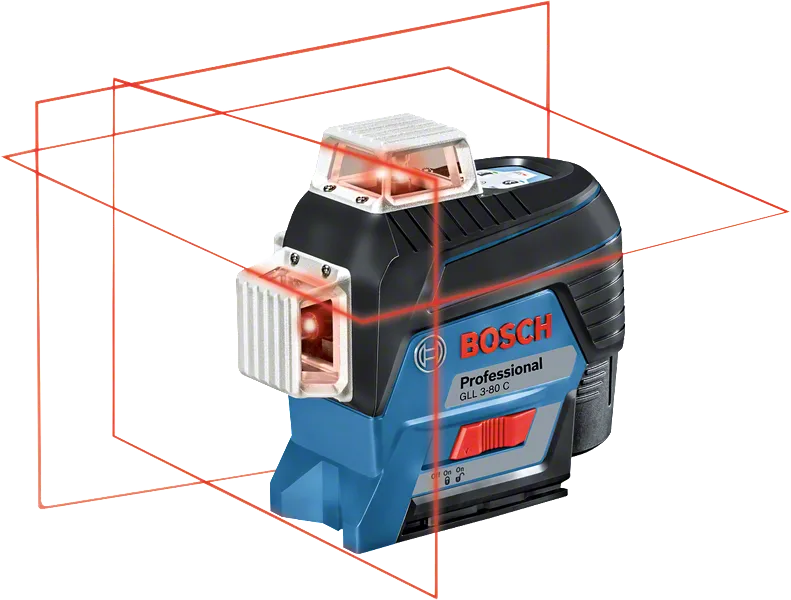

Projection 3 x 360° line
Compatible laser receivers LR 6 + 7

* Highlighted Data

Advantages

Visibility on a new level in 3 x 360°. Simply Connected.

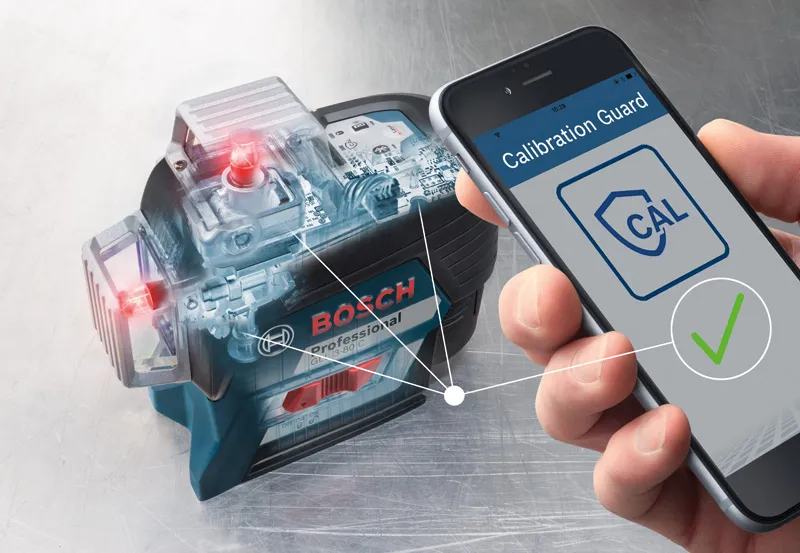

  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

Functions

Icon
Icon
Icon
Icon
Icon
 All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

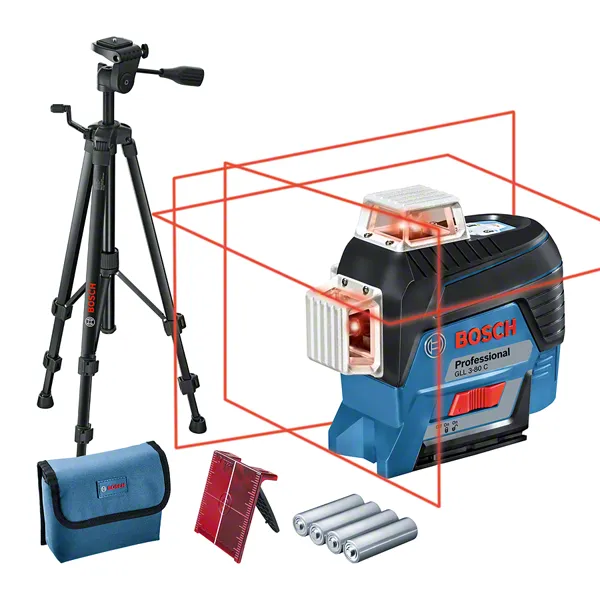

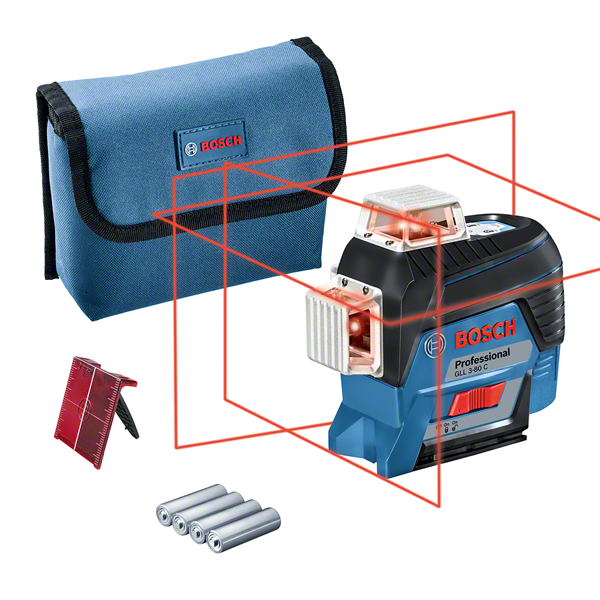

What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 063 R01
  • 4 x 1.5 V LR6 battery (AA)
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • Laser target plate
  • Pouch
  • Building tripod BT 150 Professional 0 601 096 B00
1,739.00 AED Recommended retail price excluding VAT.
