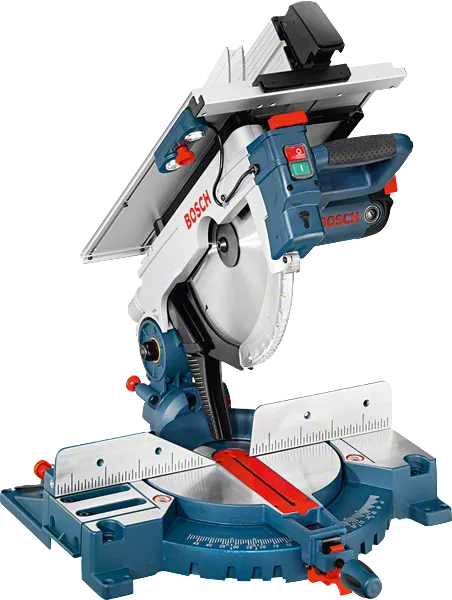

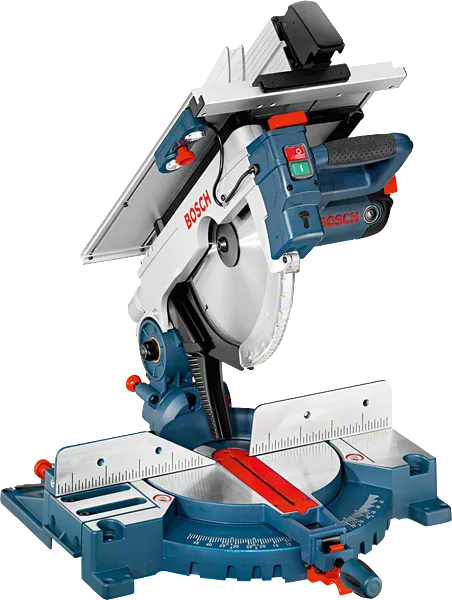

GTM 12 JL Professional
Combination Saw
Order number 0.601.B15.001
- Combines mitre saw and table saw in one, making it versatile in many applications
- Powerful 1,800 W motor makes fast progress possible, in both table and mitre saw configurations
- Integrated laser makes precise results easy to achieve
with circular saw blade
0 601 B15 001
GTM 12 JL Professional
Your Selection
with circular saw blade
Order number: 0 601 B15 001
Find a local dealerIncluded in this variant
-
1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40Order number: 2 608 640 440
-
Push stickOrder number: 1 619 P04 042
Technical data
Additional data
Rated input power
1,800 W
Saw blade diameter
305 mm
Mitre setting
48 ° L / 48 ° R
Bevel setting
47 ° L / 2 ° R
Saw blade bore diameter
30 mm
Cutting capacity, 0°
95 x 150 mm
Cutting capacity, 45° mitre
95 x 90 mm

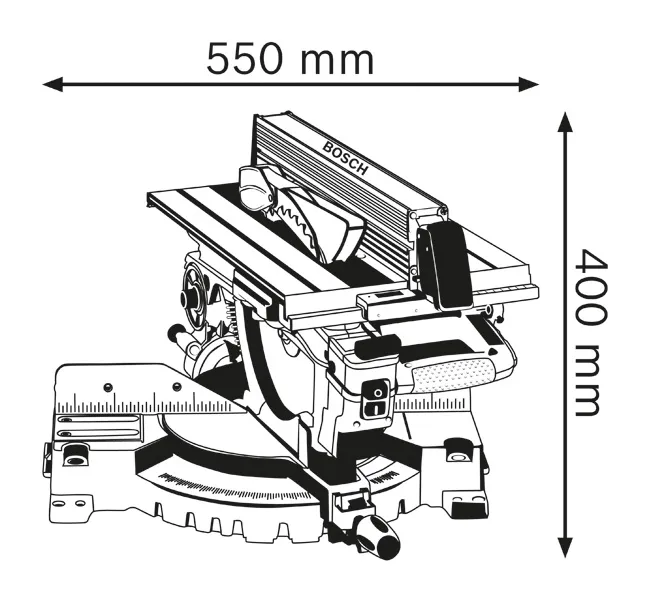

Tool dimensions (width x length x height)
660 x550 x400 mm
No-load speed*
3,800 rpm
Cutting height of table saw
51 mm
Weight*
21 kg
* You can find more information about the deviations in the following link:
GTM 12 JL Professional: Further information
Product Highlights
The GTM 12 JL Professional combination saw is the ideal multi-functional saw when versatility is needed. It combines both a mitre saw and a table saw in one, making it versatile for many applications. The combination saw´s powerful 1,800 W motor makes fast progress possible, in both table and mitre saw configurations. Its integrated laser makes it easy to achieve precise results.
Equipment & Application
This combination saw is intended for sawing wood. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GTM 12 JL Professional also includes soft start.
