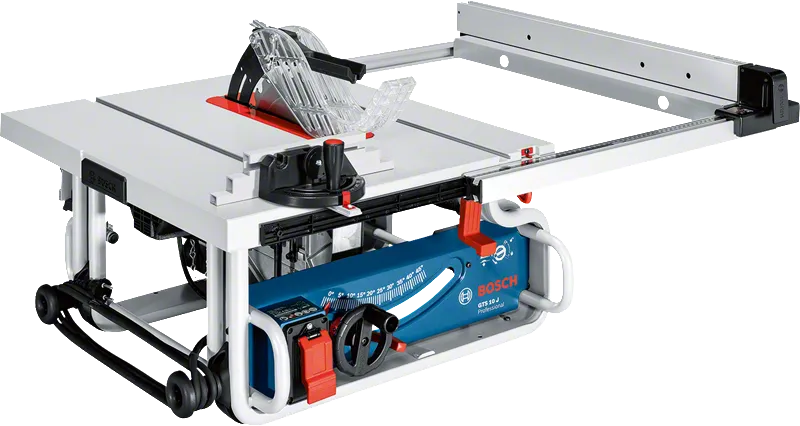

GTS 10 J Professional
Table Saw
The powerful tool with large cutting capacity
- Extremely compact and powerful
- Powerful 1,800 W motor with soft start and overload protection for fast working progress
- Optimal for transport due to compact design and different carrying handles
Functions & key features
with guide rail system accessory, Accessory
0 601 B30 560
GTS 10 J Professional
Your Selection
with guide rail system accessory, Accessory
Order number: 0 601 B30 560
Find a local dealerIncluded in this variant
-
Parallel guideOrder number: 2 610 016 853
-
Angle guideOrder number: 2 610 015 507
-
Dust extraction adapterOrder number: 2 610 015 509
-
Push stickOrder number: 2 610 015 022
-
Voltage 110 V
-
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24Order number: 2 608 838 412
Technical data
Additional data |
|
|---|---|
| Rated input power | 1,800 W |
| Saw blade diameter | 254 mm |

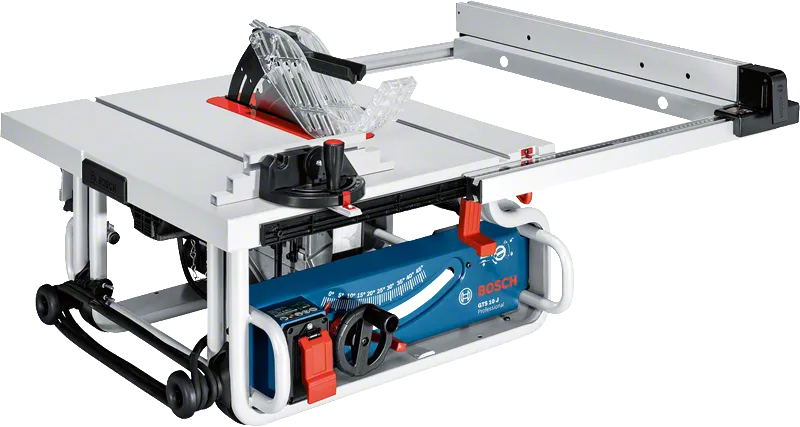

| Incline setting | 47 ° L / 2 ° R |
| Table size | 642 x 634 mm |
| Voltage | 110 V |
| No-load speed* | 3,650 rpm |
| Saw blade bore diameter | 30 mm |
| Weight* | 27 kg |

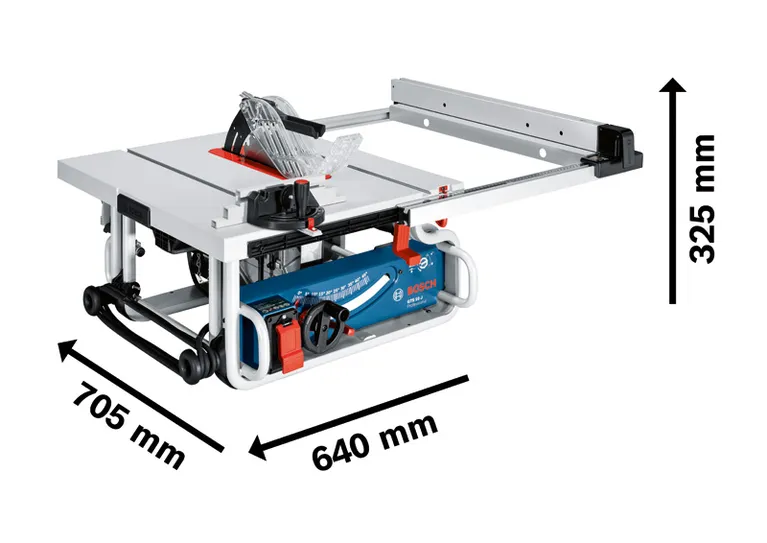

| Tool dimensions (width x length x height) | 705 x 640 x 325 mm |
| Cutting height 90° | 79 mm |
| Max. cutting capacity on the right | 635 mm |
| Max. cutting capacity on the left | 255 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 103 dB(A); Sound power level 116 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
