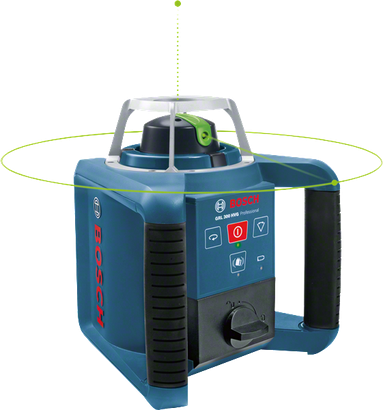

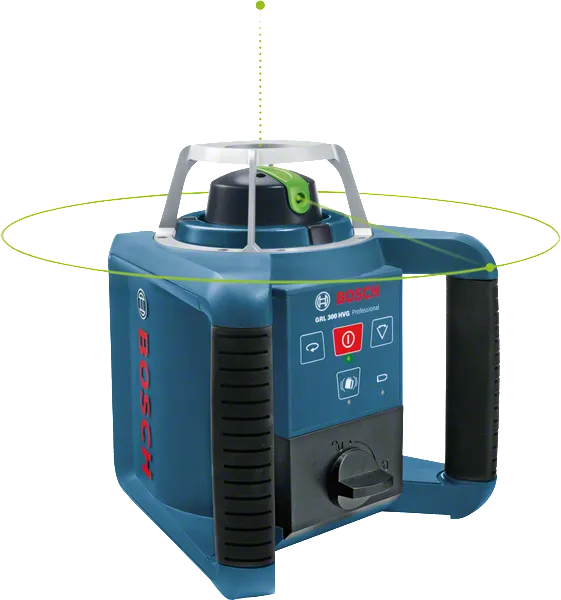

Rotation lasers

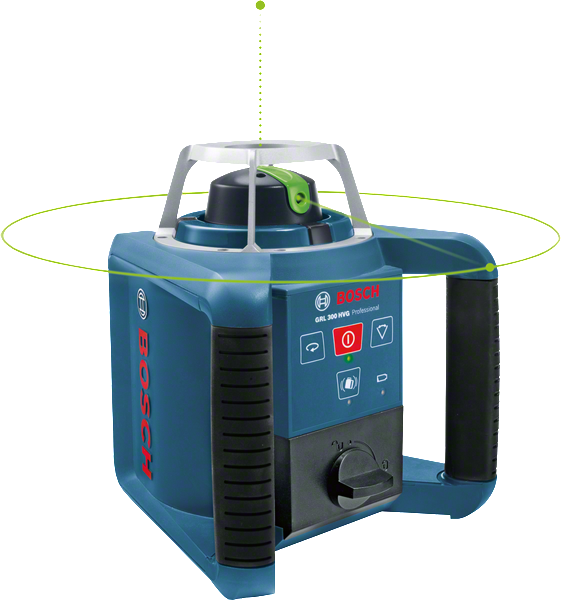

GRL 300 HVG Professional

Rotation Laser

GRL 300 HVG

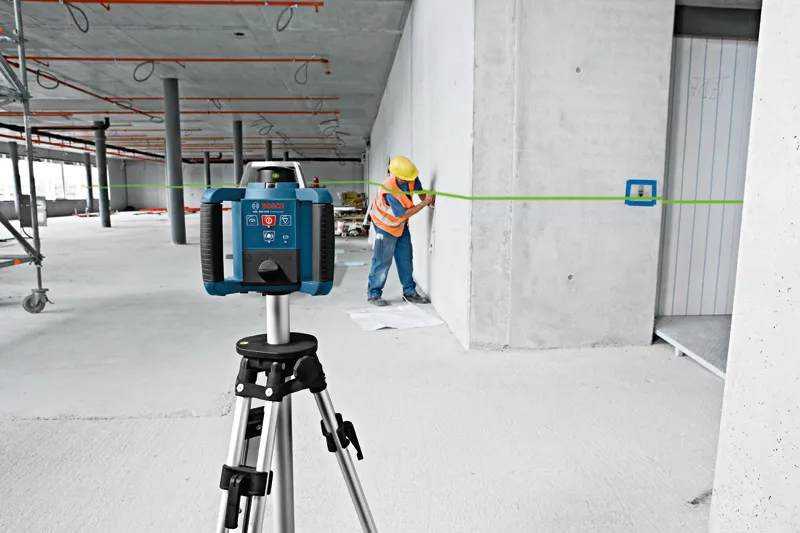

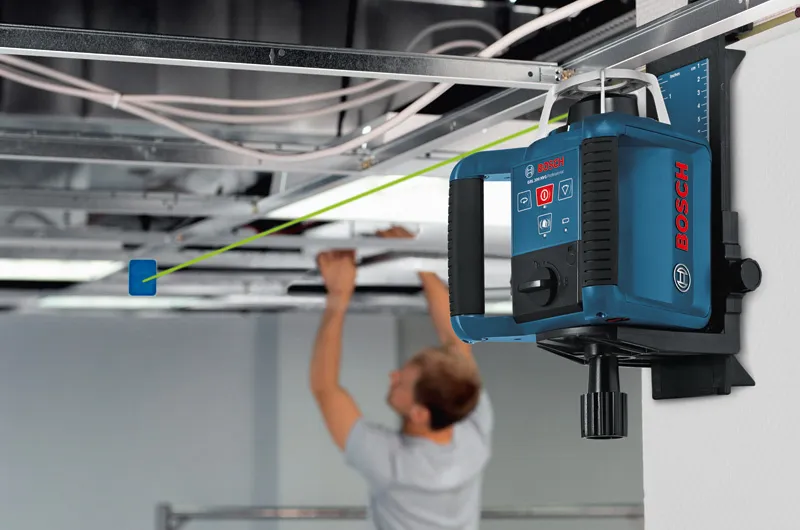

Outstanding visibility for indoor applications

  • Green laser line: up to four times better visibility than a red line
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Functions & key features

 Shock warning function gives an alarm if tool is moved
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
Working range up to 100 m

Your Selection

  • in carrying case with 1 x 9 V block battery, receiver
Show variant
999.00 EUR
Recommended retail price excluding VAT
Find a local dealer

in carrying case with 1 x 9 V block battery, receiver 0 601 061 701
999.00 EUR
Recommended retail price excluding VAT

GRL 300 HVG Professional

Your Selection

GRL 300 HVG
in carrying case with 1 x 9 V block battery, receiver

Order number: 0 601 061 701

999.00 EUR
Recommended retail price excluding VAT
Find a local dealer

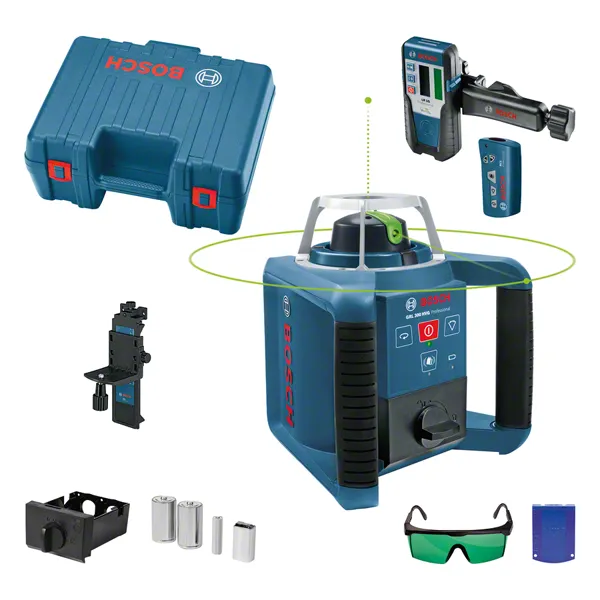

Included in this variant

  • Battery compartment (spare part number 1 608 M00 05D)
  • Bracket
    Order number: 1 608 M00 70F

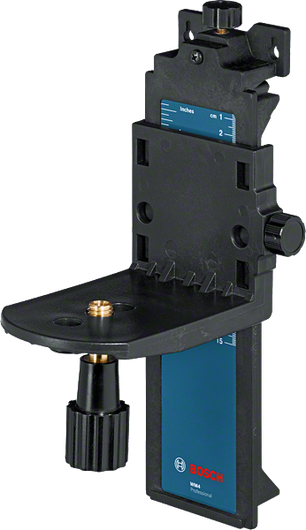

  • Universal mount WM 4 Professional
    Order number: 0 601 092 400
  • Laser target (blue) (spare part number 1 608 M00 05K)
  • Carrying case (spare part number 1 608 M00 05F)
  • 1 x 1.5 V LR6 battery (AA)

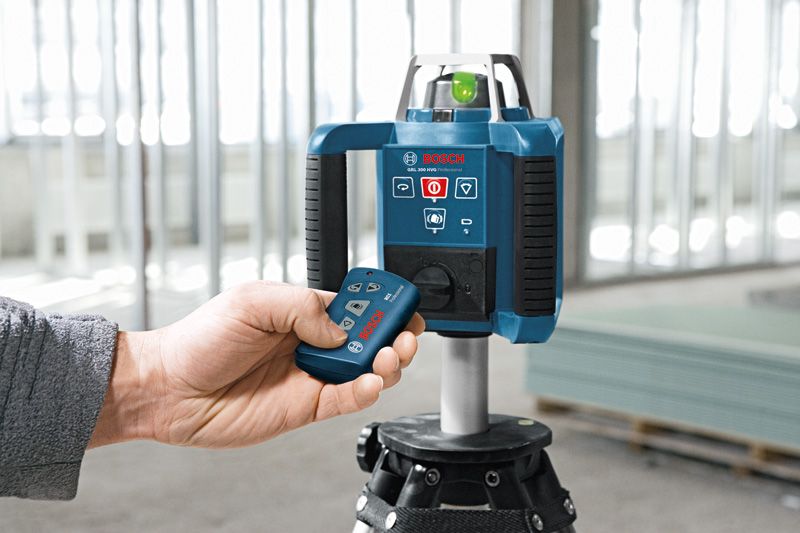

  • Remote control RC1 Professional
    Order number: 0 601 069 900
  • 2 x 1.5 V LR20 battery (D)

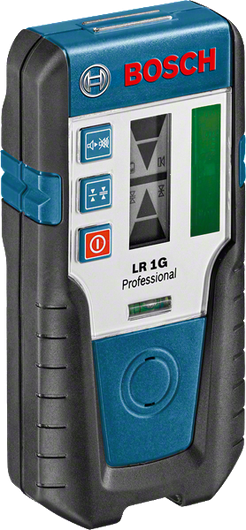

  • Laser receiver LR 1G Professional
    Order number: 0 601 069 700
  • Laser viewing glasses (green) (spare part number 1 608 M00 05J)
  • 1 x 9 V block battery (6LR61)

Technical data

Additional data

Slope function no
Colour of laser line green
Laser diode 532 nm, < 5 mW
Operating temperature 0 – 40 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range 100 m
Working range with receiver 300 m (Diameter)
Working range without receiver 100 m (Diameter)
Accuracy ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Self-levelling range ± 5° (8%)
Levelling time 15 s
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.5 V LR20 (D)
Tripod thread 5/8"
Weight, approx. 1.8 kg
Compatible laser receivers LR 1G
Working range, value 100 m
Working range with receiver, value 300 m

GRL 300 HVG

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
