Technical data
| Additional data | |
|---|---|
| Saw blade diameter* | 254 |
| Incline setting* | 47 ° L / 1 ° R |
| Table size* | 640 x 705 mm |
| Rated input power | 2,100 |

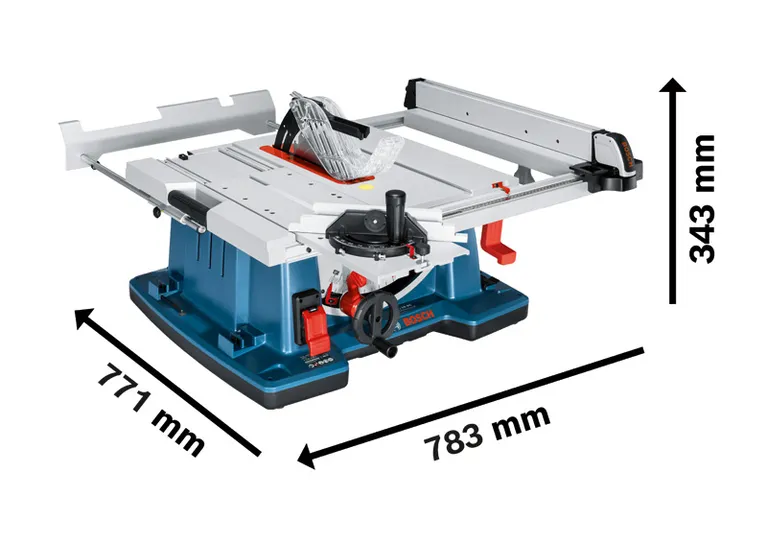

| Tool dimensions (width x length x height) | 343 mm |
| No-load speed | 3,200 |
| Cutting height 90° | 79 |
| Saw blade bore diameter | 30 |
| Weight | 35 |
| Max. cutting capacity on the right | 635 |
| Max. cutting capacity on the left | 250 |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 111 dB(A). Uncertainty K= 3 dB.
Advantages
The versatile tool with a powerful motor
- Powerful motor with motor brake, starting current limitation, overload protection and Constant Electronic for the toughest applications
- Versatile due to integrated slide carriage as well as table-widener and table extension
- Tool-free lowering of the riving knife for concealed cuts
Functions
What’s Included in this Package
with dust extraction accessory
Order number:
0 601 B30 400
- Dust extraction adapter 2 610 015 509
- Angle guide 2 610 015 508
- Parallel guide 2 610 016 851
- Push stick 2 610 015 022
- Storage for additional saw blade

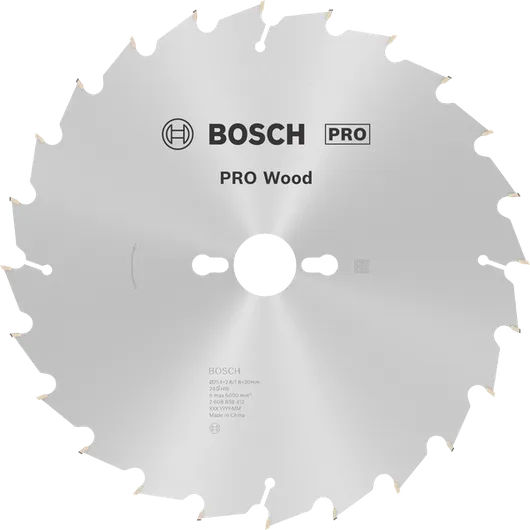

- 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24 2 608 838 412
1,029.00 EUR
Recommended retail price excluding VAT.
