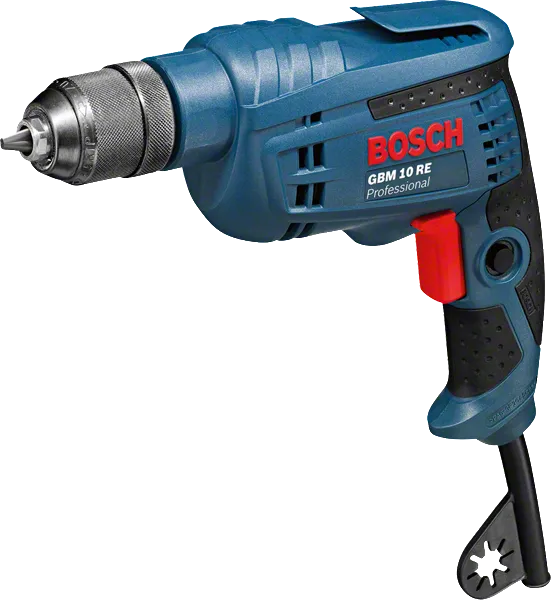

Bosch GBM 10 RE corded professional drill.
Bosch GBM 10 RE corded professional drill.

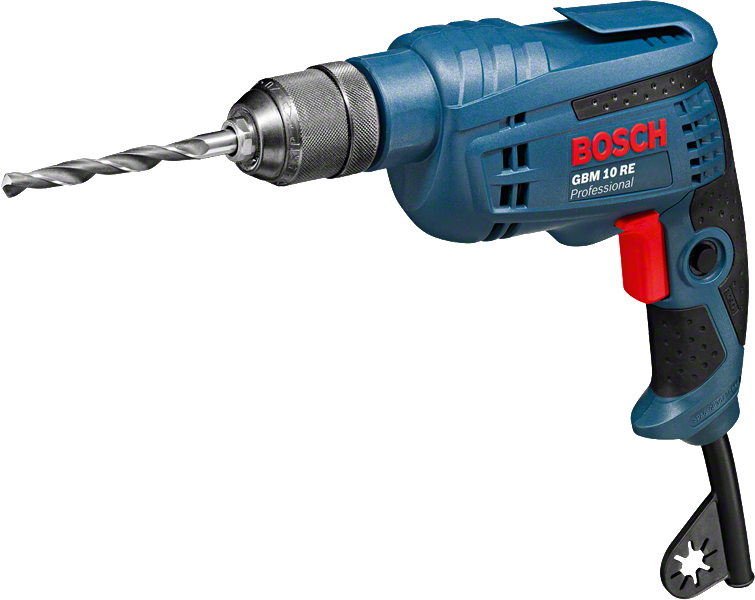

Bosch GBM 10 RE drill with 600W motor.
GBM 10 RE
GBM 10 RE
GBM 10 RE
Bosch GBM 10 RE drill with 600W motor.

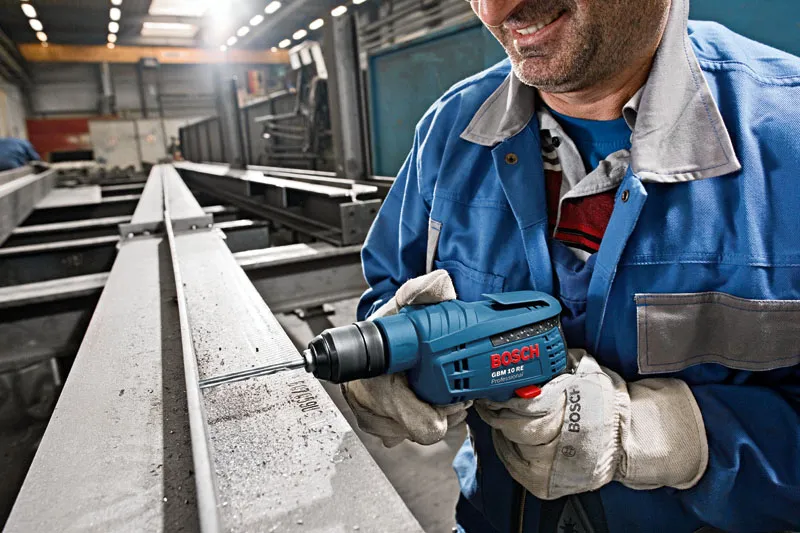

A person wearing safety equipment drills into a steel beam using a blue power tool.

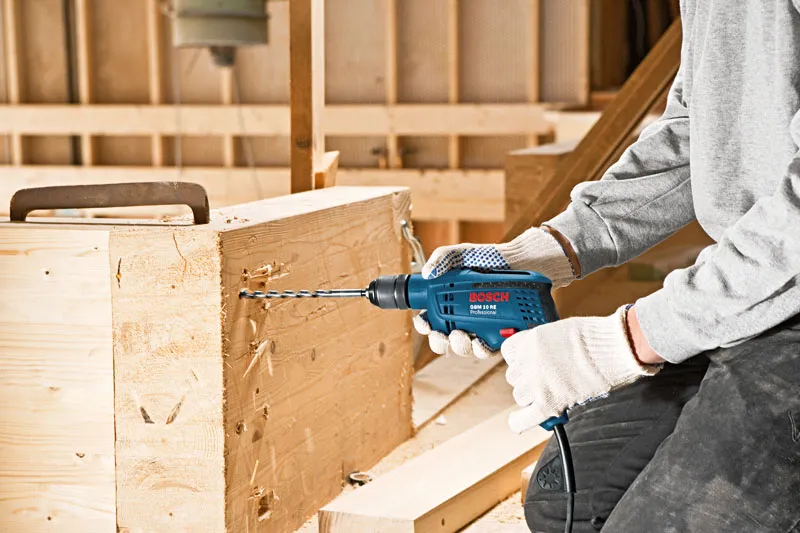

A person wearing safety equipment drills into a wooden beam using a power drill.
1/8

GBM 10 RE Professional

Drill

Compact 1-geared rotary drill

  • Reliable 600 W motor easily drills holes of up to 10 mm in metal
  • Lightweight and compact body for convenience with perfect handling and manoeuvrability in medium duty applications
  • Drill spindle is fixed in bearings, providing stability in operation, enabling high-precision drilling

Functions & key features

Forward reverse rotation
Speed trigger
Soft grip

Your Selection

  • with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
Show variant
Check availability on location
Find a local dealer
with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750) 0 601 473 600
Find a local dealer

GBM 10 RE Professional

Your Selection

Bosch GBM 10 RE corded professional drill.
with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)

Order number: 0 601 473 600

Find a local dealer

Included in this variant

  • Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
Your selection

Technical data

Additional data

Rated input power
600 W
Bit holder
1/2"
Voltage, electrical
230 V
No-load speed, 1st gear
0 – 2,600 rpm
Power output
360 W
Weight
1.7 kg
Rated speed
1,676 rpm
Rated torque
20.0 Nm
Drill spindle connecting thread
1/2"
Chuck capacity, min./max.
1 – 10 mm
Show more

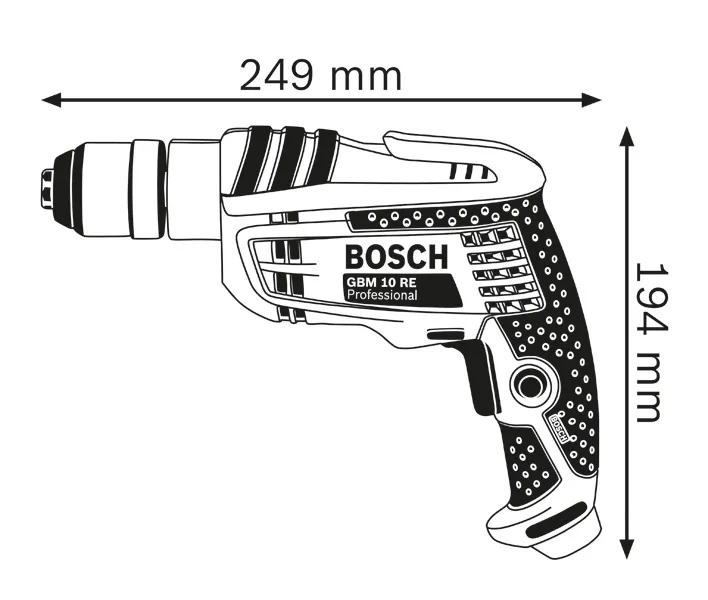

Drill dimensions diagram

* You can find more information about the deviations in the following link: Technical features of products

GBM 10 RE Professional: Further information

Product Highlights

The GBM 10 RE Professional is a compact corded 1-geared rotary drill. Its reliable 600 W motor enables easy drilling of holes of up to 10 mm in metal. This rotary drill’s lightweight and compact tool body design provides convenience with perfect handling and manoeuvrability in medium-duty applications. Additionally, the drill spindle is fixed within the bearings, ensuring stability in operation and thus enabling high-precision drilling.

Equipment & Application

This tool is intended for drilling in metal and wood.

Additional Information

The GBM 10 RE Professional includes features such as right-left rotation and variable speed.
