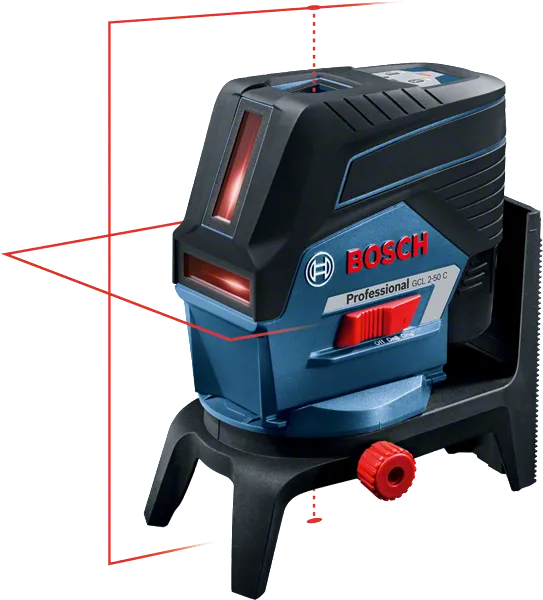

Combi Laser GCL 2-50 C Professional

Smart functions for maximum productivity

Technical data
Additional data
Working range* 20 m
Working range with receiver* 50 m
Accuracy* ± 0.3 mm/m
Laser diode 635 – 650 nm
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50°C °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C °C
Laser class 2
Working range with receiver, value 50 m
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread 1/4"
Weight, approx. 0.6 kg
Colour of laser line red
Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m
Compatible laser receivers LR 6 + 7

* Highlighted Data

Advantages

Smart functions for maximum productivity

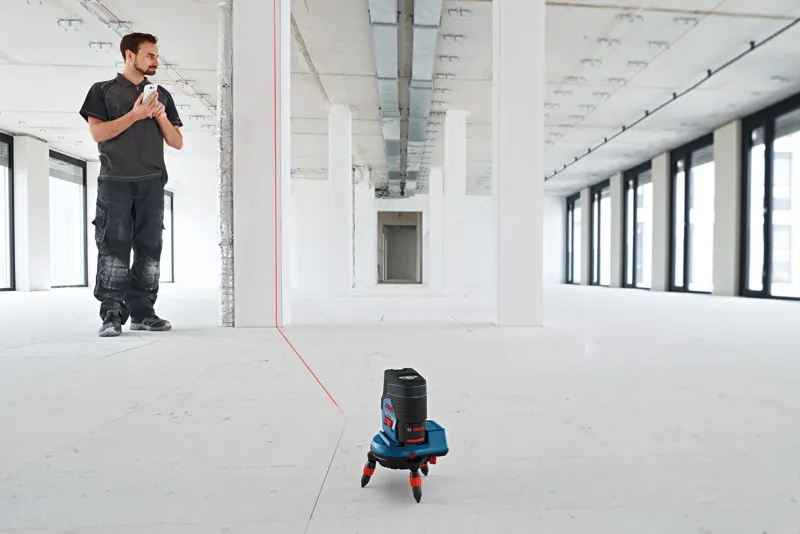

  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility
  • Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3

Functions

Icon
Icon
Icon
Laser class 2 Laser class for measuring tools.
Icon
 All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Icon
Icon
Icon
Icon
Icon
Icon
Icon

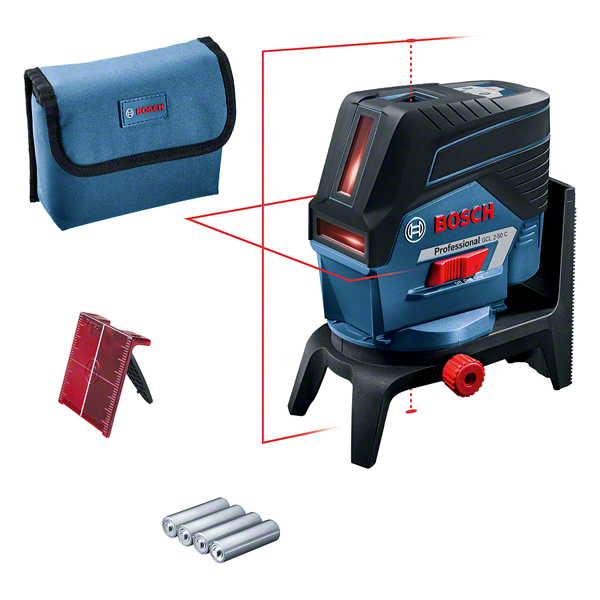

What’s Included in this Package
in L-BOXX with 1 x 2.0 Ah Li-ion battery, accessory set
in L-BOXX with 1 x 2.0 Ah Li-ion battery, accessory set
Order number: 0 601 066 G70
  • Wall mount BM 3 Professional 0 601 015 D00
  • GCL 2-50 C/CG Inlay 1 1 608 M00 C1T
  • GCL 2-50 C/CG Inlay 2 1 608 M00 C1U
  • Laser target plate
  • L-BOXX 136 1 600 A00 1RR
  • Protective Bag
  • Quick charger GAL 1230 CV 1 600 A01 16B
  • Rotating mount RM 2 Professional 0 601 092 700
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
