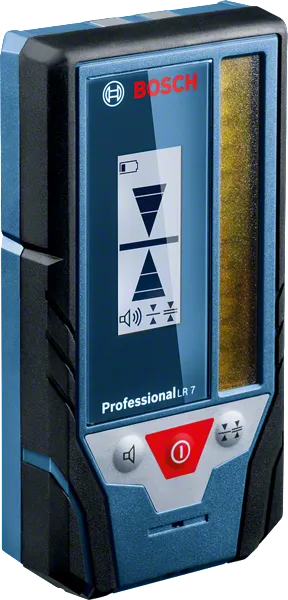

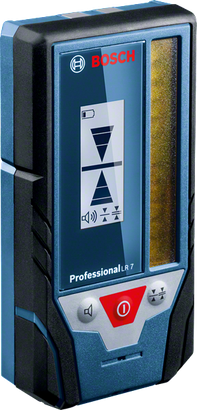

Laser Receiver LR 7 Professional

319.00 QAR Recommended retail price excluding VAT.

Technical data
Additional data
Range of* 5 – 50 m
Power supply* 2 x 1.5 V LR6 (AA)
Dust and splash protection* IP 54
Remote control -
Receiver +
Range, from 5 m
Range, up to 50 m
Weight, approx. 150 g

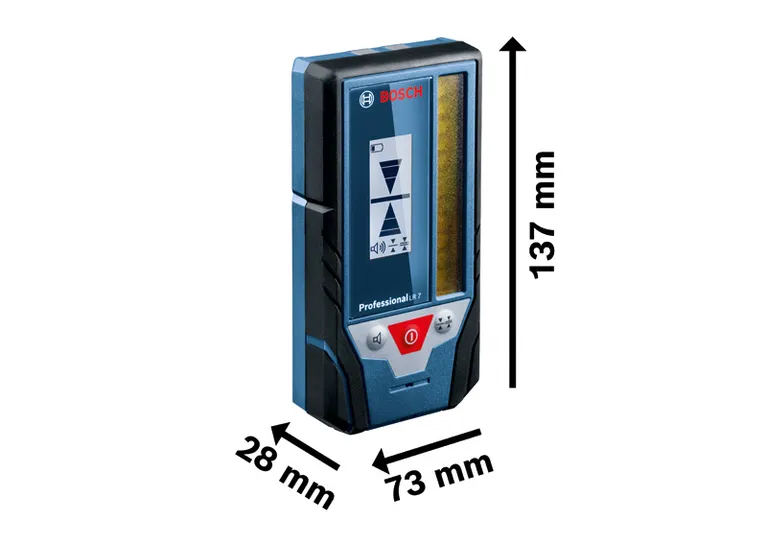

Tool dimensions (width) 28 mm
Tool dimensions (length) 73 mm
Tool dimensions (height) 137 mm
Measuring accuracy, fine ± 1 mm
Measuring accuracy, rough ± 3 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

* Highlighted Data

Advantages

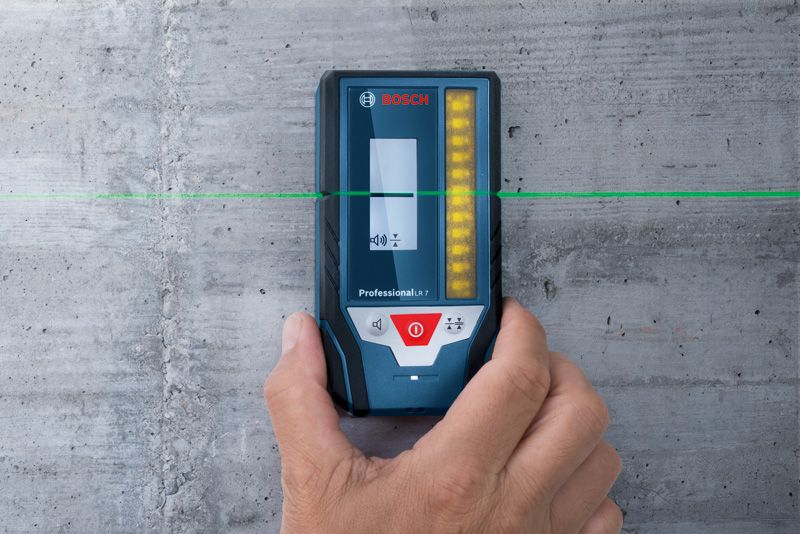

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon

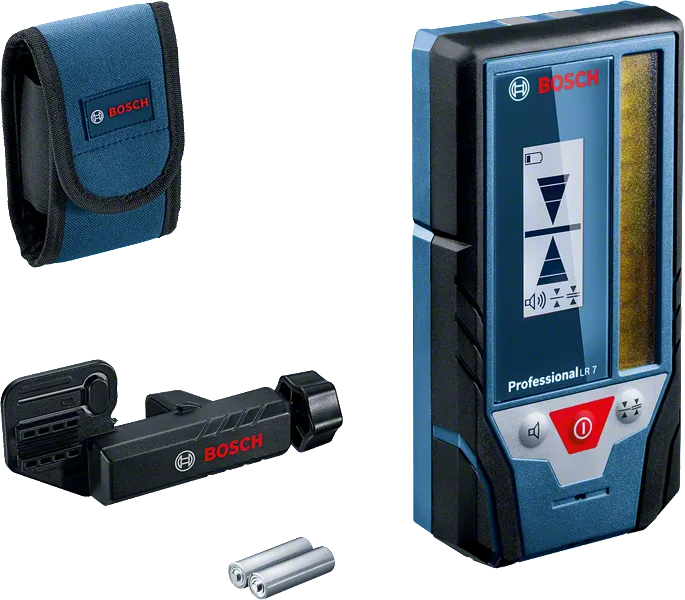

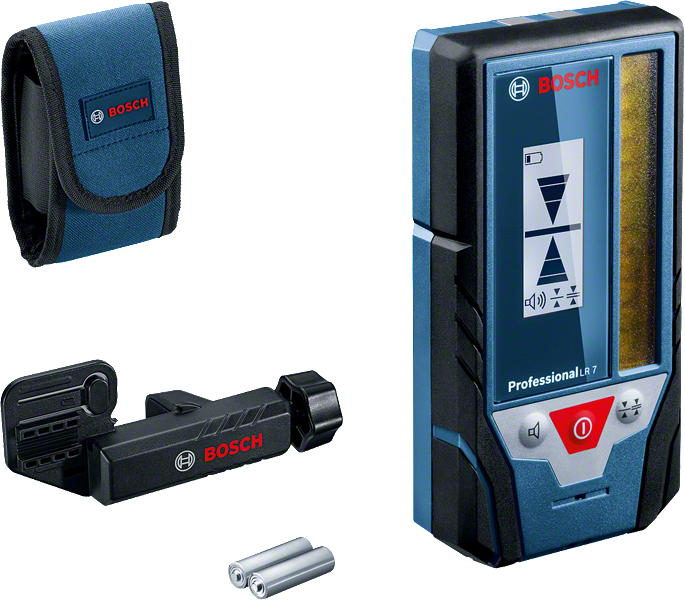

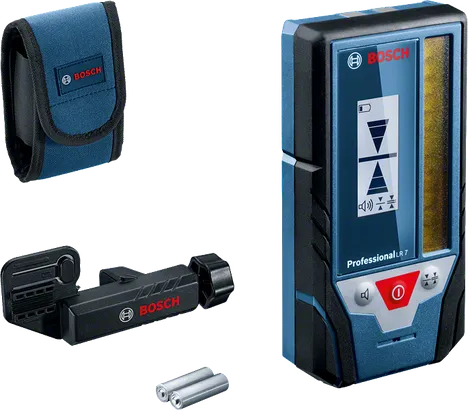

What’s Included in this Package
with 2 x battery (AA), accessory set
with 2 x battery (AA), accessory set
Order number: 0 601 069 J00

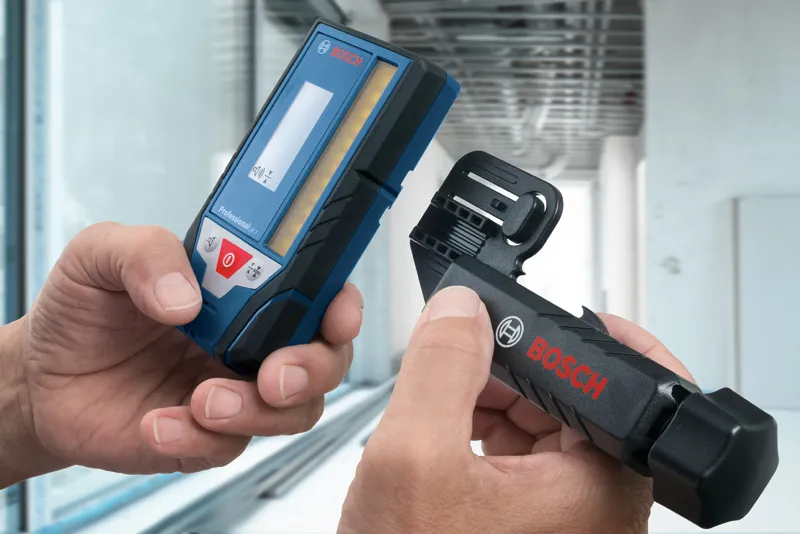

  • Bracket for laser receiver LR 6/7 1 608 M00 C1L
  • Protective Bag
  • 2 x 1.5 V LR6 battery (AA)
319.00 QAR Recommended retail price excluding VAT.

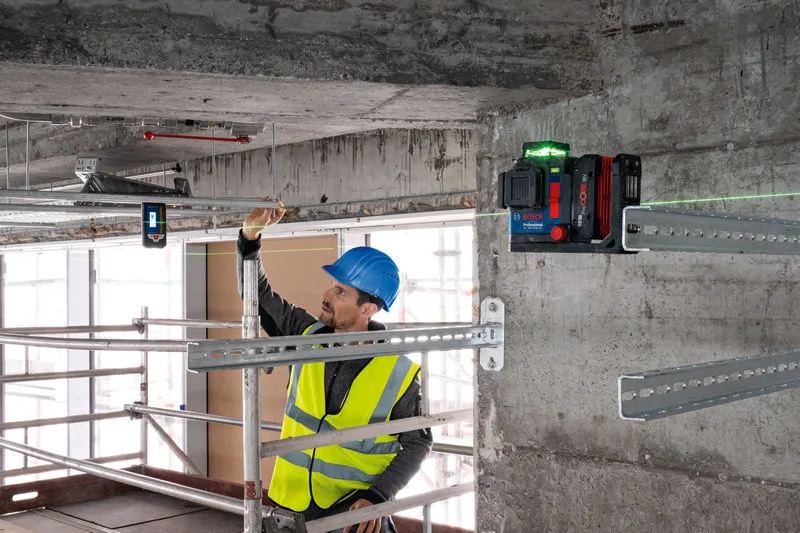

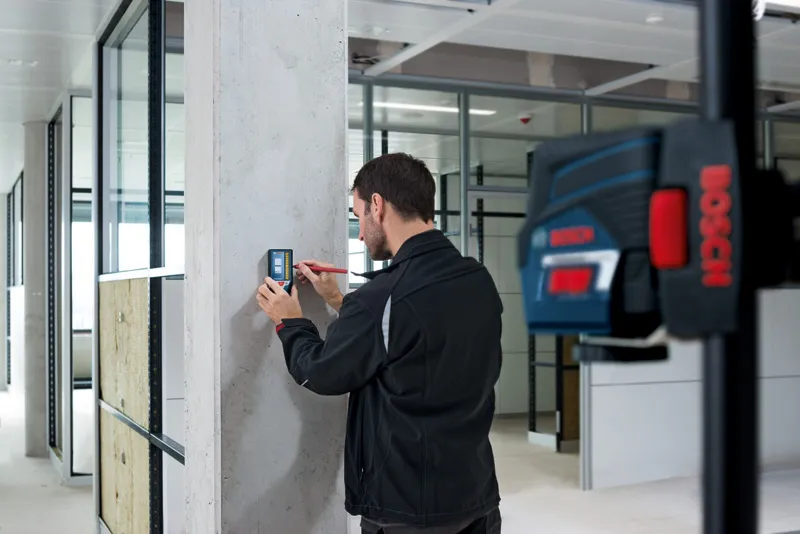

The LR 7 in action!
