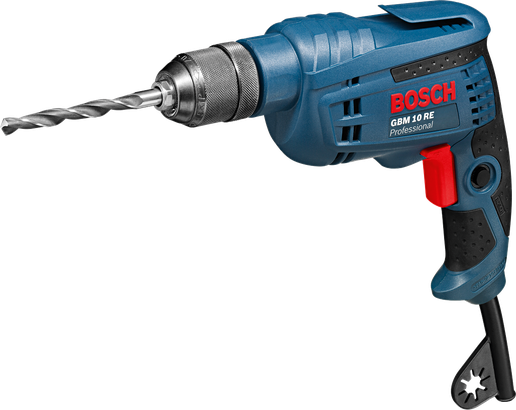

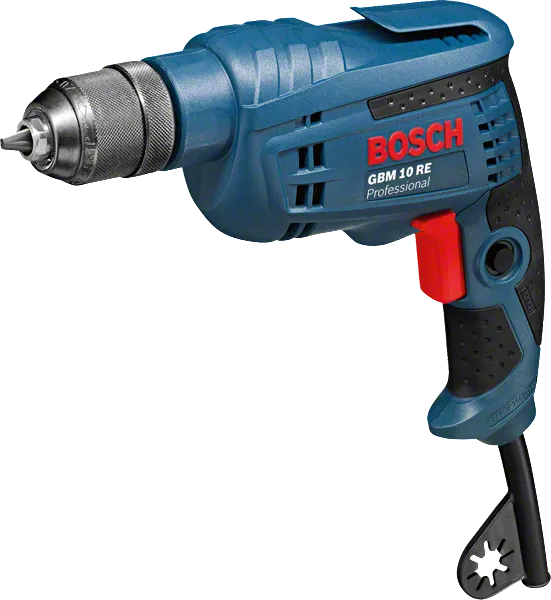

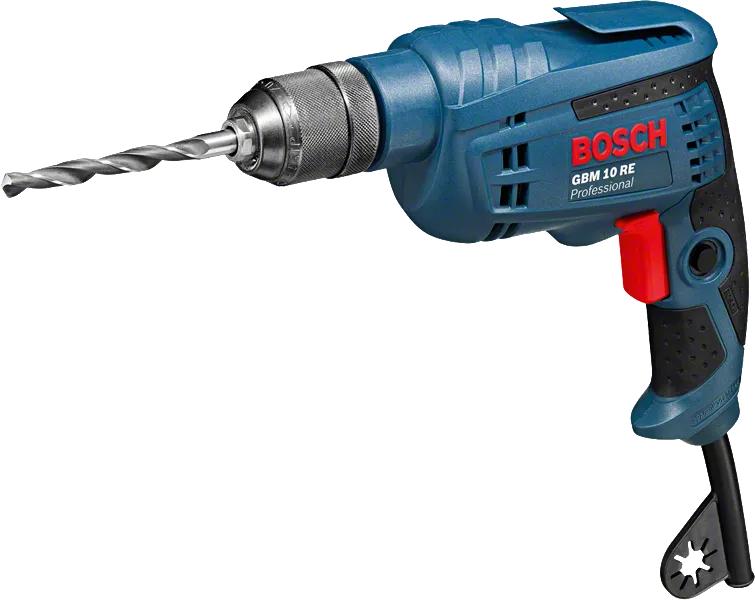

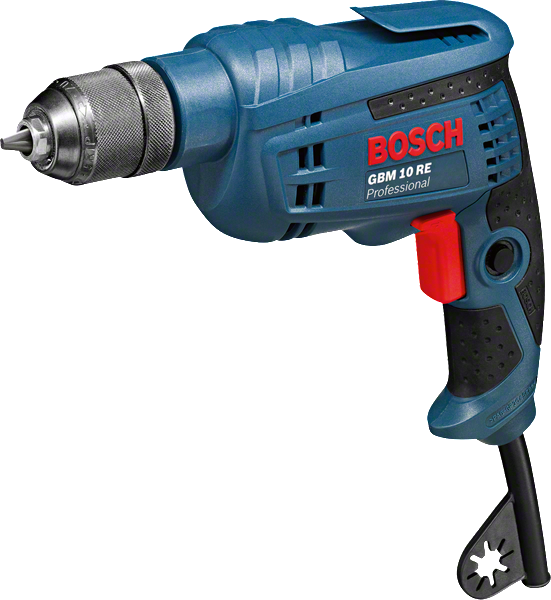

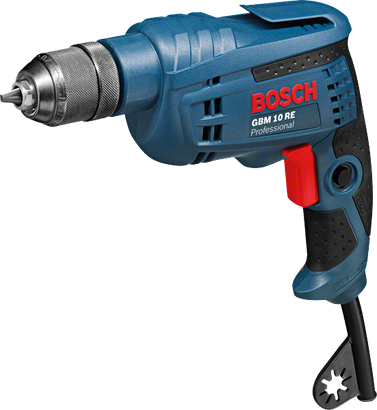

Drill GBM 10 RE Professional

The powerful and compact tool

from  59.00 EUR Recommended retail price excluding VAT

Technical data
Additional data
Rated input power 600
Weight 1.7

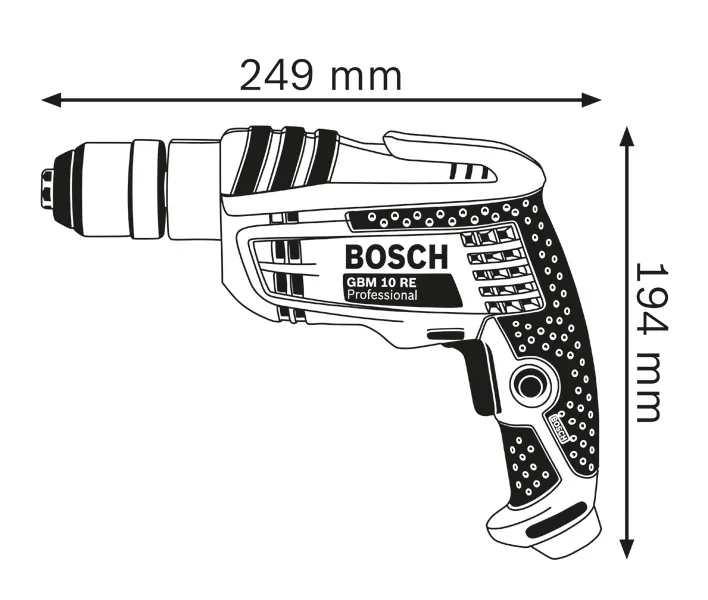

Tool dimensions (width) 68
Tool dimensions (length) 267
Tool dimensions (height) 194
No-load speed, 1st gear 0 – 2.600   rpm
Power output 360
Rated speed 1.676   rpm
Rated torque 20=0   Nm
Drill spindle connecting thread 1/2"
Chuck capacity, min./max. 1 – 10   mm
Drilling range
Drilling diameter in aluminium 10   mm
Drilling diameter in wood 25   mm
Drilling diameter in steel 10   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 4.8
Uncertainty K 1.5
Total vibration values (Screwdriving)
Vibration emission value ah 2.8
Uncertainty K 1.5

Advantages

The powerful and compact tool

  • Powerful motor, ideal for drilling holes up to 10 mm in diameter in metal
  • Drill spindle fixed in bearing for high precision
  • Compact design and low weight for optimum handling in medium-duty drilling applications

Functions

Forward / reverse rotation for inserting and removing screws
Easy and precise control of the RPM thanks to variable speed
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package
with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
Order number: 0 601 473 600
  • Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
59.00 EUR Recommended retail price excluding VAT
Product variations (2)
The GBM 10 RE in action!
