Technical data
| Additional data | |
|---|---|
| Rated input power | 701 |
| Weight | 1.9 |

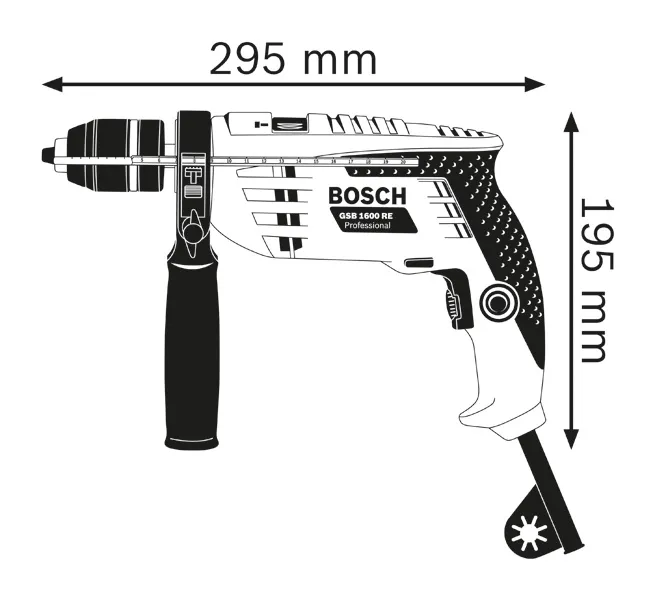

| Tool dimensions (width) | 69 |
| Tool dimensions (length) | 292 |
| Tool dimensions (height) | 194 |
| Chuck capacity, min./max. | 1=5 – 13 mm |
| No-load speed, 1st gear | 0 – 3.000 rpm |
| Power output | 351 |
| Drill spindle connecting thread | 1/2" – 20 UNF |
| Impact rate at no-load speed | 0 – 48.000 bpm |
| Drilling range | |
|---|---|
| Drilling diameter in masonry | 18 mm |
| Drilling diameter in concrete | 16 mm |
| Drilling diameter in wood | 30 mm |
| Drilling diameter in steel | 12 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 2.7 |
| Uncertainty K | 1.5 |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 23 |
| Uncertainty K | 3.5 |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 |
| Uncertainty K | 1.5 |
Advantages
Compact power – The most compact and powerful impact drill in its class
- Robust and powerful 701 W motor for tough applications
- Soft in line grip for a secure hold
- Higher dynamic load rated ball bearing for long life
Functions

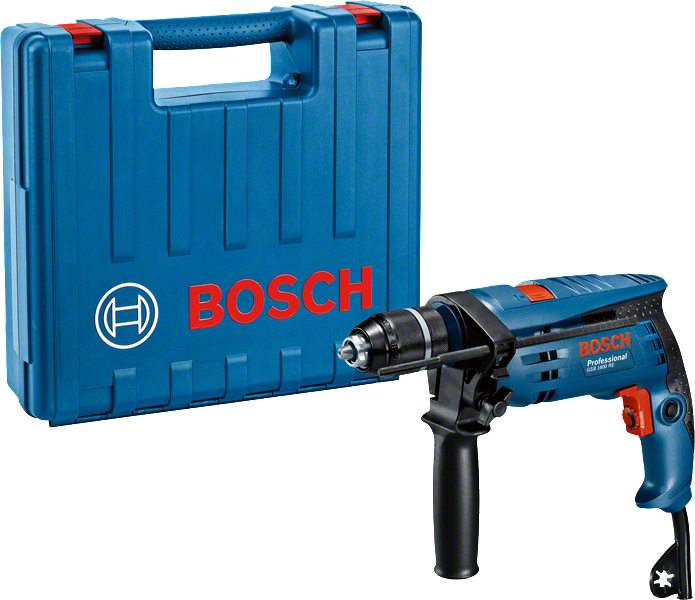

What’s Included in this Package
in carrying case with chuck, Accessory
Order number:
0 601 218 162
- Carrying case 2 605 438 607
- Keyless chuck 13 mm 2 608 572 105
- Voltage 110 V
- Depth stop 210 mm 2 603 001 019
140.00 EUR
Recommended retail price excluding VAT.
