Combi lasers

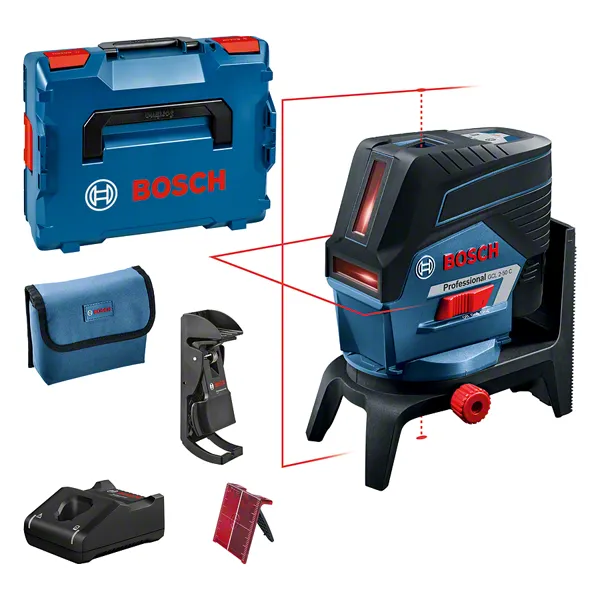

Bosch GCL 2-50 C laser leveling tool with accessories.
Bosch GCL 2-50 C laser leveling tool with accessories.

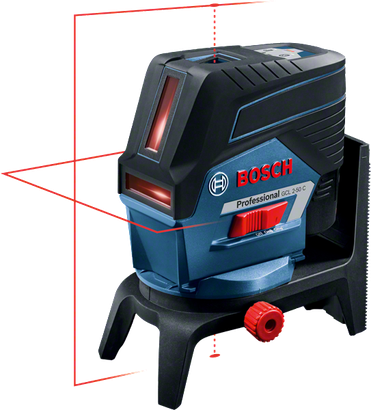

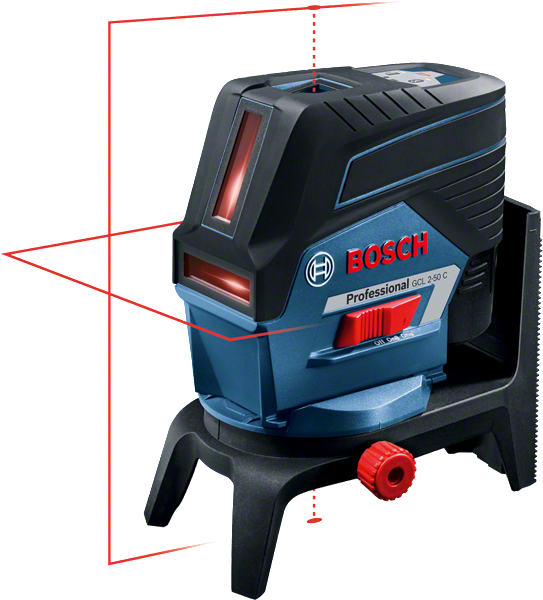

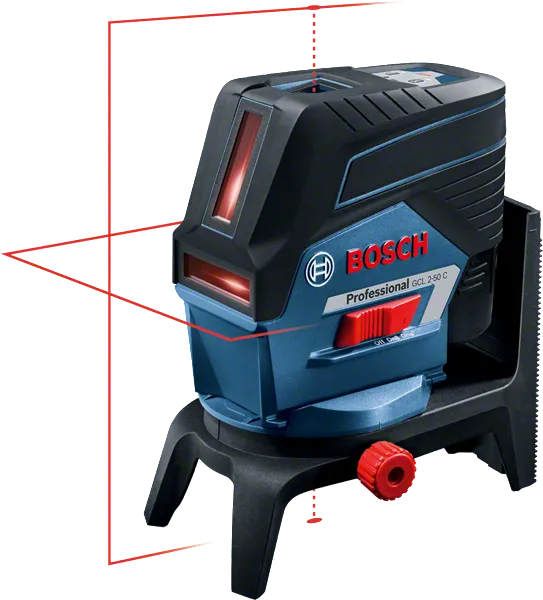

Bosch GCL 2-50 C combi laser leveling tool, self-levelling.
GCL 2-50 C
GCL 2-50 C

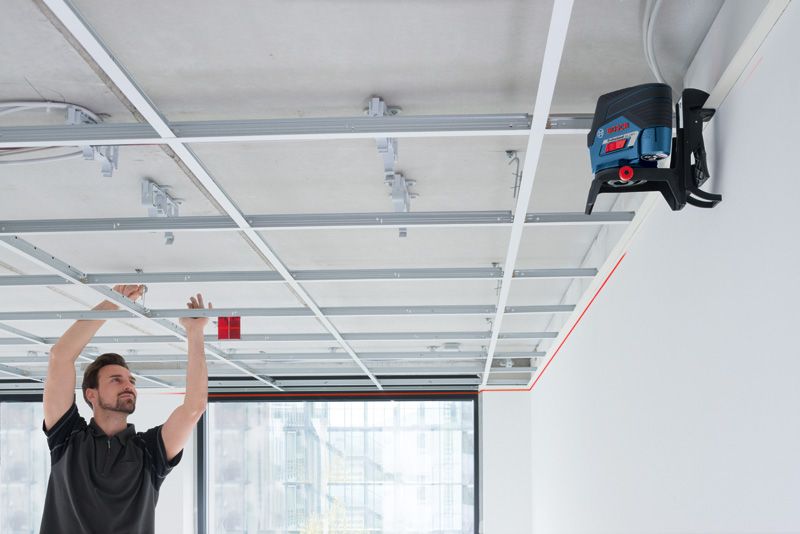

Person aligning ceiling framework using a laser leveling tool in a modern interior space.

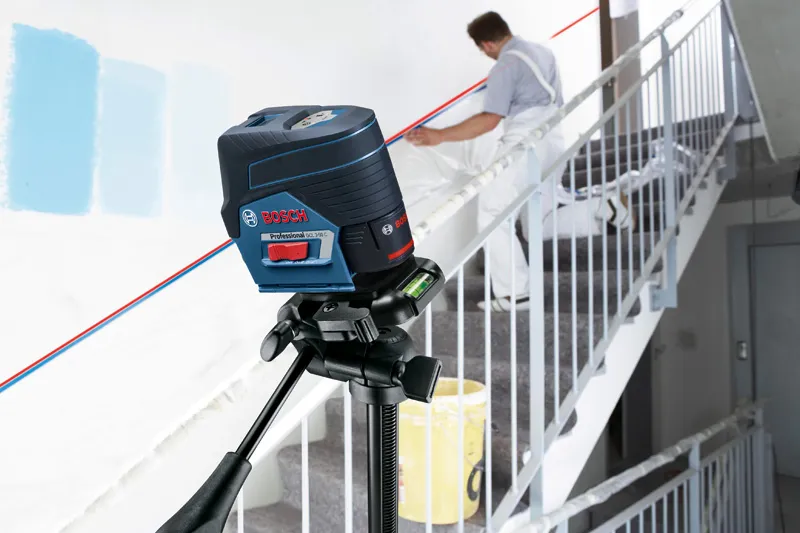

Laser leveling tool projecting horizontal and vertical lines, person on stairs preparing wall.

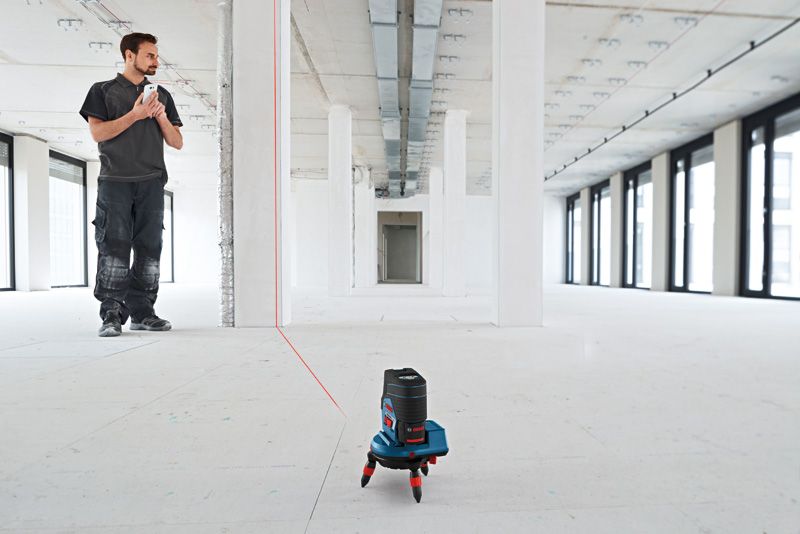

A person stands in a large room while a laser leveling tool projects a line on the floor.
1/7

GCL 2-50 C Professional

Combi Laser

12V system
Connected

Smart functions for maximum productivity

  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility
  • Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3

Functions & key features

Dual power
Working area receiver
Easy positioning
Slide function
Working area 50 m

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp
Change variant
Check availability on location
Find a local dealer
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp 0 601 066 G03
Find a local dealer

Select a variant

Your Selection

Bosch GCL 2-50 C laser leveling tool with accessories.
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp

Order number: 0 601 066 G03

Find a local dealer

Included in all variants

  • Protective Bag
  • Rotating mount RM 2 Professional
    Order number: 0 601 092 700
  • Laser target plate

Additional in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R3
  • Ceiling clamp
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
Your selection

Your Selection

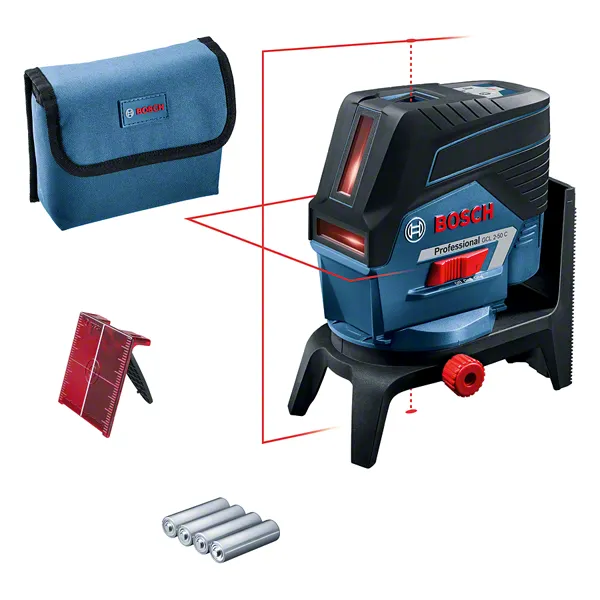

Bosch GCL 2-50 C laser leveling tool with case and batteries.
with 4 x battery (AA), adapter

Order number: 0 601 066 G00

Find a local dealer

Included in all variants

  • Protective Bag
  • Rotating mount RM 2 Professional
    Order number: 0 601 092 700
  • Laser target plate

Additional in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • 4 x 1.5 V LR6 battery (AA)
Select Variant

Your Selection

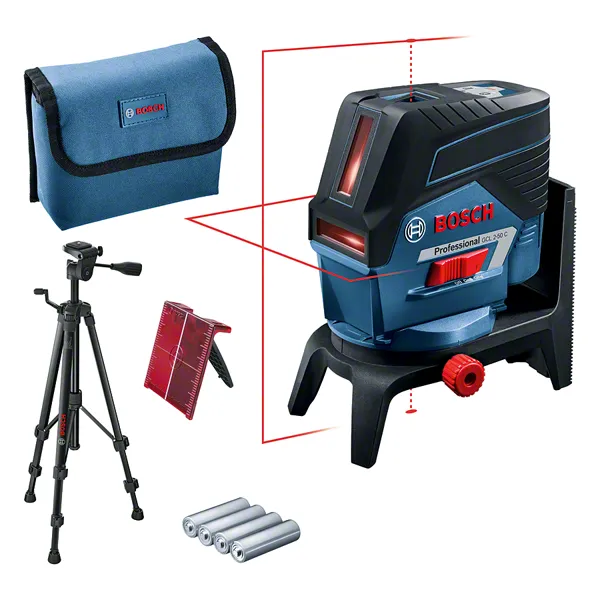

Bosch GCL 2-50 C laser leveling tool with tripod and case.
with 4 x battery (AA), adapter

Order number: 0 601 066 G02

Find a local dealer

Included in all variants

  • Protective Bag
  • Rotating mount RM 2 Professional
    Order number: 0 601 092 700
  • Laser target plate

Additional in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • 4 x 1.5 V LR6 battery (AA)
  • Building tripod BT 150 Professional
    Order number: 0 601 096 B00
Select Variant

Technical data

Additional data

Battery voltage
12.0 V
Dust and splash protection
IP54 (except for the battery or battery adapter)
Working range
20 m
Working range with receiver
50 m
Accuracy
± 0.3 mm/m
Colour of laser line
red
Laser diode
635 – 650 nm
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range of laser points, max.
10 m (top), 10 m (bottom)
Self-levelling range
± 4°
Power supply
12 V Li-ion or 4 x 1.5 V LR6 (AA)
Operating time (max.)
18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Weight, approx.
0.6 kg
Color of plumb points
red
Projection
2 lines / 2 points
Plumb point accuracy
± 0.7 mm/m
Compatible laser receivers
LR 6 + 7
Working range, value
20 m

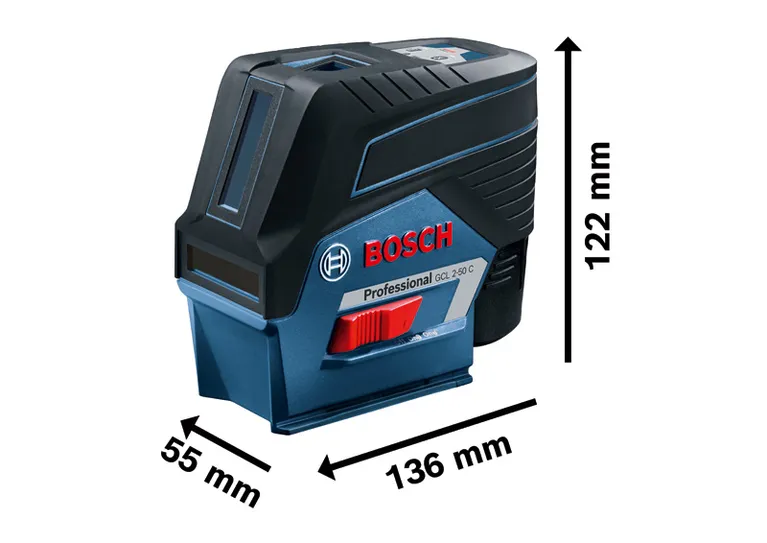

Bosch GCL 2-50 C combi laser leveling tool, 20 m range.

* You can find more information about the deviations in the following link: Technical features of products

GCL 2-50 C Professional: Further information

Product Highlights

The combi laser GCL 2-50 C Professional offers many smart functions for maximum efficiency. A Bluetooth®-connection provides remote-control adjustments via a smartphone app, while Dual Power Source allows 12 V Li-ion or standard alkaline batteries for added flexibility. For precise positioning around the centred plumb points, the optional RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments.

Equipment & Application

It is designed for horizontal and vertical alignments with a long overshoot of nearly 360° and is suitable for projects such as dry wall installation and interior finishing.

Additional Information

The GCL 2-50 C Professional's horizontal and vertical laser lines and two centred plumb points offer optimal visibility of up to 20 m without a receiver and 50 m with a receiver.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Fits to GCL 2-50 C Professional

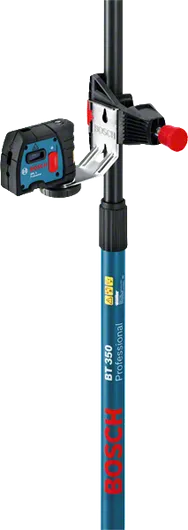

Bosch BT 350 telescopic pole for laser leveling tool.

BT 350

Telescopic Pole

Easy to operate and robust for line and point laser level
Bosch BM 1 universal mount for laser leveling tool.

BM 1

Universal Mount

The universal solution for line and point lasers
Bosch BT 150 tripod with adjustable height.

BT 150

Building Tripod

Absolutely secure stance on any floor
Bosch LR 7 laser receiver with digital display.

LR 7

Laser Receiver

Downloads

User Manual

Instruction manual | GCL 2-50 CG | GCL 2-50 C (PDF 19.9 MB)
Product data sheet Product data sheet | GCL 2-50 C (PDF 1.5 MB)
