Technical data
| Additional data | |
|---|---|
| Working range* | 20 m |
| Working range with receiver* | 50 m |
| Accuracy* | ± 0.3 mm/m |
| Laser diode | 500 – 540 nm, < 10 mW, 630 – 650 nm, < 1mW |
| Operating temperature, from | -10 °C |
| Operating temperature, up to | 50 °C |
| Operating temperature | -10 – 50°C °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70°C °C |
| Laser class | 2 |
| Working range with receiver, value | 50 m |
| Working range of laser points, max. | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Dust and splash protection | IP 54 |
| Operating time (max.) | 10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation, 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation, 15 h (Li-Ion) and 12 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation |
| Tripod thread | 1/4" |
| Weight, approx. | 0.6 kg |
| Colour of laser line | green |
| Colour of plump points | red |

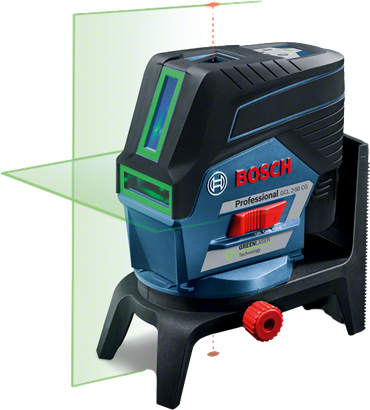

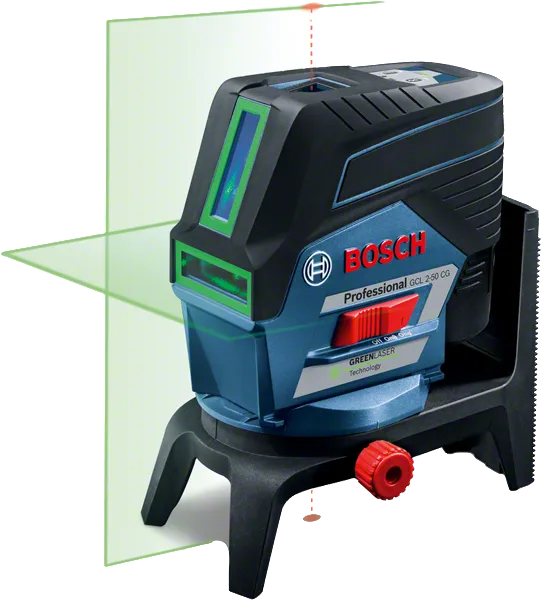

| Projection | 2 lines / 2 points |
| Plumb point accuracy | ± 0.7 mm/m |
| Compatible laser receivers | LR 7 |
* Highlighted Data
Advantages
Supreme visibility connected with smart functions
- Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility

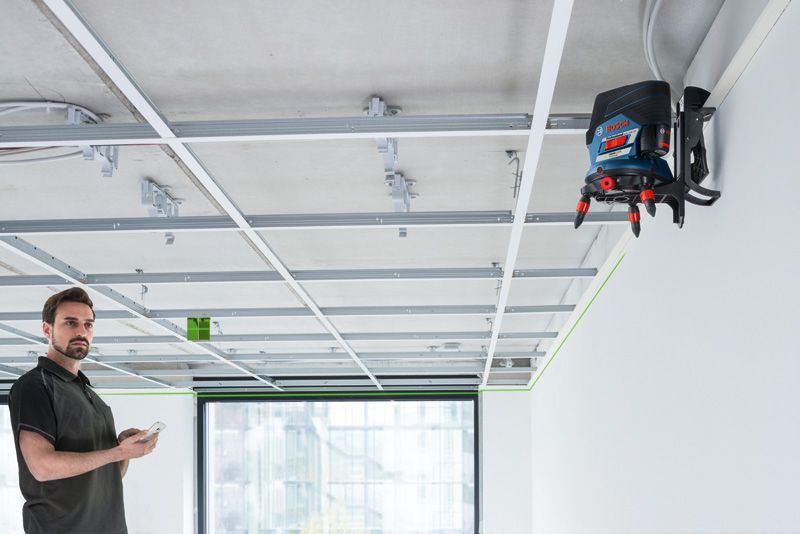

- Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
- Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries
Functions

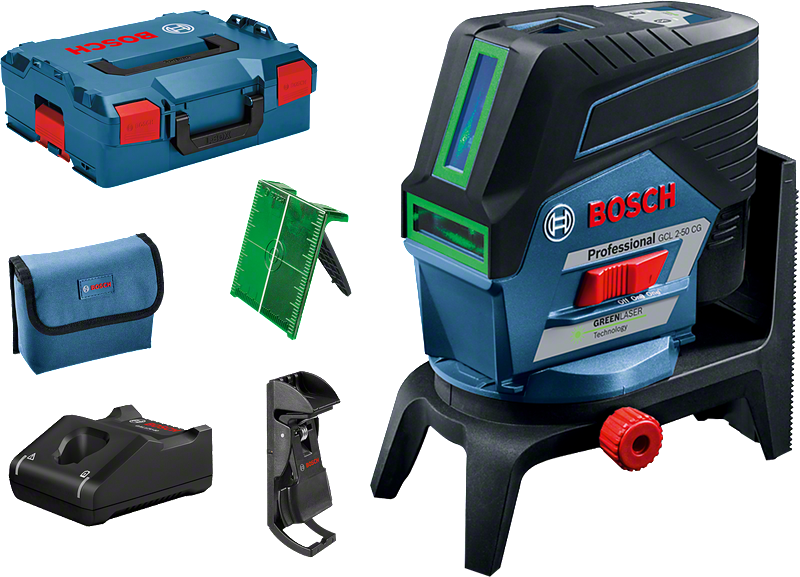

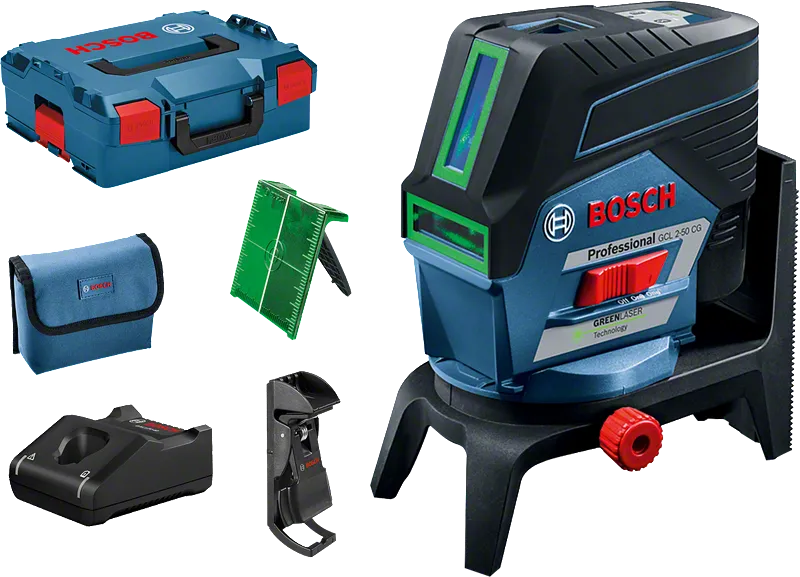

What’s Included in this Package
in L-BOXX with 1 x 2.0 Ah Li-ion battery, accessory set
Order number:
0 601 066 H70
- Ceiling clamp
- GCL 2-50 C/CG Inlay 1 1 608 M00 C1T
- GCL 2-50 C/CG Inlay 2 1 608 M00 C1U
- Laser target plate
- L-BOXX 136 1 600 A00 1RR
- Protective Bag
- Quick charger GAL 1230 CV 1 600 A01 16B
- Rotating mount RM 2 Professional 0 601 092 700
- 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
