Drill Bit Sets

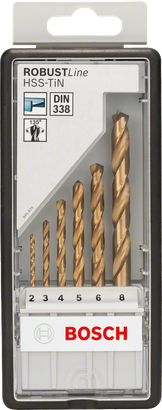

HSS Twist Drill Bit Titanium Set, Robust Line, 6-piece

For rotary drills

  • The titanium-nitride coating offers the lowest possible level of friction and minimal wear
  • High surface quality of this ground HSS Twist Drill Bit allows for extended usage

Materials

Steel
Cast iron

Choose your Variant


HSS Twist Drill Bit Titanium Set, Robust Line, 6-piece
from  Including VAT
For rotary drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Cylindrical shank compatible with three-jaw drill chucks.

Long Life

HSS Twist Drill Bit Titanium offers an extended lifetime

  • High surface quality of this ground HSS Twist Drill Bit allows for extended usage
  • Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
  • Active cutting and perfect centring due to pointed split-point tip. Do not use with aluminium, only work with a cooling agent
View more

Variant Overview

Available product variations: 5

Part number Diameter mm Working length mm Set dimension(s) mm Pack quantity Price
2 607 010 530 2.0 / 3.0 / 4.0 / 5.0 / 6.0 / 8.0 24 / 33 / 43 / 52 / 57 / 75 156.5 x 69.5 x 23 6 Pcs
2 607 010 536 1.0 / 2.0 / 3.0 / 4.0 / 5.0 / 6.0 / 7.0 / 8.0 / 9.0 / 10.0 12 / 24 / 33 / 43 / 52 / 57 / 69 / 75 / 81 / 87 156.5 x 106.5 x 23 10 Pcs
2 607 010 539 1.5 / 2.0 / 2.5 / 3.0 / 3.2 / 3.5 / 4.0 / 4.5 / 4.8 / 5.0 / 5.5 / 6.0 / 6.5 18 / 24 / 30 / 33 / 36 / 39 / 43 / 47 / 52 / 52 / 57 / 57 / 63 124.0 x 106.5 x 23 13 Pcs
2 608 587 015 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 172.0 x 115.0 x 42 19 Pcs
2 608 587 019 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 / 10.5 / 11.0 / 11.5 / 12.0 / 12.5 / 13.0 12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 / 87 / 94 / 94 / 101 / 101 / 101 200.0 x 115.0 x 58 25 Pcs
