For Rotary Hammers and Drills
![]()
Keyed Drill Chuck
For rotary drills/drivers, For impact drill/drivers
Keyed Drill Chuck is a simple and reliable solution for fixing drill bits for any type of job
- Consistently strong clamping force that securely fastens cylindrical or hex shank drill bits
- Easy handling: jaws are conveniently tightened and loosened with a key
Select options
Chuck capacity mm
Select one option from the listed items below
Mount, range
Select one option from the listed items below
Drill chuck, type
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Compatible with
Select one option from the listed items below
inStock
Select options
Chuck capacity mm 1.5–13.0
Mount, range 1/2" – 20
Drill chuck, type Keyed chuck
Choose a pack size 1 Pcs
Compatible with 1608571062
Keyed chucks up to 13 mm
1 608 571 062
Secure Drill Bit Clamping for Any Job
Keyed Drill Chuck is a simple and reliable solution for fixing drill bits for any type of job
- Easy handling: jaws are conveniently tightened and loosened with a key
- Different mounts: 1/2" - 20, 3/8"- 24, 5/8" - 16, B16, and SDS plus; compatible with most common drills
- Check technical details for information regarding impact resistance or suitability for anti-clockwise rotation
Product Options
Available product options: 7
|
Part number
|
Replacement key
|
Only for spindle lock
|
R/L rotation
|
Locking mechanism
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 1 608 571 053 | D | - | - | - | 1 Pcs | £18.00 | Find a local dealer | |
| 1 608 571 056 | A | - | + | - | 1 Pcs | £50.00 | ||
| 1 608 571 057 | A | - | - | + | 1 Pcs | £60.00 | Available from our partners | |
| 1 608 571 058 | B | - | + | - | 1 Pcs | £15.00 | Available from our partners | |
| 1 608 571 061 | D | - | + | - | 1 Pcs | £18.00 | Available from our partners | |
| 1 608 571 062 | D | - | + | - | 1 Pcs | £19.00 | ||
| 1 618 571 014 | D | - | + | + | 1 Pcs | £65.00 | Available from our partners |
out of products
Keyed chucks up to 10 mm
Part number 1608571053
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
D
Only for spindle lock
-
R/L rotation
-
Locking mechanism
-
Bench-mounted drill
+
Impact-proof
+
TC clamping jaws
-
Chuck capacity mm
1.0–10.0
Mount, range
3/8" – 24
Illustration, No.
1
Drill chuck, type
Keyed chuck
Keyed chucks up to 16 mm
Part number 1608571056
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
A
Only for spindle lock
-
R/L rotation
+
Locking mechanism
-
Bench-mounted drill
+
Impact-proof
+
TC clamping jaws
-
Chuck capacity mm
3.0–16.0
Mount, range
5/8" – 16
Illustration, No.
1
Drill chuck, type
Keyed chuck
Keyed chucks up to 16 mm
Part number 1608571057
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
A
Only for spindle lock
-
R/L rotation
-
Locking mechanism
+
Bench-mounted drill
+
Impact-proof
+
TC clamping jaws
-
Chuck capacity mm
3.0–16.0
Mount, range
5/8" – 16
Illustration, No.
2
Drill chuck, type
Keyed chuck
Keyed chucks up to 10 mm
Part number 1608571058
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
B
Only for spindle lock
-
R/L rotation
+
Locking mechanism
-
Bench-mounted drill
-
Impact-proof
+
TC clamping jaws
-
Chuck capacity mm
1.0–10.0
Mount, range
3/8" – 24
Illustration, No.
1
Drill chuck, type
Keyed chuck
Keyed chucks up to 10 mm
Part number 1608571061
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
D
Only for spindle lock
-
R/L rotation
+
Locking mechanism
-
Bench-mounted drill
+
Impact-proof
-
TC clamping jaws
-
Chuck capacity mm
1.0–10.0
Mount, range
1/2" – 20
Illustration, No.
1
Drill chuck, type
Keyed chuck

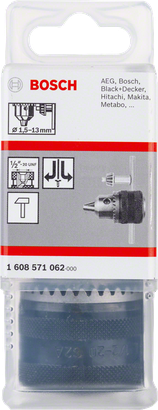

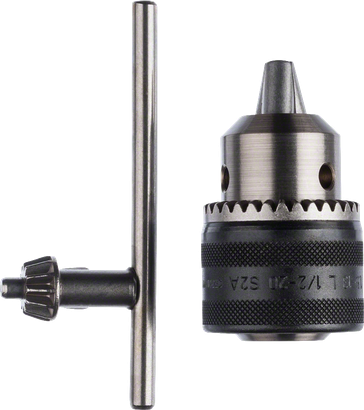

Keyed chucks up to 13 mm
Part number 1608571062
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
D
Only for spindle lock
-
R/L rotation
+
Locking mechanism
-
Bench-mounted drill
+
Impact-proof
+
TC clamping jaws
-
Chuck capacity mm
1.5–13.0
Mount, range
1/2" – 20
Illustration, No.
1
Drill chuck, type
Keyed chuck
£19.00
Including VAT
in stock
Keyed chucks up to 13 mm
Part number 1618571014
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Replacement key
D
Only for spindle lock
-
R/L rotation
+
Locking mechanism
+
Bench-mounted drill
-
Impact-proof
+
TC clamping jaws
-
Chuck capacity mm
2.5–13.0
Mount, range
SDS plus
Illustration, No.
2
Drill chuck, type
Keyed chuck
