18V batteries & chargers
GAL 18V-160 C &GCY42 Professional
Charger
Order number 1.600.A01.9S8
- Compatible with all batteries of the Bosch Professional 18V System and the AMPShare Alliance
- World’s fastest 18 V charger enables charging a ProCORE18V 8.0Ah batteries from 0 to 80% in 32 min
in cardboard box with Bluetooth module
1 600 A01 9S8
Select a variant
Your Selection
in cardboard box with Bluetooth module
Part Number: 1 600 A01 9S8
£145.73
incl. VAT
£121.44
excl. VAT
Included in all variants
-
Cardboard box
-
Quick charger GAL 18V-160 C ProfessionalPart Number: 1 600 A01 9S7
Additional in this variant
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 6NH
Your Selection
in cardboard box
Part Number: 1 600 A01 9S7
Included in all variants
-
Cardboard box
-
Quick charger GAL 18V-160 C ProfessionalPart Number: 1 600 A01 9S7

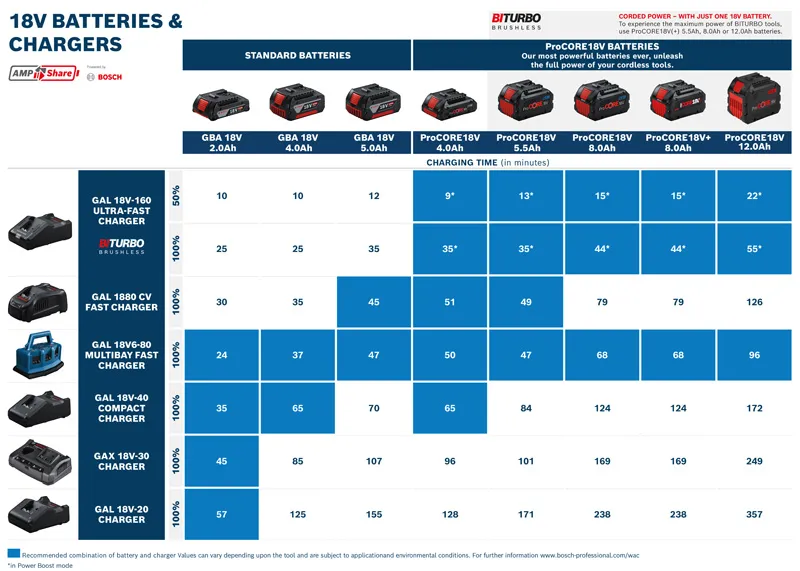

Technical data
The most important data
Battery charging voltage
14.4 – 18 V
Charge current*
16 A
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.*
15/25 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.*
24/46 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.*
15/25 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.*
20/35 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.*
24/46 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.*
24/37 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.*
32/51 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.*
32/51 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.*
36/55 min
Power Boost ProCORE18V 4.0Ah (50%/80%) approx.*
9/21 min
Power Boost ProCORE18V 8.0 Ah (50%/80%) approx.*
15/26 min
Weight*
0.95 kg

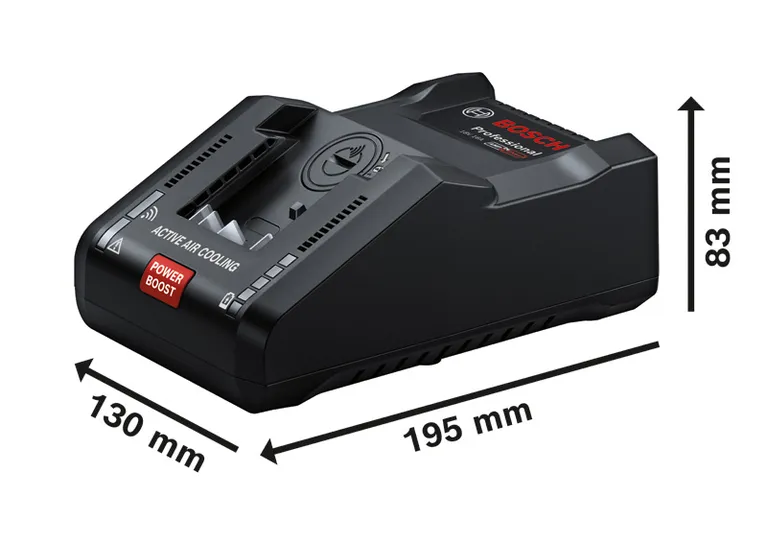

Packaging dimensions (width x length x height)
142 x 253 x 104 mm
Battery voltage
18.0 V
* You can find more information about the deviations in the following link:
GAL 18V-160 C &GCY42 Professional: Further information
Product Highlights
This is the world’s fastest 18 V charger. With a charging current of 16 amperes, it is incredibly fast, charging a ProCORE18V 8.0 Ah battery to 80% in only 32 minutes. Also compatible with AMPShare, the multi-brand battery alliance.
Equipment & Application
This tool also features 2-fan Active Air Cooling, 5-level charging indicator, Power Boost button, and a Wall Mounting option.
