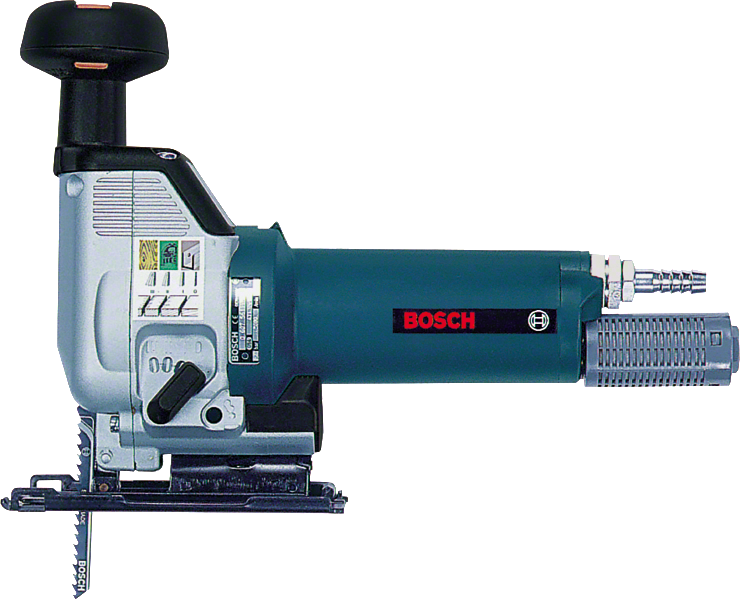

Pneumatic orbital jigsaw with deadman switch Industrial
Pneumatic orbital jigsaw with dead man's switch Industrial
Powerful jigsaw with dead man switch and SDS system for easy, fast changing of saw blades without tools. Safe guidance due to knob handle. Different switch types for every application.
Pneumatic orbital jigsaw with deadman switch Professional
0 607 561 116
Pneumatic orbital jigsaw with deadman switch Industrial
Your Selection
Technical data
The most important data
Cutting depth in aluminium and non-ferrous metal
15 mm
Cutting depth in soft steel
10 mm
Cutting depth in plastic
30 mm
Cutting depth in wood
85 mm
Stroke rate*
2,400 spm
Power output*
400 W
Air consumption under load
17.5 l/s
Weight as per EPTA*
1.9 kg
Connecting thread
1/4"-NPT
Hose inner diameter
10 mm

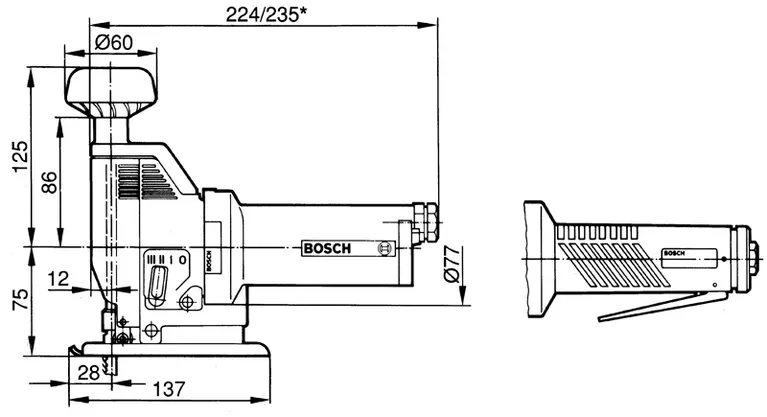

Packaging dimensions (width x length x height)
210 x 273 x 88 mm
* You can find more information about the deviations in the following link:
