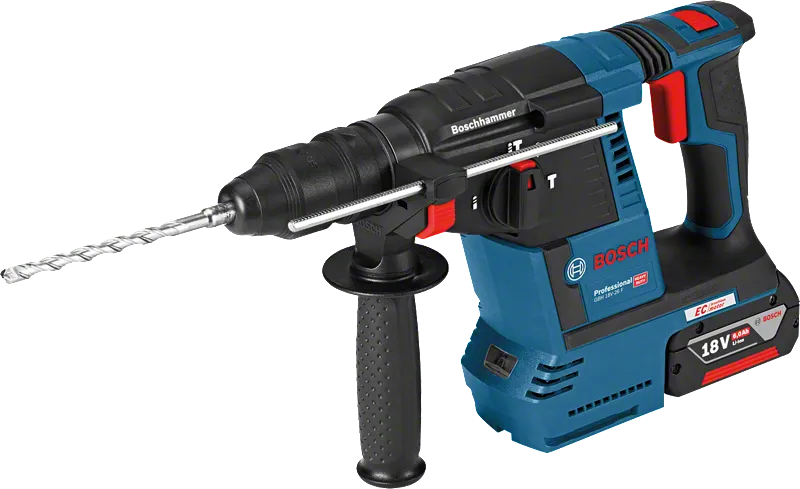

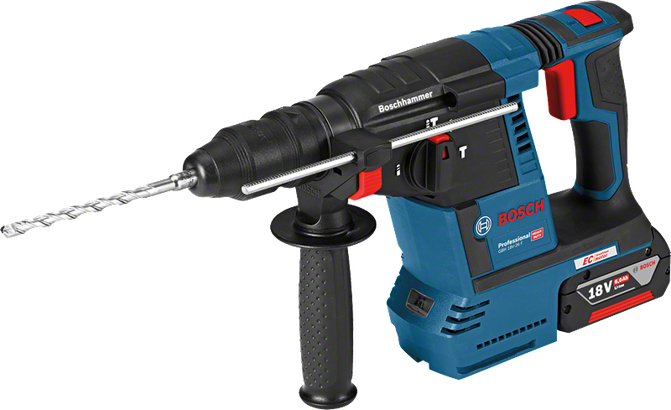

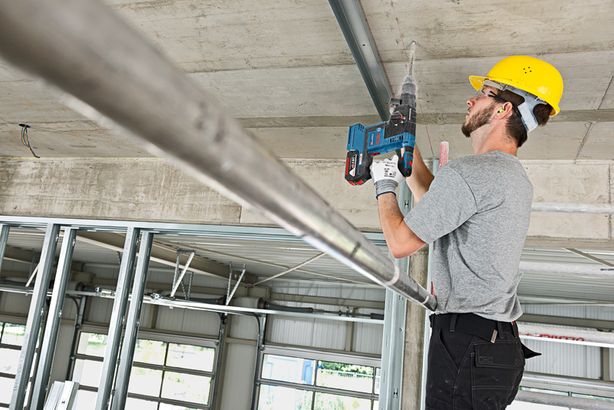

GBH 18V-26F Professional
Cordless Rotary Hammer with SDS plus
Universal rotary hammer with quick-change chuck in the SDS plus cordless category
- Optional GDE 18V-16 Professional dust extraction unit integrates with the hammer for a self-contained HEPA dust solution
- KickBack Control and Electronic Precision Control for better tool handling and increased user protection
- Delivers 2.6 J of impact energy for fast drilling and high chisel removal performance
Functions & key features
Your Selection
- in cardboard box with auxiliary handle
315.00 GBP
Including VAT
in stock
in cardboard box with auxiliary handle
0 611 910 000
Select a variant
Your Selection
in cardboard box with auxiliary handle
Part Number: 0 611 910 000
315.00 GBP
Including VAT
in stock
Included in all variants
-
Auxiliary handlePart Number: 2 602 025 141
-
Quick change chuck 13 mmPart Number: 2 608 572 212
-
SDS plus quick-change chuckPart Number: 2 608 572 213
-
Depth stop 210 mmPart Number: 1 613 001 010
Additional in this variant
-
Cardboard box
-
Machine cloth
Your Selection

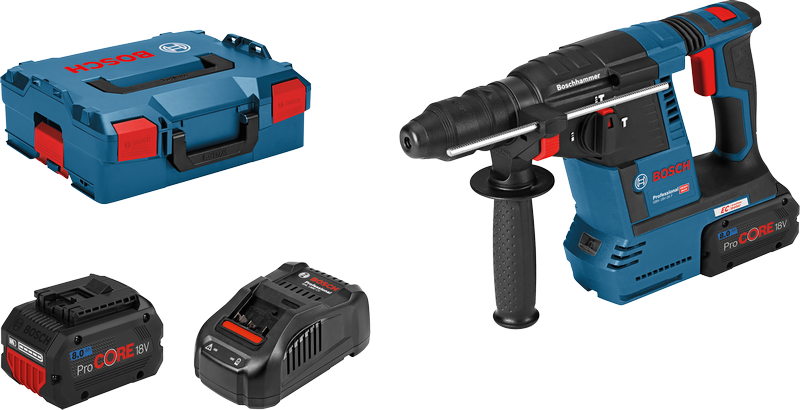

in L-BOXX 136 with 2 x 8.0 Ah ProCORE18V Li-ion battery, auxiliary handle
Part Number: 0 611 910 078
693.00 GBP
Including VAT
in stock
Included in all variants
-
Auxiliary handlePart Number: 2 602 025 141
-
Quick change chuck 13 mmPart Number: 2 608 572 212
-
SDS plus quick-change chuckPart Number: 2 608 572 213
-
Depth stop 210 mmPart Number: 1 613 001 010
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
2 x battery ProCORE18V 8.0AhPart Number: 1 600 A01 6GK
-
1/1 L-BOXX inlay for toolPart Number: 1 600 A00 HP1
-
Quick charger GAL 18V-160 C ProfessionalPart Number: 1 600 A01 9S7
Technical data
The most important data |
|
|---|---|
| Impact energy (according to EPTA 05/2016)* | 2.6 J |
| Impact rate at rated speed* | 0 – 4,350 bpm |
| Rated speed* | 0 – 980 rpm |
| Battery voltage* | 18.0 V |
| Tool holder | SDS plus |

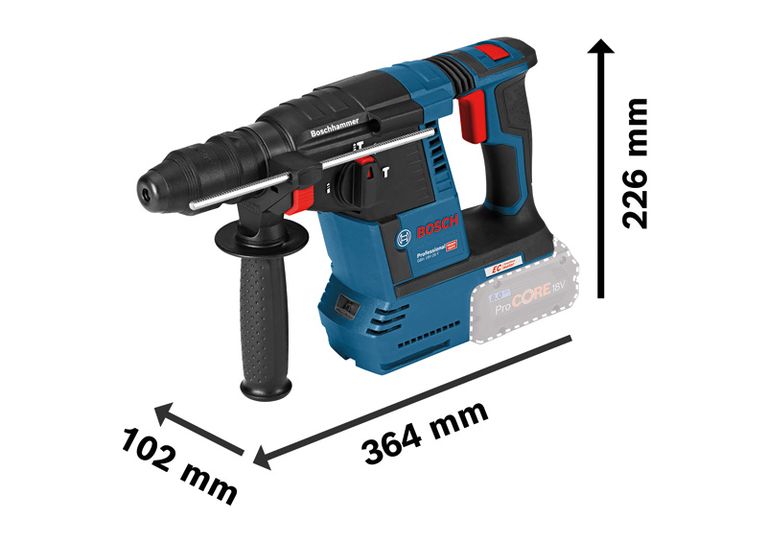

| Packaging dimensions (width x length x height)** | 251 x 104 x 398 mm |
* You can find more information about the deviations in the following link:
** May have small deviations because of variations during production process. You can find more information about the deviations in the following link:
GBH 18V-26F Professional: Further information
Product Highlights
The GBH 18V-26 F Professional with quick-change chuck is the universal performer in Bosch’s SDS plus cordless rotary hammer category, making it perfect for daily use. An optional GDE 18V-16 Professional dust extraction unit integrates with the hammer, providing a self-contained HEPA dust solution for maximum mobility. The rotary hammer also features KickBack Control and Electronic Precision Control (EPC) for better tool handling and increased user protection. Its powerful motor delivers 2.6 J of impact energy for fast material removal rates.
Equipment & Application

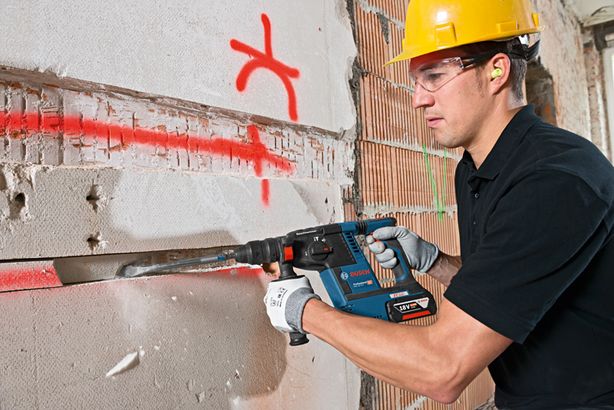

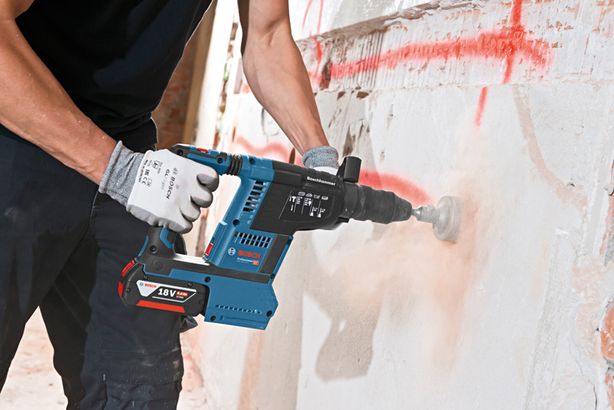

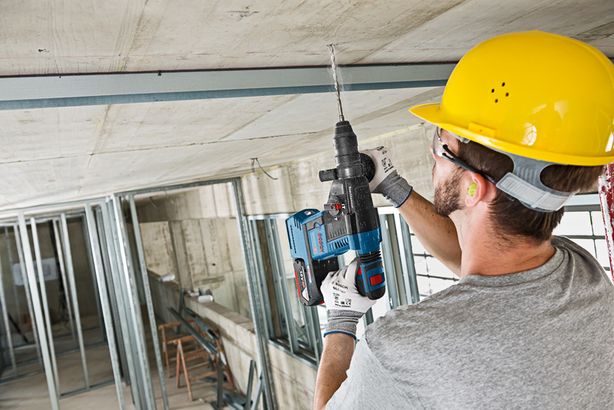

This tool is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments as well as all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information

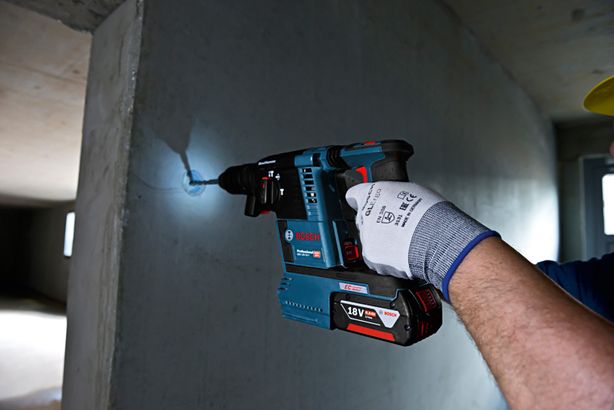

The GBH 18V-26 F Professional also includes various additional features such as Constant Speed, a Brushless Motor, Electronic Motor Protection (EMP), as well as an LED light, Rotation Control Clutch, Variable Speed, Vario Lock, and Vibration Control.
Fits to GBH 18V-26F Professional
Product Guidance
EPTA Procedure 05: Single Impact Energy
European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.
It defines a standardized measurement method, which ensures comparability between different tools and member companies.
The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
