Cordless Rotary Hammer with SDS plus
GBH 36 V-LI Plus Professional

£278.00 Including VAT.
in L-BOXX with depth stop

The powerful Cordless SDS plus Rotary Hammer with 36 Volt

Choose product variation:

in stock

Print

More

Technical data

The most important data

Max. impact energy 3.2 J
Impact rate at rated speed 0 – 4,200 bpm
Rated speed 0 – 940 rpm
Battery voltage 36 V
Tool holder SDS plus
Tool dimensions (length) 407 mm
Packaging dimensions (width x length x height) 358 x 440 x 260 mm
Battery capacity 4 Ah
Weight incl. battery 4.5 kg
Drilling range
Drilling dia. concrete, hammer drill bits, from 4 mm
Drilling dia. concrete, hammer drill bits, up to 28 mm
Drilling dia. in concrete with hammer drill bits 4 – 28 mm
Opt. app. range in concrete with hammer drill bits 8 – 18 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Sound pressure level 90 dB(A)
Sound power level 101 dB(A)
Uncertainty K 3 dB
Hammer drilling in concrete
Vibration emission value ah 14.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The powerful Cordless SDS plus Rotary Hammer with 36 Volt

  • Impact energy of 3.2 J for fast working progress
  • KickBack Control and Electronic Precision Control for advanced user protection and improved tool handling
  • Durable 36 V battery for longer runtime at light chiselling work.

Functions

Optimal protection of the cells against excessive heat due to special, heat conductive housing
SDS plus toolholder Optimum power transfer. For Rotary Hammers in the 2 – 4kg class.
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Enhanced tool control for superior results in delicate materials even with impact - thanks to performance adjustment with slow ramp-up and reduced maximum performance
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Best work results with constant speed thanks to electronic regulation of speed - even under load
Easy and precise control of the RPM thanks to variable speed
Forward / reverse rotation for inserting and removing screws
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Woodworking The professional power tools for woodworking from Bosch.
Scope of supply
in L-BOXX with depth stop

Part Number: 0611906000

£278.00
Including VAT.

Selected version

Price includes:

  • L-BOXX
  • Depth stop (spare part number 1 613 001 009)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth (spare part number 1 619 200 413)

* Battery and charger not included

in stock

in L-BOXX with depth stop

Part Number: 0611906000920

£243.25
Including VAT.

Price includes:

  • L-BOXX
  • Depth stop (spare part number 1 613 001 009)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth (spare part number 1 619 200 413)

* Battery and charger not included

in stock

Product details

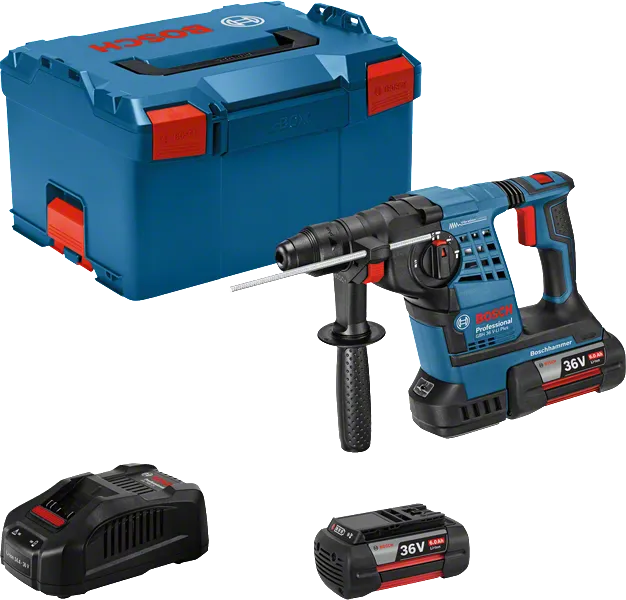

in carrying case with 2 x 6.0 Ah Li-ion battery, auxiliary handle

Part Number: 0611906075

£638.57
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 191
  • Carrying case 1 600 A00 4E5
  • Depth stop 1 613 001 003
  • Quick charger
  • 2 x battery GBA 36V 6.0Ah 1 600 A00 L1M

Available at Bosch partners

Product details
with 2 x 6.0 Ah Li-ion battery, auxiliary handle

Part Number: 0611906076

Price includes:

  • Auxiliary handle 2 602 025 191
  • Depth stop 1 613 001 003
  • 1/1 L-BOXX inlay for tool and charger 1 600 A00 4L0
  • L-BOXX 238 1 600 A01 2G2
  • Quick charger
  • 2 x battery GBA 36V 6.0Ah 1 600 A00 L1M

Available at Bosch partners

Product details

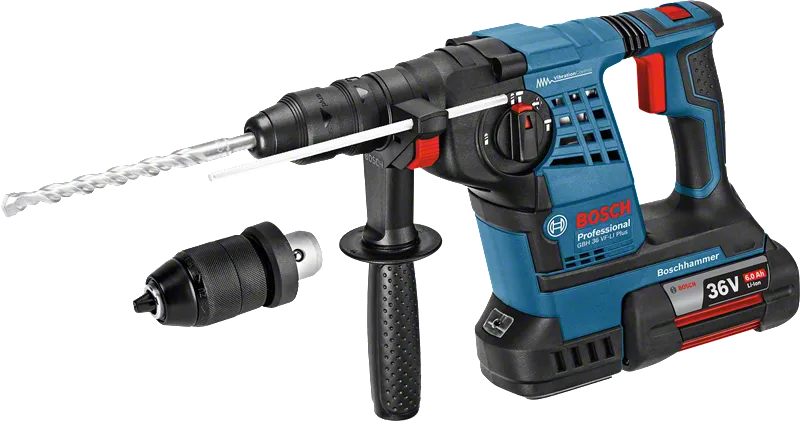

in L-BOXX with accessory set

Part Number: 0611907000

£300.13
Including VAT.

Price includes:

  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth (spare part number 1 619 200 413)
  • Depth stop (spare part number 1 613 001 009)
  • L-BOXX

* Battery and charger not included

Available at Bosch partners

Product details
in L-BOXX with accessory set

Part Number: 0611907000920

£262.62
Including VAT.

Price includes:

  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth (spare part number 1 619 200 413)
  • Depth stop (spare part number 1 613 001 009)
  • L-BOXX

* Battery and charger not included

in stock

Product details
