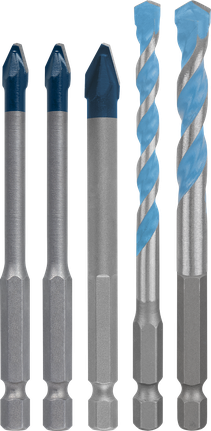

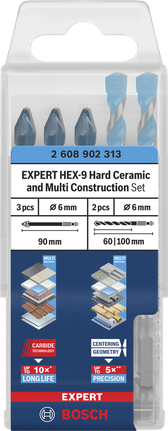

EXPERT HEX-9 Hard Ceramic and Multi Construction Drill Bit Set

For impact drill/drivers, For rotary drills/drivers, For impact screwdrivers

Proven Long Life and Precision performance claims

Long Life in hard ceramic and Precision in construction materials
Exceptionally durable drill bit tip with Bosch Carbide Technology
Start holes accurately with a specially designed centring tip
Optimised dust extraction channel for fast, efficient drilling
Hex shank for a strong connection and maximum torque transmission in three-jaw chucks and ¼" internal hex tool holders

Materials

Select options

Only show online available products

Selected variant

from

£21.95

incl. VAT

£18.29

excl. VAT

Available product options(4)

Your Selected Variant

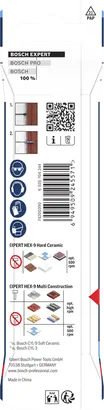

EXPERT HEX-9 Hard Ceramic and Multi Construction Drill Bit Set

from

£21.95

incl. VAT

£18.29

excl. VAT

Long Life in hard ceramic and Precision in construction materials

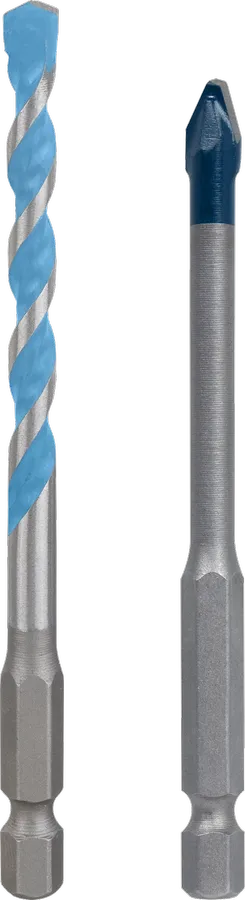

Bosch multi-purpose drill bit with carbide tip.

1

Exceptionally durable drill bit tip with Bosch Carbide Technology
2

Start holes accurately with a specially designed centring tip
3

Optimised dust extraction channel for fast, efficient drilling

HOW TO DRILL?

EXPERT HEX-9 Hard Ceramic and Multi Construction for Long Life and Precision

When you drill in hard ceramic, you want to start holes with precision, without scratching the expensive tile. And once you’ve drilled through it, you need a multi-material drill bit to tackle construction materials behind. We made the EXPERT HEX-9 Hard Ceramic and Multi Construction Drill Bit Set to help you complete these two tasks with ease.

The EXPERT HEX-9 Hard Ceramic drill bit features a multi-faceted, asymmetric carbide tip we designed to help you drill into hard ceramic tiles more effectively, without slipping. The sharp carbide tip with advanced centering geometry makes the EXPERT HEX-9 Multi Construction drill bit ideal for drilling in construction materials you find behind the tile. It drills with precision – no matter what material you run into.

Product Options

Available product options: 4

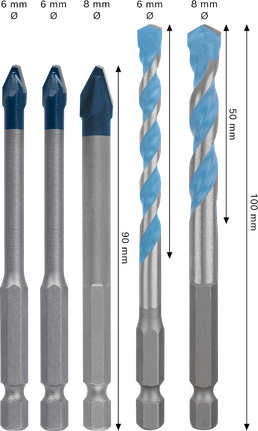

Part number	Diameter, mm	Total length, mm	Working length, mm	Pack quantity	Price

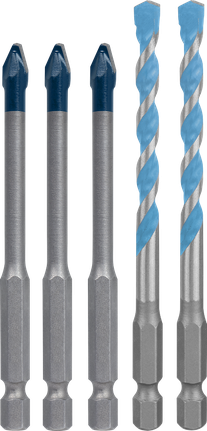

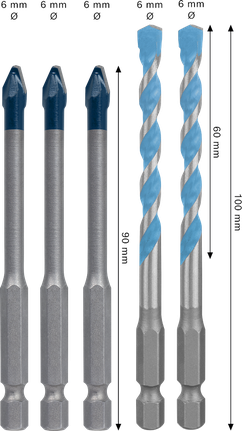

2 608 902 313	6.00; 6.00; 6.00; 6.00; 6.00	90; 90; 90; 100; 100	60; 60	5 Pcs	£60.25

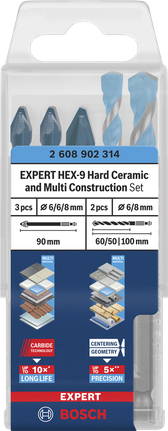

2 608 902 314	6.00; 6.00; 8.00; 6.00; 8.00	90; 90; 90; 100; 100	60; 50	5 Pcs	£68.05

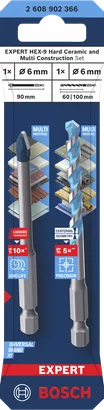

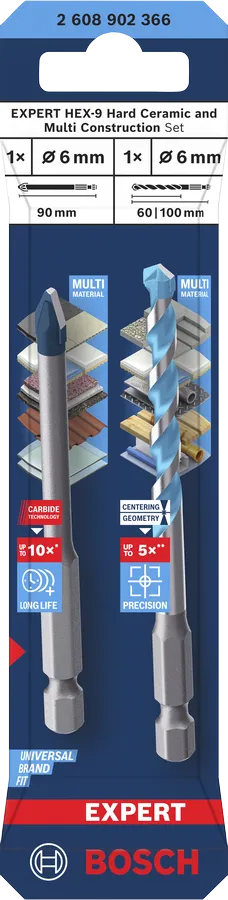

2 608 902 366	6.00; 6.00	90; 100	60	2 Pcs	£21.95
2 608 902 367	8.00; 8.00	90; 100	50	2 Pcs	£29.74

out of products

Frequently asked questions

Material

Tile thickness limit

This drill bit is designed for drilling into ceramic tiles up to 10 mm thick. It’s not suitable for drilling into blocks.

How many holes can I drill with carbide-tipped drill bits for ceramic?

It depends on several parameters, e.g the drill bit’s diameter, the pressure applied, rpm, drilling direction and thickness and hardness of your tile. With 6 mm-diameter CYL-9 Soft Ceramic drill bit, you can get 50+ holes in soft ceramic tiles. With EXPERT HEX-9 Hard Ceramic drill bit, you can drill 10+ holes in hard ceramic tiles*, and 100+ holes in soft ceramic tiles.

Bosch Expert HEX-9 drills 100+ holes in ceramic tile.

Is the tile soft or hard?

The tile’s size and price are good indicators. Tiles which are 30x30 cm large and larger are normally hard. The Mohs scale and PEI rating is often used to indicate the material’s hardness, with PEI ranging from 1 for low wear resistance to 5 for high wear resistance. Hard ceramic tiles normally cost more than the soft ones.

Bosch tile selection guide soft or hard tile size.

Technique

What speed and gear to use?

Set your power tool to gear 1. If you use a corded power tool push the trigger halfway to keep the speed below 500 rpm. If you work with a power tool without gears, keep the speed below 500 rpm, using the trigger.

Bosch drill on gear 1, optimal speed 500 rpm.

Which drilling mode to use?

Always set your power tool to the rotary mode only. Never apply the impact mode not to damage your drill bit and tiles.

Bosch select drilling mode, not hammer mode.

Pressure

Apply sufficient, but not excessive pressure (15-20 kg is recommended) until you hear that material is being removed. This means the pressure is fine and you can carry on. Cooling is not required.

Wobbling motion

Wobble your power tool slightly when you drill in hard ceramic tiles.

Drilling into materials behind ceramic tile

Once you’ve drilled through the tile, switch to a concrete drill bit (to drill concrete or brick behind the tile). Change to ‘impact mode’, and gear 2 before starting to drill with the concrete drill bit.

Bosch drill set to gear 2 for drilling behind tiles.

Drilling large diameters

When you need to drill 10 mm or larger diameters in hard ceramic tiles, pre-drill with smaller diameters (6, 7 or 8 mm).

Bosch large diameter drill bit, pre-drilling guidance.
