HSS Step Drill Bit, 3-flat Shank, Set
For rotary drills/drivers
Order number 2 608 587 426
- HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit
- Pre-punching is not necessary as the split-point tip allows for an easy start
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
- Highest cutting smoothness due to axial and radial relief grinding
- Made of HSS for a long lifetime. Laser-markings for hole diameters.
- 3-flat shank prevents slipping in the chuck of rotary drills and drivers
Materials
Select options
inStock
Total length, mm
Shank diameter, mm
Choose a pack size
Selected variant
Limited stock
Estimated delivery time 2-5 working days
£185.38
incl. VAT
£154.48
excl. VAT
Payment options

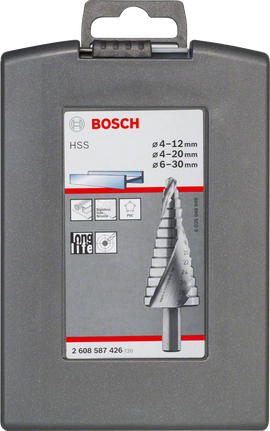

3-piece HSS step drill bit set 4-12/4-20/6-30
2 608 587 426
Product Options
Available product options: 1
Expand
|
Part number
|
Shank diameter, mm
|
Step diameter (range), mm
|
Step height
|
Total length, mm
|
Pack quantity
|
Price
|
Availability
|
|---|---|---|---|---|---|---|---|---|
| 2 608 587 426 | 6; 8; 10 | 4-12; 4-20; 6-30 | 4; 4; 4 | 66.5; 70.5; 93.5 | 3 Pcs | £185.38 |
out of products
3-piece HSS step drill bit set 4-12/4-20/6-30
Part number 2608587426
Packaging type
Plastic packaging, cassette, with Euro hole
Pack quantity
3 Pcs
Details
Shank diameter, mm
6 / 8 / 10
Step diameter (range), mm
4-12 / 4-20 / 6-30
Step height
4 / 4 / 4
Total length, mm
66.5 / 70.5 / 93.5

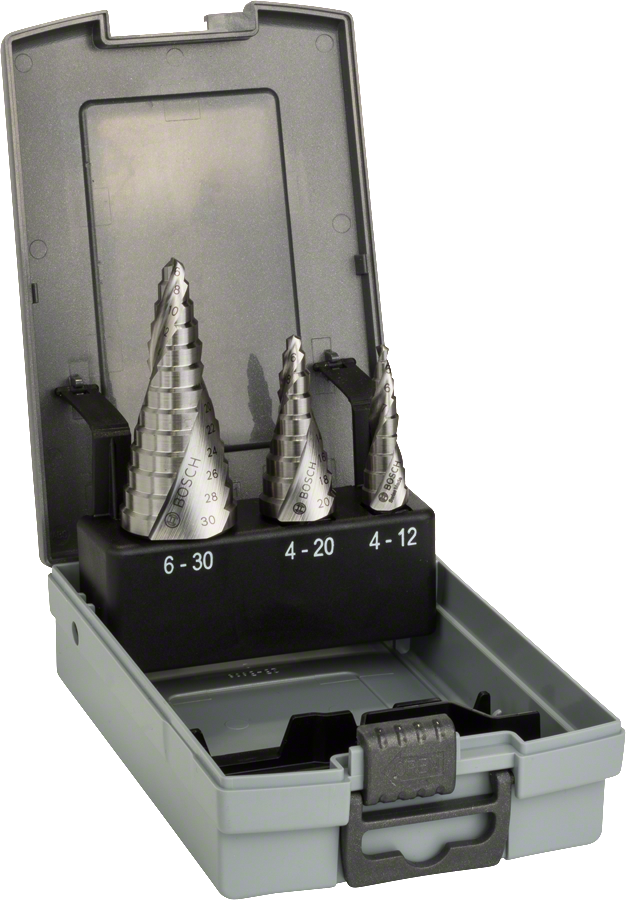

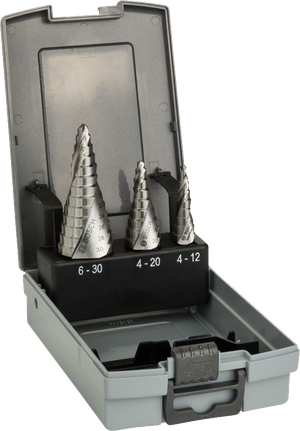

Set description
HSS step drill bit: 4-12 mm step diameter; 6 mm shank diameter
HSS step drill bit: 4-20 mm step diameter; 8 mm shank diameter
HSS step drill bit: 6-30 mm step diameter; 10 mm shank diameter
