System Accessories for EXACT Production Cordless Screwdrivers

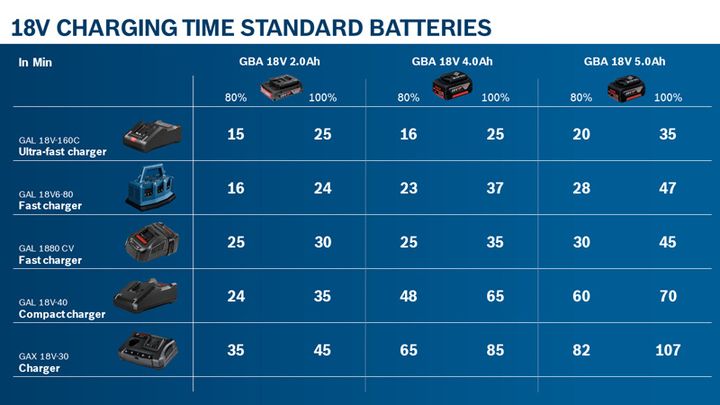

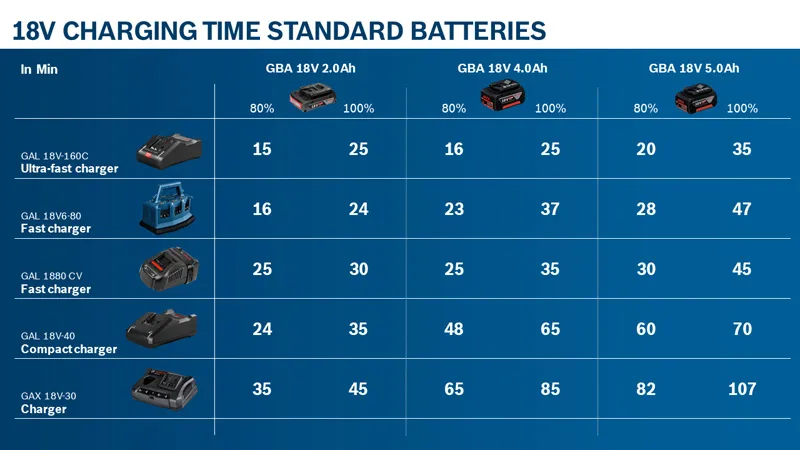

![18V battery charging times chart.]( "18-pack charger GAL 18V-40 for the industry")

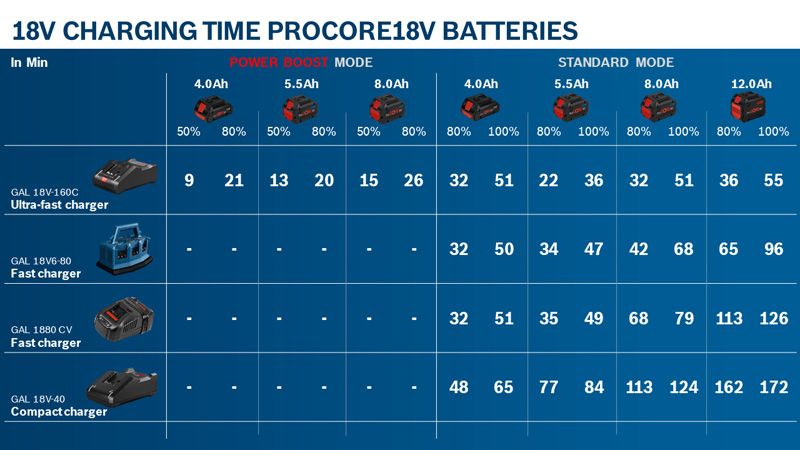

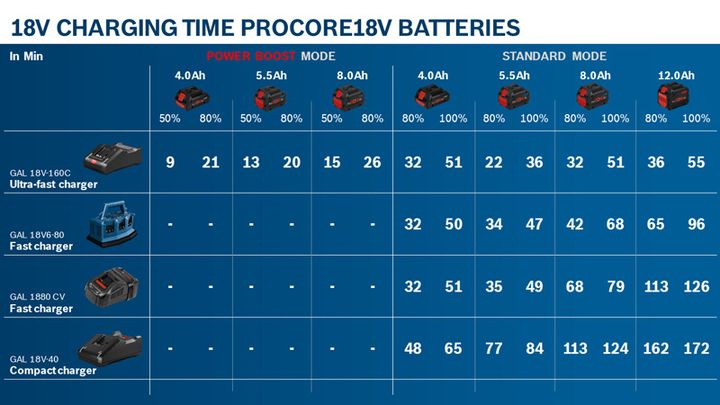

![Bosch charging time chart for Procore 18V batteries.]( "18-pack charger GAL 18V-40 for the industry")

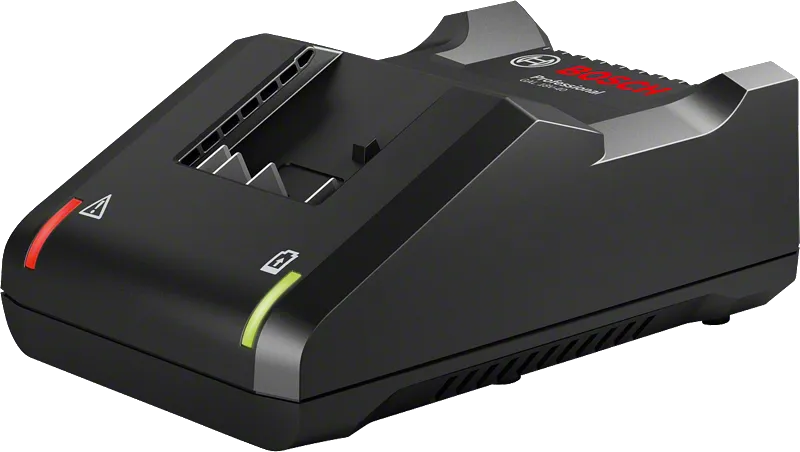

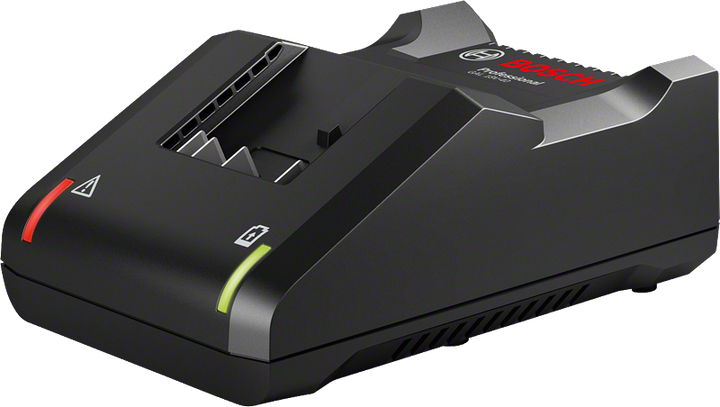

18-pack charger GAL 18V-40 for the industry Industrial
Charger
The compact 18 V charger.
- Compact: Due to its modern design it is very compact.
- Optimised charging speed: Optimised charging speed for compact 18 V batteries as it charges an 18 V 2.0 Ah battery in 24 mins to 80%.
- Professional 18V System: 100% compatible with all Bosch Professional 18 V batteries.
Functions & key features
18-pack charger GAL 18V-40 for the industry Professional
0 602 494 040
18-pack charger GAL 18V-40 for the industry Industrial
Your Selection
Technical data
The most important data
Battery charging voltage
14.4 – 18 V
Charge current*
4 A
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.*
24/35 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.*
36/50 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.*
48/65 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.*
60/70 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.*
72/95 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.*
48/65 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.*
113/124 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.*
162/172 min
Weight*
550 kg
* You can find more information about the deviations in the following link:
