EXPERT D-tect18V-200-17C

Name: EXPERT D-tect18V-200-17C
Brand: Bosch Professional
SKU: 0601081671
Availability: OutOfStock

Detector

Order number 0.601.081.671

Superior detection performance with Bosch Radar Technology

Outstanding Detection Quality: Detects hidden objects up to 200 mm depth with AI technology
Bosch Radar Technology: Ensures precise detection preventing costly damage and safety risks
18V Performance: Efficient work without interruptions thanks to 18V battery platform
3D Imaging feature: Provides easy-to-interpret view of wall areas and embedded objects

Select a variant

Find a local EXPERT dealer

Your Selected Variant

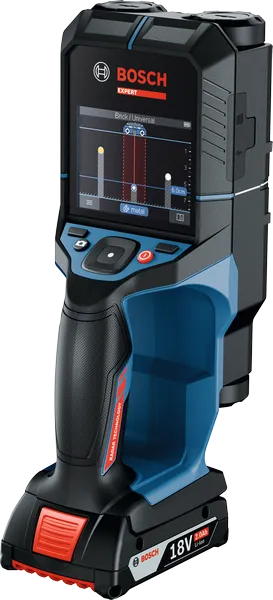

Bosch D-tect18V-200-17C detector with radar technology.

Your Selected Variant

in L-BOXX 136 0 601 081 671

Find a local EXPERT dealer

Select a variant

Your Selection

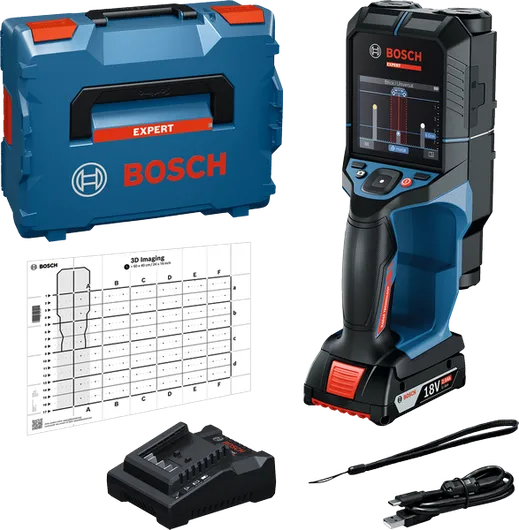

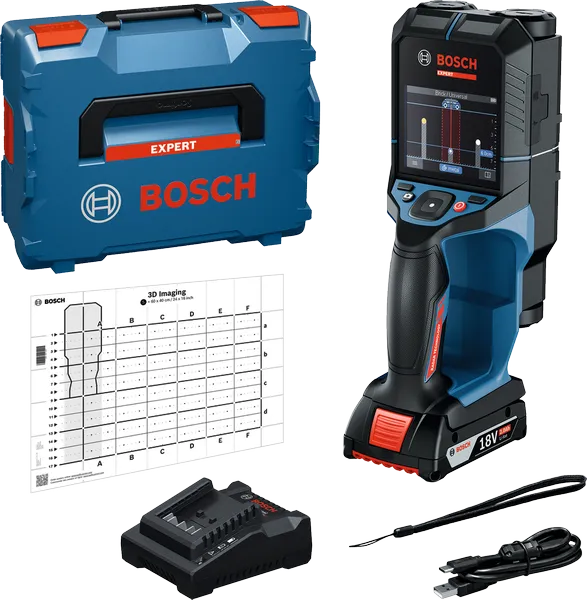

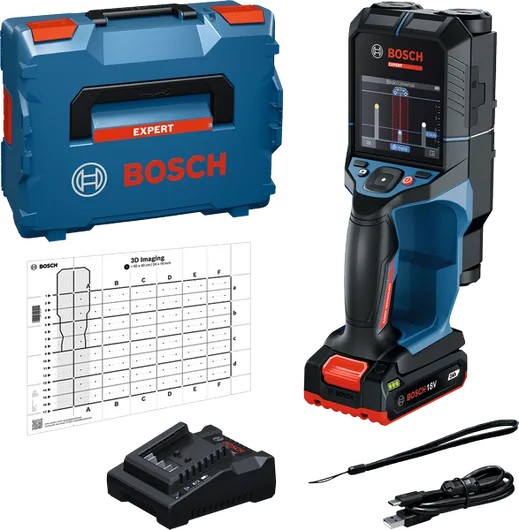

Bosch D-tect 18V-200 wall scanner with case and charger.

Included in this variant

L-BOXX 136 Part Number: 1 600 A01 2G0

USB-C cable Part Number: 1 600 A02 4N2

Charger GAL 18V-20 Part Number: 1 600 A03 66X

1 x Poster S Part Number: 2 610 Z11 410

1 x GBA 18V 2.0Ah Part Number: 1 607 A35 0MA

Hand strap Part Number: 1 600 A01 4BT

Select Variant

Product highlights

1

Safety & Precision: Bosch Radar Technology with AI-powered object detection and user-friendly interface

2

Ergonomic : Features IPS display technology, has a scratch-resistant display cover for a clear and consistent view, and has an ergonomic handle

3

18V Performance: Efficient and hassle-free work without interruptions due to 18V battery platform

4

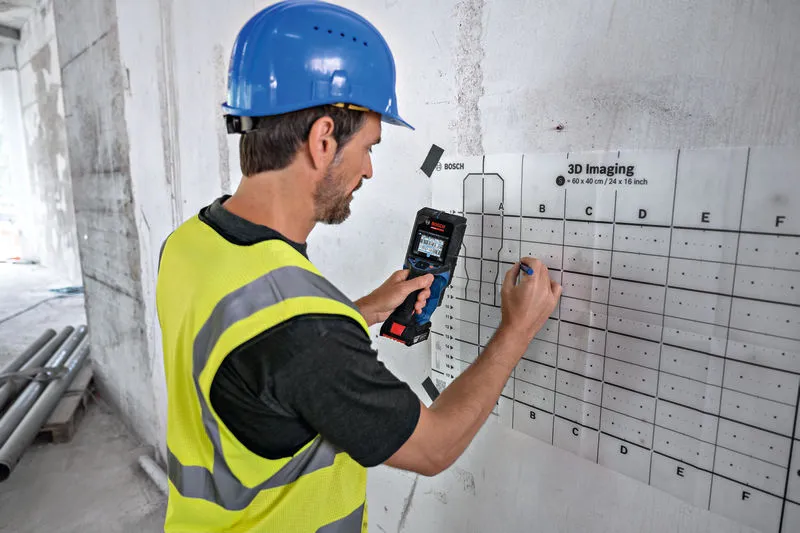

Wall Overview: 3D Imaging feature provides an easy-to-interpret view of wall areas and embedded objects

5

Documentation: Screenshot function and internal memory for documentation via USB-C® and SD card

6

Updatable: Updatable software provides continuous improvements and new features

Further functions & features

Product Highlights

The EXPERT Wallscanner D-tect18V-200-17C delivers outstanding detection quality of hidden objects up to 200 mm depth. You can rely on precise AI powered detection and avoid costly damage and safety risks thanks to Bosch Radar Technology. This Wallscanner’s powerful performance ensures efficient work without interruptions thanks to its 18V battery platform. And its 3D Imaging feature gives you an easy-to-interpret view of wall areas and embedded objects.

Equipment & Application

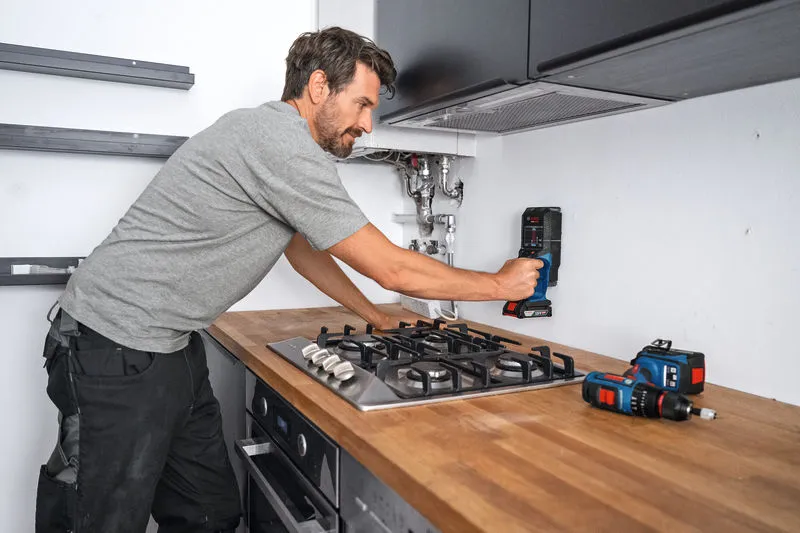

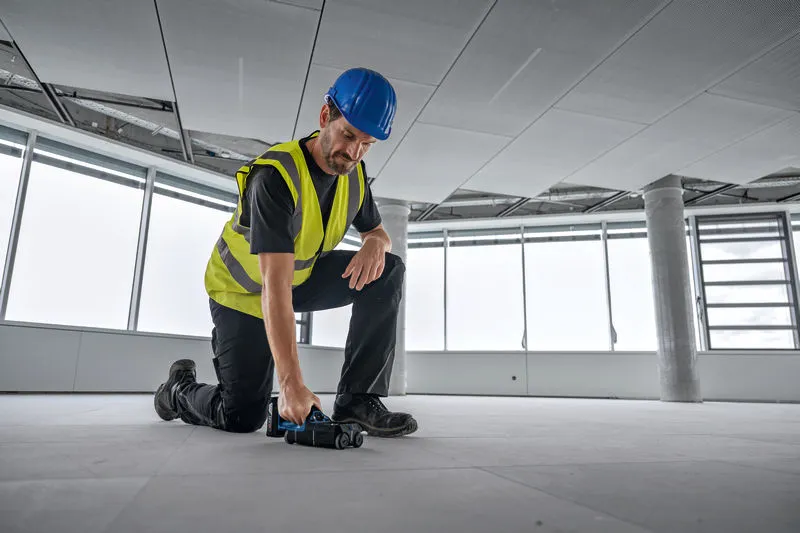

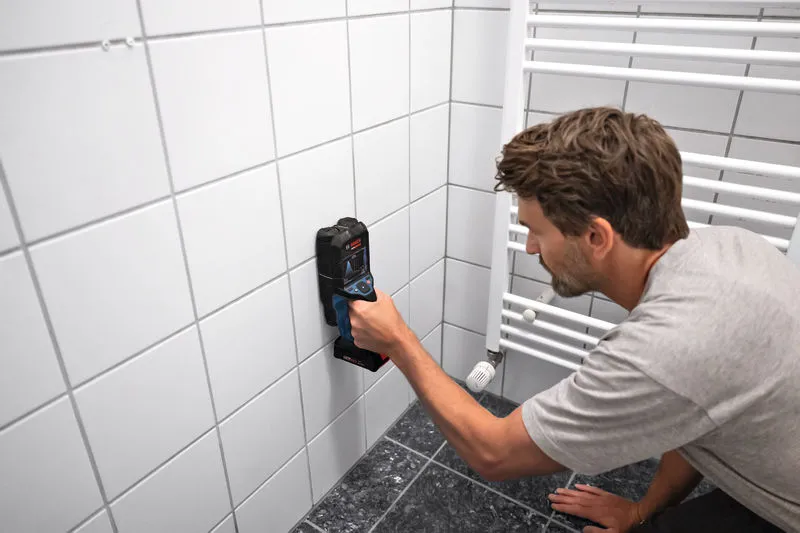

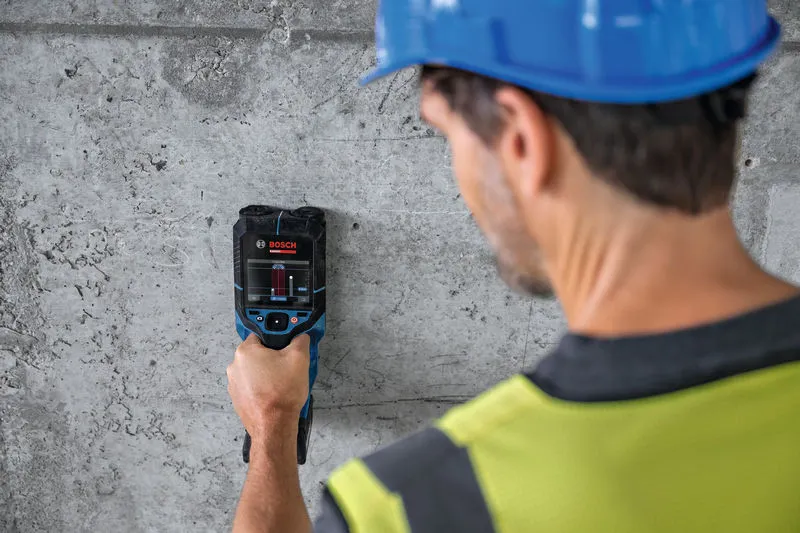

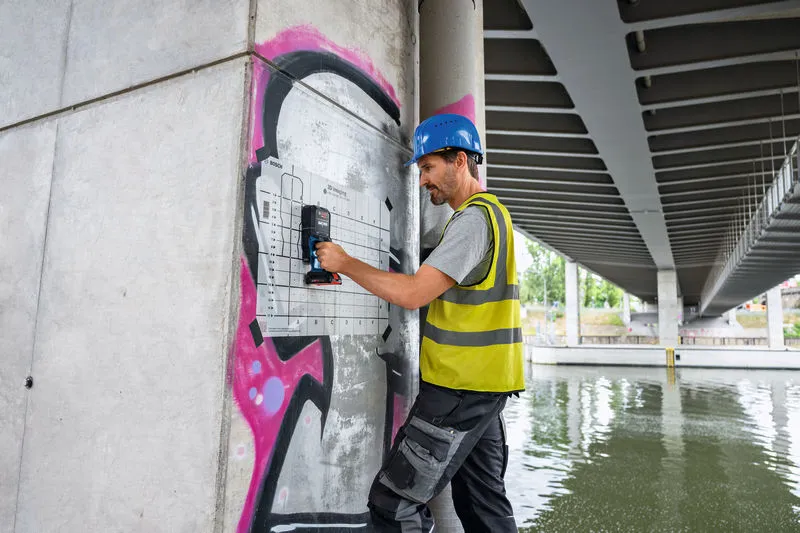

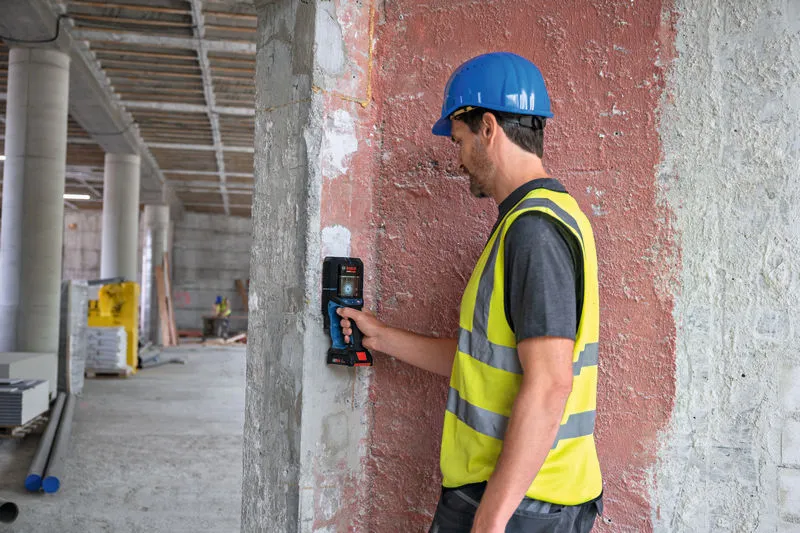

This EXPERT Wallscanner is for detecting hidden objects such as pipes, wires, and reinforcement bars inside walls, ceilings, or floors made of materials like concrete, masonry, drywall, or hollow bricks. It is used for maintenance checks such as identifying studs and pipes, locating wiring, detecting leaks, and for structural analysis, as well as documentation. The EXPERT D-tect18V-200-17C is compatible with GBA 18V 2.0Ah.

Technical data

The most important data
Battery voltage	18.0 V
Bosch Radar Technology	Yes
Detectable objects	water-filled plastic pipes, wooden substructures, live cables, non-live cables, magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), Empty plastic pipes
Max. detection depth	200 mm
Detection depth, dry concrete, max.	200 mm
Detection depth, early age concrete, max.	60 mm
Detection depth, other wall types, max.	80 mm
Detection depth, wooden substructures, max.	38 mm
Accuracy*	± 5.0 mm
Views	Signal View 2D, Spot view, Object view, Signal View
Wall types	Brick/Universal, Drywall, Panel Heating, Early age concrete, Concrete, Horizontal coring brick, Vertical coring brick
Dust and splash protection	IP5X
Updatable	Yes
Material identification	Live object, Magnetic metal, Non-magnetic metal, Non-metal material
Power supply	18 V Li-Ion battery
Weight, approx.*	0.6 kg
Additional function	3D Imaging, Leakage detection, Distance measurement
Packaging dimensions (width x length x height)	360 x 440 x 140 mm
Data transfer	Micro-SD Card, USB-C®

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | GAL 18V-20 (II) (PDF 2.4 MB) Instruction manual | D-tect18V-200-17C (PDF 13.9 MB) Instruction manual | D-tect18V-200-17C (PDF 12.7 MB) Insert | Herstellergarantie (EU),Manufacturer's guarantee (EU) (PDF 0.3 MB) Instruction manual | D-tect18V-200-17C (Online version) Instruction manual | GAL 18V-20 (II) (Online version) Instruction manual | GAL 18V-20 (II) (Online version) Product data sheet | EXPERT D-tect18V-200-17C (PDF 1.5 MB) Firmware update for D-tect18V-200-17C How to update your D-tect18V-200-17C

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
