EXPERT EXBH18V-45

Name: EXBH18V-45
Brand: Bosch power tools
SKU: 0611913300
Availability: OutOfStock

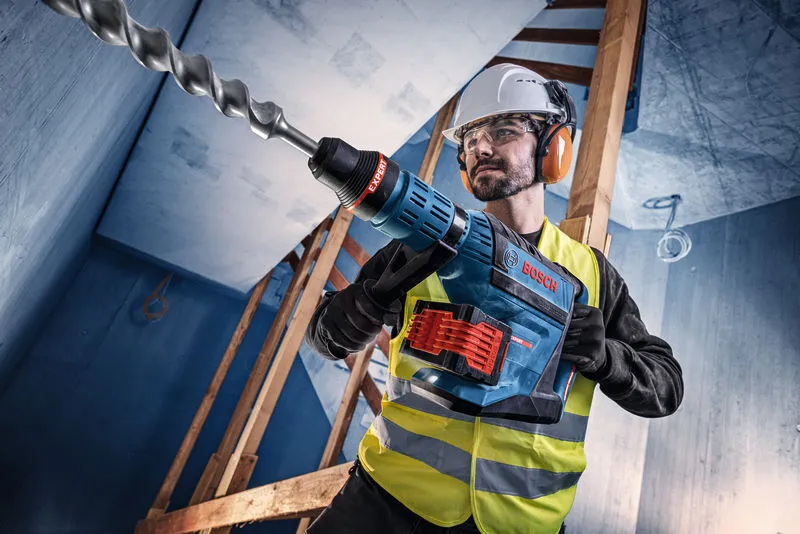

Cordless Rotary Hammer with SDS max

Order number 0.611.913.300

Up to 2x the drilling speed of the Professional GBH 18V-36 C¹

Outstanding Speed: Up to 320 mm/min drilling speed with 30 mm dril lbit driven by powerful 12.5 J impact energy
BITURBO BRUSHLESS: High-performance motor and drive-train system engineered to exploit the extreme power of EXPERT batteries
Enormous Number of Boreholes: Up to 33 holes, 150 mm deep, with a 25 mm drill bit on just one battery (15Ah) charge
Lightest Tool in its Class: Just 8.0 kg (w/o battery) thanks to a lightweight motor and magnesium alloy housing

¹ vs. the Professional GBH 18V-36 C, internal test in C30/37 concrete, depth 150 mm, new drill ⌀30 mm, fully charged battery*

Select a variant

Your Selected Variant

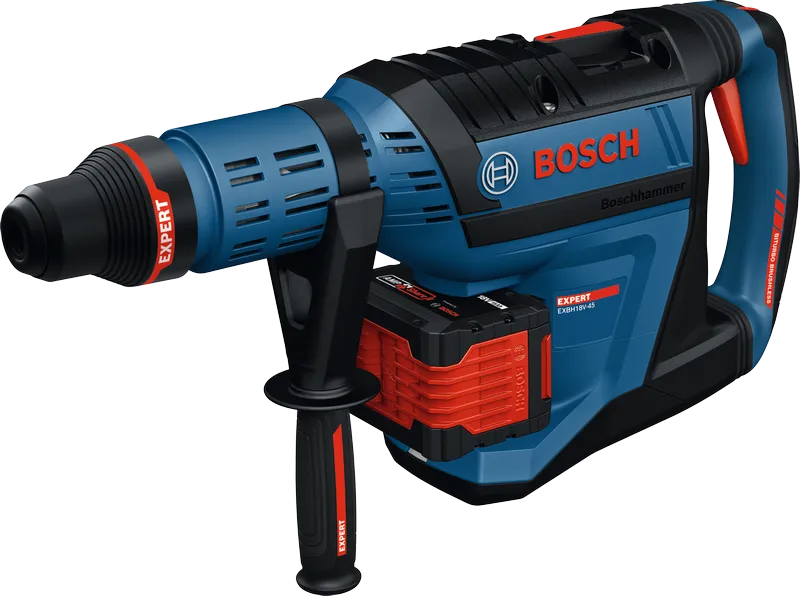

Bosch EXBH18V-45 cordless rotary hammer with SDS max.

Your Selected Variant

with accessory set 0 611 913 300

Find a local dealer

The best tools for the job

Select a variant

Your Selection

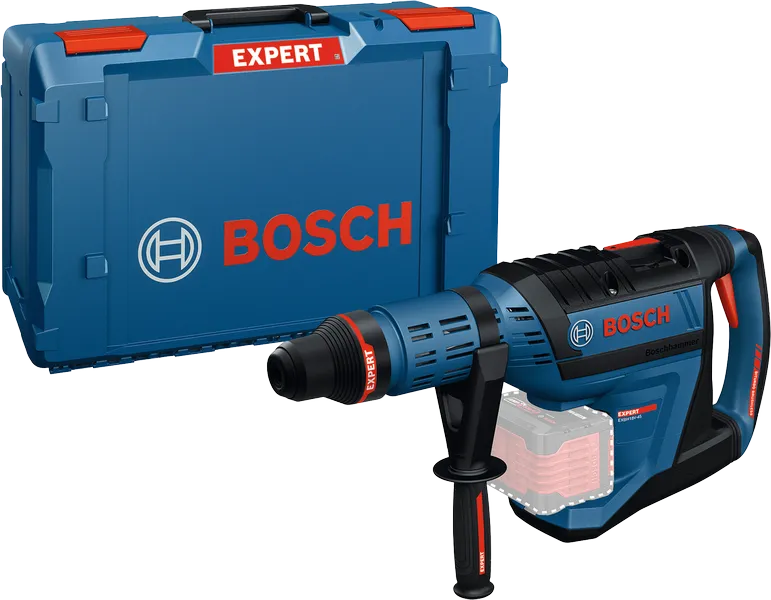

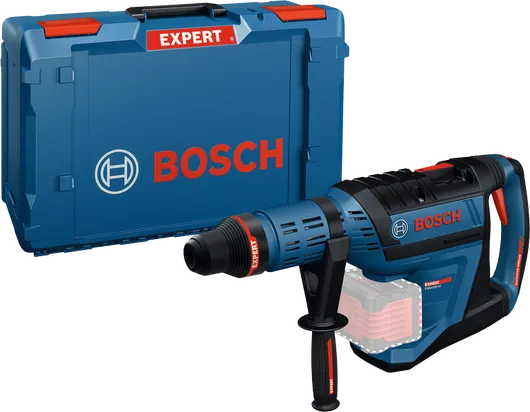

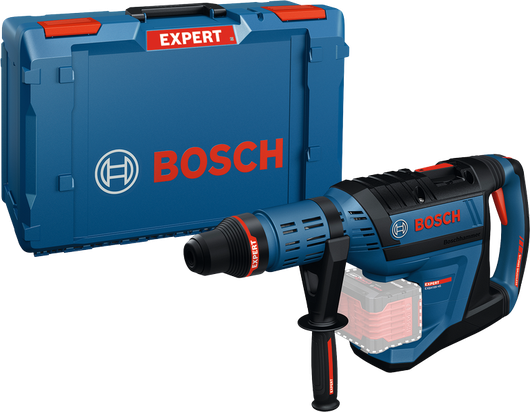

Bosch cordless rotary hammer with carrying case.

Included in this variant

XL-BOXX Part Number: 1 605 438 1JG

XL-BOXX inlay for EXBH18V-45/GBH18V-40 Part Number: 6 082 850 7PN

1 x auxiliary handle Part Number: 1 607 000 GC8

Grease tube (spare part number 1 615 430 010)

Machine cloth

Select Variant

Product highlights

1

Outstanding Speed: Up to 320 mm/min drilling speed with 30 mm drillbit driven by powerful 12.5 J impact energy

2

BITURBO Brushless: High-performance motor and drive-train system

3

Lightweight Design: Just 8.0 kg (w/o battery) thanks to a lightweight motor and magnesium alloy housing

4

Enormous Number of Boreholes: Up to 33 holes, 150 mm deep, with a 25 mm drill bit on just one battery (15Ah) charge.

5

Kickback Control: Minimises the risk of injury by stopping the motor when the drill jams

6

Vibration Control : Reduces harmful vibrations for less tiring work thanks to a decoupled main handle and a tuned mass damper

Further functions & features

Product Highlights

The EXPERT EXBH18V-45 SDS max rotary hammer brings outstanding speed to your work – up to 2x the drilling speed of the Professional GBH 18V-36 C*. Its superior performance, with an impact energy of 12.5 J, is due to BITURBO brushless technology, featuring a high-performance motor and a drive-train system engineered to exploit the extreme power of EXPERT batteries. With just one charge of the EXPERT EXBA18V-150 battery, you can drill the enormous amount of up to 33 holes, 150 mm deep with a 25 mm drill. Furthermore, this is the lightest tool in its class, weighing just 8 kg (w/o battery), all thanks to a lightweight motor and magnesium alloy housing.

Equipment & Application

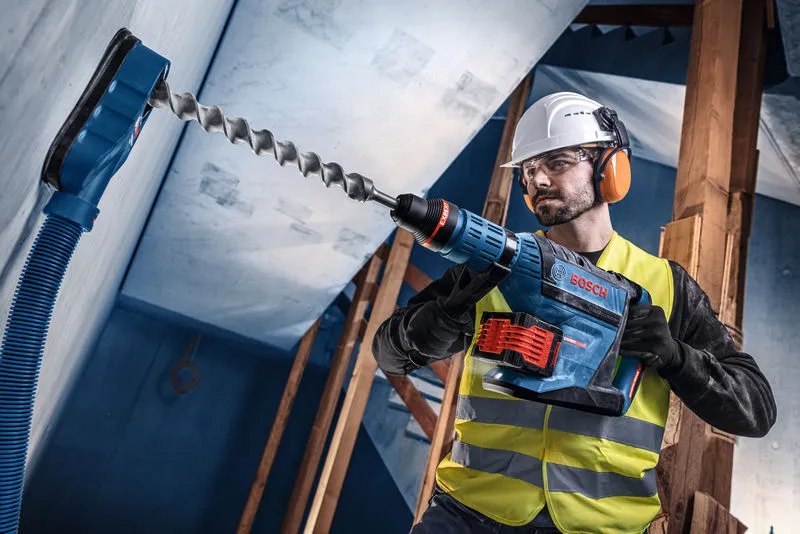

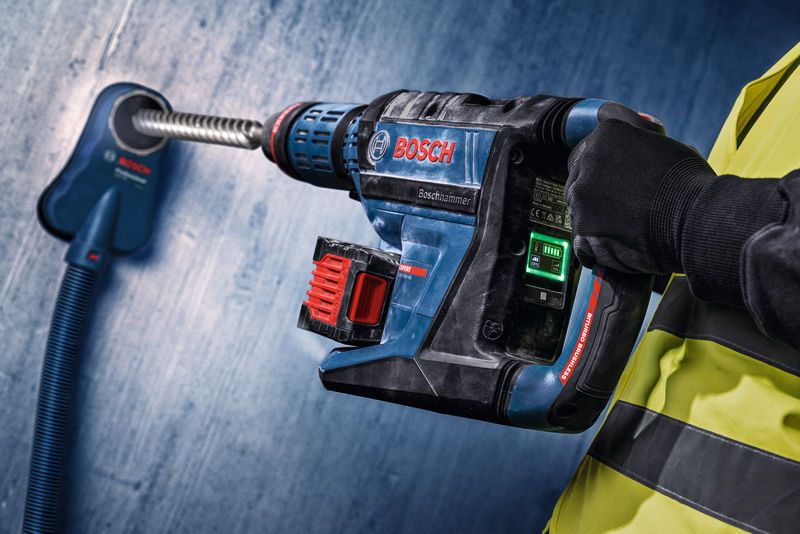

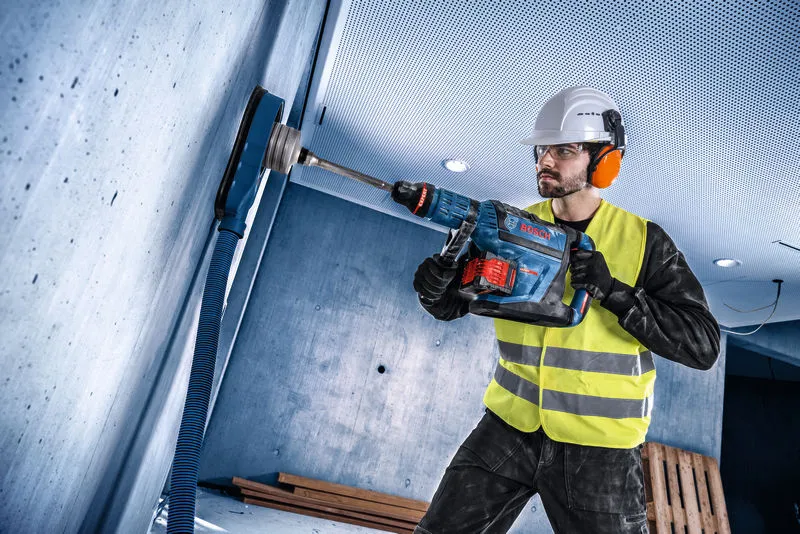

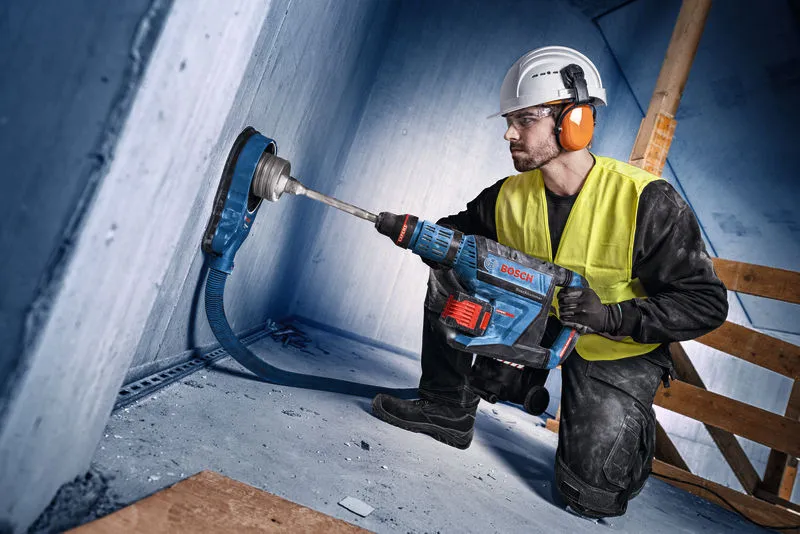

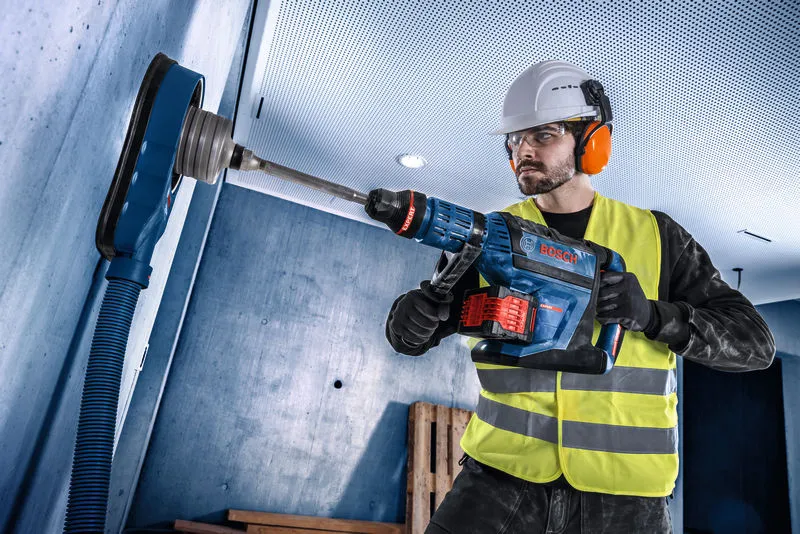

The rotary hammer is perfect for drilling and chiselling in concrete, stone, rock and brickwork. Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare.

Additional Information

The EXPERT EXBH18V-45 offers enhanced user protection: KickBack Control minimises the risk of injury by stopping the motor when the drill jams. For less tiring work, vibration Control reduces harmful vibrations through the tool’s decoupled main handle and a tuned mass damper. Restart Protection protects you in case of a power failure. The tool has simple settings and comes with two easy-to-use modes: 100% power for hard and 70% power for sensitive materials. Additionally the speed control switch enables variable speed adjustment for different applications.

Fits to EXPERT EXBH18V-45

EXPERT SDS max-8X Hammer Drill Bit

For rotary hammers

Long Life drilling reinforced concrete

Material

£170.20

incl. VAT

£141.83

excl. VAT

Available

Find out more

EXPERT SDS Clean max-8X Hammer Drill Bit Set

For rotary hammers

Advanced Dust Reduction drilling in reinforced concrete

Material

£172.20

incl. VAT

£143.50

excl. VAT

Available

Find out more

PRO SDS max-5C Carbide-tipped Mortar Chisel

For rotary hammers

Long Life removing mortar

Material

£181.95

incl. VAT

£151.62

excl. VAT

Limited stock

Find out more

GDE 68

System Accessories

The practical, multipurpose dust extraction for large drilling diameters

£38.84

incl. VAT

£32.37

excl. VAT

Not available

Find out more

GDE max

System Accessories

Practical and effective dust guard for virtually dust-free chiselling

£118.94

incl. VAT

£99.12

excl. VAT

Limited stock

Find out more

GDE 162

System Accessories

The practical and universal dust guard for core drilling of up to 162 mm diameters

£56.07

incl. VAT

£46.73

excl. VAT

Available

Find out more

Technical data

The most important data
Impact energy*	12.5 J
Impact rate at rated speed*	0 – 2,740 bpm
Rated speed*	0 – 300 rpm
Battery voltage*	18.0 V
Weight excl. battery*	8 kg
Tool holder	SDS max
Packaging dimensions (width x length x height)**	394 x 607 x 178 mm
Impact energy nominal	12.5 J
BITURBO	Yes

Drilling range
Drilling dia. in concrete with hammer drill bits	12 – 45 mm
Opt. app. range in concrete with hammer drill bits	20 – 40 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	12.3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	7.3 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

** May have small deviations because of variations during production process. You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXBH18V-45 (PDF 6.8 MB) Product data sheet | EXBH18V-45 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3611J13300

Product name

EXBH18V-45

Description

Cordless Rotary Hammer with SDS max

Go to spare part Browse spare parts catalogue
