EXPERT

EXPERT EXCM341-305GD

Mitre Saw

Order number 0.601.B23.870

Ultra-smooth operation: save space with no clearance needed behind the saw thanks to the Compact Glide System. Extended cutting capacity: 120 x 240 mm and 105 x 341 mm horizontal reach for large crosscuts in wood, plus an extra 177 x 20 mm capacity for baseboards. Cleaner, hassle-free work: optimized dust extraction design ensures a high capture rate. Fast handling: quick miter/bevel adjustments, material clamp, and toolless blade changes

¹ vs. Professional GCM 340-305 working space, 1100 vs. 846 mm*

Select a variant

Find a local EXPERT dealer

Your Selected Variant

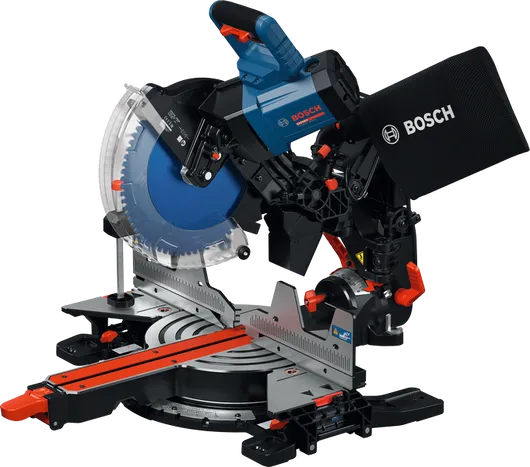

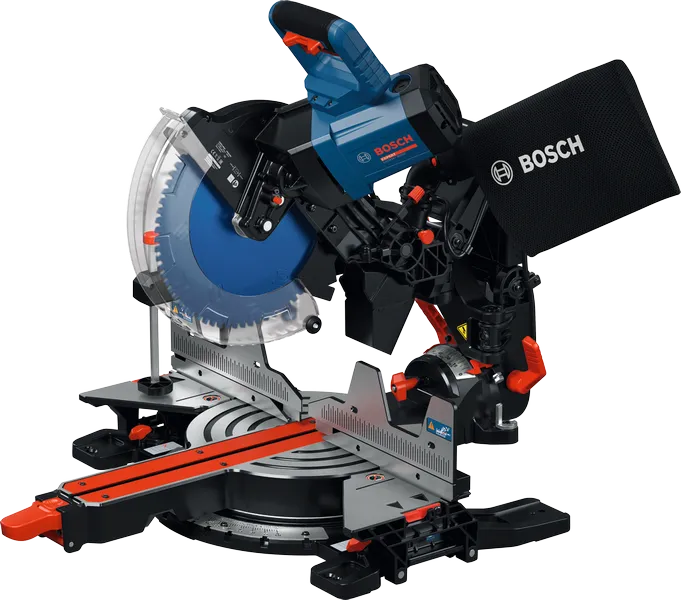

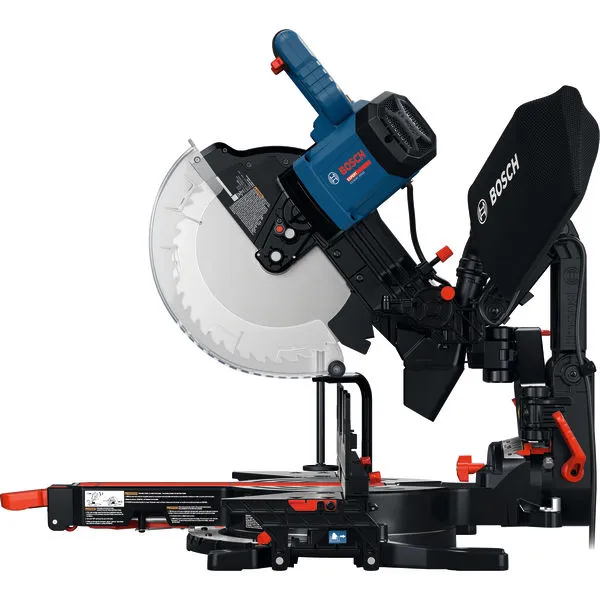

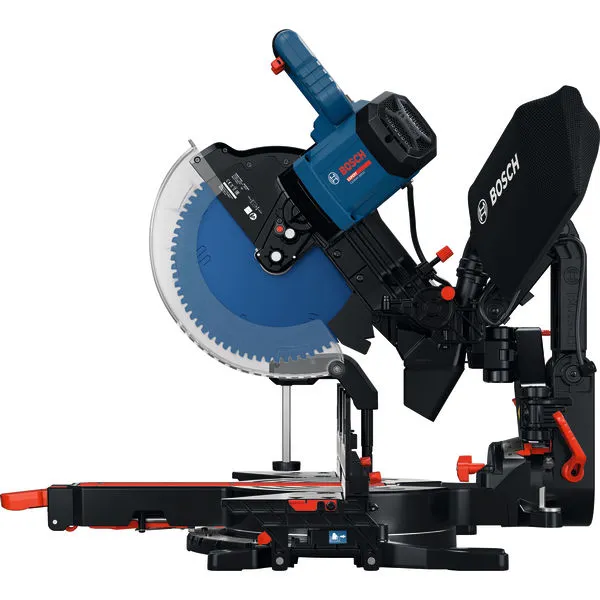

Bosch EXCM341-305GD mitre saw with dust bag.

Your Selected Variant

with Dust bag 0 601 B23 870

Find a local EXPERT dealer

Select a variant

Your Selection

New

Included in this variant

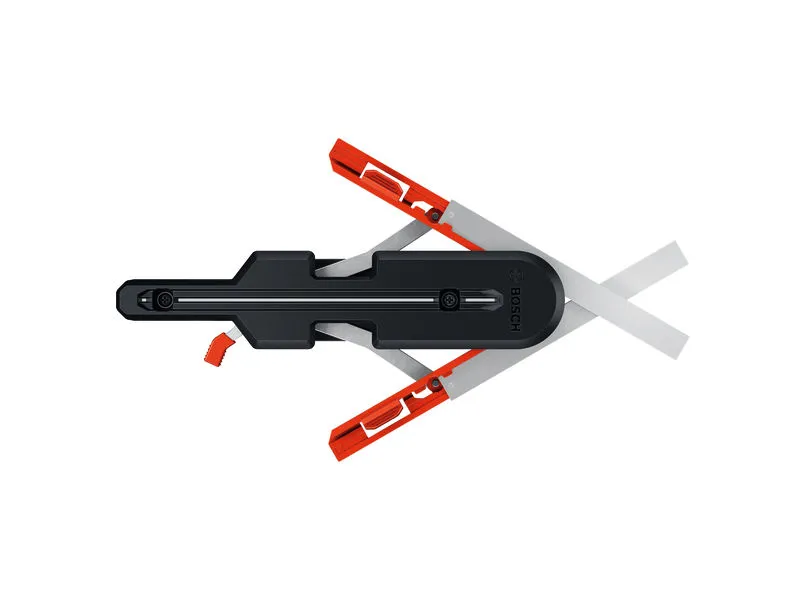

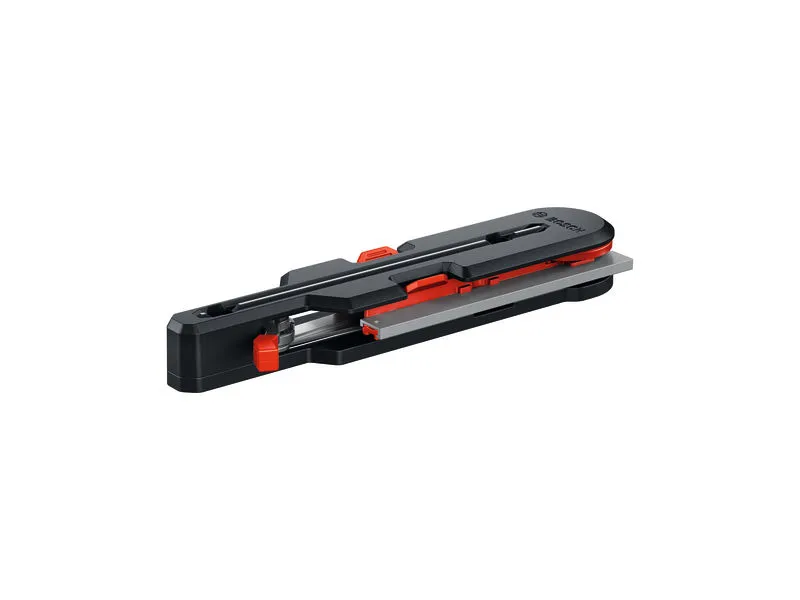

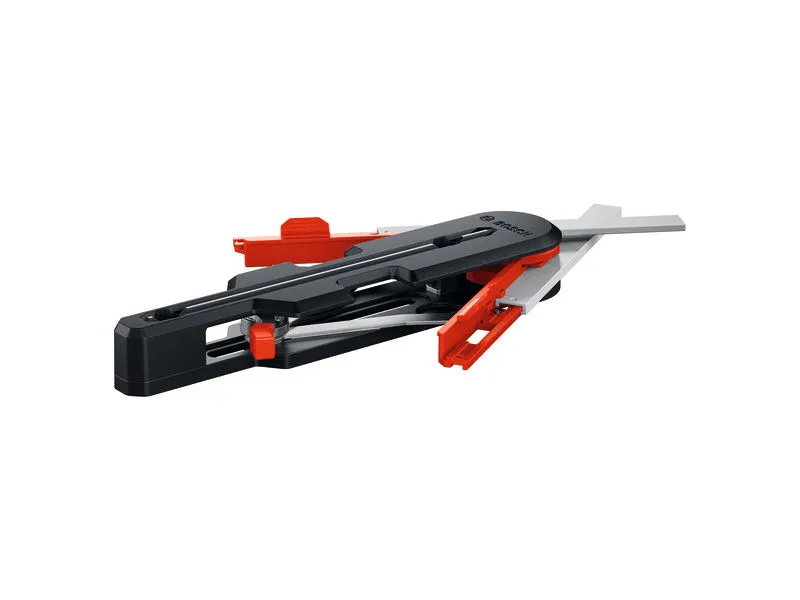

1 x angle finder Part Number: 1 619 PS5 831

1 x short dust chute Part Number: 1 619 PS6 137

1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72 Part Number: 2 608 642 531

1 x long dust chute Part Number: 1 619 PS6 499

Dust bag

1 x dust bag click & clean Part Number: 1 619 PS5 832

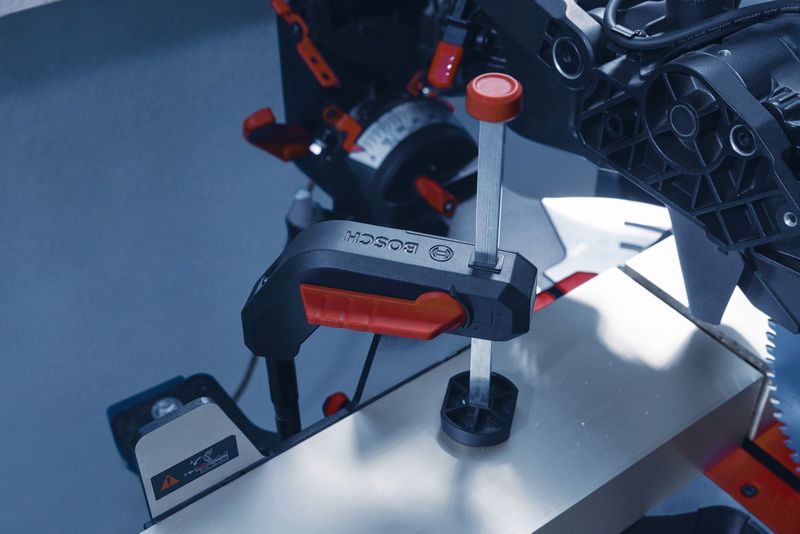

1 x quick material clamp Part Number: 1 619 PS5 829

1 x wrench Part Number: 1 619 PS6 067

1 x SDS bolt Part Number: 1 619 PS5 830

Select Variant

Product highlights

1

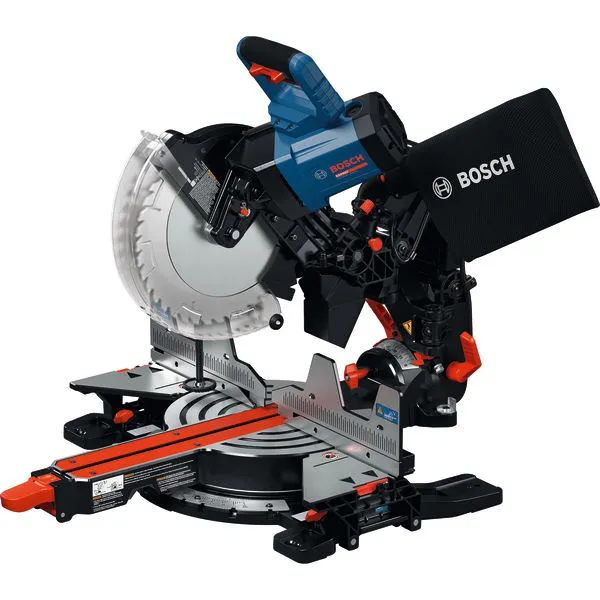

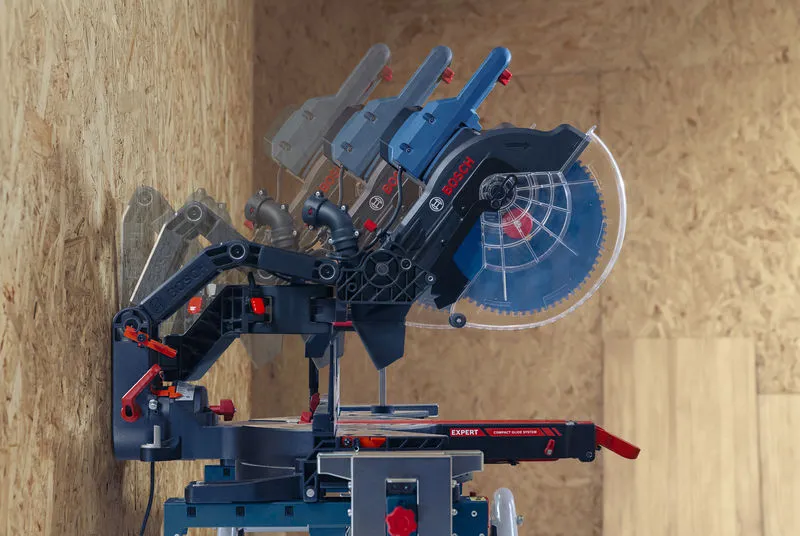

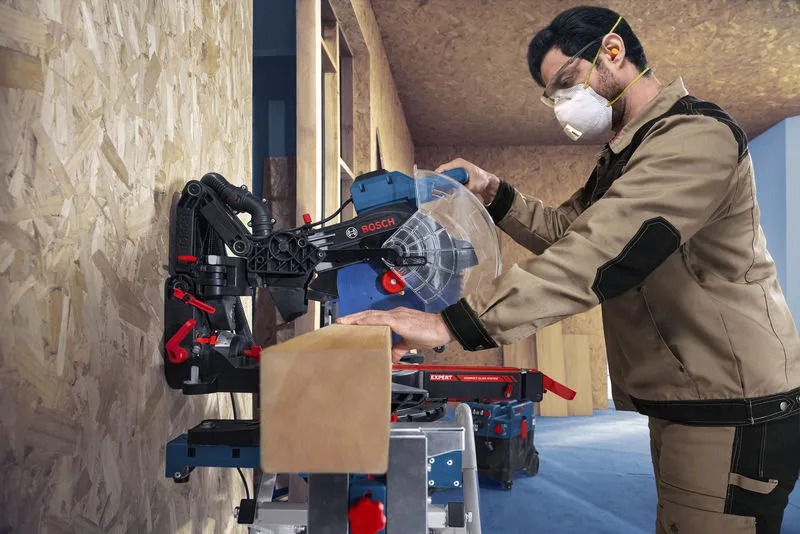

COMPACT GLIDE SYSTEM: Ultra-smooth cutting without the need for rear clearance

2

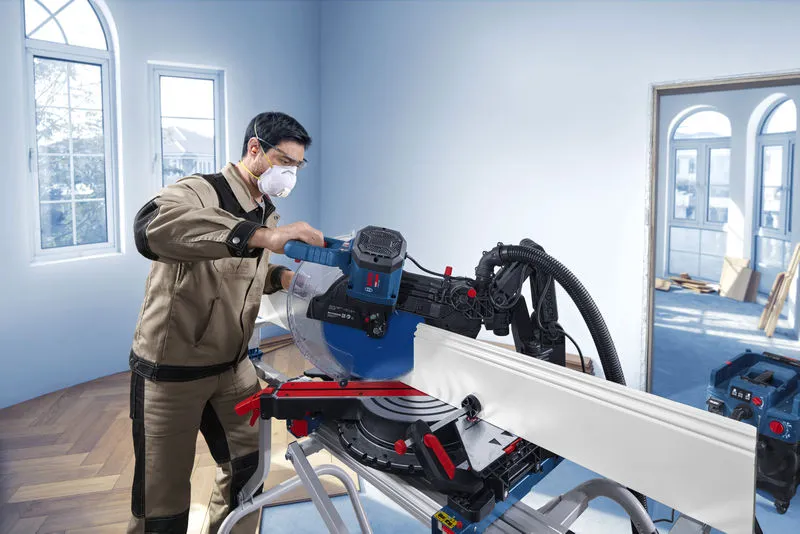

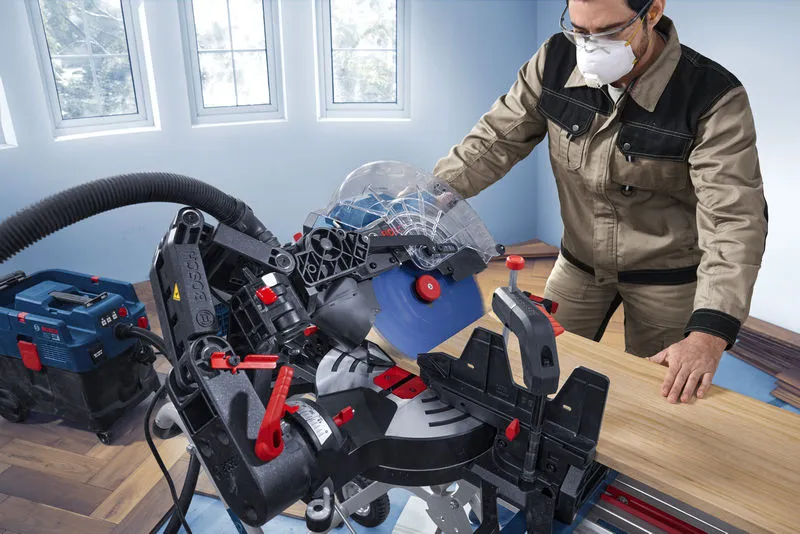

CLEANER WORKSPACE: High-performance dust extraction keeps your area clear and safe

3

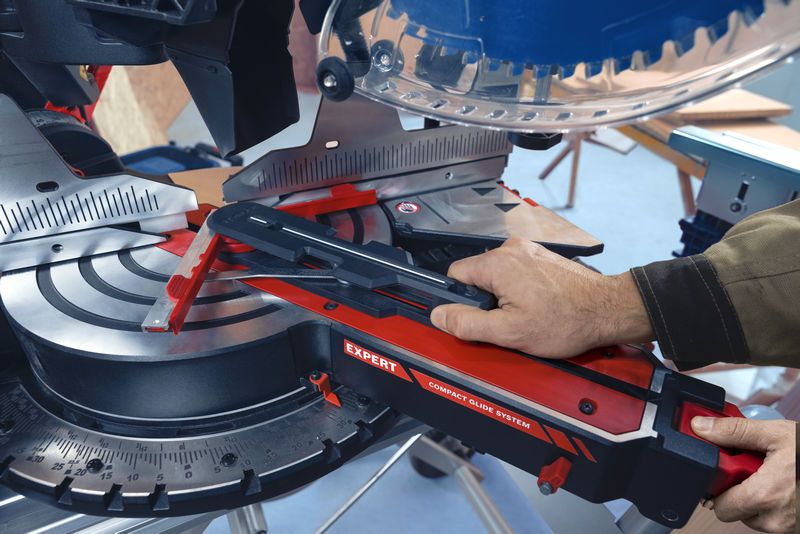

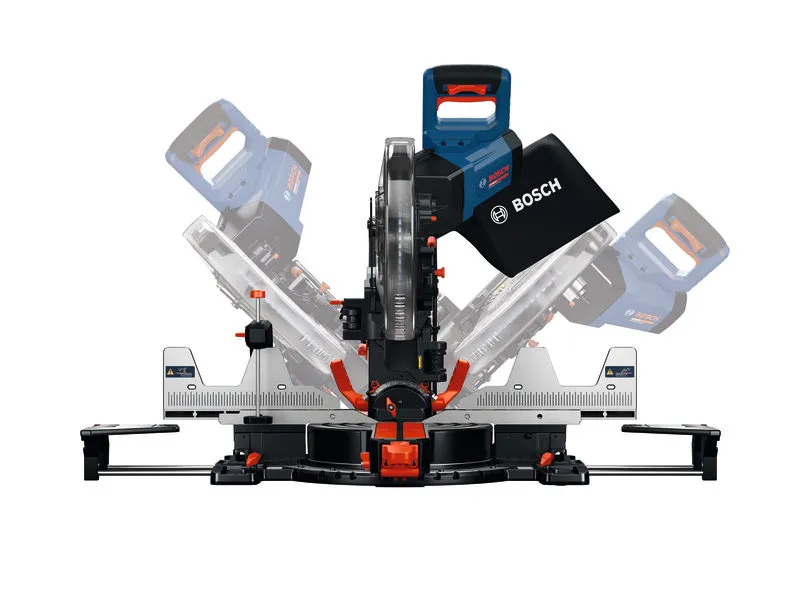

FAST, PRECISE ADJUSTMENTS: Quick miter and bevel settings for efficient cutting

4

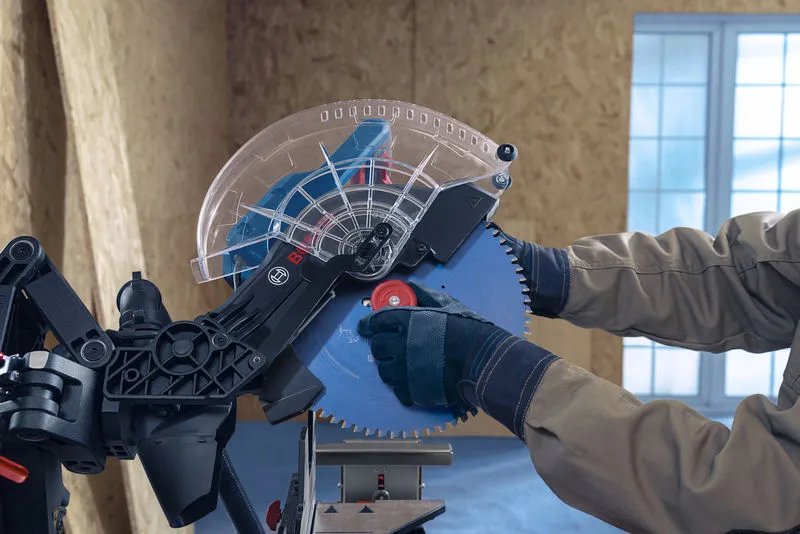

TOOLLESS BLADE CHANGES: Simplify setup and save time between cuts

5

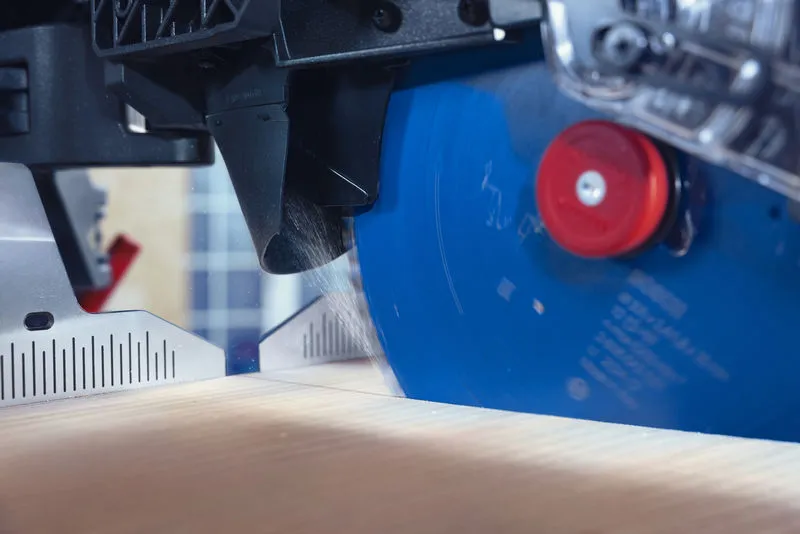

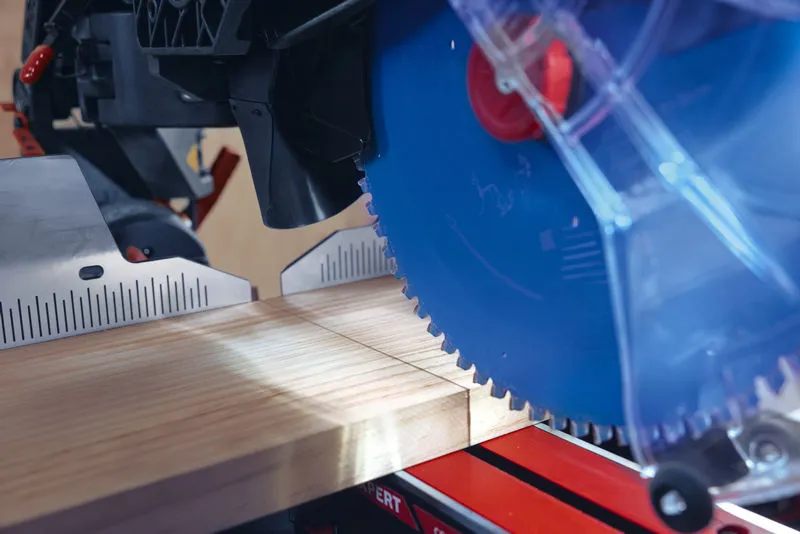

PRECISE CUTTING LINE INDICATION: LED light ensures an adjustment-free view of the cutting line for accurate results every time

6

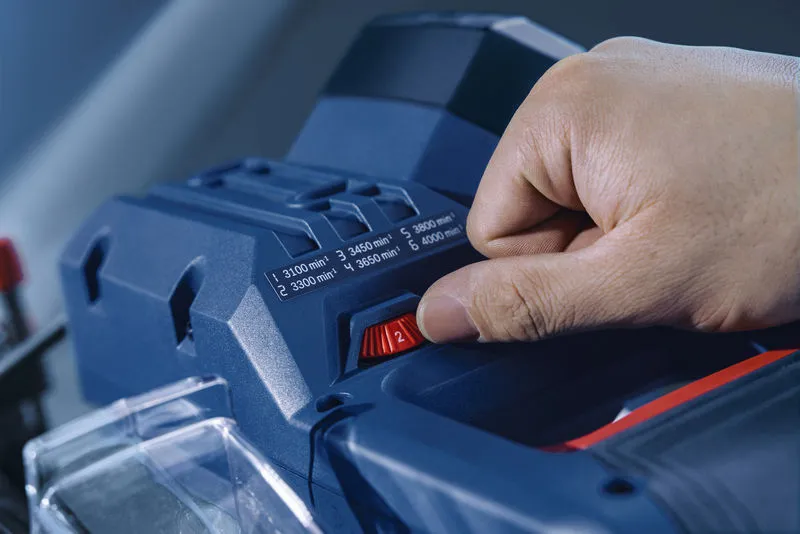

OPTIMAL SPEED FOR EVERY MATERIAL: Speed dial lets you match the cutting speed perfectly to wood, plastic, or metal applications

Further functions & features

Product Highlights

Working in tight spaces is tough — especially with a miter saw that needs extra room to slide. Add the challenge of making precise cuts on large materials while controlling dust, and the job gets even harder. You need a tool that’s accurate, efficient, clean, and compact. The EXPERT EXCM341-305GD miter saw is built for exactly that. With its patented Compact Glide System, you get ultra-smooth operation without needing clearance behind the saw, so you can work comfortably even in cramped spaces. Its 120 x 240 mm cutting capacity and 105 x 341 mm horizontal reach let you tackle large cross-cuts with ease. For baseboards, it offers an additional capacity of 177 x 20 millimetres. The scope of supply for these applications includes an angle finder for quickly and easily transferring miter angles to the saw. Plus, the high-performance dust extraction keeps your workspace cleaner, while fast miter and bevel adjustments and toolless blade changes make every cut faster, easier, and more precise.

Equipment & Application

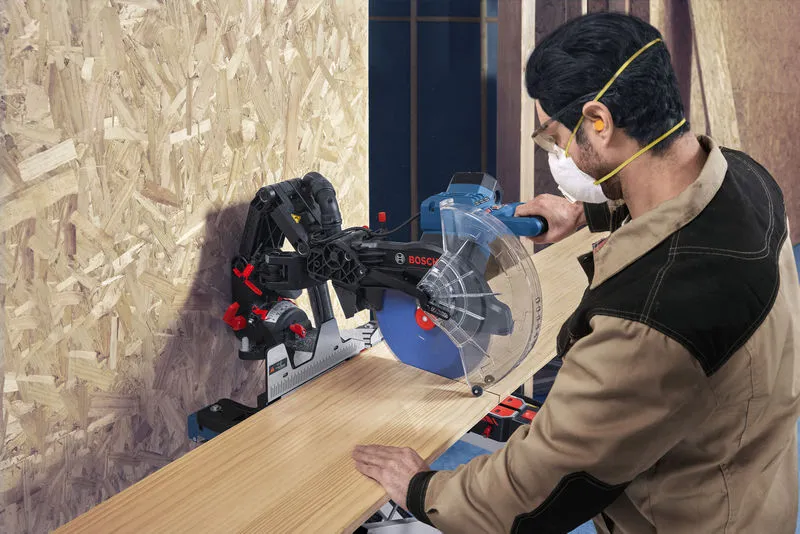

The EXPERT EXCM341-305GD is your tool of choice for large crosscuts and miter and bevel cuts in wood.

Technical data

The most important data
Cutting capacity, 0°	105 x 341 mm
Cutting capacity 0° with spacer (max. vertical)	120 x 240 mm
Cutting capacity 0° with spacer (max. horizontal)	38 x 400 mm
Cutting capacity, 45° mitre	105 x 240 mm
Cutting capacity, 45° bevel	51 x 341 mm
Mitre setting	52 ° L / 60 ° R

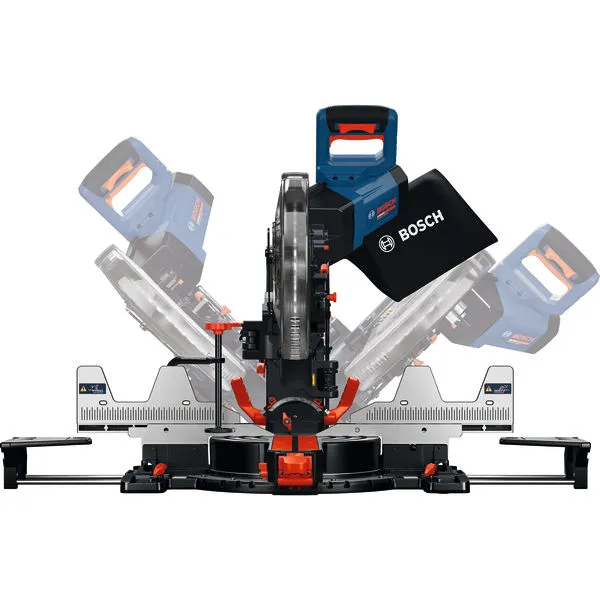

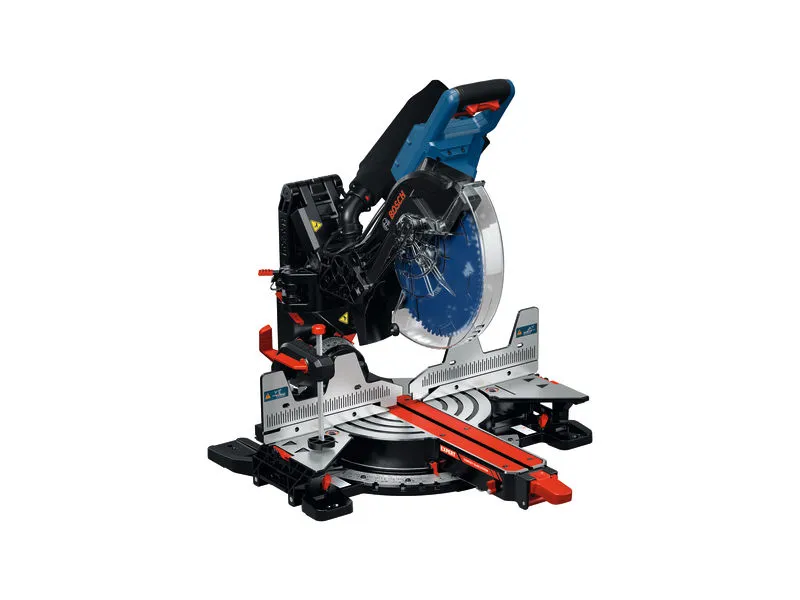

Bevel setting	47 ° L / 47 ° R
Tool dimensions (width x length x height)	660 x 846 x 738 mm
No-load speed*	3,100 – 4,000 rpm
Saw blade diameter	305 mm
Saw blade bore diameter	30 mm
Weight*	30.5 kg
Voltage	220 – 240 V
Packaging dimensions (width x length x height)	572 x 792 x 530 mm

Noise/vibration information
Sound pressure level	105 dB(A)
Sound power level	96 dB(A)
Uncertainty K	3 dB

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | Angle Finder (PDF 4.9 MB) Instruction manual | EXCM341-305GD (PDF 63.4 MB) Insert | EXCM341-305GD (PDF 0.3 MB) Product data sheet | EXPERT EXCM341-305GD (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601M23870

Product name

EXPERT EXCM341-305GD

Description

Mitre Saw

Go to spare part Browse spare parts catalogue
