EXPERT

EXPERT EXDB18V2-180

Name: EXDB18V2-180
Brand: Bosch power tools
SKU: 06019P6000
Availability: OutOfStock

Diamond Drill

Order number 0.601.9P6.000

Up to 25% more drilling speed than the Professional GDB 180 WE¹

Outstanding Performance: 2500 W equivalent corded power for faster drilling even in hardest materials up to diameter of 180mm
BITURBO BRUSHLESS: 2x18V high-performance motor and drive train system with 2 gears to exploit the power of EXPERT batteries
Advanced Protection: Minimise the risk of injury by stopping motor when core cutter jams

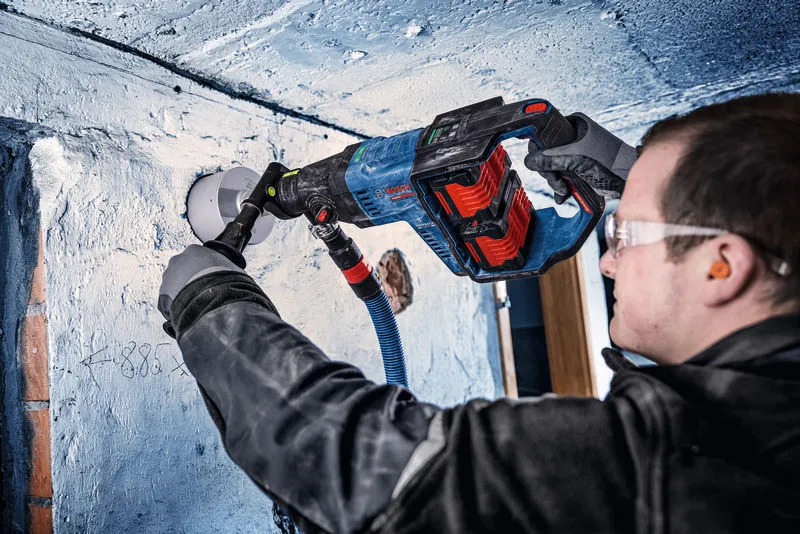

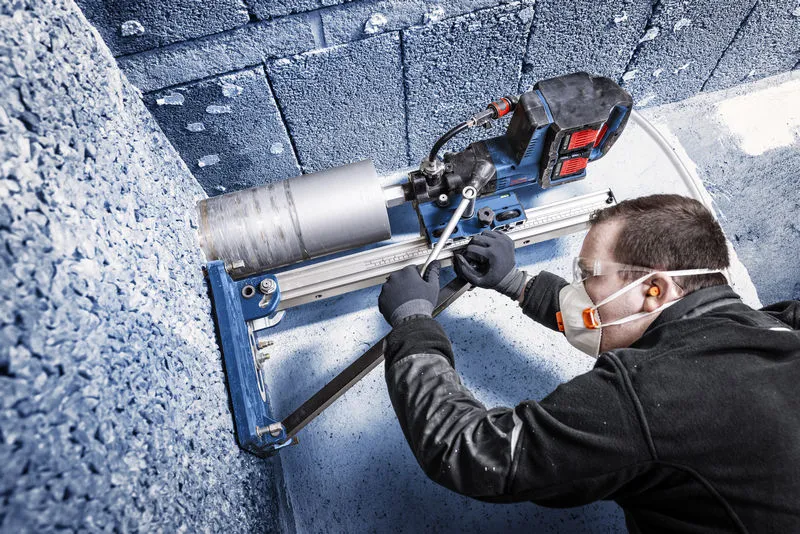

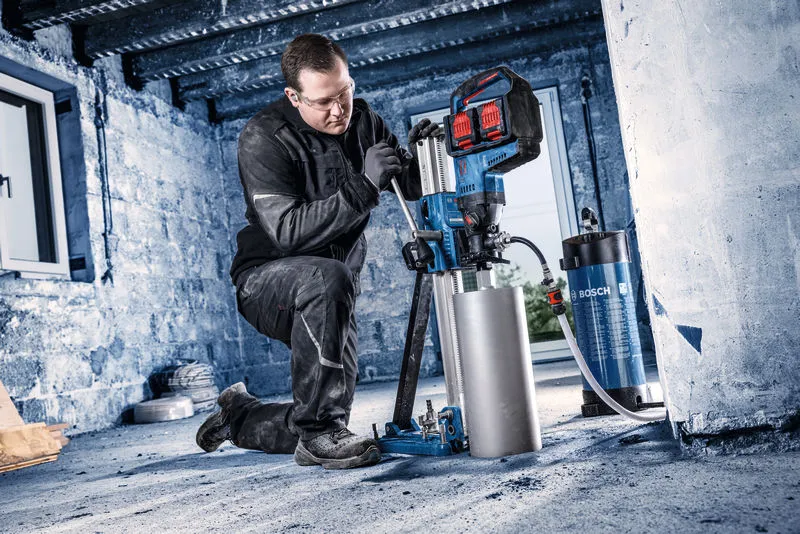

Powerful Allrounder: Rig-operated and handheld coring as well as wet and dry drilling to cover all kinds of materials

¹ vs. the Professional GDB 180 WE, internal test in C40 concrete, depth 200 mm, drill diameter 152 mm, fully charged battery*

Select a variant

Your Selected Variant

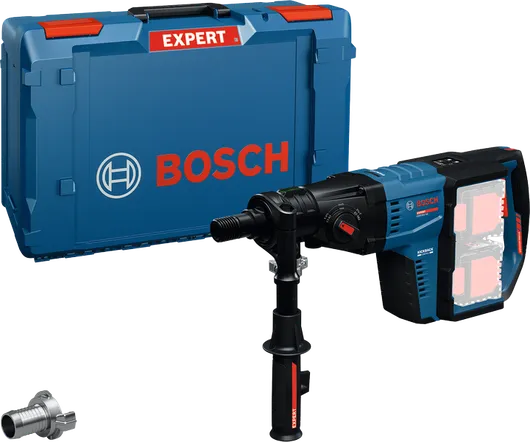

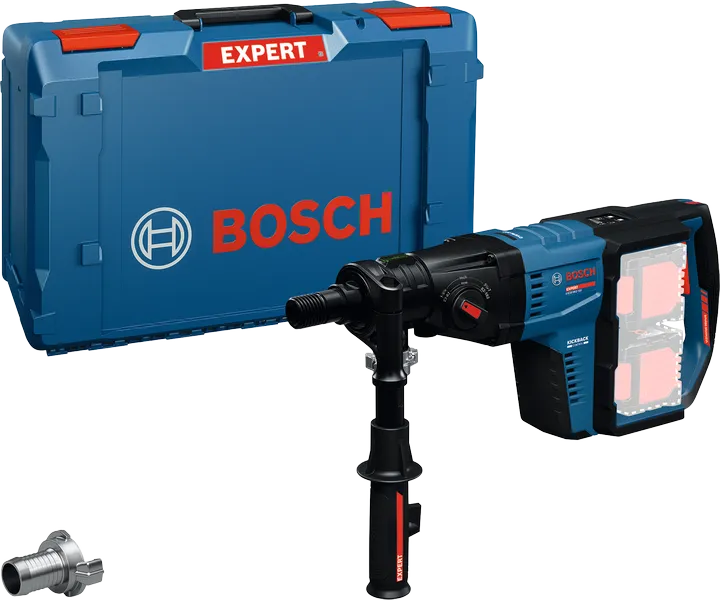

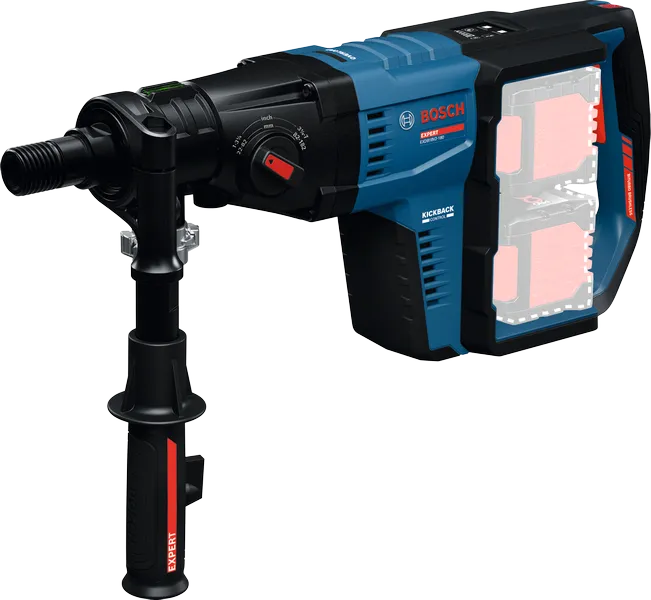

Bosch EXDB18V2-180 diamond drill with kickback control.

Your Selected Variant

EXDB18V2-180 Professional 0 601 9P6 000

Find a local dealer

The best tools for the job

Select a variant

Your Selection

Bosch cordless rotary hammer GBH 18V-45 C with case.

Included in this variant

XL-BOXX inlay for EXDB18V2-180 Part Number: 6 082 850 7H5

Spanner #41 Part Number: 1 619 PS1 608

1 x XL-Boxx 232 Part Number: 1 605 438 1KD

Water supply adapter Part Number: 1 619 PS1 447

Dust extraction adapter Part Number: 1 619 PS1 446

Spanner #32 Part Number: 1 619 PS1 607

Select Variant

Product highlights

1

Outstanding Performance : 2500 W equivalent corded power for faster drilling even in hardest materials up to Ø of 180mm

2

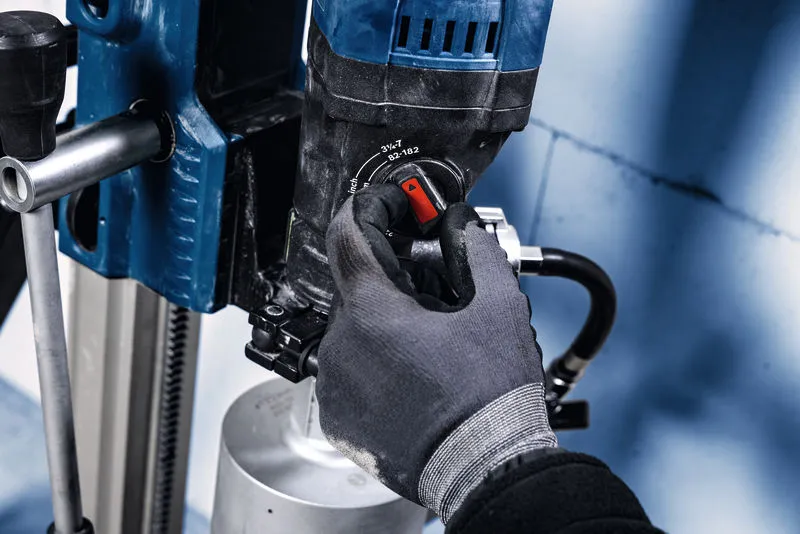

BITURBO BRUSHLESS: 2x18V high-performance motor and drive train system with 2 gears

3

KickBack Control: Minimise the risk of injury by stopping the motor when the core cutter jams

4

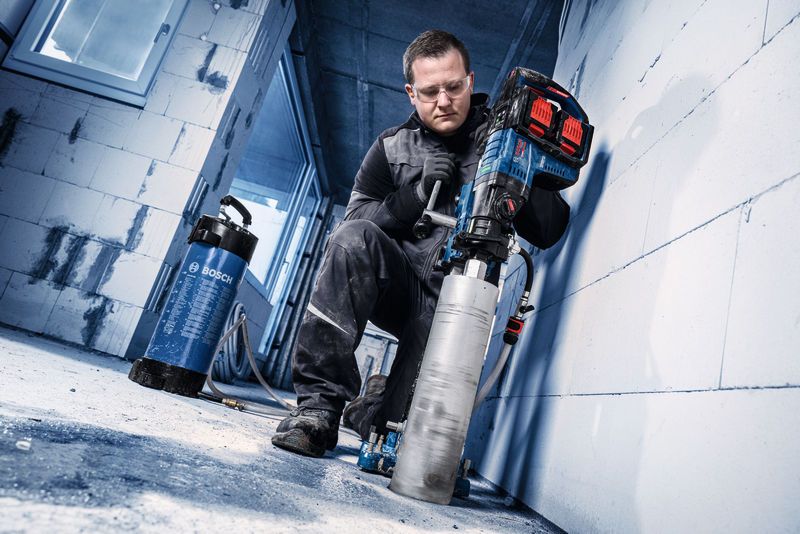

Powerful Allrounder: Dust extraction adapter for dry drilling and water supply for wet drilling. Compatible with the GCR 180 (II) Professional for rig operation

5

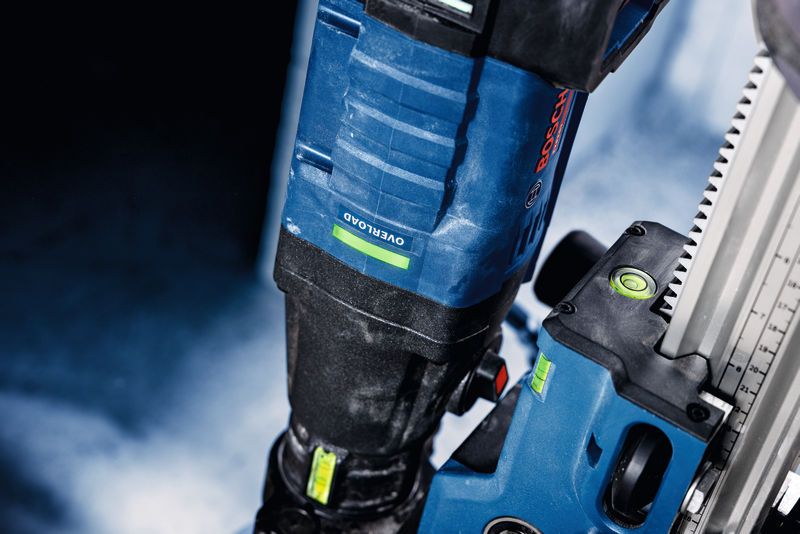

Overload Indicator: Shows optimum pressure force based on power consumption for optimised runtime

6

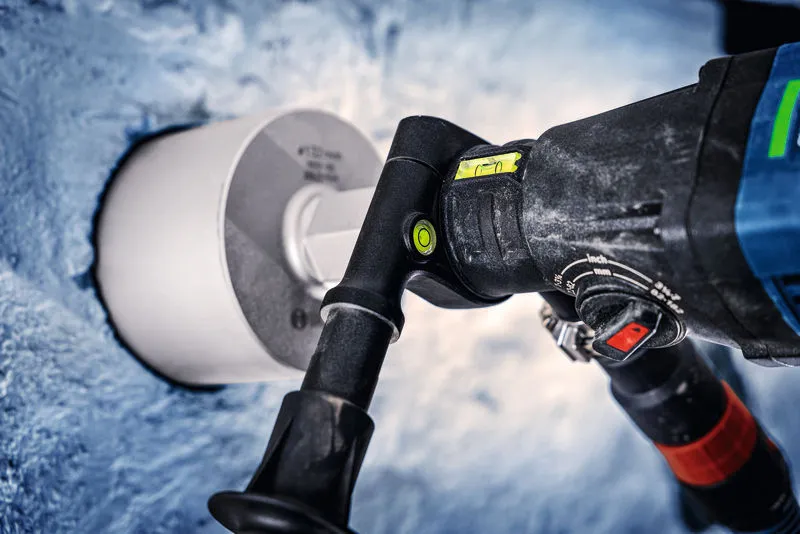

Perfect Tool Levelling: Two spirit levels for perfectly aligned horizontal and vertical holes

Further functions & features

Product Highlights

The EXPERT EXDB18V2-180 is a powerful diamond core drill that runs on two 18V batteries. It delivers 2500 W equivalent corded power for faster drilling, even in the hardest materials, up to Ø180mm. BITURBO brushless technology with 2x18V high-performance motor and 2 gears is designed to exploit the power of EXPERT batteries. Advanced user protection features Kickback Control to minimise the risk of injury by stopping the motor when the core cutter jams. The drill also comes with Drop Control and a Lock-off mechanism for better protection during transport. This heavy-duty all-rounder is perfect for rig-operated and handheld coring, as well as wet and dry drilling, to cover all kinds of materials. It is compatible with the GCR 180 (II) Professional for rig operation. This powerful diamond core drill keeps you on our Bosch Professional 18V platform while delivering superior performance.

Equipment & Application

The EXPERT EXDB18V2-180 is the perfect tool for breakthroughs in reinforced concrete, masonry, bricks – ideal for installation work, piping and HVAC application, as well as for electricians and general contractors. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.

Additional Information

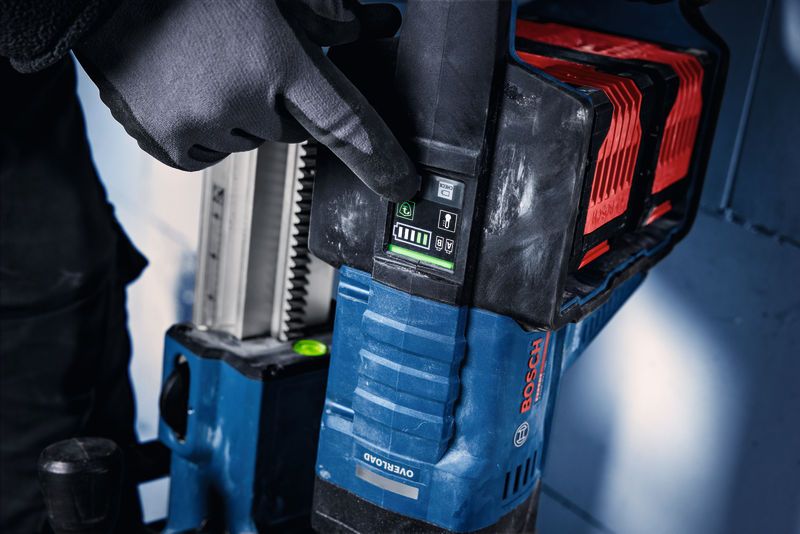

The overload indicator shows optimum pressure force based on power consumption for optimised runtime. The charge level indicator displays the state of charge for both batteries. The tool has two spirit levels for perfectly aligned vertical and horizontal holes. The advanced design ensures both batteries are positioned for optimal protection while superior tool ergonomics are maintained.

Fits to EXPERT EXDB18V2-180

PRO Core Cutter wet

For diamond drills

Long Life wet drilling in concrete

Material

£90.16

incl. VAT

£75.13

excl. VAT

Not available

Find out more

PRO Core Cutter wet

For diamond drills

Long Life wet drilling in concrete

Material

£60.65

incl. VAT

£50.54

excl. VAT

Not available

Find out more

Technical data

The most important data
No-load speed*	1,500 rpm
Drilling range	182 mm
Tool holder	Clamped
Packaging dimensions (width x length x height)	394 x 607 x 238 mm
Drill spindle connecting thread	Clamped

Drilling range, hand-guided
Masonry	182 mm

Total vibration values (Drilling in concrete)
Vibration emission value ah	3.5 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXDB18V2-180 (PDF 5.7 MB) Insert | Herstellergarantie,Manufacturer's guarantee (EU) (PDF 0.2 MB) Instruction manual | EXDB18V2-180 (Online version) Product data sheet | EXDB18V2-180 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601JP6000

Product name

EXDB18V2-180

Description

Diamond Drill

Go to spare part Browse spare parts catalogue
