EXPERT EXDM600-17

Name: EXDM600-17
Brand: Bosch power tools
SKU: 0601077200
Availability: OutOfStock

Digital multimeter

Order number 0.601.077.200

IP65 protection, 2 m drop resistance, inverted display, CAT III 600 V safety rating, dual power source and temperature measurement

Attachable K-Type interface: Measures temperatures from -40 to + 400 °C
Versatile: Measures temperature and microamps, resistance up to 60 MΩ, LoZ and performs diode testing
Compact design: Easy one-handed operation with compatible MH 1 Professional magnet hanging solution
Job-site ready: Enhanced HVAC functionality with temperature measurement, microamps, LoZ and diode testing

Select a variant

Your Selected Variant

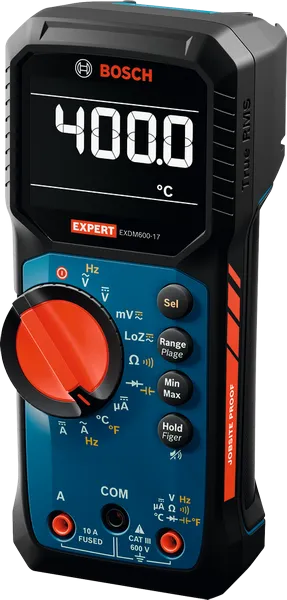

Bosch EXDM600-17 digital multimeter with 400°C display.

Your Selected Variant

with 2 x battery (AA), Pouch, MH 1 0 601 077 200

Find a local dealer

Select a variant

Your Selection

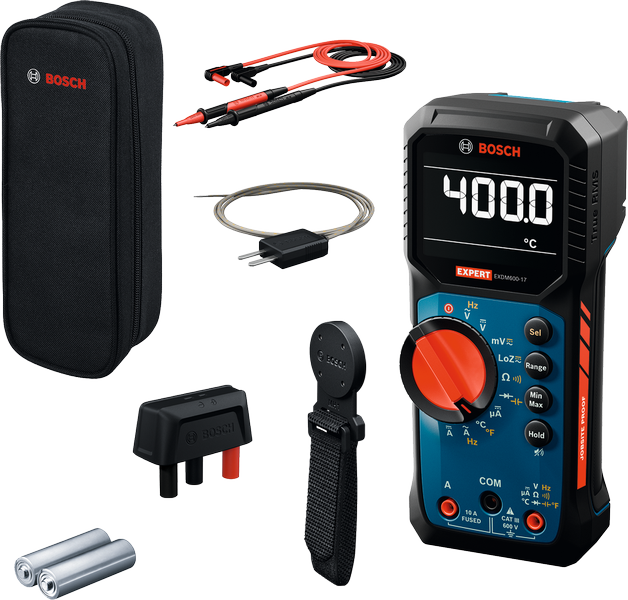

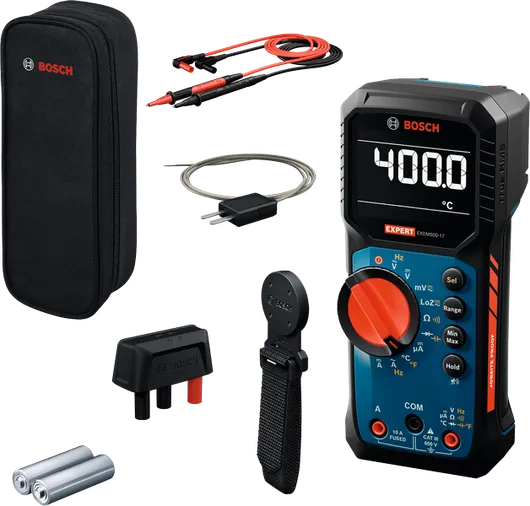

Bosch EXDM600-17 digital multimeter kit with accessories.

Included in this variant

Temperature Probe (Type K) Professional Part Number: 1 600 A03 8CU

Pouch

Thermocouple adapter

MS 90 Professional Part Number: 1 600 A03 8D2

MH 1 Professional Part Number: 1 600 A03 8CY

2 x 1.5 V LR6 battery (AA)

Select Variant

Product highlights

1

Large Inverted Display: High-contrast 9-segment display and large font for better readability

2

Usability: Off-center rubberized dial makes switching between modes easy

3

Enhanced HVAC Functionality: Temperature measurement, microamps, diode testing, LoZ and resistance measurement up to 60 MΩ

4

Durable: IP65 protection and 2 m drop resistance

5

Dual Power Source: With 2 × 1.5V LR06 (AA) batteries or BA 3.7V 1.0 Ah A Professional for higher flexibility

6

Compact, Ergonomic Design: Easy one-handed operation, rubberized Kickstand, dual power source, and a magnet hanger as a separate accessory MH 1 Professional

Further functions & features

Product Highlights

The EXPERT EXDM600-17 is a versatile digital multimeter with an attachable K-Type interface that measures temperatures from -40 to + 400 °C. This device with enhanced HVAC functionality also measures microamps, resistance up to 60 MΩ, LoZ and performs diode testing. Its compact design enables easy one-handed operation and it is compatible with the MH 1 Professional magnet hanging solution.

Equipment & Application

The EXPERT digital multimeter is compatible with the BA 3.7 V 1.0 Ah A Professional battery pack; MH 1 Professional, MS 90 Professional, and a Type K temperature probe.

Additional Information

The EXPERT EXDM600-17 offers IP65 protection, 2 m drop resistance, an inverted display and CAT III 600 V safety rating.

Fits to EXPERT EXDM600-17

BA 3.7V 1.0Ah A

Battery Pack

Continuous power supply for enduring jobs

£34.64

incl. VAT

£28.87

excl. VAT

Available

Find out more

MH 1

Magnetic hanger

Magnetic hanger for hands-free efficiency

MS 90

Test leads

Flexible measuring strips for precise electrical work

Temperature Probe (Type K)

Accessory

K-Type temperature probe with extended measuring range and 1m cable length

Technical data

The most important data
AC voltage	600 V
AC voltage resolution	0.1 mV
AC voltage accuracy	± 1.0 % + 3
AC current	10 A
AC current resolution	0.001 A
AC current accuracy	± 1.5% + 3
DC voltage	600 V
DC voltage resolution	0.1 mV
DC voltage accuracy	± 0.5 % + 2
DC current	10 A
DC current resolution	0.001 A
DC current accuracy	± 1.0 % + 3
DC µA current	600 µA
Resistance	60 MΩ
Resistance resolution	0.01 MOhm
Resistance accuracy	± 2.0 % + 5
Capacitance	1000 µF
Capacitance resolution	max. 0.01 nF
Capacitance accuracy	± 1.9 % + 2
Continuity	yes
Continuity resolution	0.1 Ohm
Continuity accuracy	± 1.0 % + 5
Frequency AC A min	10
Frequency AC A max	600
Frequency resolution	0.01 Hz
Frequency accuracy	± 0.1 % + 2
Low input impedance (LoZ)	600 V
Temperature min	-40°C / -40°F
Temperature max	~400°C /~752°F
Temperature accuracy	±1 °C (0 to +100 °C)
Temperature resolution	0.1
IP-Protection	IP65
True RMS	yes
Safety class	CAT III 600 V
Display type	LCD Inverted
Acoustic feedback	yes
Diode test	yes
Measuring range for frequency	99.99 Hz to 50 kHz
Frequency AC V	99.99 Hz to 50 kHz
Frequency AC A	99.99 Hz to 50 kHz
Packaging dimensions (width x length x height)	59 x 177 x 78 mm

Downloads

Instruction manual | EXDM600-17 (PDF 9.3 MB) Instruction manual | EXDM600-17 (Online version) Product data sheet | EXDM600-17 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601K77200

Product name

EXDM600-17

Description

Digital multimeter

Go to spare part Browse spare parts catalogue
