EXPERT EXDR18V-230

Name: EXDR18V-230
Brand: Bosch power tools
SKU: 06019L6400
Availability: OutOfStock

Cordless Impact Driver

Order number 0.601.9L6.400

Ideal balance of power, compactness and control.

Extreme Power: Brushless motor delivers powerful 230 Nm tightening torque and up to 3,400 rpm for efficient work
Compact Design: Highly compact with 113 mm head length for working in tight places
Ultimate Control: Versatile and accurate with 5 speed settings; maximum control with 3 screw modes selectable on tool
One-Hand Bit Insertion: Improved convenience with one-hand bit insertion

Select a variant

Your Selected Variant

Bosch EXDR18V-230 cordless impact driver with 4Ah battery.

Your Selected Variant

EXDR18V-230 Professional 0 601 9L6 400

Find a local dealer

The best tools for the job

Select a variant

Your Selection

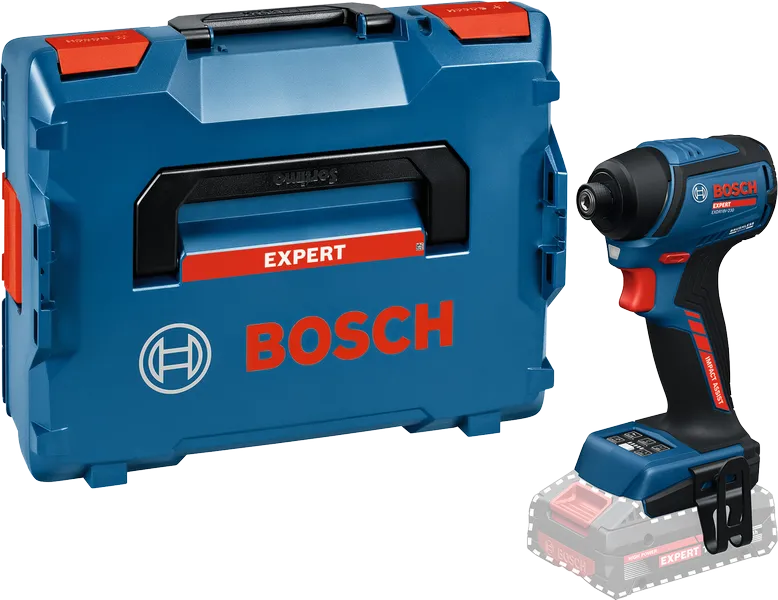

Bosch EXDR18V-230 impact driver with expert case.

Included in this variant

1 L-BOXX case

1/1 L-BOXX Inlay for tool Part Number: 1 600 A03 2H0

Select Variant

Product highlights

1

Extreme Power: 230 Nm tightening torque

2

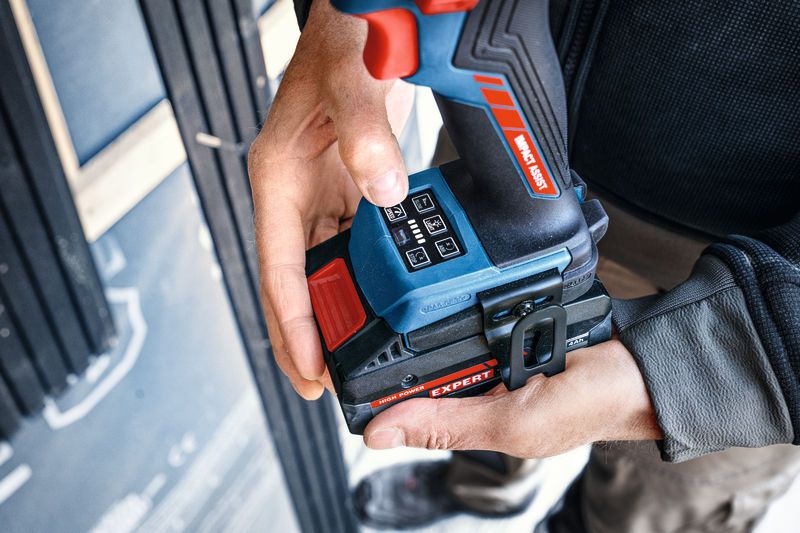

Ultimate Control and Versatility: 5 selectable speed settings and 3 screw modes on tool

3

Compact Design: 113 mm head length for working in tight places

4

One-Hand Bit Insertion: Simply push the bit in with one hand to lock it

5

Optimal Illumination: 2 LEDs that you can switch on/off separately for excellent work area illumination

Further functions & features

Product Highlights

The EXPERT EXDR18V-230 impact driver combines power with control. Thanks to its high-performance brushless motor with up to 3,400 rpm, a tightening torque of 230 Nm, and five speed settings, you get the job done faster and with optimal control. Three adjustable screw modes automatically slow down or shut off the tool, helping to prevent broken screwheads and damaged work pieces when it runs clockwise, and preventing nuts/bolts from falling when it runs counterclockwise. You only need one hand to insert bits – just push the bit in to lock it. With its two LED lights that you can switch on or off separately, you get best-in-class workplace illumination.

Equipment & Application

This powerful and compact impact driver is suitable for wood and metal sheet screws used by joiners and carpenters, and for HVAC projects and electrical work.Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.

Fits to EXPERT EXDR18V-230

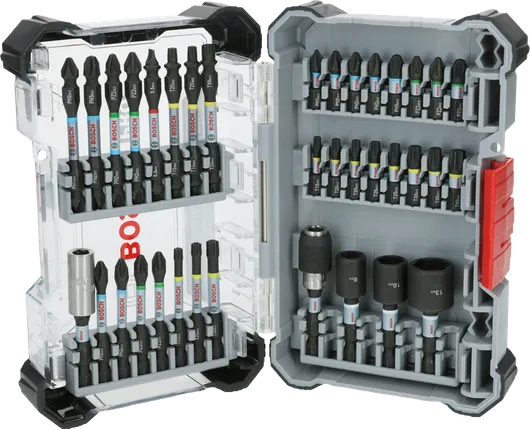

PRO Impact Screwdriver Bit Set

For impact screwdrivers

Robust screwdriving

£56.86

incl. VAT

£47.38

excl. VAT

Limited stock

Find out more

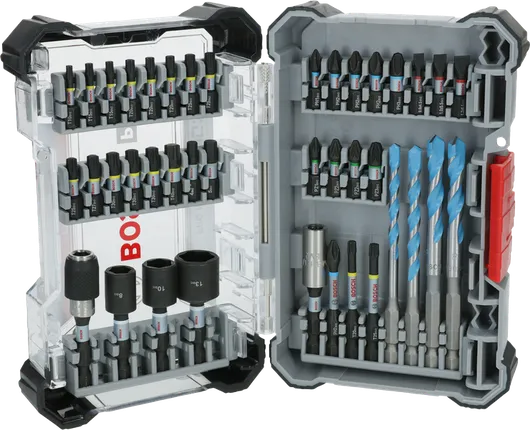

PRO Impact Mixed Set

For impact screwdrivers

Robust screwdriving and Precision drilling in construction materials

Material

£75.60

incl. VAT

Not available

Find out more

Technical data

The most important data
No-load speed*	0-800 rpm
No-load speed (1st level)*	0-800 rpm
No-load speed (2nd level)*	0-1,600 rpm
No-load speed (3rd level)*	0-2,300 rpm
Torque settings	5
Weight excl. battery*	1 kg
Torque, max.*	230 Nm
Impact rate	0-4,000 bpm
Battery voltage	18.0 V
Tool holder	1/4'' Hex Uni
Packaging dimensions (width x length x height)	360 x 444 x 155 mm
BITURBO	No
Speed output no-load 5 gear, from	0 rpm
Speed output no-load 5 gear, up to	3,400 rpm
Speed output no-load 4 gear, from	0 rpm
Speed output no-load 4 gear, up to	2,900 rpm

Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah	20.3 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXDR18V-230 (PDF 6.3 MB) Insert | Herstellergarantie,Manufacturer's guarantee (EU) (PDF 0.2 MB) Product data sheet | EXDR18V-230 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601JL6400

Product name

EXDR18V-230

Description

Cordless Impact Driver

Go to spare part Browse spare parts catalogue
