EXPERT

EXPERT EXMC600-17

Name: EXMC600-17
Brand: Bosch power tools
SKU: 0601077500
Availability: OutOfStock

Clamp meter

Order number 0.601.077.500

True-RMS AC/DC current, temperature measurement and dual power source

Attachable K-Type interface: Measures temperature from -40 to + 400°C
Versatile functionality: Measures AC/DC current, inrush current, frequency, voltage, capacitance, and more
Compact design: Easy one-handed operation and magnet hanging solution MH 1 Professional
Job-site ready: Integrated non-contact voltage tester and flashlight for low-light conditions

Select a variant

Your Selected Variant

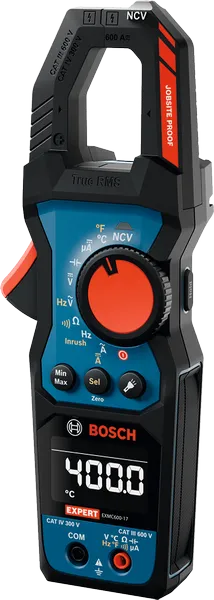

Bosch EXMC600-17 clamp meter with digital display.

Your Selected Variant

with 2 x battery (AA), Pouch, MH 1 0 601 077 500

Find a local dealer

Select a variant

Your Selection

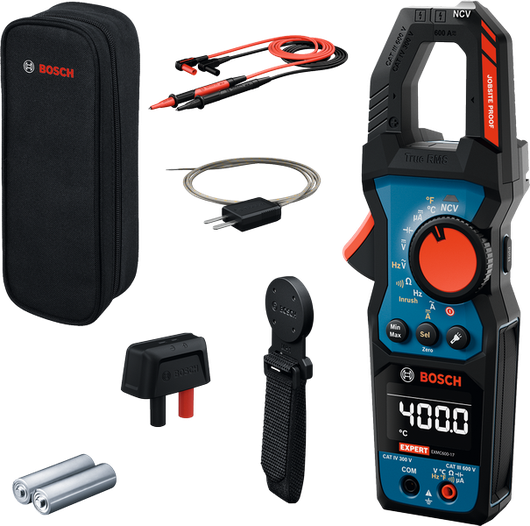

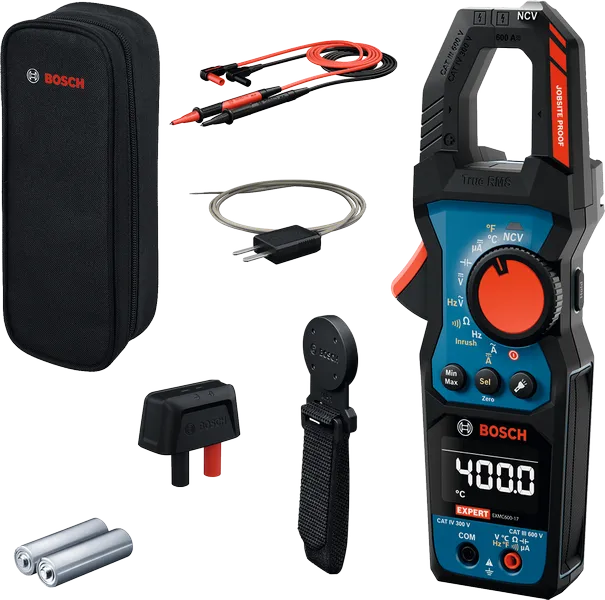

Bosch EXMC600-17 clamp meter set with accessories.

Included in this variant

Temperature Probe (Type K) Professional Part Number: 1 600 A03 8CU

Pouch

Thermocouple adapter

MS 90 Professional Part Number: 1 600 A03 8D2

MH 1 Professional Part Number: 1 600 A03 8CY

2 x 1.5 V LR6 battery (AA)

Select Variant

Product highlights

1

Durable: Built to last with IP54 protection and 2m drop resistance

2

HVAC & Additional Functions: Measures temperature and microamps, AC/DC current, inrush current, frequency, voltage, capacitance, and more

3

Inverted Display: High-contrast and large font for better readability

4

Job-Site Ready: Integrated non-contact voltage tester and flashlight for low-light conditions

5

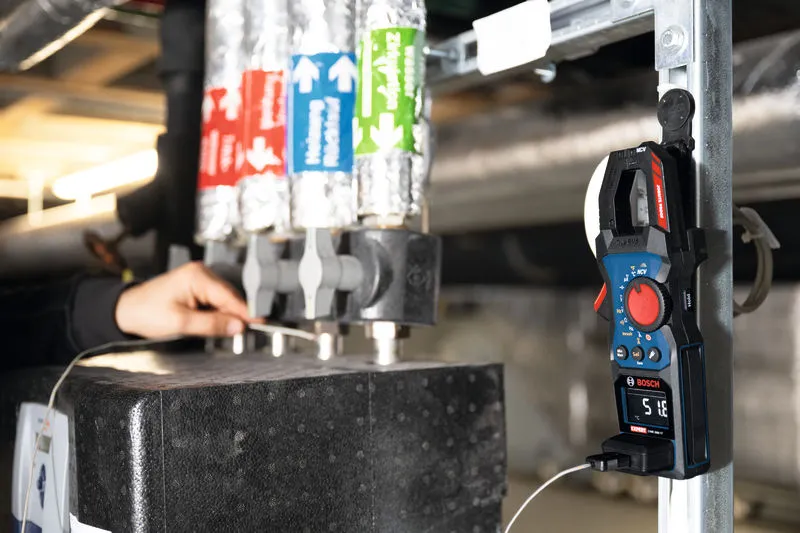

Compact, Ergonomic Design: For easy one-handed operation and magnetic hanger MH 1 Professional

6

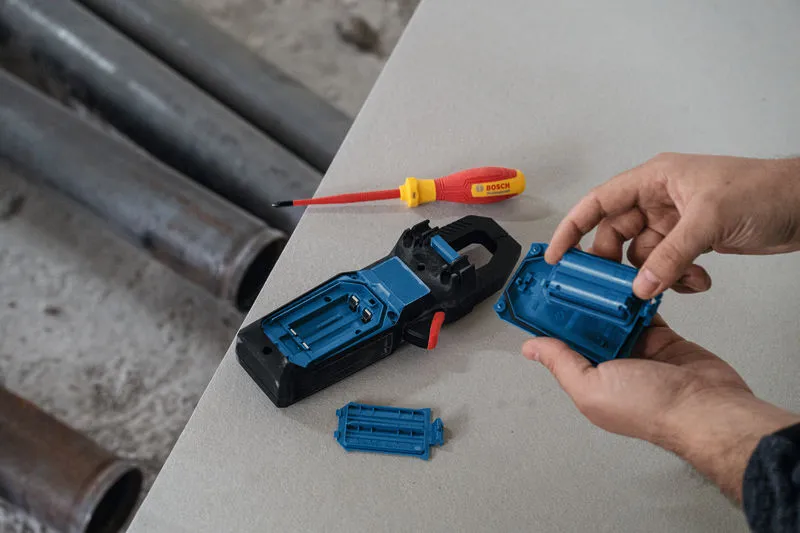

Dual Power Source: With 2 × 1.5V LR06 (AA) batteries or BA 3.7V 1.0 Ah A Professional for higher flexibility

Further functions & features

Product Highlights

The EXPERT EXMC600-17 is an advanced clamp meter with an attachable K-Type interface that measures temperatures from -40 to + 400°C. This versatile device measures AC/DC current up to 600 A, frequency and voltage, and much more, and has an integrated non-contact voltage tester and a flashlight. Its compact design enables easy one-handed operation and is compatible with the MH 1 Professional magnet hanging solution.

Equipment & Application

The EXPERT clamp meter measures AC and DC current up to 600 A and voltage up to 600 V AC/DC. It is compatible with the BA 3.7V 1.0 Ah A Professional Li-ion battery pack; MH 1 Professional magnetic hanger, MS 90 Professional test leads, and a Type K Professional temperature probe.

Additional Information

The EXPERT EXMC600-17 offers IP54 protection, 2 m drop resistance, an inverted display, CAT III 600 V/ CAT IV 300 V safety rating and a dual power source.

Fits to EXPERT EXMC600-17

BA 3.7V 1.0Ah A

Battery Pack

Continuous power supply for enduring jobs

£34.64

incl. VAT

£28.87

excl. VAT

Available

Find out more

MS 90

Test leads

Flexible measuring strips for precise electrical work

MH 1

Magnetic hanger

Magnetic hanger for hands-free efficiency

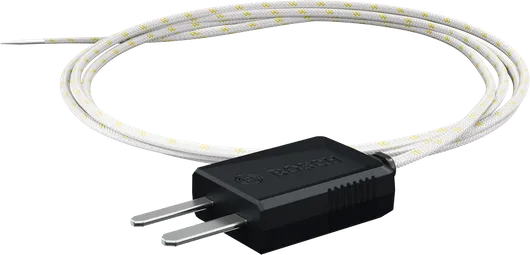

Temperature Probe (Type K)

Accessory

K-Type temperature probe with extended measuring range and 1m cable length

Technical data

The most important data
AC voltage	600 V
AC voltage resolution	0.1 V
AC current	600 A
AC current resolution	0.1 A
DC voltage	600 V
DC voltage resolution	0.1 V
DC current	600 A
DC current resolution	0.1
DC µA current	600 µA
Inrush current (A)	600 A
Resistance	60 MΩ
Capacitance	6000 µF
Continuity	yes
Temperature min	-40°C / -40°F
Temperature max	~400°C /~752°F
IP-Protection	IP54
True RMS	yes
Safety class	CAT III 600 V / CAT IV 300 V
Display type	LCD Inverted
Non-Contact-Voltage (NCV)	yes
Torch light	yes
Acoustic feedback	yes
Measuring range for frequency	10 kHz AC V / 1 kHz AC A
Continuity range	600 Ω
Packaging dimensions (width x length x height)	121 x 264 x 84 mm

Downloads

Instruction manual | EXMC600-17 (PDF 12.1 MB) Instruction manual | EXMC600-17 (Online version) Product data sheet | EXMC600-17 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601K77500

Product name

EXMC600-17

Description

Clamp meter

Go to spare part Browse spare parts catalogue
