EXPERT

EXPERT EXMM3-17

Name: EXMM3-17
Brand: Bosch power tools
SKU: 0601078300
Availability: OutOfStock

Material Moisture Meter

Order number 0.601.078.300

Three-sensor versatility for moisture analysis: pin (resistance measurement), pad (electromagnetic field measurement), and thermo-hygrometer (ambient temperature and relative humidity measurement).

Robust tool for tough jobsites: Impact-resistant design with rubber-enforced housing and IP65 rating.
Self-Test: Automatic self-test at start-up to ensure pin sensor accuracy.
Reference mode: Compares moisture levels in different areas using the sensor pad, with a dry zone as reference.

Select a variant

Your Selected Variant

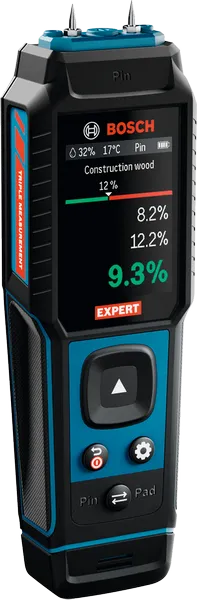

Bosch EXMM3-17 material moisture meter with digital display.

Your Selected Variant

with 2 x battery (AA), accessory set 0 601 078 300

Find a local dealer

Select a variant

Your Selection

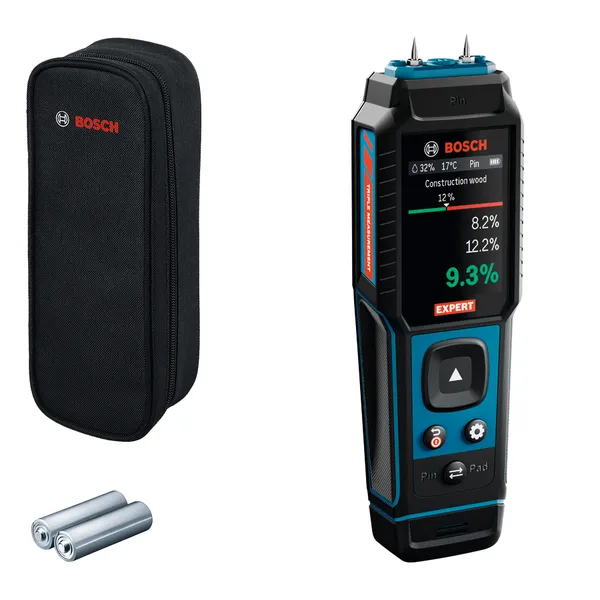

Bosch moisture measurer with display, case and batteries.

Included in this variant

Pouch

2 x 1.5 V LR6 battery (AA)

Select Variant

Product highlights

1

Thermo-Hygrometer: Monitors ambient temperature and relative humidity

2

LCD Color Display: Displays values with integrated colors for clearer and more intuitive interpretation

3

Moisture Sensor Switch: Simply press button for switching between pin and pad sensor measurements

4

Self-Test: Ensures accuracy with automatic self-test at start-up

5

Durable: Robust design with high IP65 protection and impact resistance

6

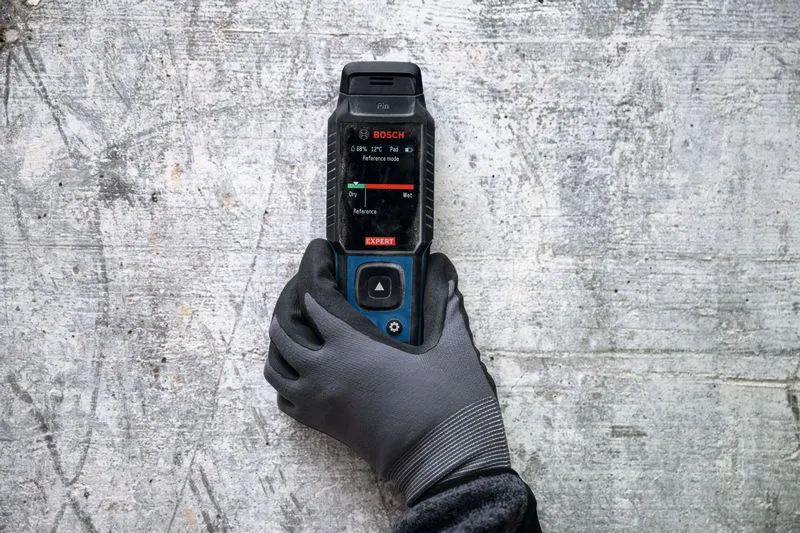

Reference Mode: Compares moisture levels using the sensor pad, with a dry zone as reference

Further functions & features

Product Highlights

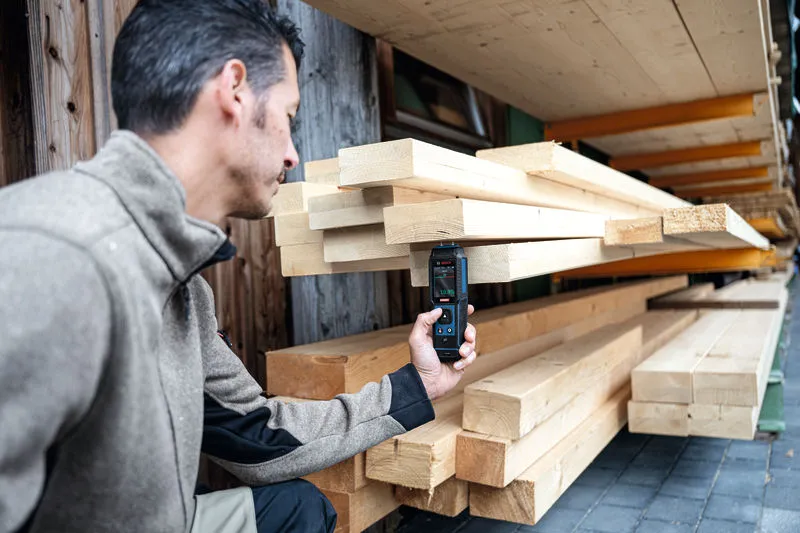

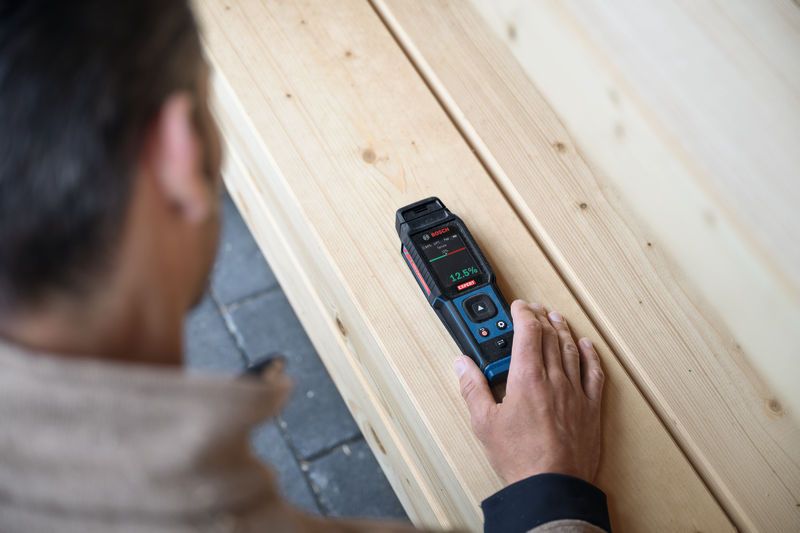

The EXPERT EXMM3-17 is a durable, impact-resistant moisture meter with a rubberized housing and IP65 rating. It measures moisture content in 37 types of wood and 10 types of building materials. It has a button for switching between non-invasive pad and invasive pin sensor measurements. The pad sensor enables quick scanning across larger areas, using a dry zone as a reference for comparison.

Equipment & Application

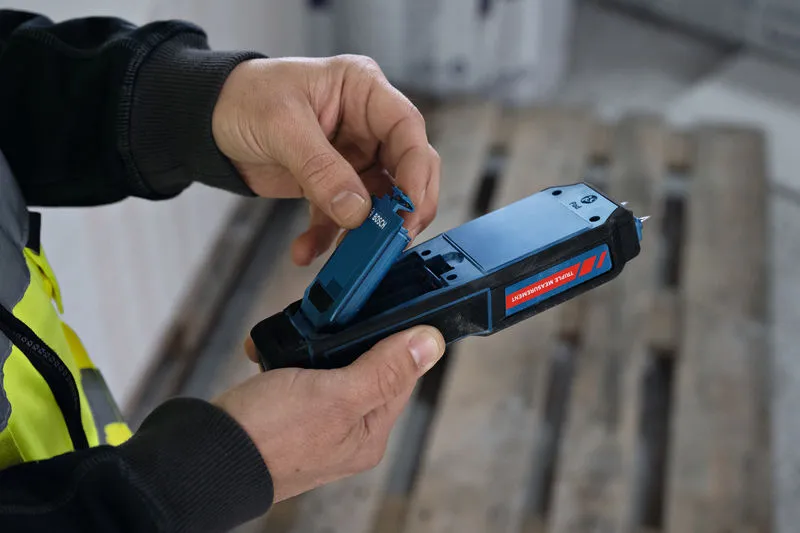

The EXPERT EXMM3-17 measures moisture content in 37 types of wood, 10 types of building materials and tracks ambient temperature as well as relative humidity. It is ideal for carpenters, drywallers, painters, facility managers, architects and plumbers to assess moisture levels and prevent damage or mold growth. Additionally, it is compatible with our battery pack BA 3.7V 1.0Ah A.

Fits to EXPERT EXMM3-17

BA 3.7V 1.0Ah A

Battery Pack

Continuous power supply for enduring jobs

£34.64

incl. VAT

£28.87

excl. VAT

Available

Find out more

Technical data

The most important data
Dust and splash protection*	IP 65
Weight*	0.19 kg
Display type	TFT LCD
Size of display	2.4"
Display resolution	240 Pixel x 320 Pixel
Operating temperature	-20 – 50 °C
Storage temperature	-20 – 70 °C
Measuring accuracy (typical)*	Pin mode (resistance), ±1% , Pad mode (capacitive), ±4% in wooden materials
Number of batteries	2
Battery type	1.5 V LR6 (AA)
Moisture measuring accuracy	Pin mode: ±1%, Pad Mode: Wood Material: ±4%, Building material: Relative Value
Humidity measuring range	5% - 95%RH
Humidity measuring accuracy	5% to 90% RH - ±3%RH
Temperature measuring range	-20°C to +50 °C
Temperature measuring accuracy	± 1 °C
Packaging dimensions (width x length x height)	103 x 218 x 83 mm
Tool dimensions (L x W x H)	187 x 60 x 32
Measuring depth	0-30 mm

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXMM3-17 (PDF 10.9 MB) Instruction manual | EXMM3-17 (Online version) Product data sheet | EXMM3-17 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601K78300

Product name

EXMM3-17

Description

Material Moisture Meter

Go to spare part Browse spare parts catalogue
