EXPERT EXNH18V-90D

Name: EXPERT EXNH18V-90D
Brand: Bosch power tools
SKU: 06019R1002
Availability: OutOfStock

Cordless Wood Nailer

Order number 0.601.9R1.002

Cordless freedom with the power of a pneumatic tool.¹

Pneumatic Equivalent Power: Consistently drives 90 mm nails thanks to 18V air-spring system with user-refillable air tank
Full Power Tech+: Built-in Schrader valve enables on-site air tank refills, delivering full power every day and reducing downtime
High-Grip Nose: Aggressive work contact element for a superior skew nailing experience

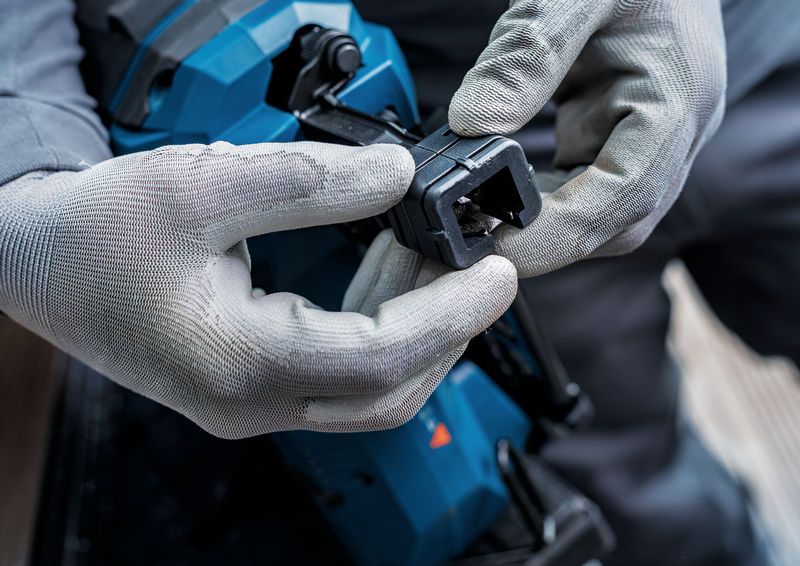

No-mar Tip: Prevents surface damage on fence palings and other finished surfaces

¹ Internal test, fully sunk 90 mm nails into 100 mm LVL (made of SPF), fully charged battery*

Select a variant

Your Selected Variant

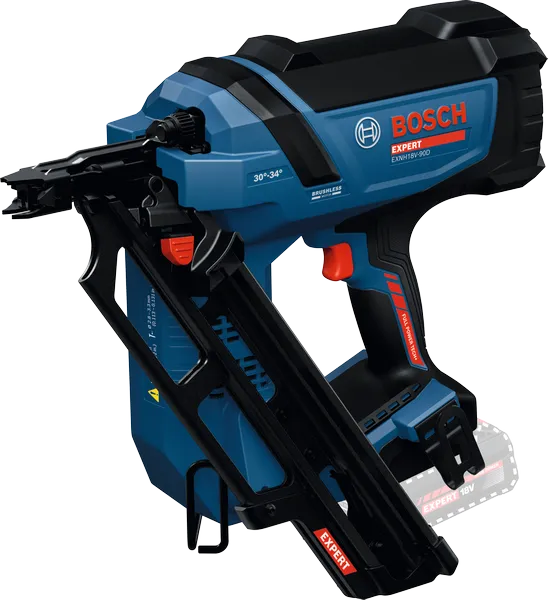

Bosch EXNH18V-90D cordless wood nailer for expert use.

Your Selected Variant

EXPERT EXNH18V-90D Professional 0 601 9R1 002

Find a local EXPERT dealer

Select a variant

Your Selection

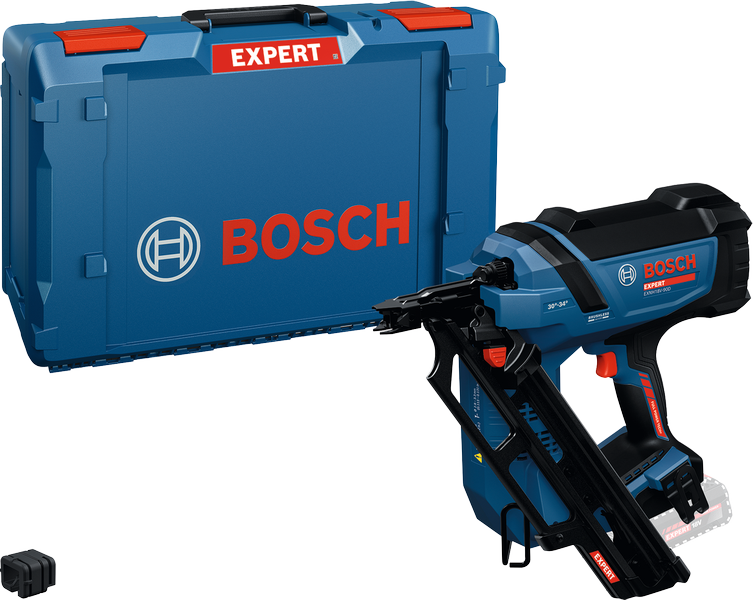

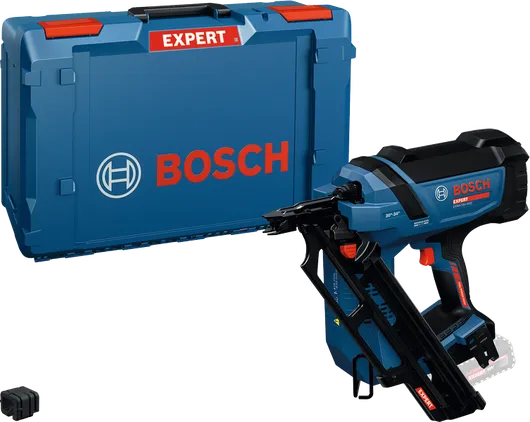

Bosch EXNH18V-90D cordless nailer with case.

Included in this variant

XL-BOXX inlay for EXNH18V-90 Part Number: 6 082 850 7MJ

No-mar tip Part Number: 1 619 PS4 507

XL-BOXX Part Number: 1 605 438 1JG

Select Variant

Product highlights

1

Pneumatic Equivalent Power: Consistently drives 90 mm nails thanks to 18V air-spring system with user-refillable air tank.

2

Full Power Tech+: Built-in Schrader valve enables on-site air tank refills, delivering full power every day and reducing downtime.

3

High-Grip Nose: Aggressive work contact element for a superior skew nailing experience

4

No-mar Tip: Prevents surface damage on fence palings and other finished surfaces

5

Extended Magazine Option: Standard 57-nail magazine or optional extended magazine with 105-nail capacity

6

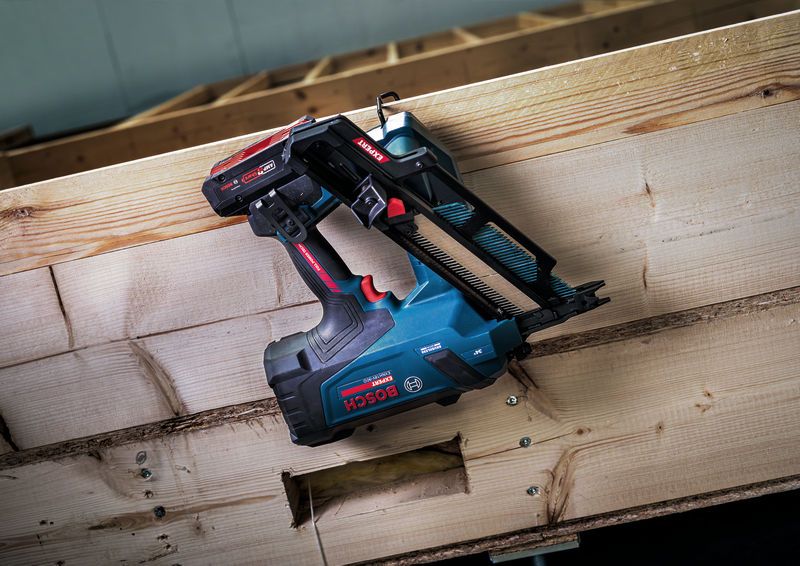

Belt Clip and Rafter Hook: Standard belt clip and large rafter hook for 2-inch/55 mm joists and rafters

Further functions & features

Product Highlights

The EXPERT EXNH18V-90D is an 18V gasless 30-degree framing nailer with the power of a pneumatic tool. It has a built-in Schrader valve for easy air tank refills, ensuring consistent nail-driving force and unmatched productivity. Simply refill to 115 PSI yourself and avoid service centre downtime. It is equipped with a gasless 18V high-performance air spring system, completely eliminating expensive gas cartridges and exposure to harmful fumes. This tool has a high-grip nose for effortless skew nailing. The standard magazine holds up to 57 nails, while the optional extended magazine fits up to 105 nails. Standard equipment with this nailer includes a belt clip and large rafter hook for 2-inch/55 mm joists and rafters, and a rubber no-mar tip that prevents workpiece damage on fence palings and other finished surfaces.

Equipment & Application

The perfect tool for general contractors and framing carpenters. It's the ideal choice for construction of timber wall frames, roof frames, and sub-floor structures. Effortlessly drives 90 mm nails into solid pine and LVL. Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare.

Technical data

The most important data
Collation angle	34 °

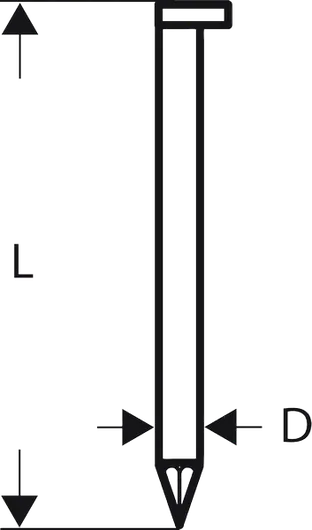

Nail diameter	2.8 – 3.3 mm
Nail length	50 – 90 mm
Nail/Staple type	Clipped head strip nail
Triggering system	Full sequential actuation
Weight excl. battery*	4.5 kg
Battery voltage	18.0 V
Magazine capacity	58 Pcs
Packaging dimensions (width x length x height)	394 x 607 x 238 mm
Compatible nails/staples	Bosch nails

Noise/vibration information
Sound pressure level	97 dB(A)
Sound power level	108 dB(A)
Uncertainty K	3 dB

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXNH18V-90R,EXNH ... XNH18V-90M,EXNH18V-90MD (PDF 31.4 MB) Insert | Herstellergarantie,Manufacturer's guarantee (EU) (PDF 0.2 MB) Product data sheet | EXPERT EXNH18V-90D (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601JR1002

Product name

EXPERT EXNH18V-90D

Description

Cordless Wood Nailer

Go to spare part Browse spare parts catalogue
