EXPERT

EXPERT EXNH18V-90MD

Name: EXPERT EXNH18V-90MD
Brand: Bosch power tools
SKU: 06019R1102
Availability: OutOfStock

Cordless Nailer

Order number 0.601.9R1.102

Cordless freedom with the power of a pneumatic tool.¹

Pneumatic Equivalent Power: Consistently drives 90 mm nails thanks to its 18V air-spring system with user-refillable air tank
Full Power Tech+: Built-in Schrader valve allows for on-site air tank refills, delivering full power everyday, and reduced downtime
High-Grip Nose: Aggressive work contact element for a superior skew nailing experience
Bump Fire Mode: Switch between single fire and contact actuation, to fire up to 3 nails per second

¹ Internal test, fully sunk 90 mm nails into 100 mm LVL (made of SPF), fully charged battery*

Select a variant

Your Selected Variant

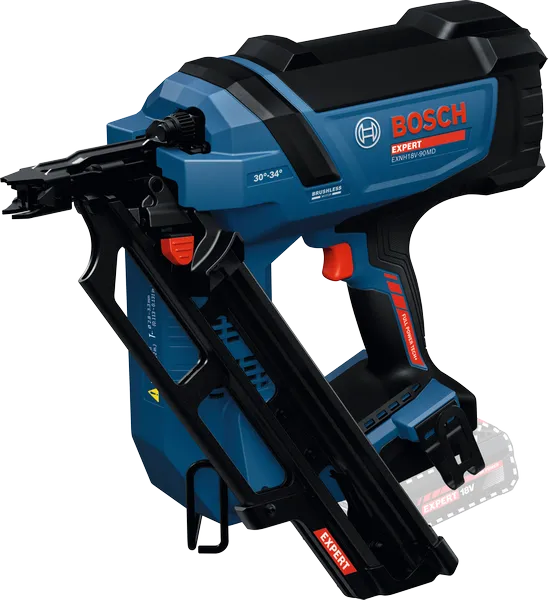

Bosch EXNH18V-90MD cordless nail gun for framing.

Your Selected Variant

EXPERT EXNH18V-90MD Professional 0 601 9R1 102

Find a local EXPERT dealer

Select a variant

Your Selection

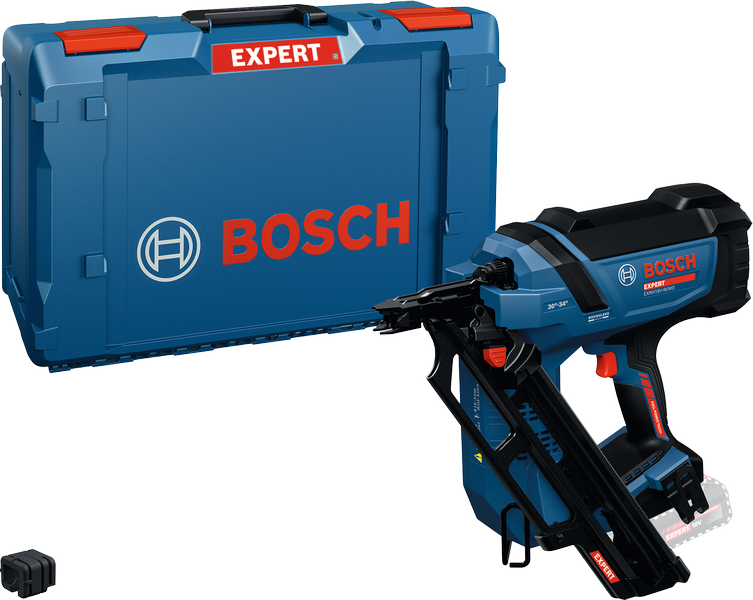

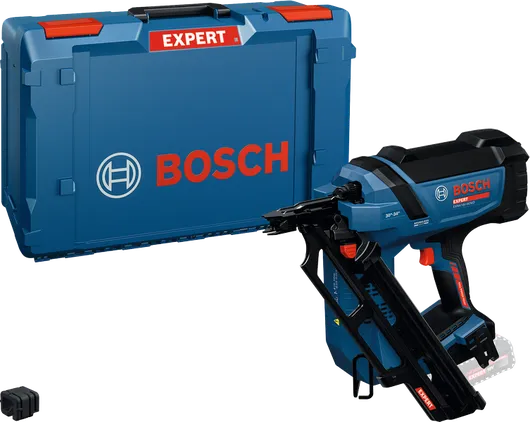

Bosch cordless nailer EXNH18V-90MD with carrying case.

Included in this variant

XL-BOXX inlay for EXNH18V-90 Part Number: 6 082 850 7MJ

No-mar tip Part Number: 1 619 PS4 507

XL-BOXX Part Number: 1 605 438 1JG

Select Variant

Product highlights

1

Pneumatic Equivalent Power: Consistently drives 90 mm nails thanks to 18V air-spring system with user-refillable air tank.

2

Full Power Tech+: Built-in Schrader valve enables on-site air tank refills, delivering full power every day and reducing downtime.

3

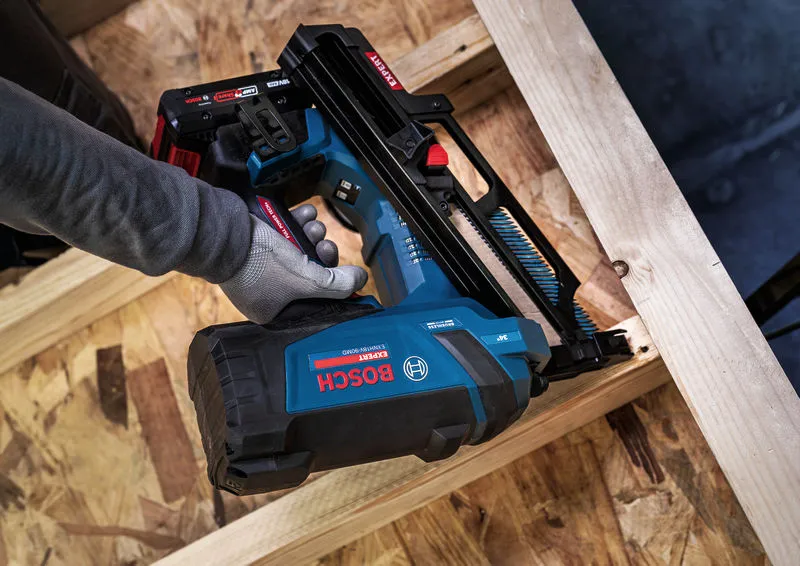

High-Grip Nose: Aggressive work contact element for a superior skew nailing experience

4

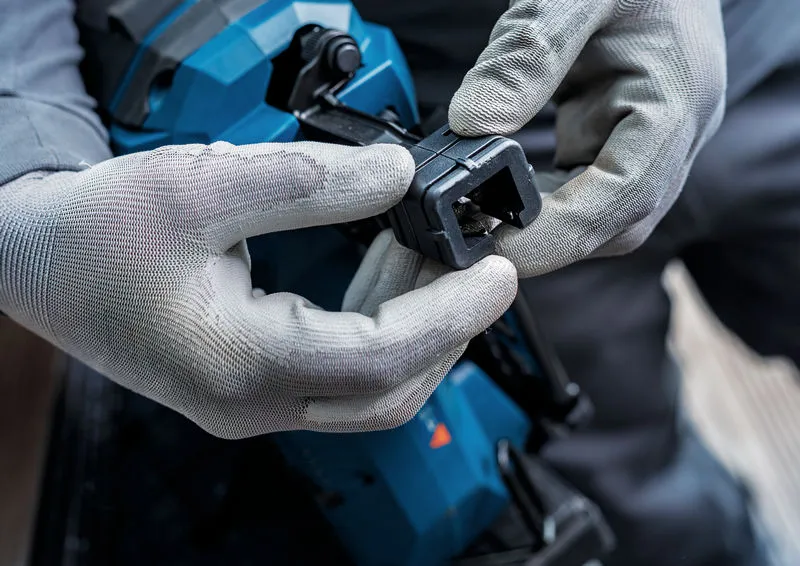

No-mar Tip: Prevents surface damage on fence palings and other finished surfaces

5

Extended Magazine Option: Standard 57-nail magazine or optional extended magazine with 105-nail capacity

6

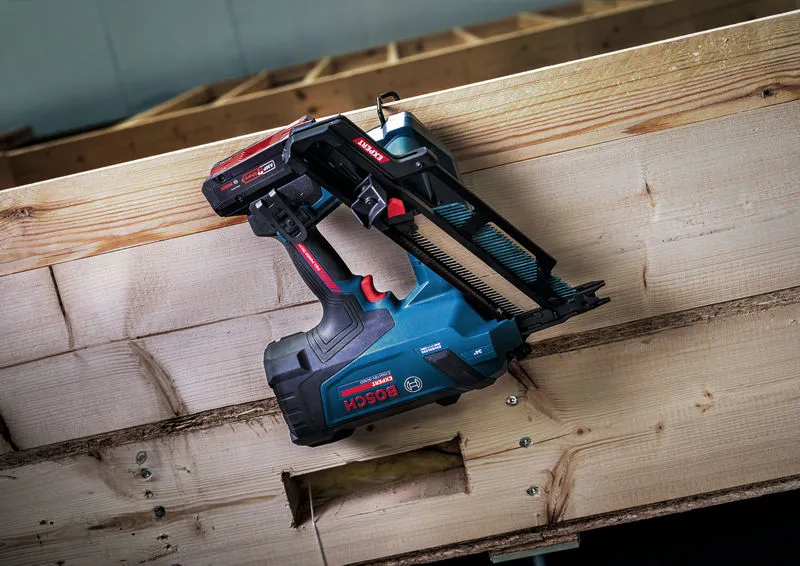

Belt Clip and Rafter Hook: Standard belt clip and large rafter hook for 2-inch/55 mm joists and rafters

Further functions & features

Product Highlights

The EXPERT EXNH18V-90MD is an 18V gasless 30-degree framing nailer with the power of a pneumatic tool. It has a built-in Schrader valve for easy air tank refills, ensuring consistent nail-driving force and unmatched productivity. Simply refill to 115 PSI yourself and avoid service centre downtime. It is equipped with a gasless 18V high-performance air spring system, completely eliminating expensive gas cartridges and exposure to harmful fumes. The tool has a high-grip nose for effortless skew nailing, and bump-fire mode, enabling up to 3 nails per second. The standard magazine holds up to 57 nails, while the optional extended magazine fits up to 105 nails. Standard equipment with this nailer includes a belt clip and large rafter hook for 2-inch/55 mm joists and rafters, and a rubber no-mar tip that prevents workpiece damage on fence palings and other finished surfaces.

Equipment & Application

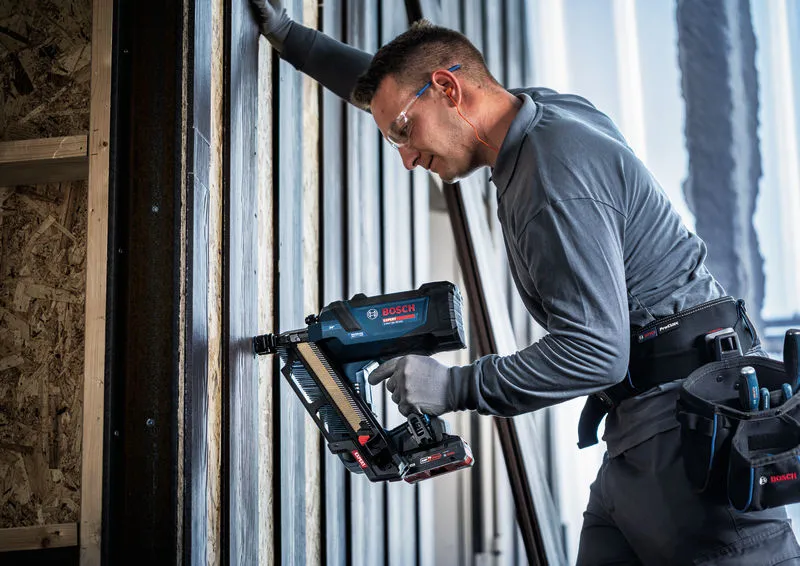

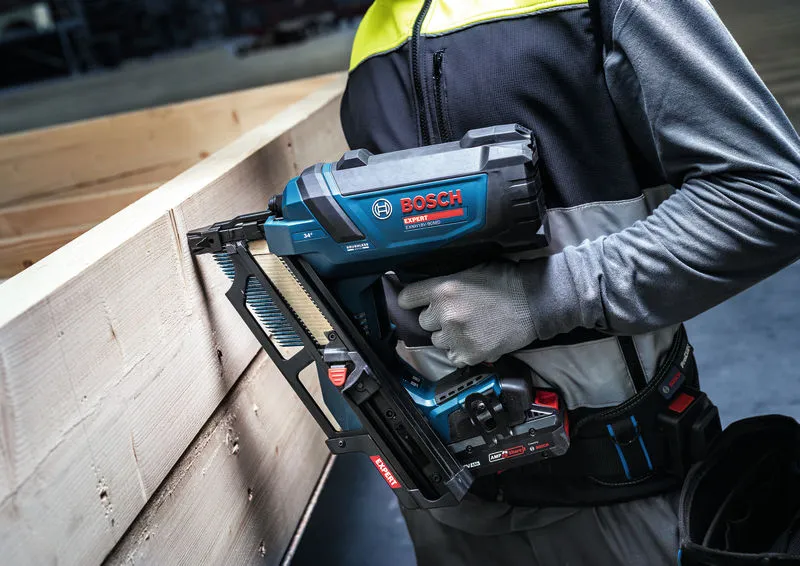

The perfect tool for general contractors and framing carpenters. It's the ideal choice for construction of timber wall frames, roof frames and sub-floor structures. Effortlessly drives 90 mm nails into solid pine and LVL. Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare.

Technical data

The most important data
Collation angle	34 °

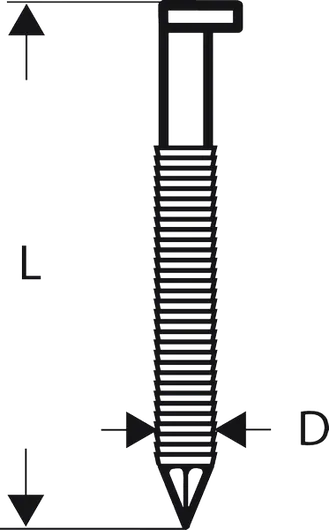

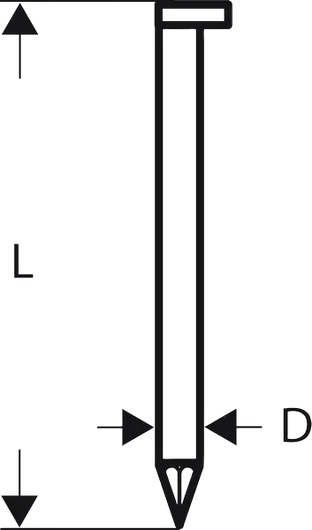

Nail diameter	2.8 – 3.3 mm
Nail length	50 – 90 mm
Nail/Staple type	Clipped head strip nail
Triggering system	Full sequential actuation + contact actuation with automatic reversion
Weight excl. battery*	4.5 kg
Battery voltage	18.0 V
Magazine capacity	58 Pcs
Packaging dimensions (width x length x height)	394 x 607 x 238 mm
Compatible nails/staples	Bosch nails
BITURBO	No

Noise/vibration information
Sound pressure level	97 dB(A)
Sound power level	108 dB(A)
Uncertainty K	3 dB

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXNH18V-90R,EXNH ... XNH18V-90M,EXNH18V-90MD (PDF 31.4 MB) Insert | Herstellergarantie,Manufacturer's guarantee (EU) (PDF 0.2 MB) Product data sheet | EXPERT EXNH18V-90MD (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601JR1102

Product name

EXPERT EXNH18V-90MD

Description

Cordless Nailer

Go to spare part Browse spare parts catalogue
