EXPERT EXTC18V-650-17C

Name: EXPERT EXTC18V-650-17C
Brand: Bosch Professional
SKU: 0601083870
Availability: OutOfStock

Thermo Camera

Order number 0.601.083.870

Up to eight times more measurement points, enabled by AI Image Boost and a higher IR resolution of 384 x 288 pixels¹

Exceptionally precise indoor and outdoor thermal images thanks to a high-resolution infrared imaging and Bosch AI Image Boost Technology

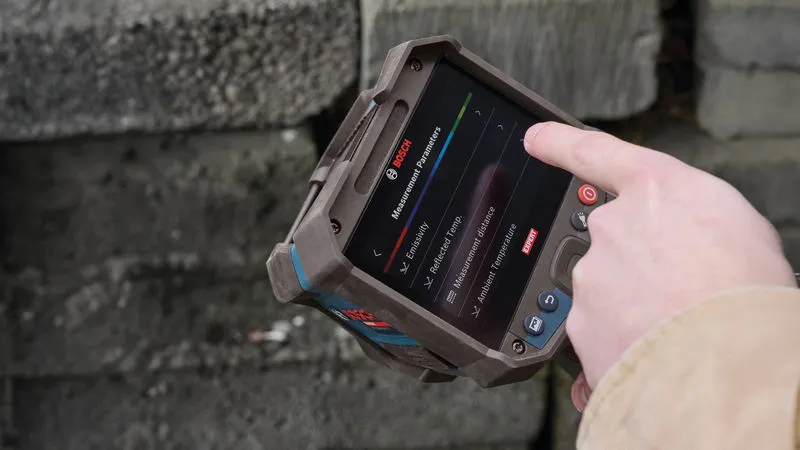

Comfortable design with a 4.3” wide touchscreen display and smart functions at your fingertips

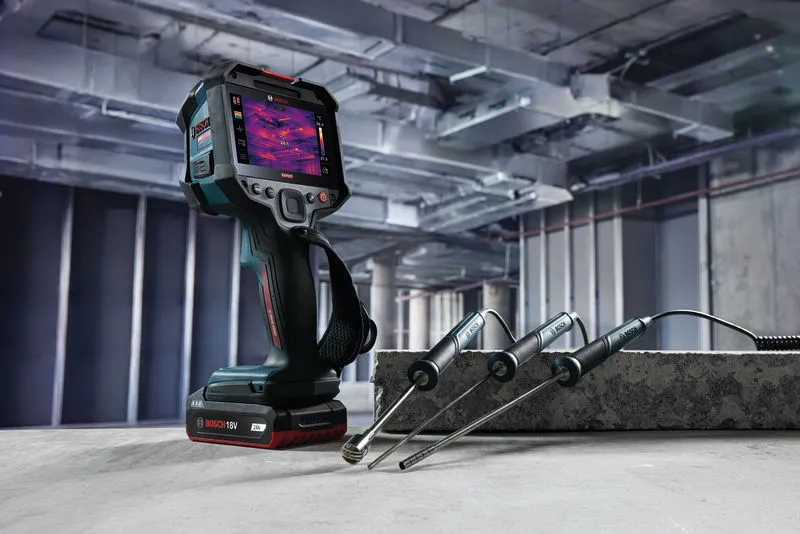

Temperature Probe Type K interface and LED work light for measuring a wider range of temperatures in more applications
The 18V battery delivers long-lasting performance, so you can work without interruptions

¹ *EXTC18V-650-17C with AI Image Boost on vs. PRO GTC18V-600-16C*

Select a variant

Your Selected Variant

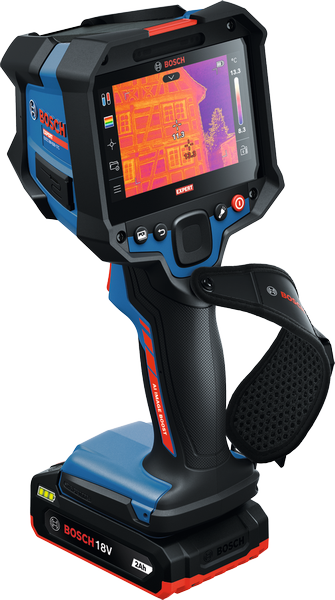

Bosch EXTC18V-650-17C thermo camera for heat detection.

Your Selected Variant

in L-BOXX 136 0 601 083 870

Find a local EXPERT dealer

Select a variant

Your Selection

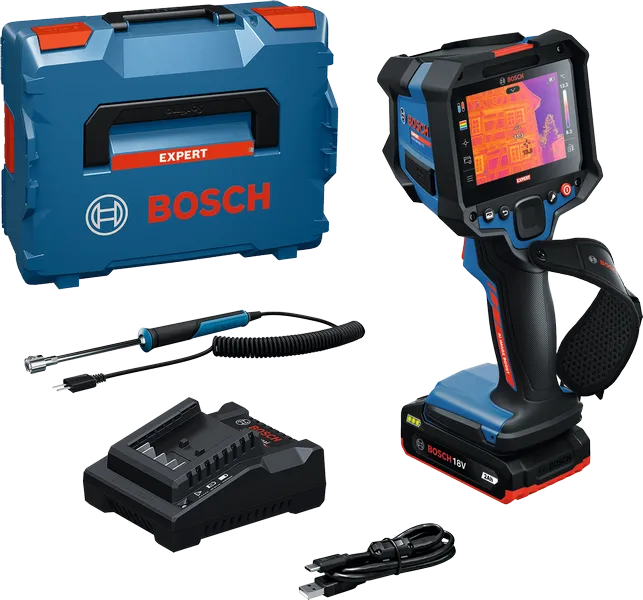

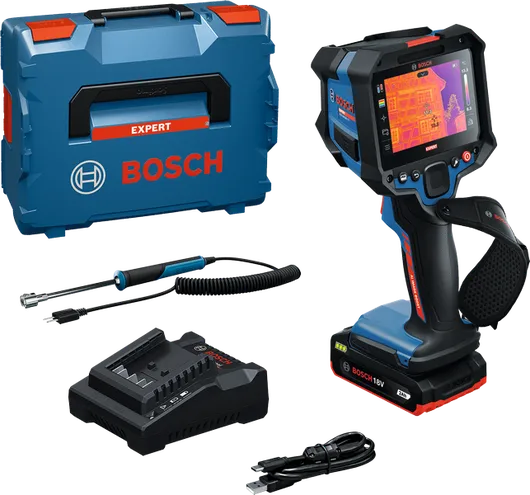

Bosch EXTC18V-650-17C thermal imaging camera kit.

New

Coming soon

Included in this variant

L-BOXX 136 Part Number: 1 600 A01 2G0

USB-C cable Part Number: 1 600 A02 4N2

Temperature Probe (Type K) Surface Part Number: 1 619 PC5 246

1 x battery GBA 18V 2.0Ah Part Number: 1 617 B00 0J0

Charger GAL 18V-20 Part Number: 1 600 A03 66W

Select Variant

Further functions & features

Product Highlights

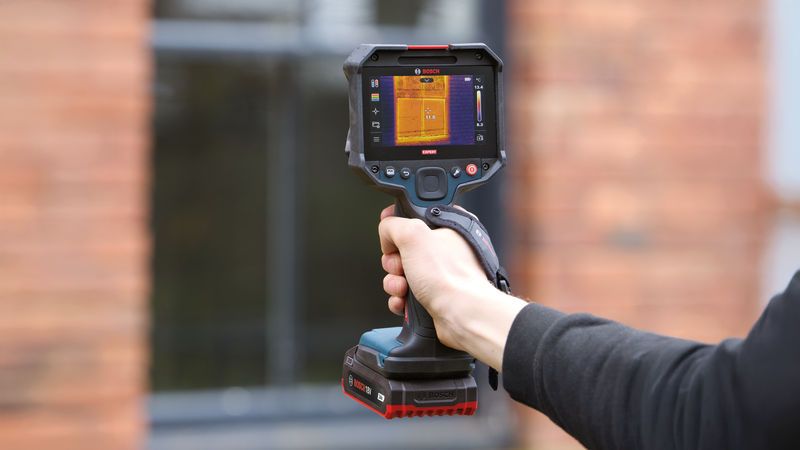

More precise thermal images allow you to complete more tasks with your thermal camera. We designed the EXTC18V-650-17C Thermal Camera to help you get high-precision thermal readings in most indoor and outdoor applications. Thanks to Bosch AI Image Boost Technology and a high-resolution infrared (IR) imaging of 384 x 288 pixels, you can now take ultra-sharp and fine-detailed thermal images across a wide temperature range, from -30°C to +650°C. The tool has a comfortable design with a 4.3” wide touchscreen display and keypad tested by real users in real work environments. It comes with a Temperature Probe Type K interface, LED work light and a laser for measuring an even wider range of temperatures in more applications. Plus, it comes with the smart functions Contours, Sharpen and Small Objects compensation, which provide you an even better image quality to see more details.

Equipment & Application

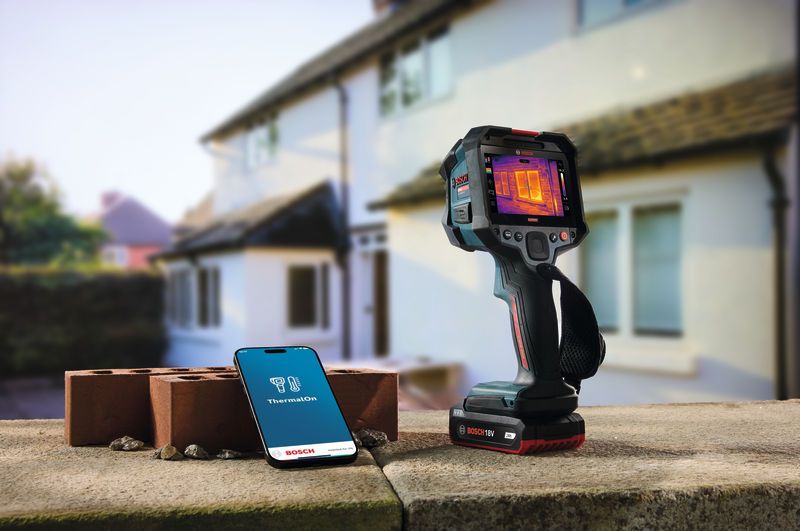

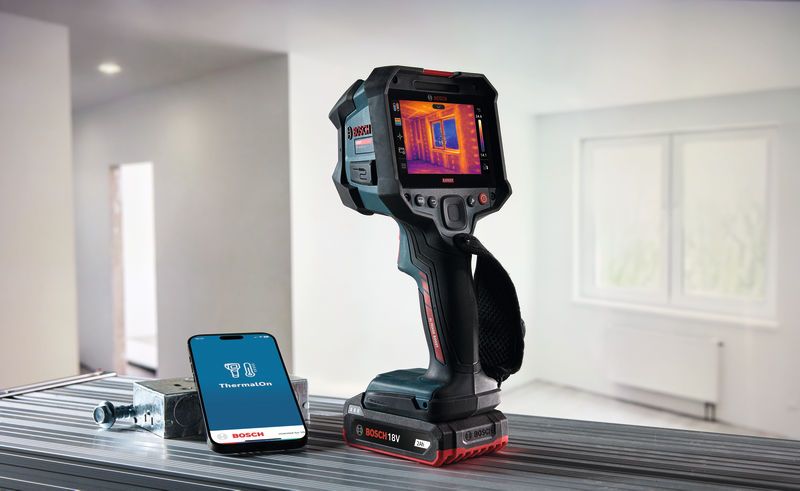

The thermal camera has a hard-wearing IP54-rated body and lens protection. Thanks to Wi-Fi connectivity, voice notes, and data storage options, you can document, process, edit and manage images directly in the tool and transfer measurements instantly to the Bosch ThermalOn app. It runs on an 18V battery, offering long-lasting performance.

Additional Information

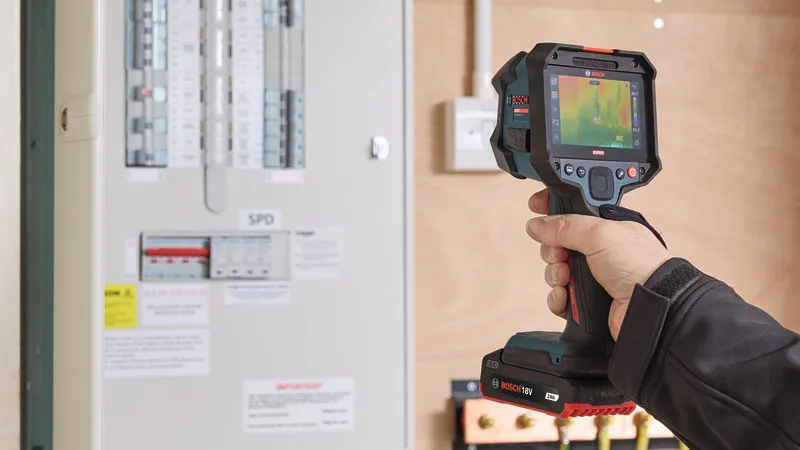

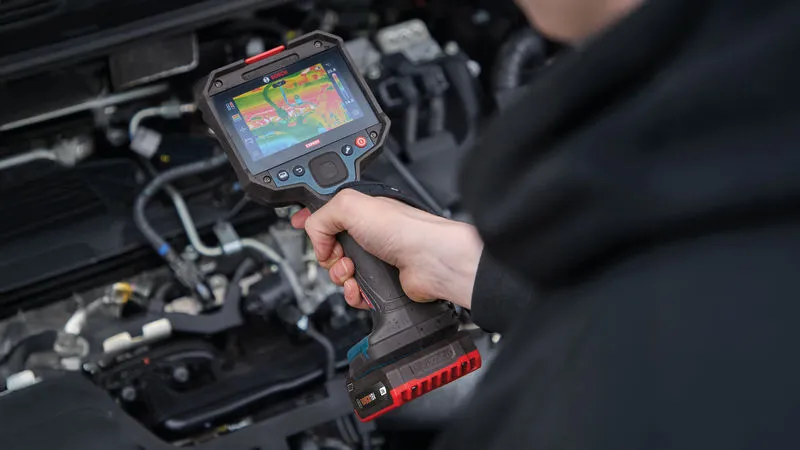

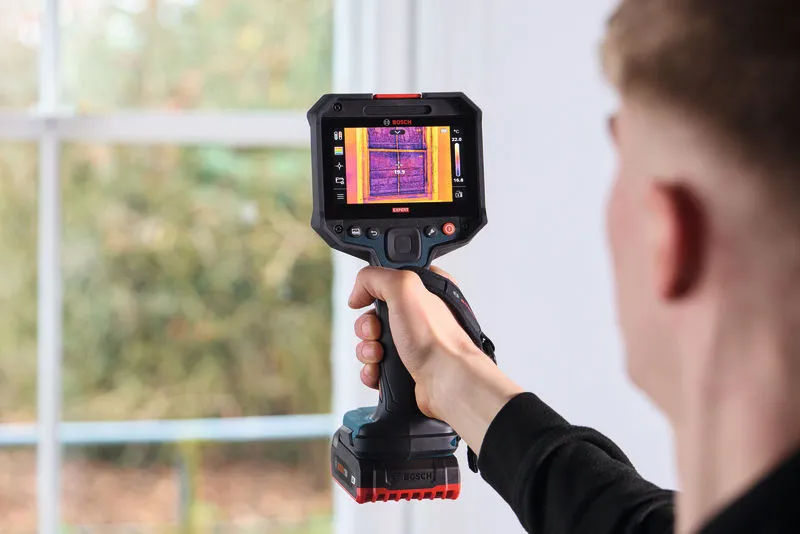

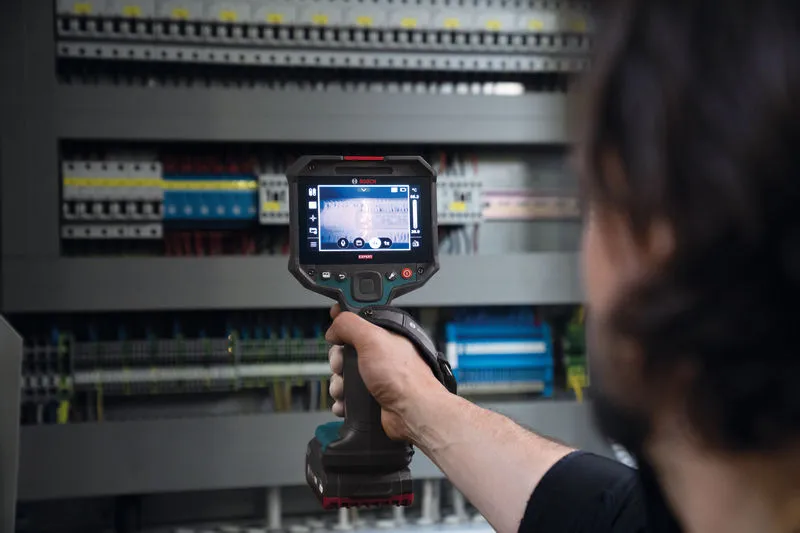

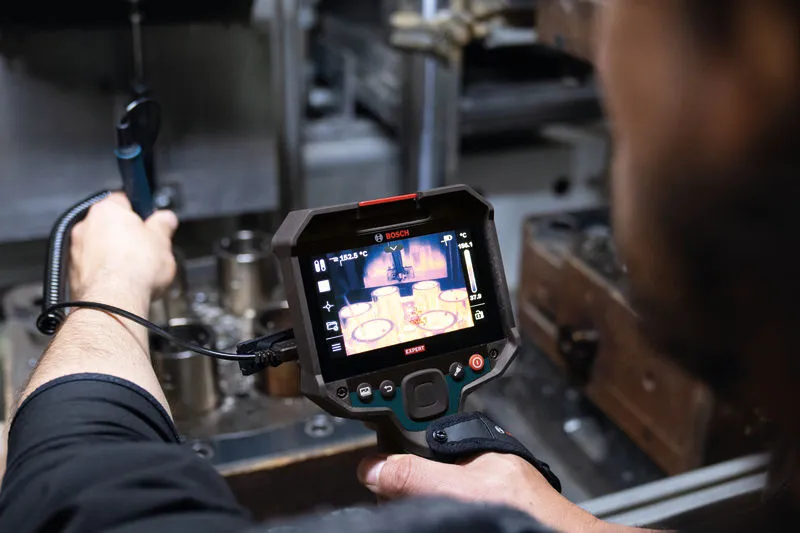

The EXTC18V-650-17C Thermal Camera is ideal for a wide range of applications, including the inspection of heating and insulation systems, electrical fuses, and machine components.

Technical data

The most important data
Battery voltage	18 V Li-Ion battery
Measurement range*	-30 °C to +650 °C
Measuring accuracy of IR*	± 2.0 °C
Resolution	0.1 °C
Laser diode	630 - 640 nm, < 1 mW
Thermal sensitivity (NETD)	<=40 mK
Power supply and runtime	18 V Li-Ion battery
Frame buffer (number of images)	5,000
Memory type	internal memory, microSD
File format of image	.jpg
Data transfer	Wi-Fi
Shock protection	2 m
Dust and splash protection*	IP54
Display type	Capacitive touchscreen
Size of display	4.3"
Operating temperature	-10 – 45 °C
Storage temperature	-20 – 70 °C
Focus distance, minimum	0.5 m
Thermal image refresh rate	25 Hz
Frame buffer (number of images each with audio)	2,000
Tool dimensions (L x W x H)	128 x 122 x 257 mm
Net weight	0.766 kg
Packaging dimensions (width x length x height)	360 x 440 x 140 mm
Gross weight	4.16 kg
IR image sharpening	Yes
Compensation for measuring small objects	Yes
IR Image with contours	Yes
Advanced gallery for viewing images	Yes
AI Image Boost	Yes

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | EXTC18V-650-17C (PDF 11.6 MB) Instruction manual | GAL 18V-20 (II) (PDF 2.4 MB) Insert | Manufacturer Certificate (PDF 1.7 MB) EU Declaration of Conformity | EXTC18V-650-17C (PDF 0.1 MB) GB Declaration of Conformity | EXTC18V-650-17C (PDF 0.3 MB) Instruction manual | GAL 18V-20 (II) (Online version) Instruction manual | EXTC18V-650-17C (Online version) Instruction manual | GAL 18V-20 (II) (Online version) Product data sheet | EXPERT EXTC18V-650-17C (PDF 1.5 MB) Software update GLM Transfer Software

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
